SKU: HLSWHR12-13-275-CR
Crosby® 1/2" x 2-3/4" Heavy Duty Swivel Hoist Ring - HR-1000
Authorized Distributor
$238.00
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options

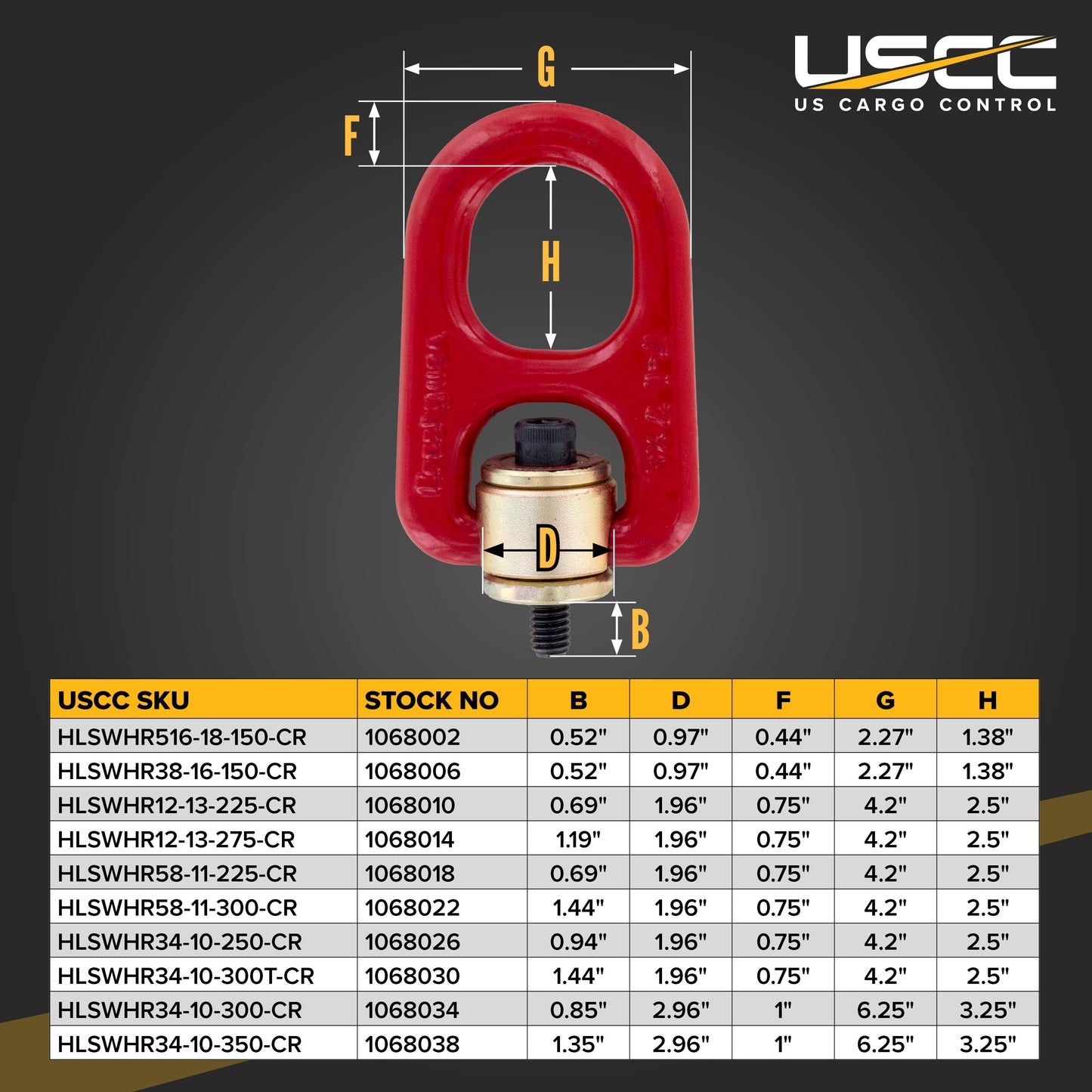

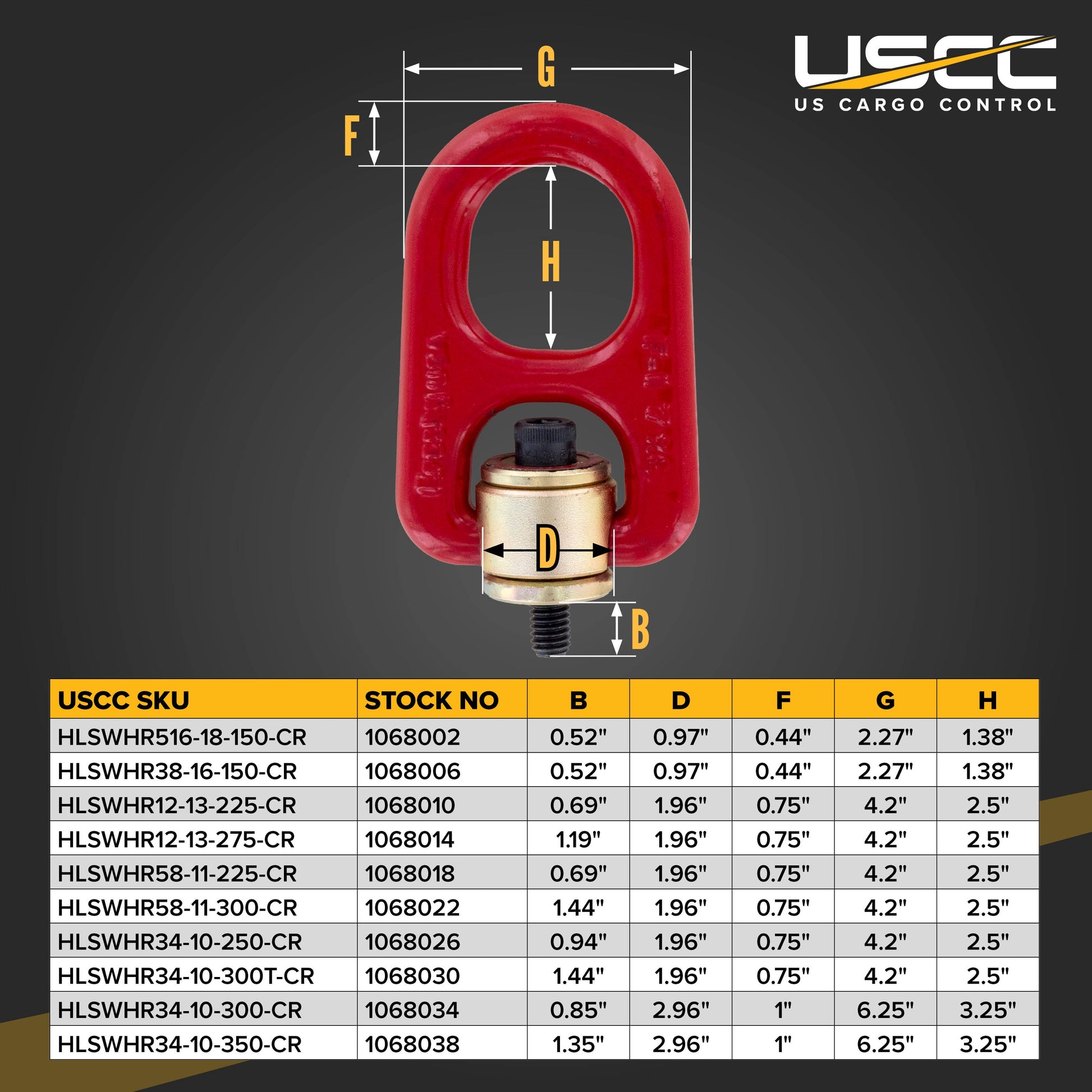

Specifications
Working Load Limit: 2,500 lbs.
Safety Factor: 5:1
Rated for Overhead Lifting: Yes
Diameter: 1/2" - 13 Bolt Diameter
Length: 2-3/4" Bolt Length
Thread Type: UNC
Finish: Self-Colored
Torque: 28ft-lbs
Product Weight: 3.07 lbs.
Standards: Meets or exceeds ASME B30.26 requirements.
Manufacturer Name: Crosby®
Brand Part Number: 1068014
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Effective Thread Projection: 1-1/5 in
Description

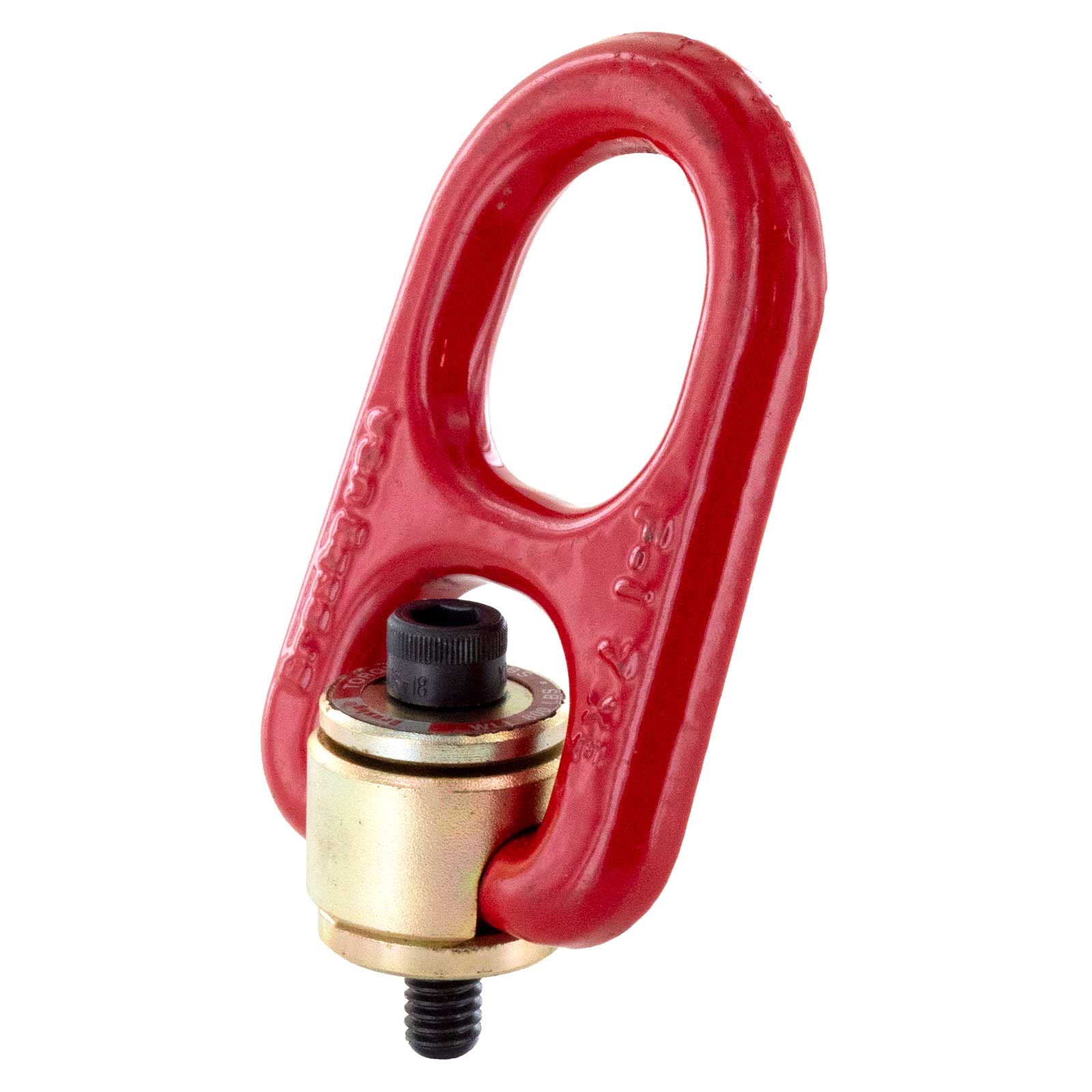

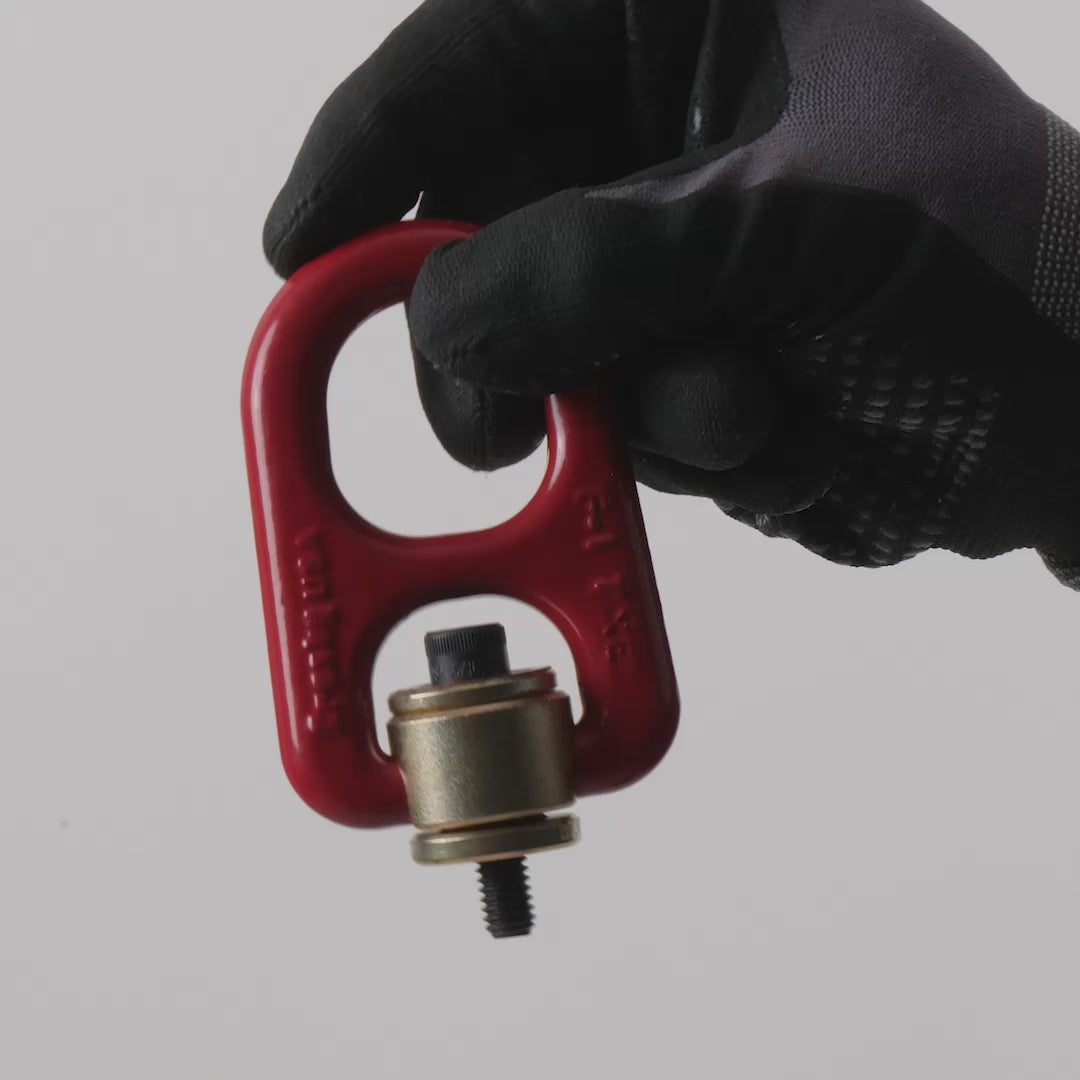

Crosby® HR-1000 Heavy Lift Swivel Hoist Ring
This Crosby® HR-1000 Heavy Lift Hoist Ring - 1/2" bolt diameter, 2-3/4" bolt length - is built for the applications where standard hoist ring bail clearance isn't enough and field conditions demand more durability. The oversized forged bail makes hook and rigging attachment faster and reduces interference under load, while 360° swivel and 180° pivot keep 100% WLL available from any angle.
Why Choose Crosby® HR-1000 Heavy Lift Hoist Rings?
When loads are heavy, field conditions are rough, and standard hoist ring bail clearance isn't enough, the HR-1000 is the correct tool.
Heavier-Built for Demanding Field Use

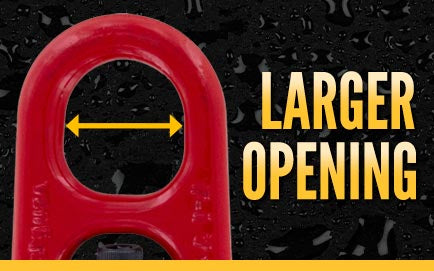

- Larger Forged Bail: The oversized forged bail provides more clearance for sling hooks and rigging hardware than standard hoist ring designs, making hook attachment faster and reducing interference under load.

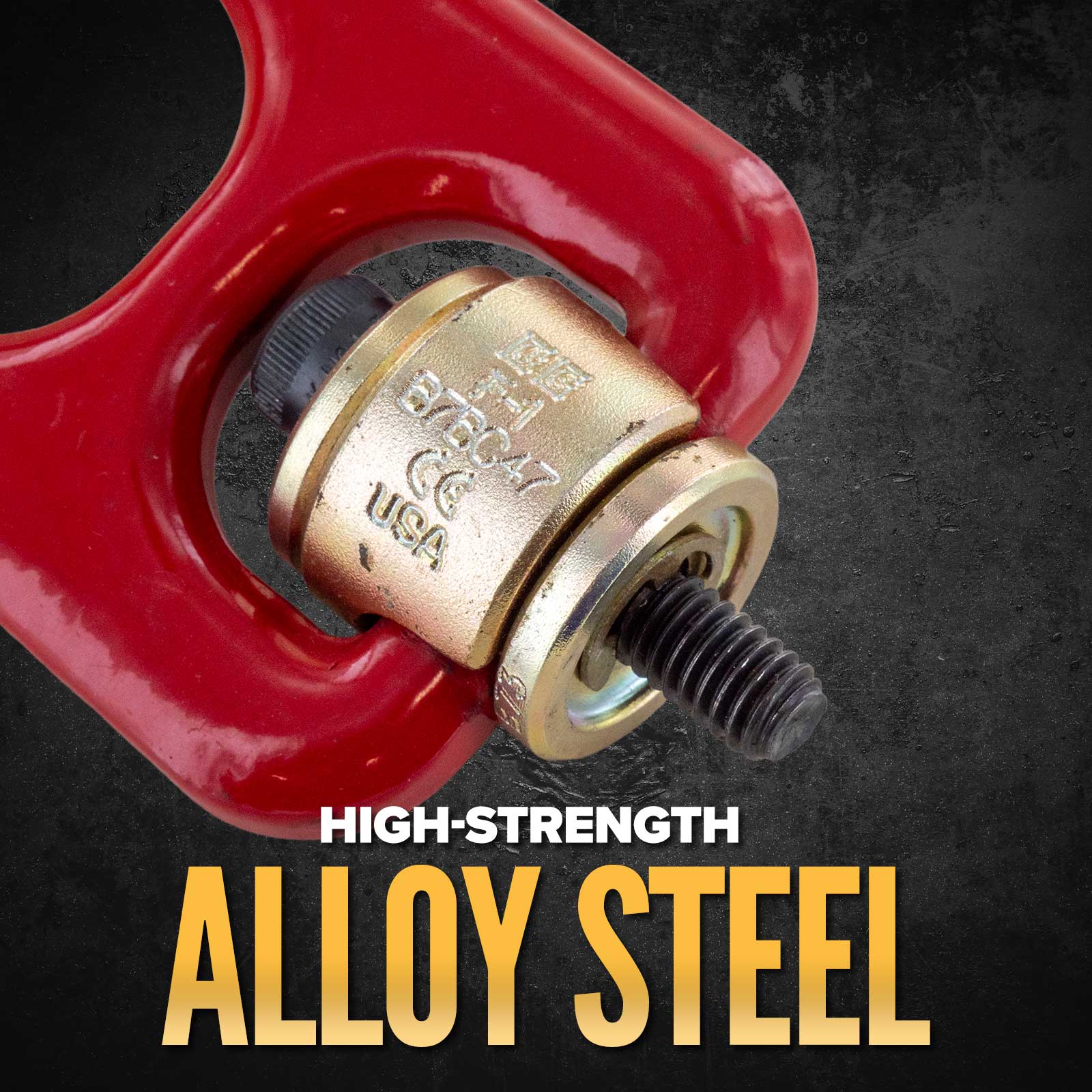

- Quenched and Tempered Alloy Steel: All load-bearing components are heat treated for toughness and fatigue resistance in demanding field environments.

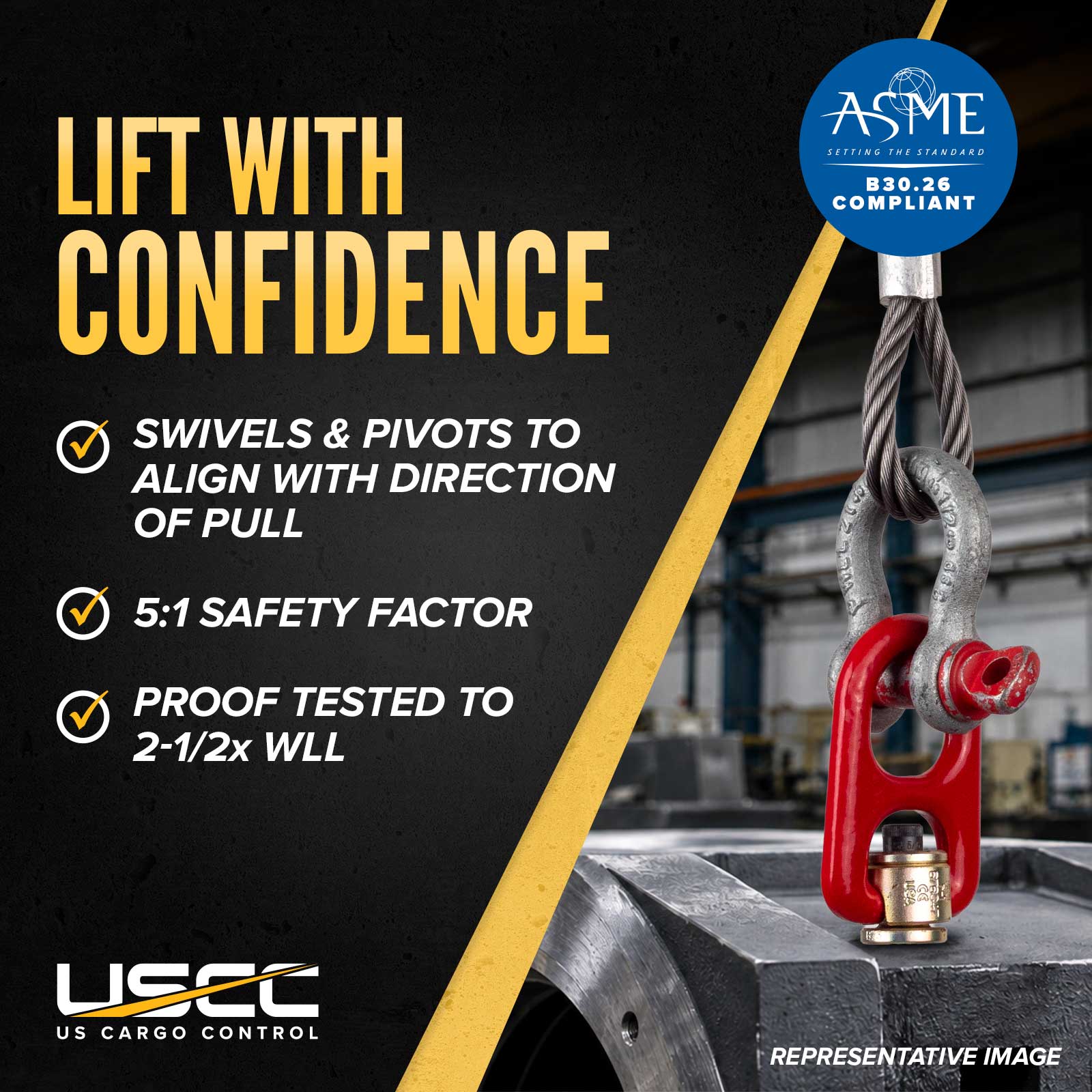

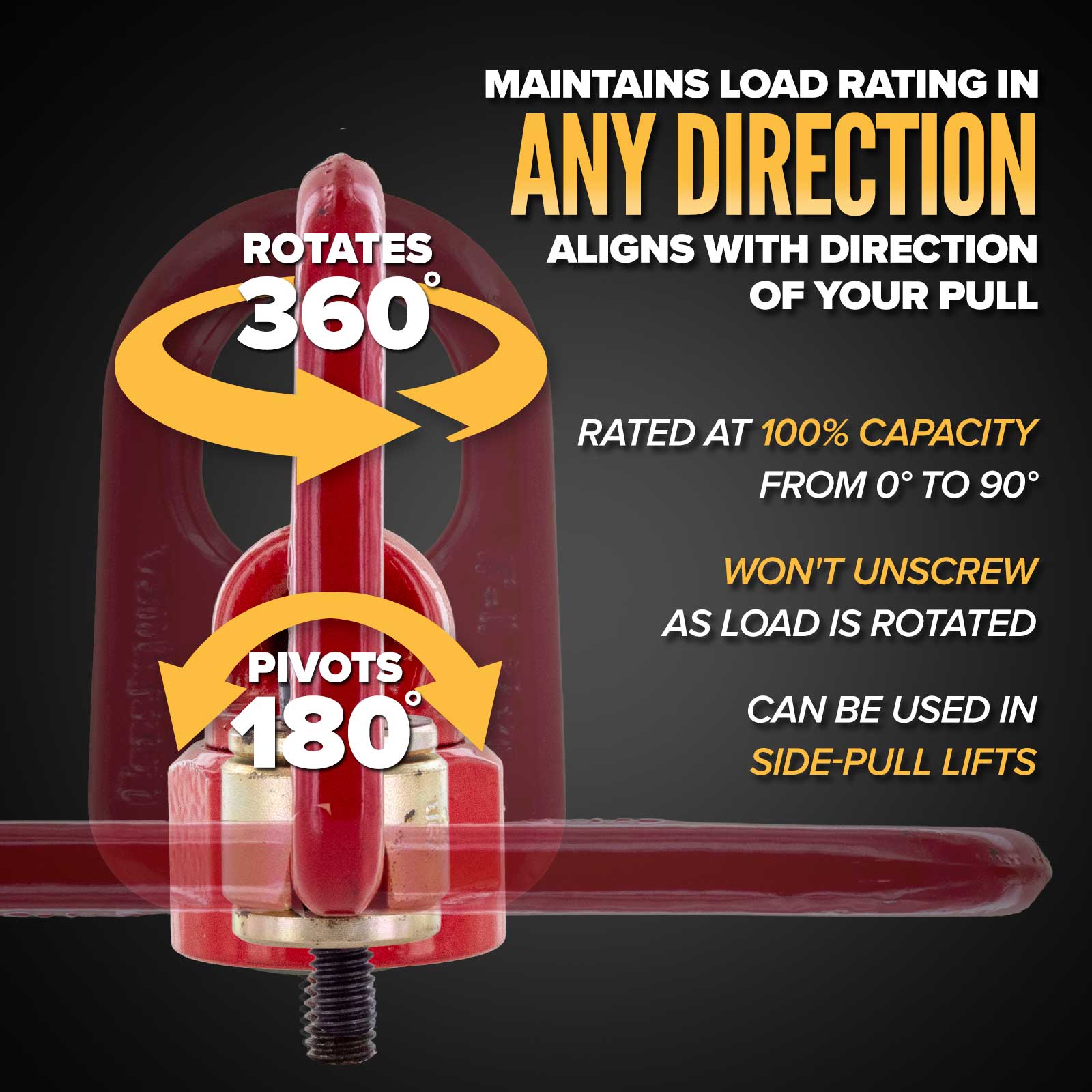

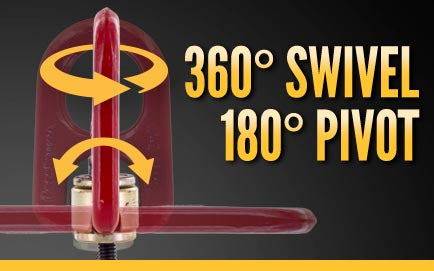

- 360° Swivel and 180° Pivot: Full range of motion maintains 100% WLL at any pull angle from 0° to 90°, including side-pull applications.

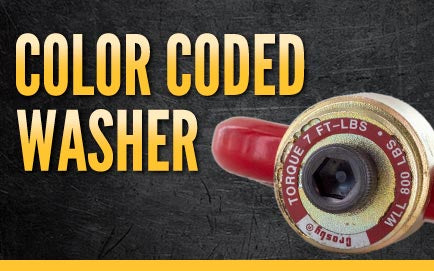

- Color-Coded Washer: Red for UNC threads, silver for metric. WLL and recommended torque permanently stamped on the washer for quick field reference.
Individually Proof Tested
- 100% Proof Tested to 2‑1/2x WLL: Every HR-1000 is individually proof tested to two-and-a-half times its working load limit with certification.
- Fatigue Rated to 20,000 Cycles: Tested at 1‑1/2 times WLL for long service life in high-cycle lifting operations.
- PIC Code for Material Traceability: Raised Product Identification Code and WLL stamped directly into the hardware for full material traceability.
Meets and Exceeds Industry Standards
ASME B30.26 - and Beyond
The Crosby® HR-1000 meets all requirements of ASME B30.26 and exceeds it in fatigue life, impact properties, and material traceability requirements the standard does not address.
Available in UNC and Metric Threads
UNC thread sizes for standard domestic applications; metric sizes for imported equipment and international project specifications.
Questions?
We also carry the Crosby® HR-125 Swivel Hoist Rings for standard applications, and the Crosby® SL-150 Slide-Loc™ for tool-free installation. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
