What is a Hoist Ring? A Complete Guide
You’re lifting something heavy, and you need a reliable connection point between your load and your hook. You need to know it won’t fail when the angle shifts or the load starts to rotate.
Eye bolts are a common solution, but they can become dangerous if used at any angle other than vertical. However, there’s a more capable option – a hoist ring – and once you understand how it works, you won’t want to go back to using eye bolts.
This guide covers everything you need to know about hoist rings and how they work.
What is a Hoist Ring?
A hoist ring is a threaded lifting point that screws directly into the object you’re lifting and provides a secure connection point for your hook, shackle, or rigging hardware. Like an eye bolt, it installs into a tapped hole in your load. Unlike an eye bolt, it can swivel and rotate safely.
Specifically, a hoist ring can swivel 360° and pivot 180°. This means it can orient itself toward the pull, no matter the angle or direction. And critically, it maintains its full working load limit (WLL) in any direction. A hoist ring rated for 4,000 lbs. is rated for 4,000 lbs., whether you’re pulling straight up, at a 45° angle, or horizontally.
The combination of unrestricted movement and consistent rated capacity is what makes hoist rings the preferred choice for industrial lifting applications where the direction of the load can’t be perfectly controlled.
Parts of a Hoist Ring
Understanding the components of a hoist will help you inspect, install, and use it correctly. Here are the parts that make up a standard swivel hoist ring:
- Bail (U-Bar): The U-shaped bar that your hook, shackle, or rigging attaches to. The bail should always point upward toward the direction of the pull. It should also never come in contact with the load itself. Always ensure clearance between the bail and the lifting surface.
- Shoulder Pins: The pins that connect the bail to the body and allow the bail to pivot. Some hoist rings, like the Speed Base, have a unibody construction, which means the body and the shoulder pins are forged as a single piece, eliminating a common failure point.
- Body: The main plate of the hoist ring that sits against the lifting surface. The body swivels freely around the screw, providing the 360° rotational movement.
- Washer: The hardened washer at the top of the assembly. This is where the manufacturer stamps the WLL, recommended torque, and screw diameter.
- Bushing: The component that sits between the body and the lifting surface. The bushing must sit flush against the lifting surface for the hoist ring to function correctly. Never install a hoist ring with a gap between the bushing and the surface, and never use shims to raise the ring.
-
Screw: The fastener that threads into your load and holds the entire assembly together. The screw is the only component designed for regular wear and is the only piece that should ever warrant replacement if used correctly.
How Does a Hoist Ring Work?
A hoist ring has two independent movements built into its design:
Swivel: The body of the hoist ring rotates 360° around the screw. This allows it to spin freely and face any direction
Pivot: The bail or U-Bar that connects to your load pivots 180° on the shoulder pins. This allows it to tilt toward the direction of the pull, whether it’s straight up or at any angle.
Together, these two motions mean the hoist ring is always aligned with the load, regardless of direction. There’s no stress concentration from a misaligned angle, and because the body swivels independently of the screw, the ring won’t back itself out if the load rotates during the lift.
What Are Hoist Rings Used For?
The short answer: any lifting application where you need a reliable connection point and can’t guarantee a perfectly vertical in-line lift. This covers a wide variety of industries and applications.
Manufacturing & Industrial: Hoist rings are standard in manufacturing environments for lifting machinery, molds, dies, and heavy components during assembly or maintenance. Production line settings often use Speed Base hoist rings for fast, repeated install-and-remove cycles.
Construction: Steel plates, precast concrete, structural components – anything that needs to be positioned precisely during installation benefits from a hoist ring’s ability to handle angled and shifting loads.

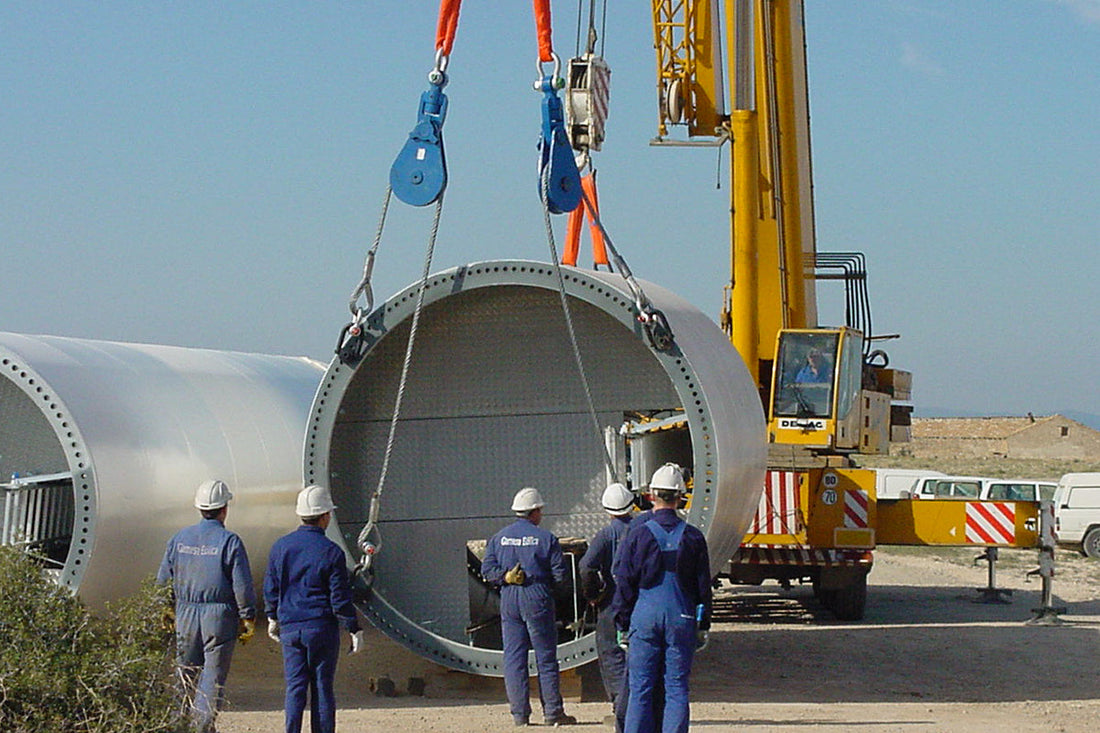

Wind Energy: Turbine components are large, heavy, and often lifted in challenging outdoor conditions. Hoist rings handle the unpredictable load directions that come with crane lifts on job sites.
Oil & Gas: Corrosive marine and offshore environments call for stainless steel hoist rings, which hold up where carbon steel would degrade.
Food Processing & Chemical: Stainless steel hoist rings are also common in food production and chemical processing facilities, where hygiene and corrosion resistance are required.
Entertainment & Events: Hoist rings are also used in entertainment rigging. If you watched the Super Bowl halftime show and wondered how performers get lifted into position, hoist rings are often part of that answer.
Fall Protection: Hoist rings rated at 5,000 lbs or more can serve as anchor points for fall protection systems, per OSHA standard 1926.501. The governing US standard for hoist ring design and use more broadly is ASME B30.26.
The common thread across all of these: when the stakes are high and the load direction isn't guaranteed, hoist rings are the tool professionals reach for.
Types of Hoist Rings
Not all hoist rings are the same. The right type depends on your environment, your application, and how you're using them. Here's a brief introduction to the main families:
Swivel Hoist Rings: The standard. Full 360° swivel and 180° pivot, consistently rated capacity in any direction, available in a wide range of sizes and load ratings. This is the right starting point for most lifting applications.
Stainless Steel Hoist Rings: Same swivel design built from 316 stainless steel for corrosion resistance. Used in marine, offshore, food processing, and chemical environments. Important note: stainless steel hoist rings carry approximately half the working load limit of comparable steel rings. If you're switching from steel to stainless, size up accordingly.
Speed Base Hoist Rings: Designed for high-cycle manufacturing environments where hoist rings are installed and removed repeatedly throughout the day. Hand-tightened for fast setup with no torque wrench required.
Specialty Styles: There are also purpose-built hoist rings for specific applications, including street plate rings for lifting steel construction plates, side load rings, and others. These cover niche use cases but are worth knowing about if your application is unusual.
Choosing between these comes down to your environment, your load, install frequency, and other needs. For a full breakdown of how to choose, see our guide, How to Choose the Right Hoist Ring for Your Application.
What to Know Before You Buy
Match your WLL to your actual load, including lift angle. A hoist ring’s WLL is its capacity at any angle, but if you’re using multiple hoist rings on a single load and lifting at an angle to a central hook, each ring experiences more force than a simple weight-divided-by-number-of-rings calculation.
Stainless steel is approximately half the rating of steel. If switching from a normal hoist ring to a stainless steel one, make sure to size up. The same size stainless steel hoist ring will not have the same rating as steel.
Make sure to tighten to the correct torque. The torque recommendation is stamped onto the washer. For permanent installation, make sure to tighten to that spec.
Hoist Rings vs. Eye Bolts
The short version of whether you should use an eye bolt or a hoist ring is that eye bolts work well for simple, vertical lifts with no rotation. If you encounter an angle or load rotation, hoist rings are the safer choice.
For a full breakdown of which type to choose, see our complete guide: Hoist Rings vs. Eye Bolts: What’s the Difference?
Graphic from Lift-It®.
