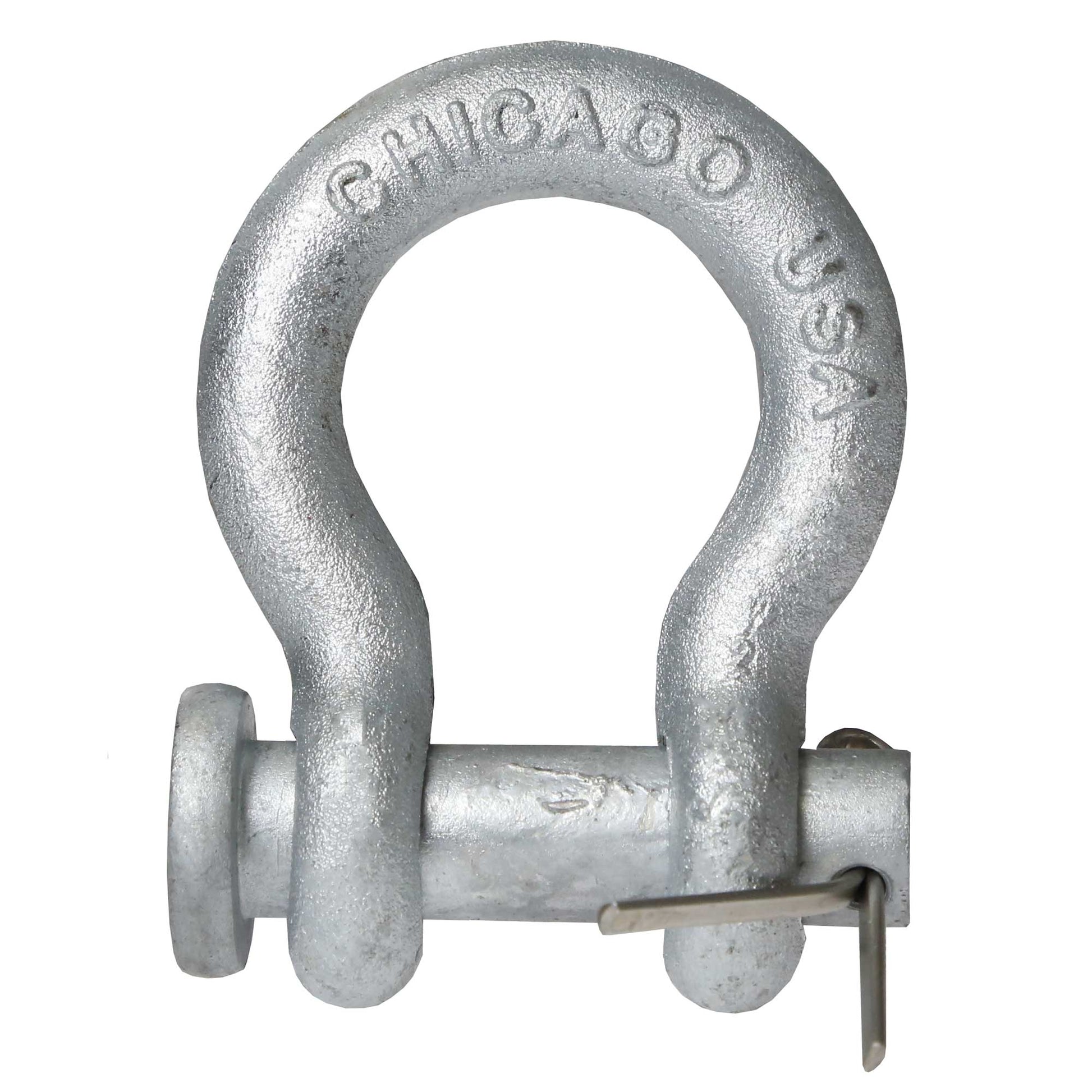

Anchor Shackle - Chicago Hardware - Round Pin - 7/16" Galvanized Steel - 1.5 Ton
Anchor Shackle - Chicago Hardware - Round Pin - 7/16" Galvanized Steel - 1.5 Ton!
Anchor Shackle - Chicago Hardware - Round Pin - 7/16" Galvanized Steel - 1.5 Ton
Anchor Shackle - Chicago Hardware - Round Pin - 7/16" Galvanized Steel - 1.5 Ton!
Specifications
Specifications
- Working load limit: 1.5 ton
- Inside width: 1.31"
- Mouth width: 0.72"
- Finish: Galvanized
- Safety factor: 6:1
- Manufacturer name: Chicago Hardware
- Brand part number: 21125 3
- Inside height: 1.68"
- Pin size: 1/2"
- Shackle size: 7/16"
- Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271
- Type: Round Pin Anchor
- Material: Drop-Forged Steel
- Product weight: .5 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
Description
Description

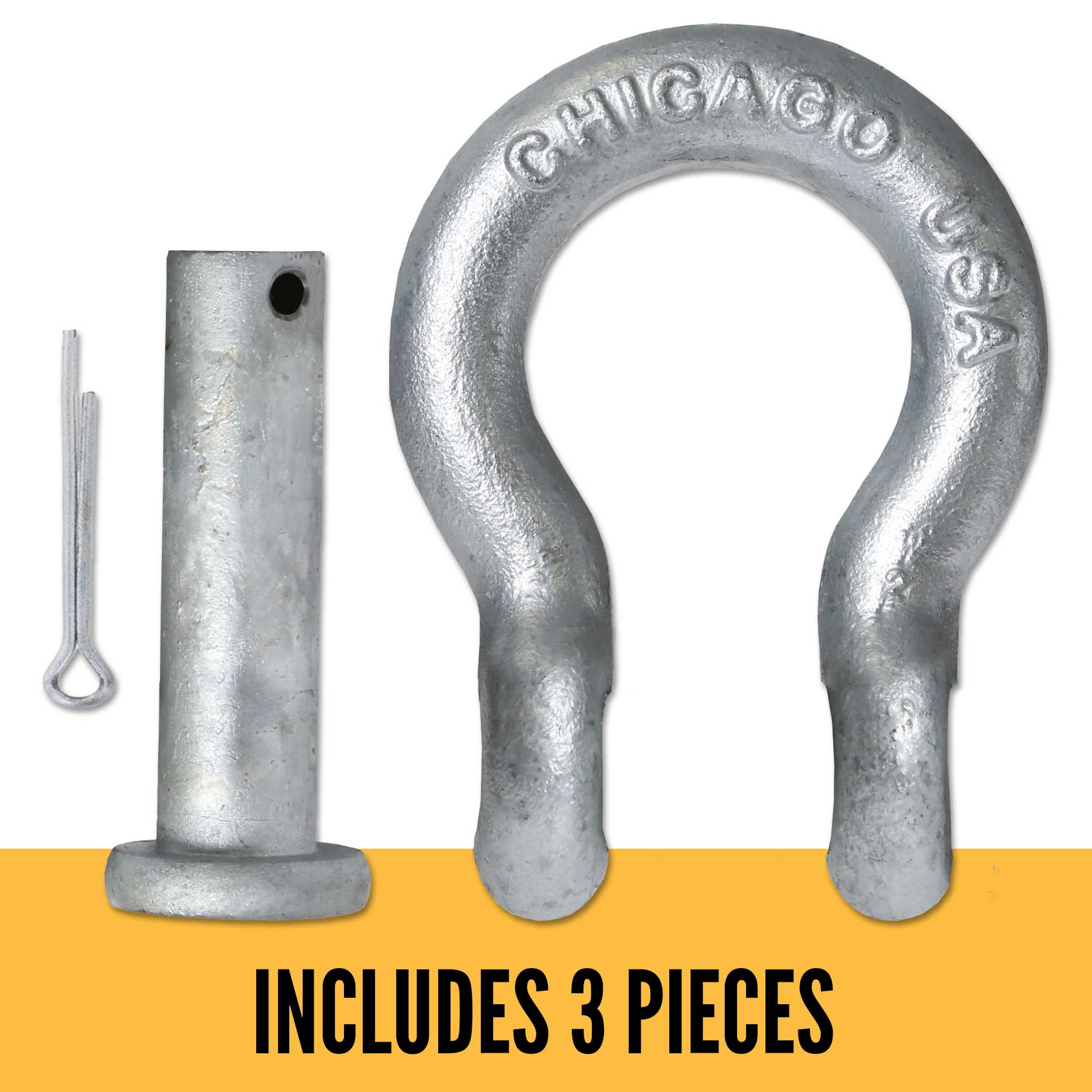

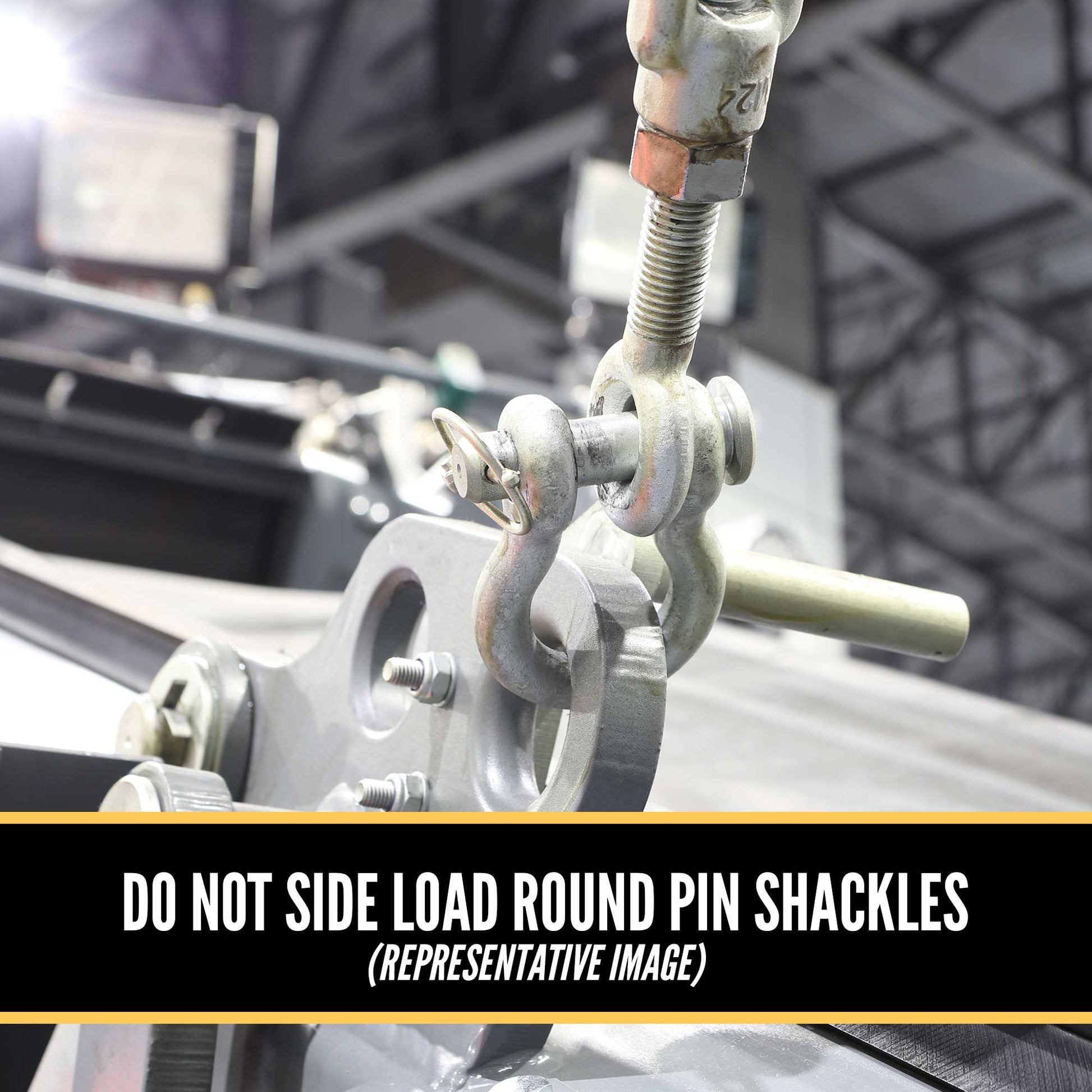

A rounded shape makes anchor shackles excellent for accommodating multiple pulls from different directions. Performs well where the pin is subject to torque or twisting, but not ideal for applications where pin is subject to an axial load. Round pin secures with a removeable cotter pin for an extra measure of safety.
Made in the USA of galvanized steel.
