SKU: RPAS1-14-D

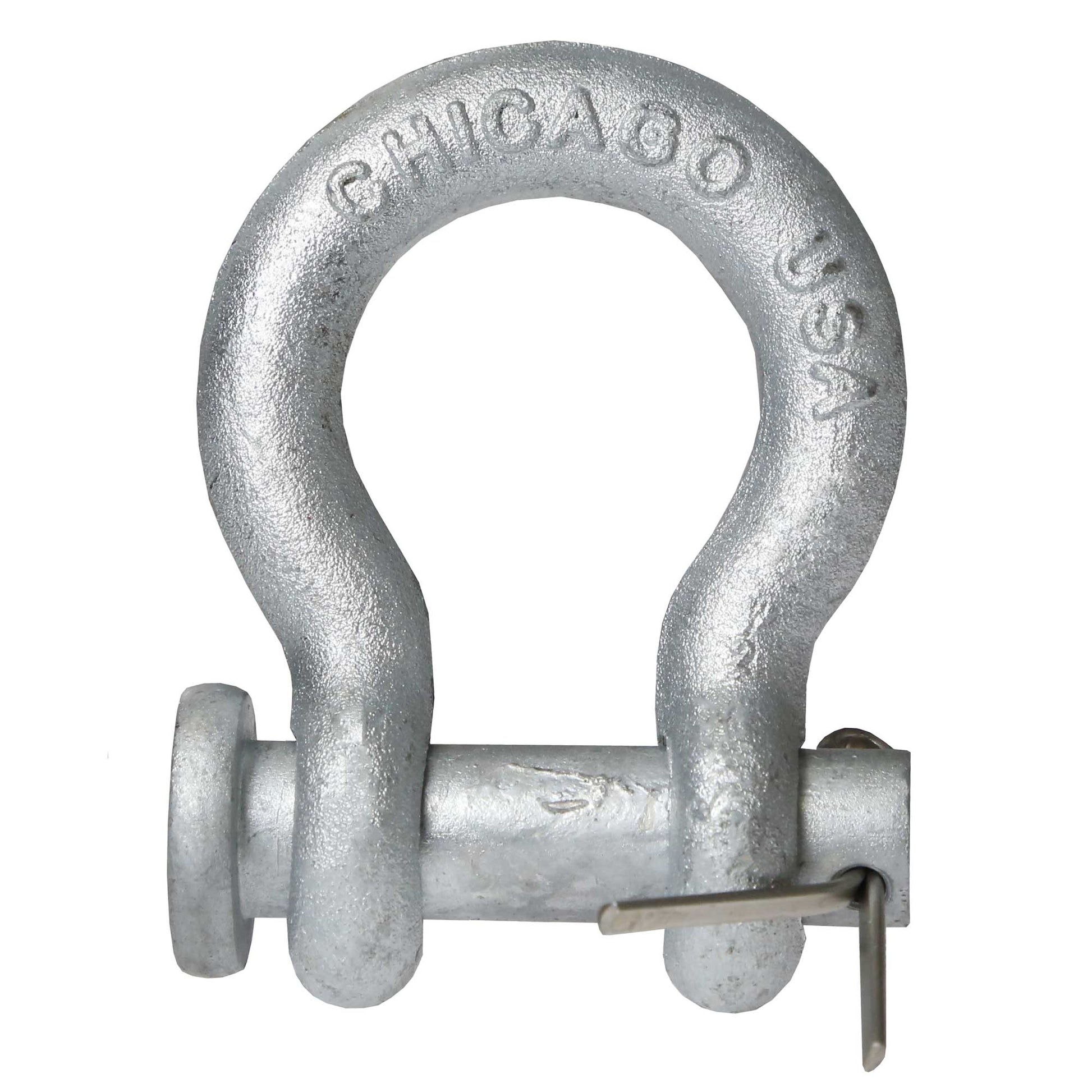

Anchor Shackle - Chicago Hardware - Round Pin - 1-1/4" Galvanized Steel - 12 Ton
Anchor Shackle - Chicago Hardware - Round Pin - 1-1/4" Galvanized Steel - 12 Ton!
$117.59
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 12 ton
Brand part number: 21160 4

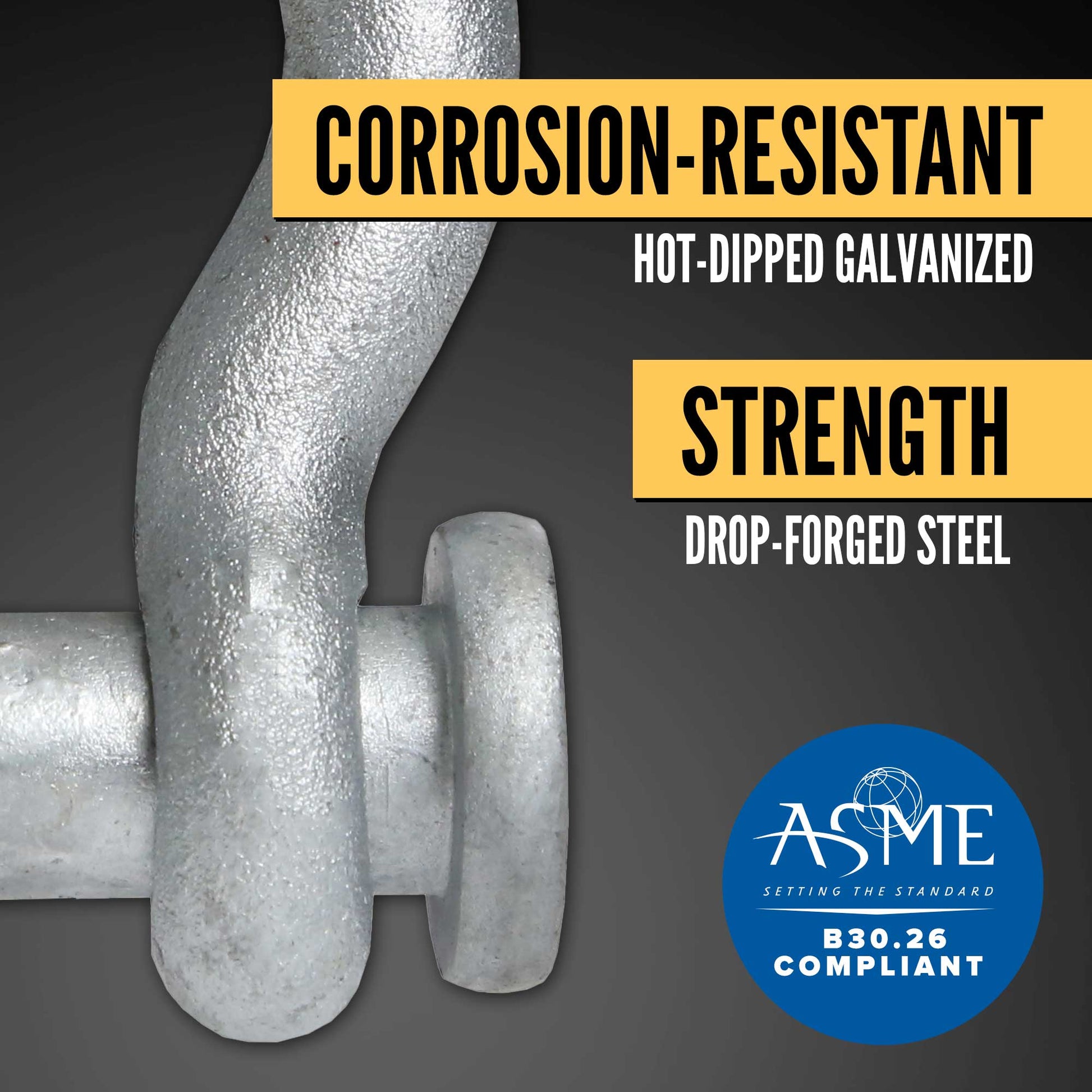

Finish: Galvanized
Inside height: 4.5"
Inside width: 3.25"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 2"
Pin size: 1-3/8"
Product weight: 10.1 lbs.
Safety factor: 6:1
Shackle size: 1-1/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Round Pin Anchor
Description

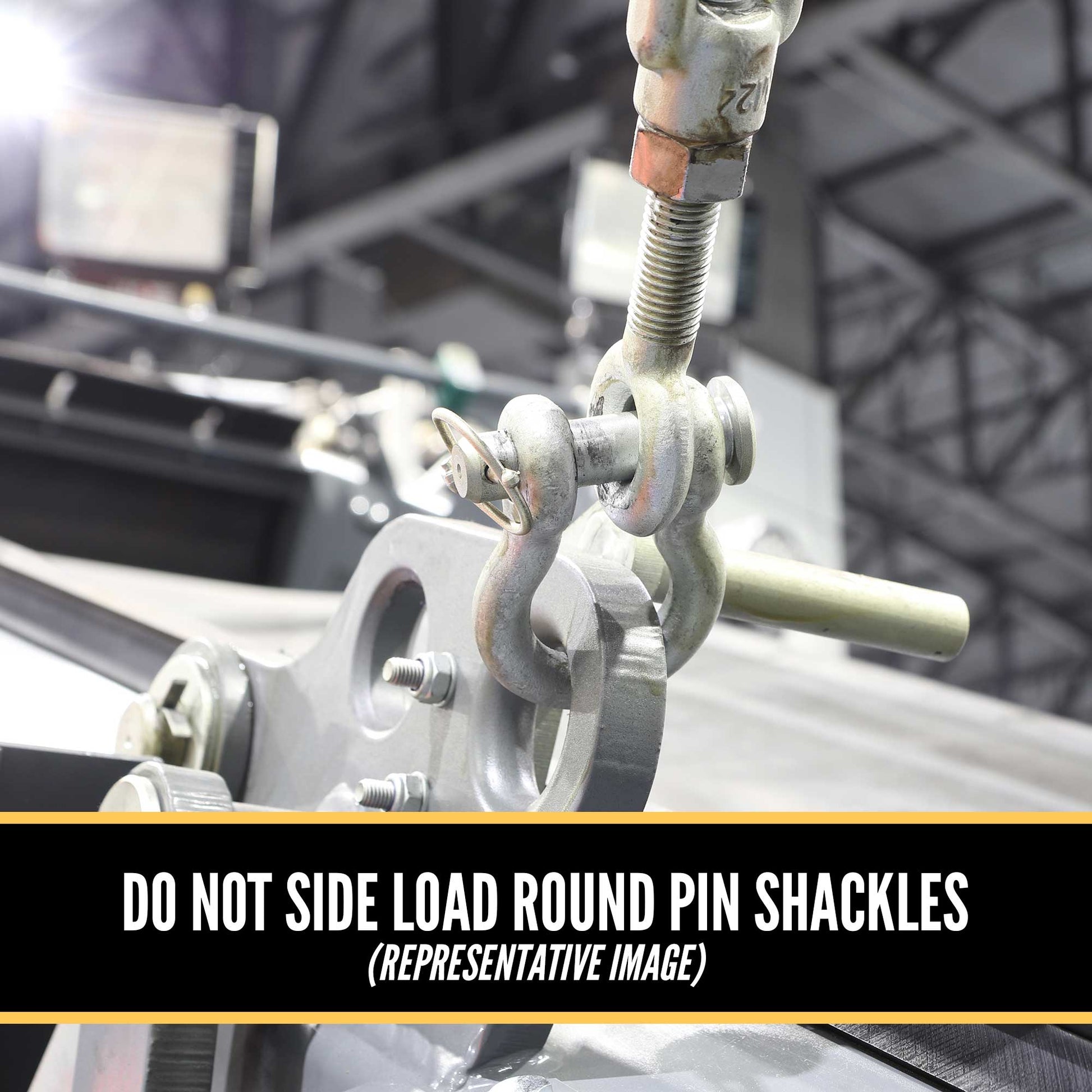

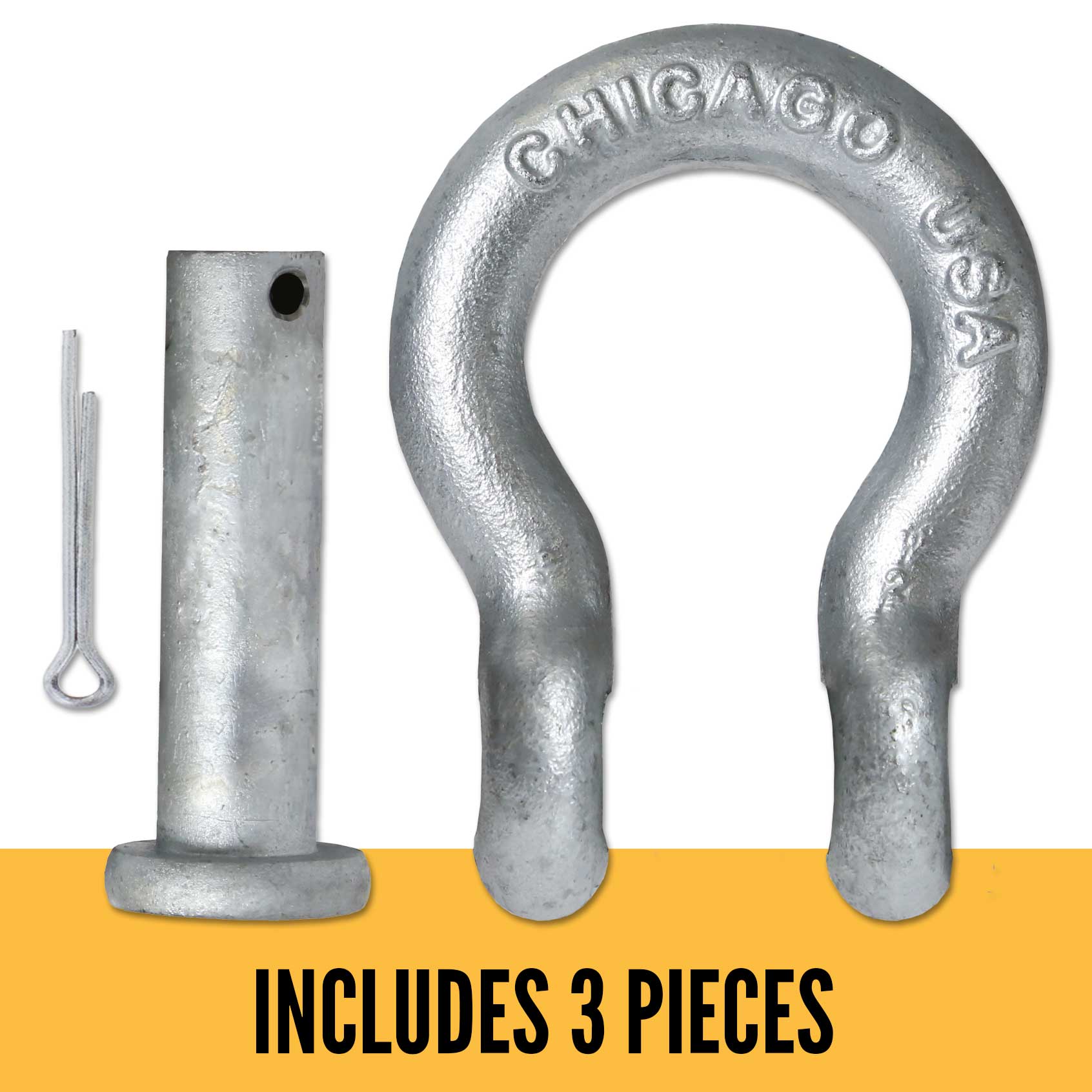

Galvanized anchor shackles are excellent for accommodating multiple pulls from different directions. Performs well where the pin is subject to twisting or torque, but not ideal for applications where the pin is subject to an axial load. The round pin secures with a removeable cotter pin for an added measure of safety.
Made in the USA for superior quality.
