SKU: ABTAS8-116-VB

8-1/16" Van Beest Green Pin® Bolt Type Anchor Shackle | P-6036 - 700 Ton

8-1/16" Van Beest Green Pin® Bolt Type Anchor Shackle | P-6036 - 700 Ton!

Skip to product information
1 of 5

SKU: ABTAS8-116-VB

8-1/16" Van Beest Green Pin® Bolt Type Anchor Shackle | P-6036 - 700 Ton

8-1/16" Van Beest Green Pin® Bolt Type Anchor Shackle | P-6036 - 700 Ton!

Call for Price
Call to Order
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 700 tons (Metric) / 1,543,235 lbs.
  • Inside width: 15.75"
  • Mouth width: 12.13"
  • Finish: Painted
  • Safety factor: 5:1
  • Manufacturer name: Van Beest
  • Brand part number: HDGPHM0700
  • Inside height: 28.28"
  • Pin size: 8-1/2"
  • Shackle size: 8-1/16"
  • Type: Bolt Type Anchor
  • Material: Alloy Steel
  • Product weight: 2161 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

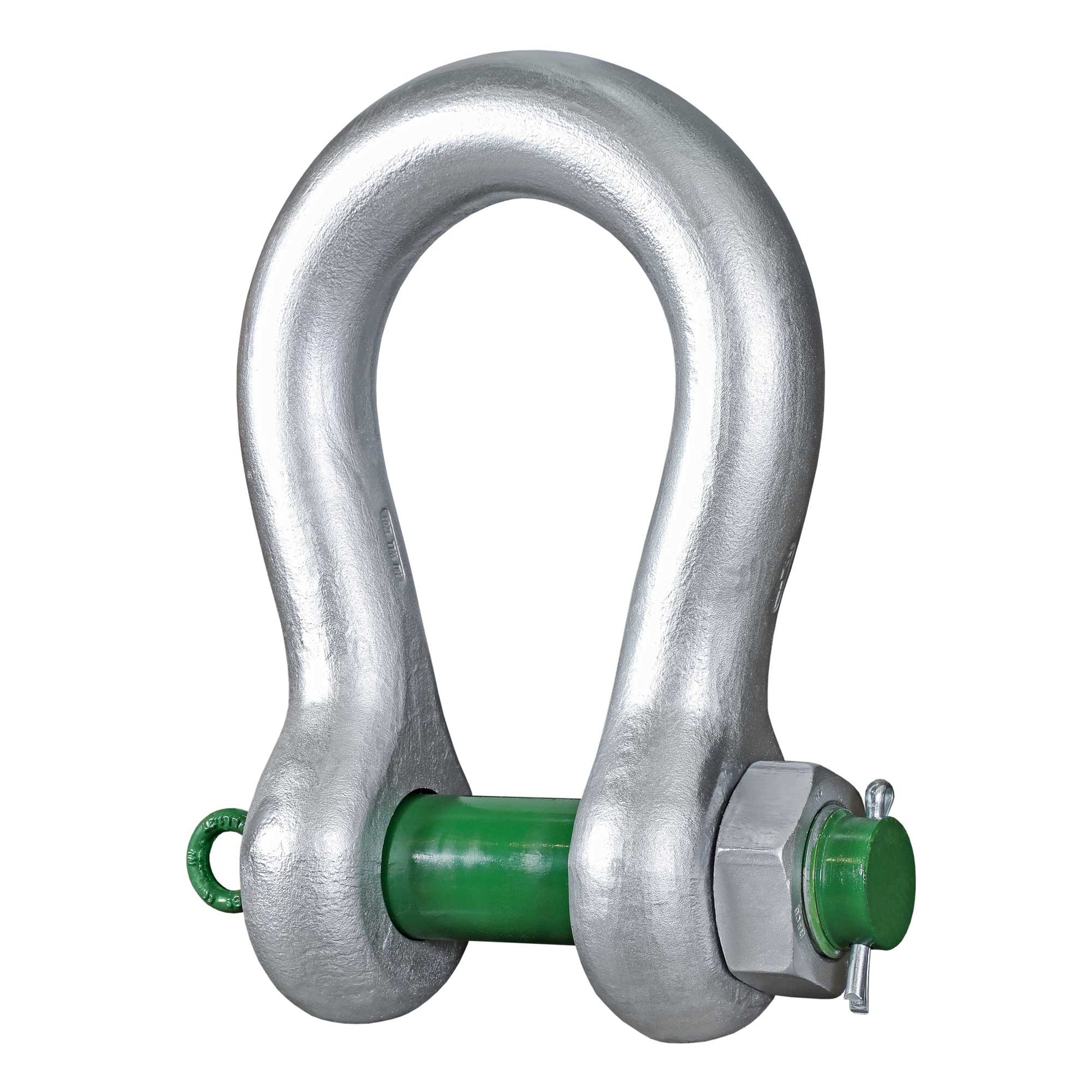

Van Beest 700 Ton Bolt Type Anchor Shackles

Van Beest Green Pin® heavy duty shackles are built for your biggest lifting and towing projects.

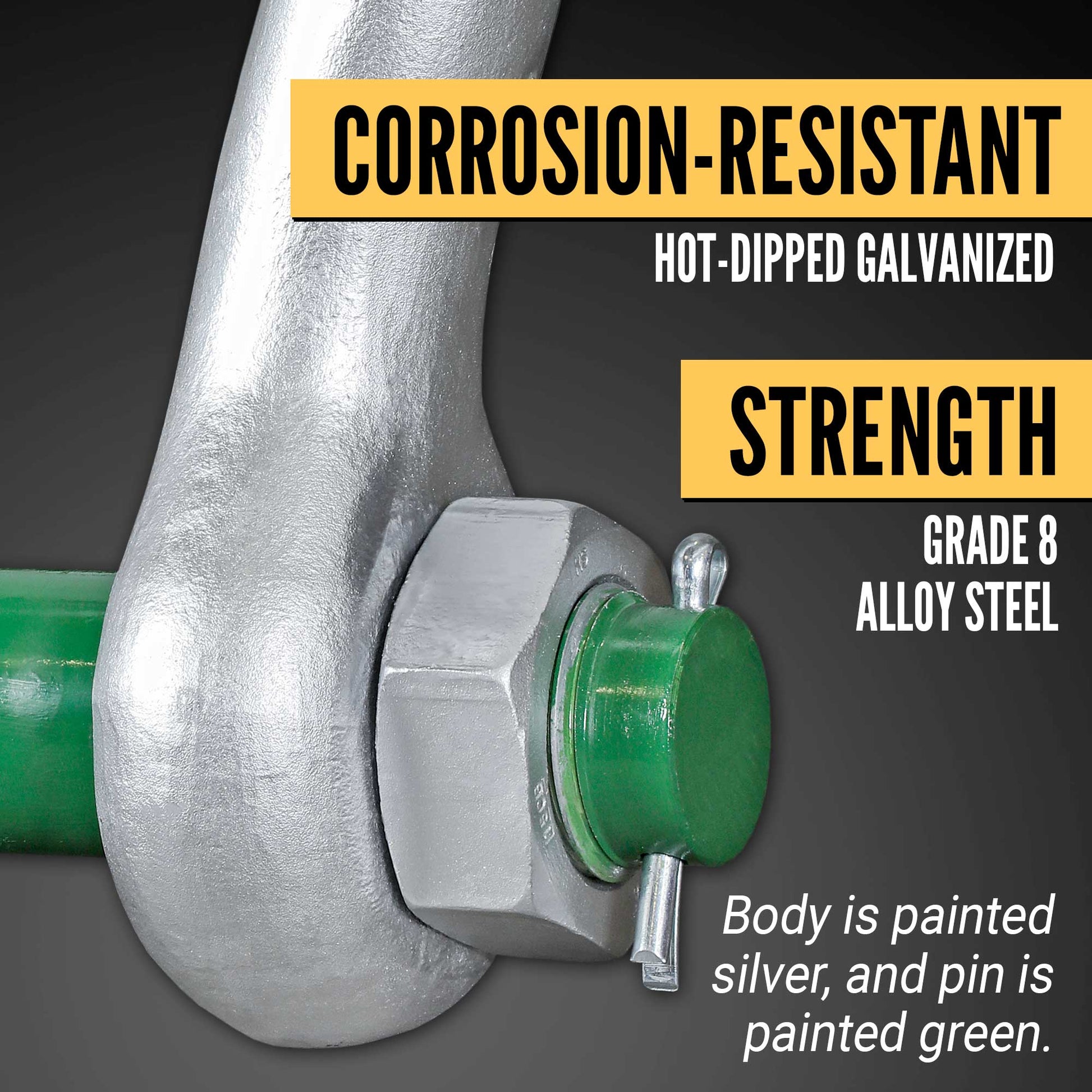

Van Beest Green Pin® Heavy Duty Anchor Bow Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy quenched and tempered Grade 8 steel from corrosion.

Why Choose Bolt Type Anchor Shackles?

Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are suitable for both single- and multi-leg rigging systems.

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.

View Product Safety Warnings

California Residents: WARNING

Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
