description

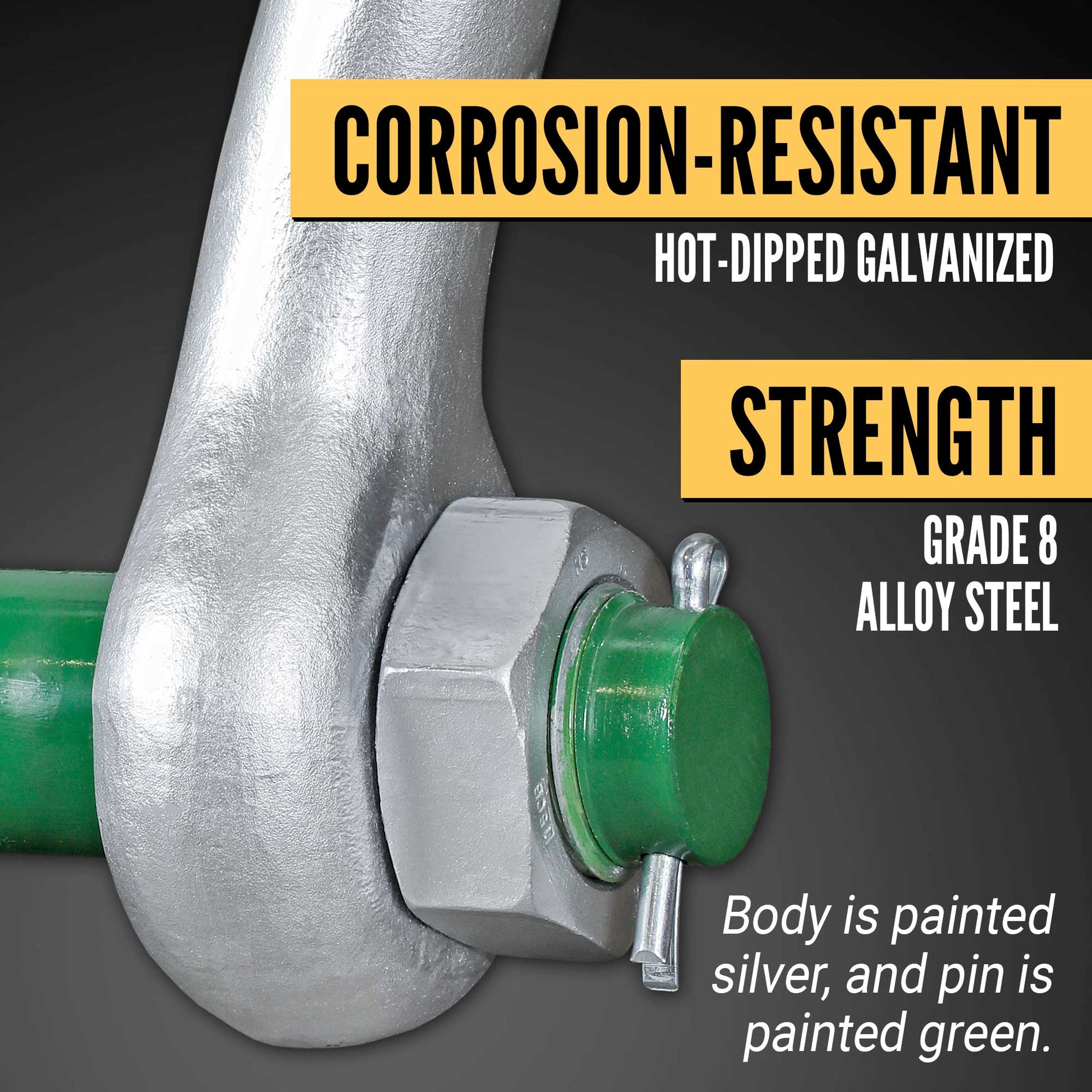

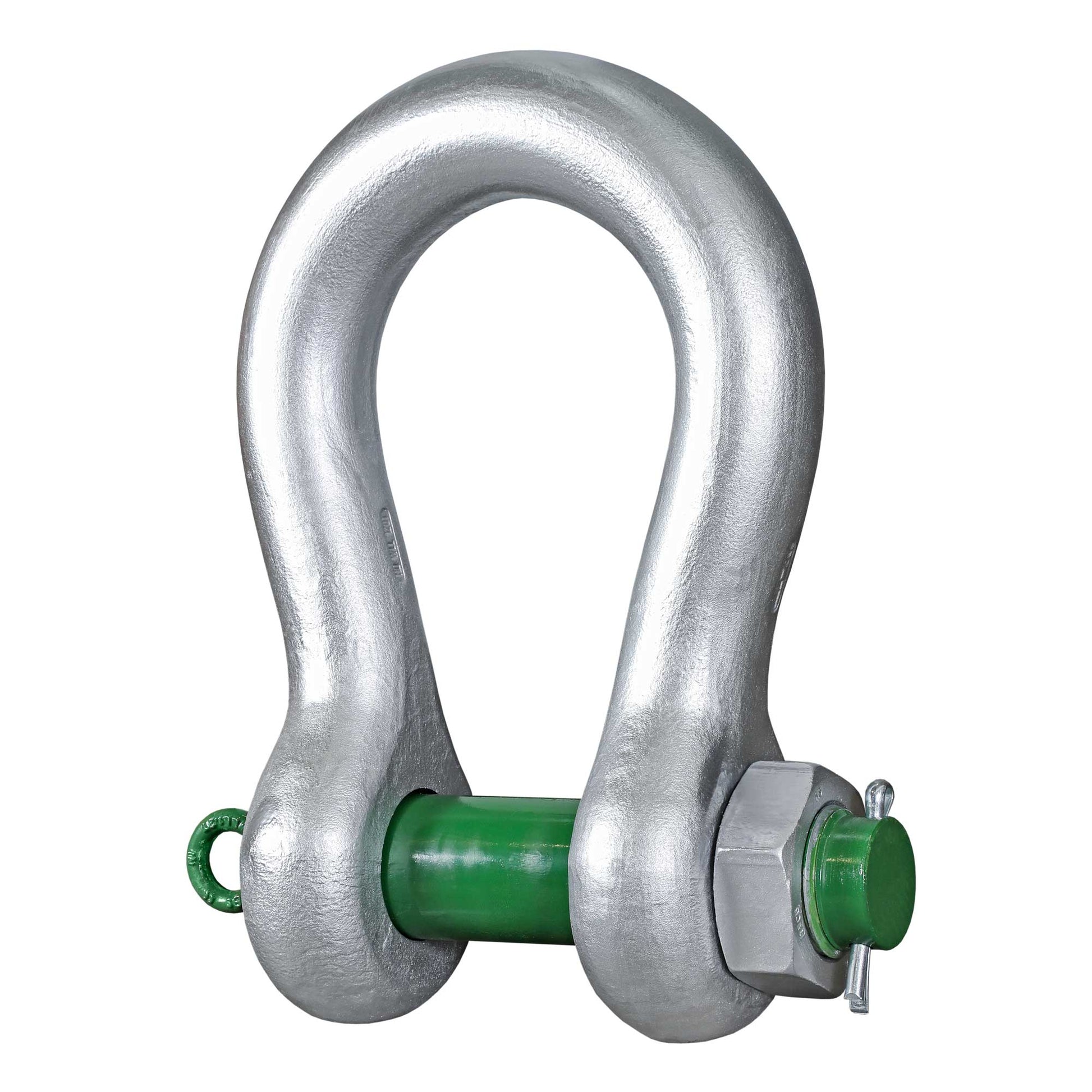

Van Beest Green Pin® Heavy Duty Anchor Bow Shackles are extremely high quality shackles made in Holland. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy quenched and tempered Grade 8 steel from corrosion.
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles.

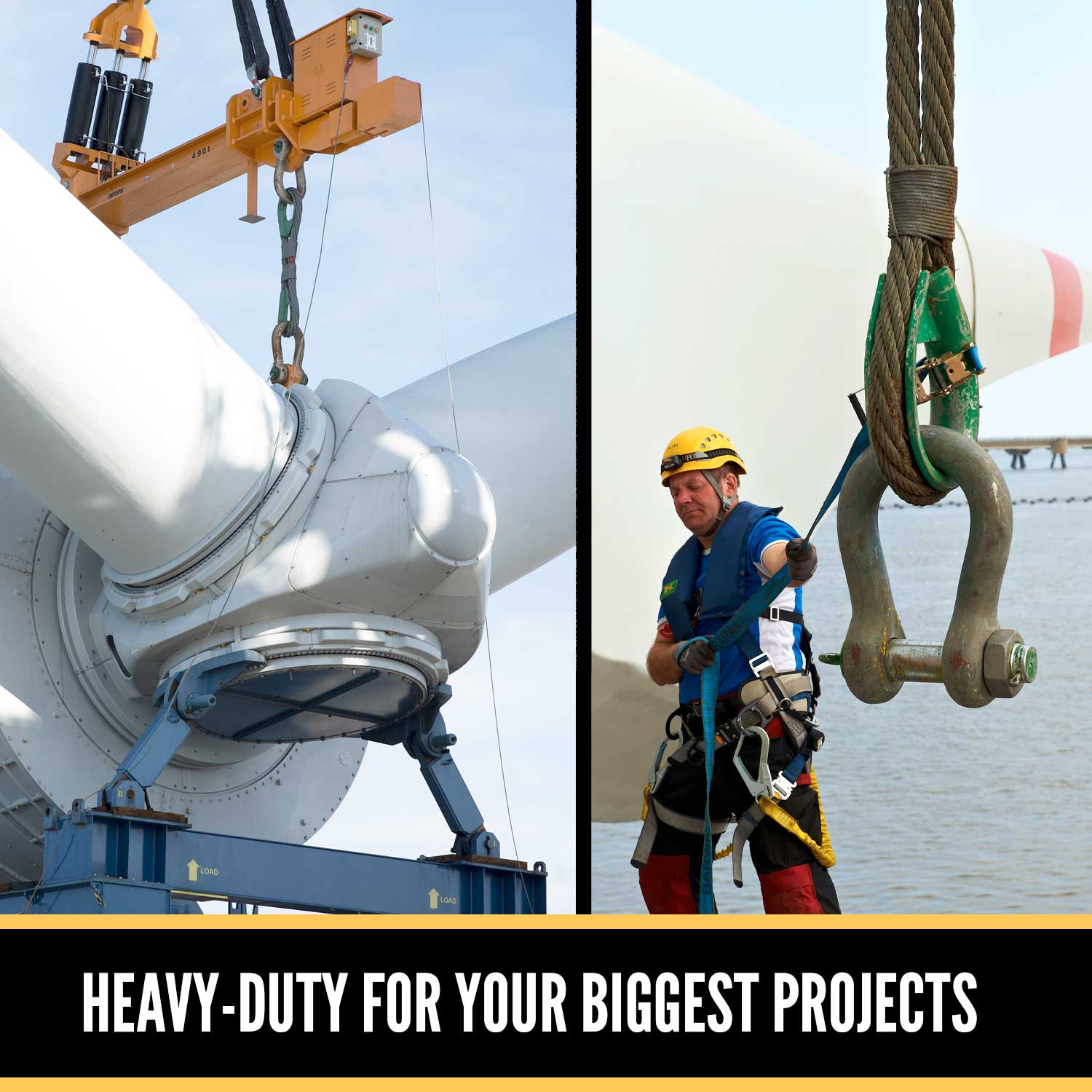

These heavy duty shackles are built for your biggest lifting and towing projects.
California Residents: WARNING
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles.
These heavy duty shackles are built for your biggest lifting and towing projects.
California Residents: WARNING
Van Beest Green Pin® Heavy Duty Anchor Bow Shackles are extremely high quality shackles made in Holland. These shackles are very easily identifiable i...
Van Beest Green Pin® Heavy Duty Anchor Bow Shackles are extremely high quality shackles made in Holland. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy quenched and tempered Grade 8 steel from corrosion.
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles.
These heavy duty shackles are built for your biggest lifting and towing projects.
California Residents: WARNING
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles.
These heavy duty shackles are built for your biggest lifting and towing projects.
California Residents: WARNING
specifications
Working Load Limit:
1,250 ton
Product Weight:
4387
Manufacturer Name:
Van Beest
Brand:
US Cargo Control
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Inside Height:
27.5"
Inside Width:
17.72"
Mouth Width:
14.16"
Pin Size:
10-5/8"
Shackle Size:
10-1/4"
Product Guide:
Shackle Dimensions:
S:
10-1/4"
A:
10-5/8"
B:
27.5
C:
14.16
D:
17.72
