SKU: ABTAS6-12-VB
6-1/2" Van Beest Green Pin® Bolt Type Anchor Shackle | P-6036 - 400 Ton
6-1/2" Van Beest Green Pin® Bolt Type Anchor Shackle | P-6036 - 400 Ton!
$21,715.88
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 400 tons (Metric) / 881,849 lbs.
Brand part number: HDGPHM0400
Finish: Painted
Inside height: 26.34"
Inside width: 12.78"
Manufacturer name: Van Beest
Material: Alloy Steel
Mouth width: 9.09"
Pin size: 6-7/8"
Product weight: 1,235 lbs.
Safety factor: 5:1
Shackle size: 6-1/2"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM A148M.
Type: Bolt Type Anchor
Description

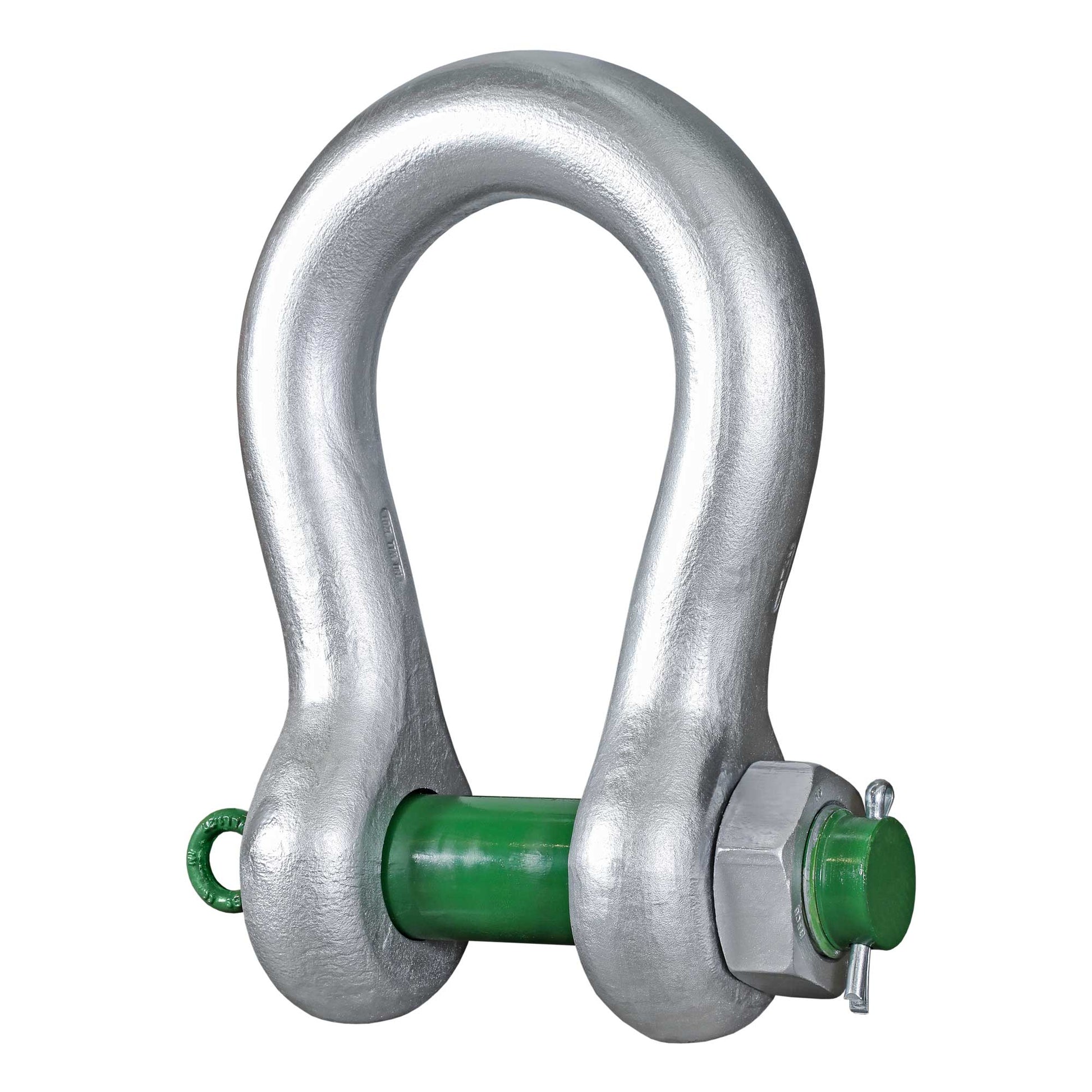

Van Beest 400 Ton Bolt Type Anchor Shackles

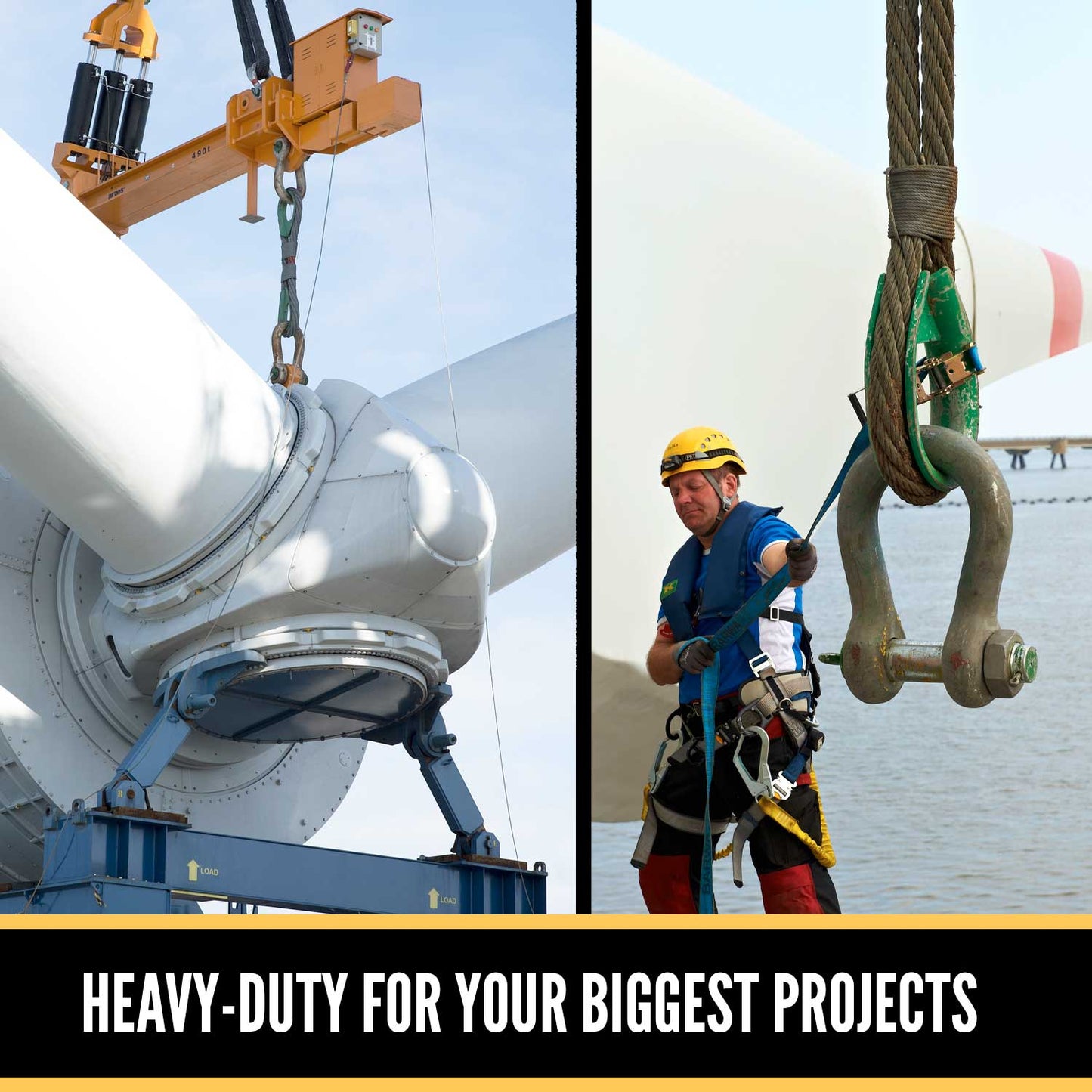

Van Beest Green Pin® heavy duty shackles are built for your biggest lifting and towing projects.

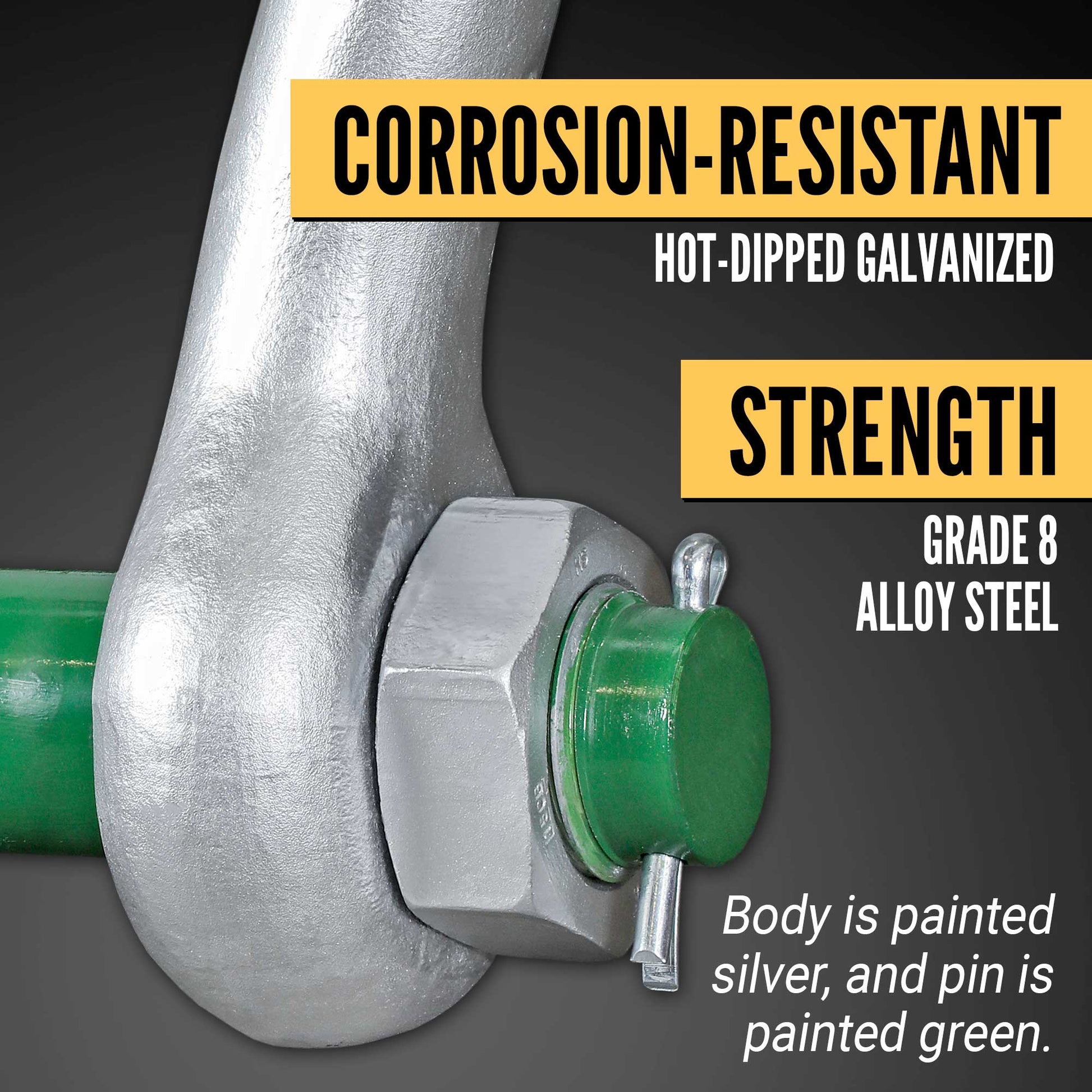

Van Beest Green Pin® Heavy Duty Anchor Bow Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy quenched and tempered Grade 8 steel from corrosion.
Why Choose Bolt Type Anchor Shackles?
Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are suitable for both single- and multi-leg rigging systems.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
