SKU: ABTASS78-VB

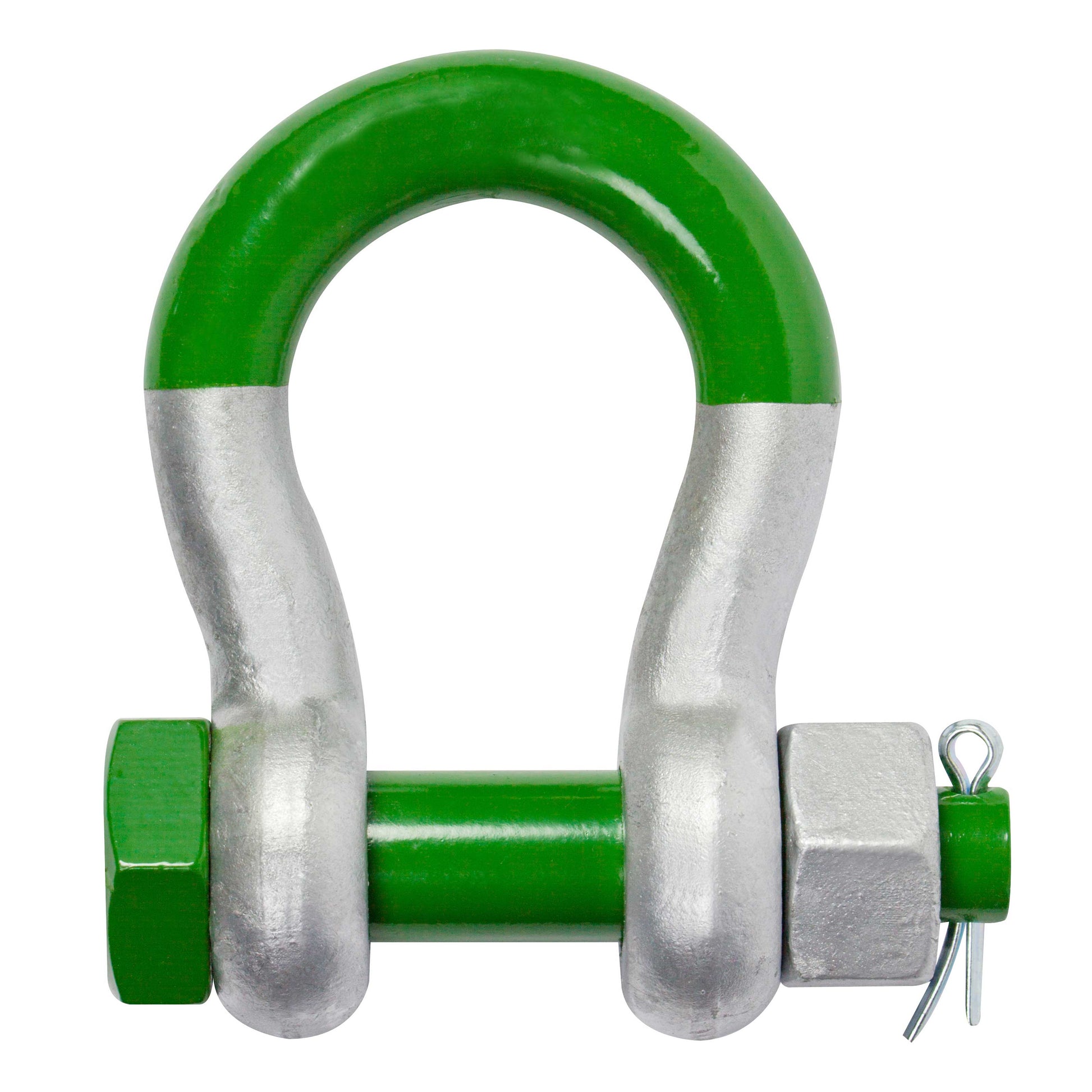

7/8" Van Beest Green Pin® Bolt Type Anchor Super Shackle | G-5263 - 9.5 Ton
7/8" Van Beest Green Pin® Bolt Type Anchor Super Shackle | G-5263 - 9.5 Ton!
$125.81
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 9.5 tons (Metric) / 20,943 lbs.
Brand part number: SUGHMB22
Finish: Galvanized
Inside height: 3.28"
Inside width: 2.28"
Manufacturer name: Van Beest
Material: Alloy Steel
Mouth width: 1.41"
Pin size: 1"
Product weight: 4.14 lbs.
Safety factor: 5:1
Shackle size: 7/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Description
Van Beest 9.5 Ton Bolt Type Anchor Shackles

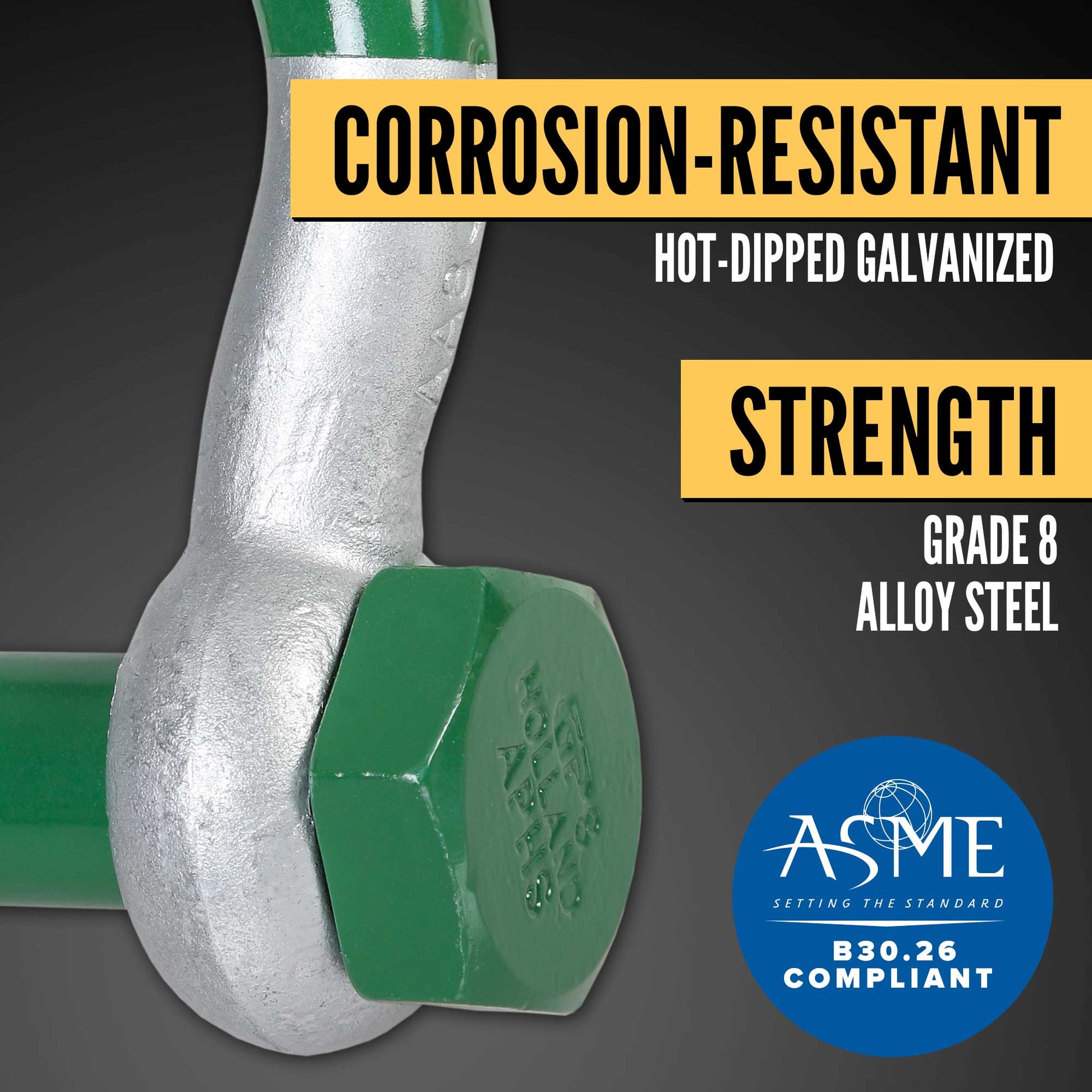

Van Beest Green Pin® Anchor Super Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy Grade 8 steel from corrosion.
Recent developments with Green Pin® Super shackles have resulted in improved performance. Compared to standard Green Pin® shackles they have an up to 50% higher WLL with comparable physical weight and dimensions. These shackles are specially designed for applications where shackle weight and/or size are critical.

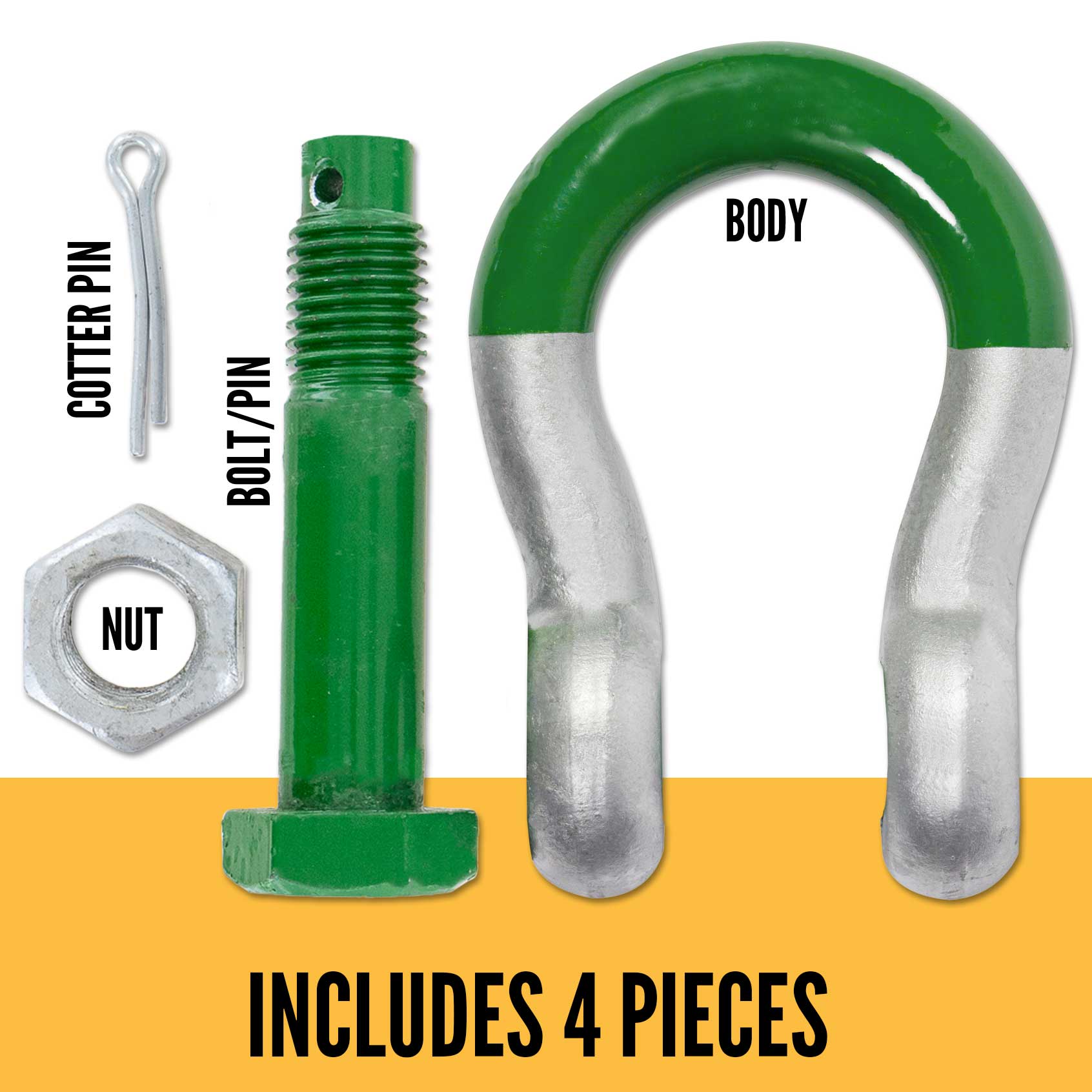

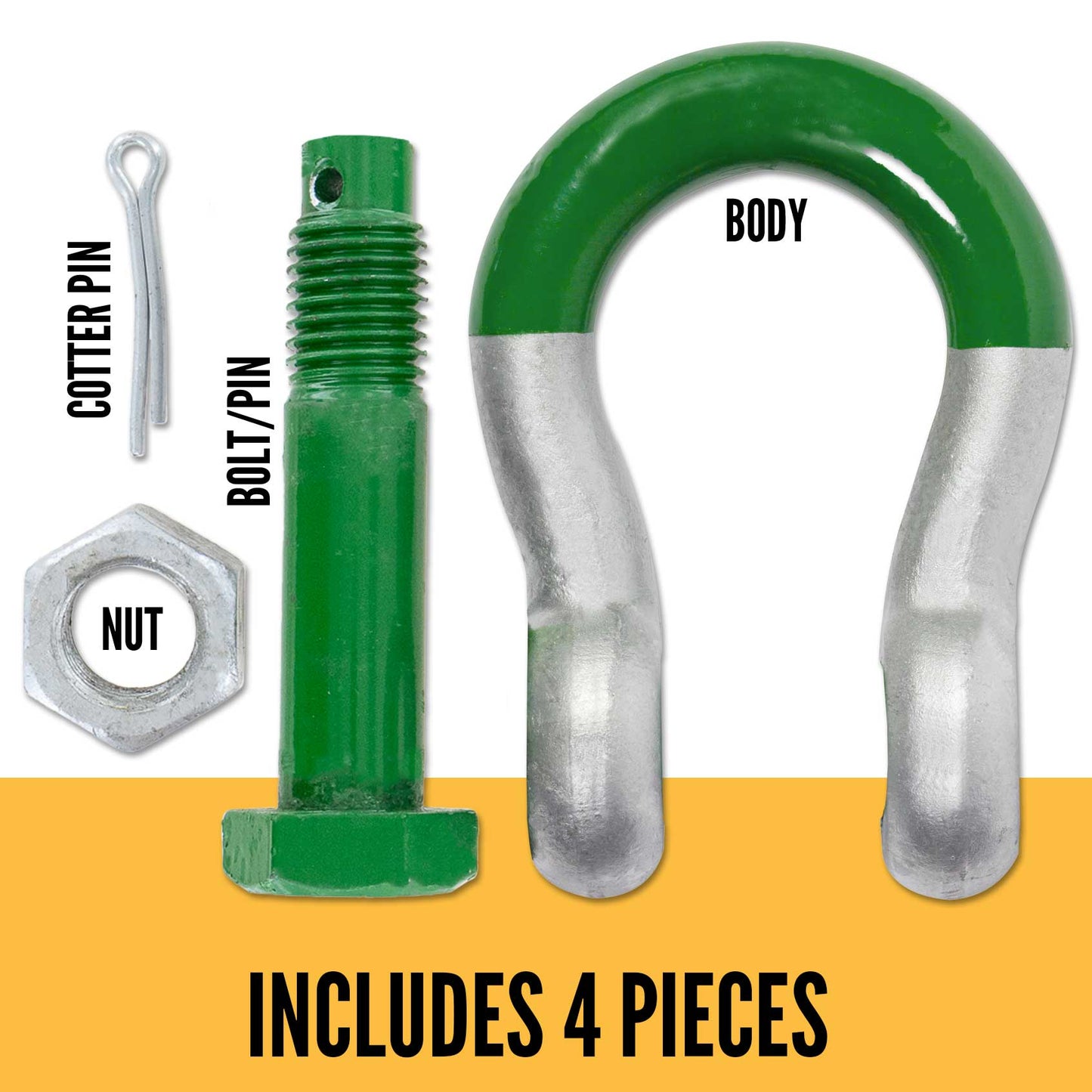

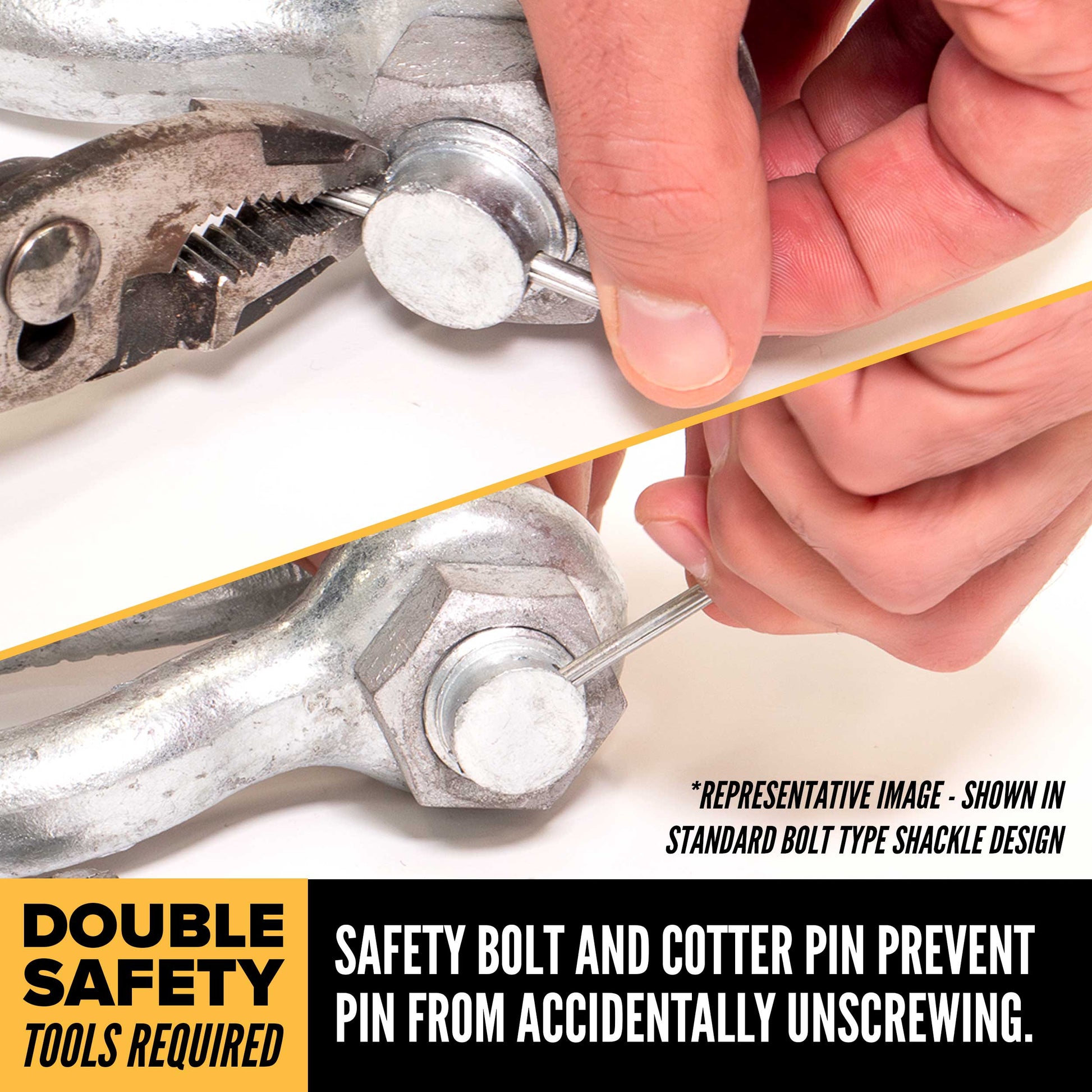

Made from Grade 8 steel, this hot-dipped galvanized shackle offers double the safety - it includes both a split pin and a safety bolt to prevent accidental unscrewing. The chamber in the shackle eye also hides the screw thread to minimize wear and tear on wire rope.
Why Choose Bolt Type Anchor Shackles?

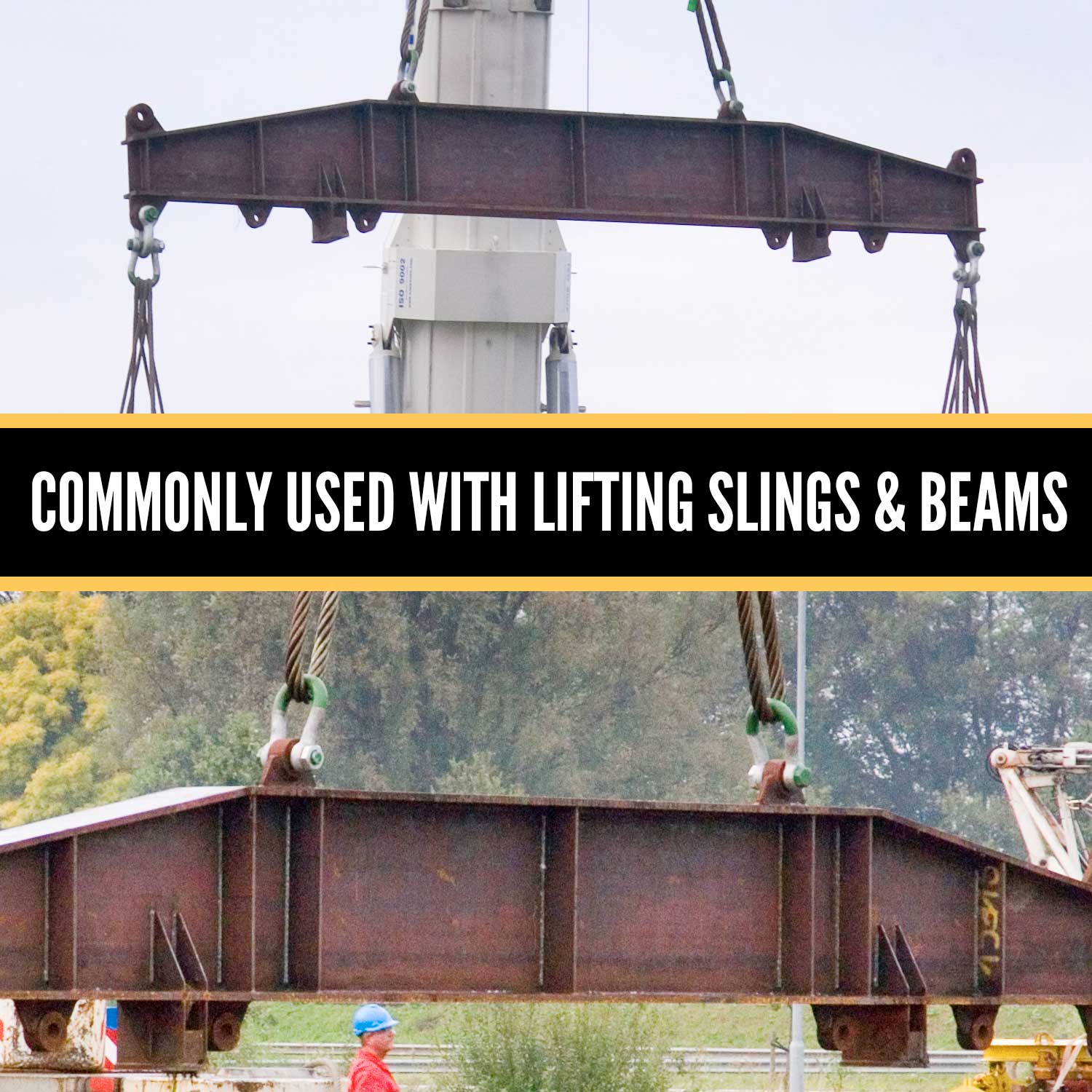

Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
