Specifications

  • Working load limit: 12.5 tons (Metric) / 27,557 lbs.
  • Inside width: 2.69"
  • Mouth width: 1.69"
  • Finish: Galvanized
  • Safety factor: 5:1
  • Manufacturer name: Van Beest
  • Brand part number: SUGHMB25
  • Inside height: 3.75"
  • Pin size: 1-1/8"
  • Shackle size: 1"
  • Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271.
  • Type: Bolt Type Anchor
  • Material: Alloy Steel
  • Product weight: 6.13 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

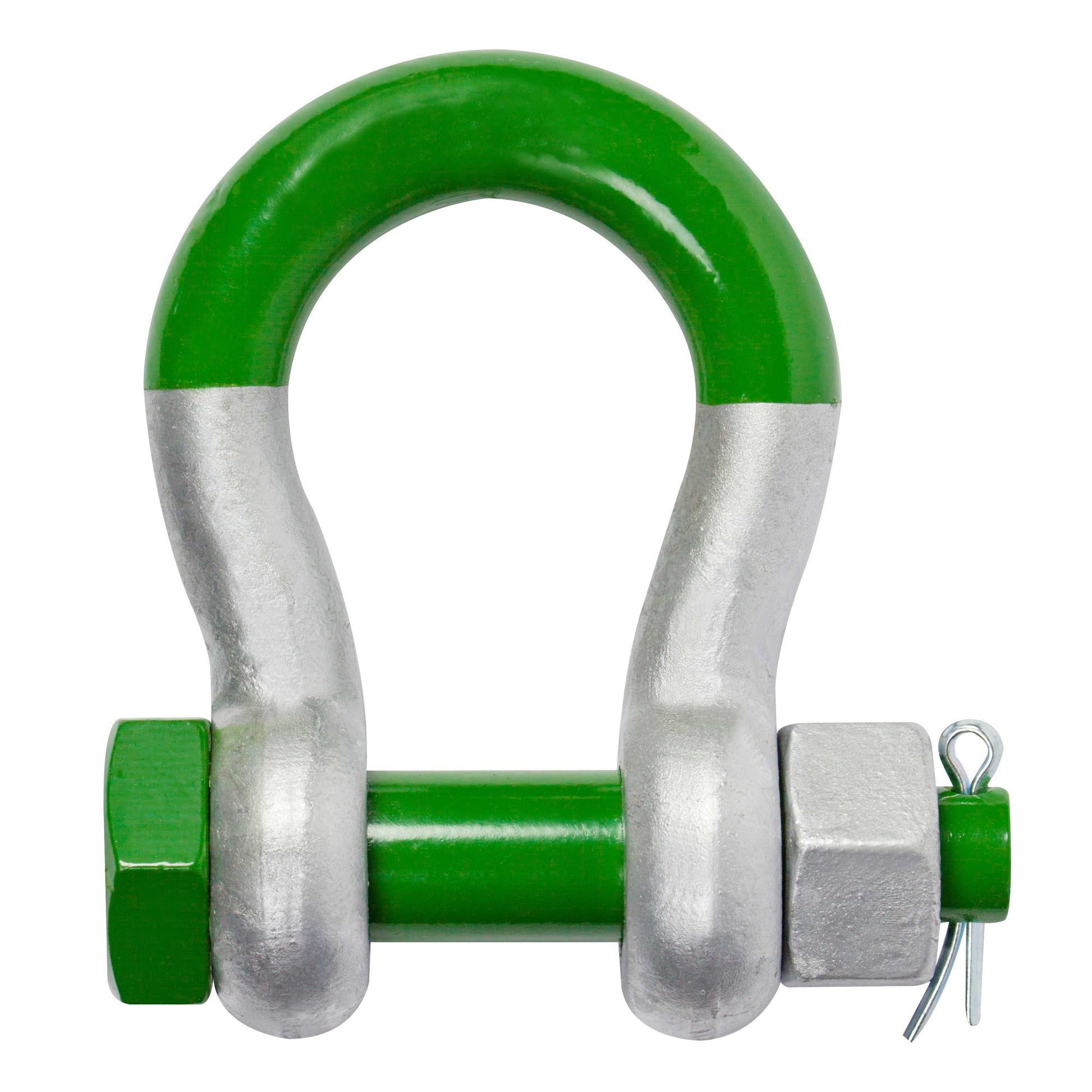

Van Beest 12.5 Ton Bolt Type Anchor Shackles

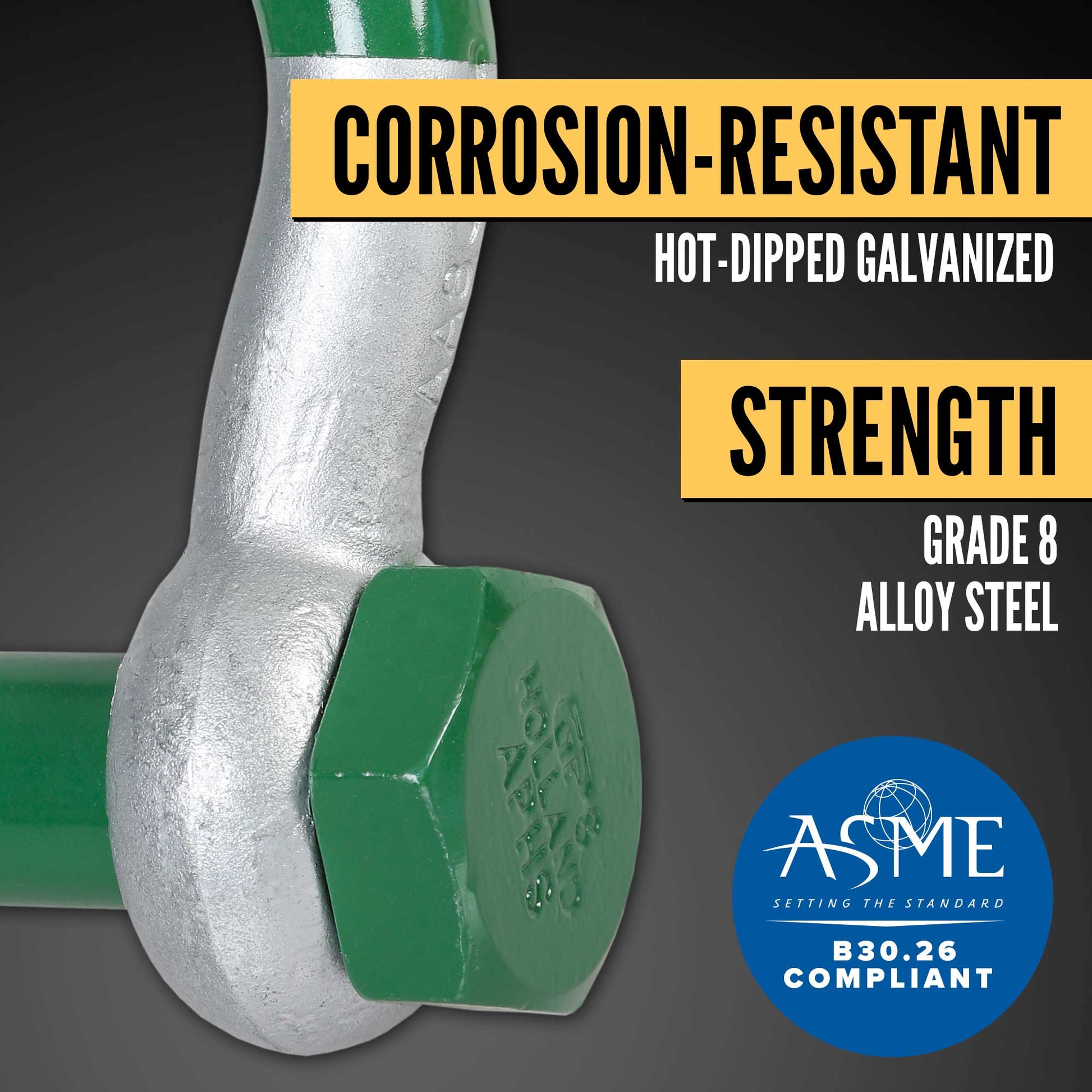

Van Beest Green Pin® Anchor Super Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy Grade 8 steel from corrosion.

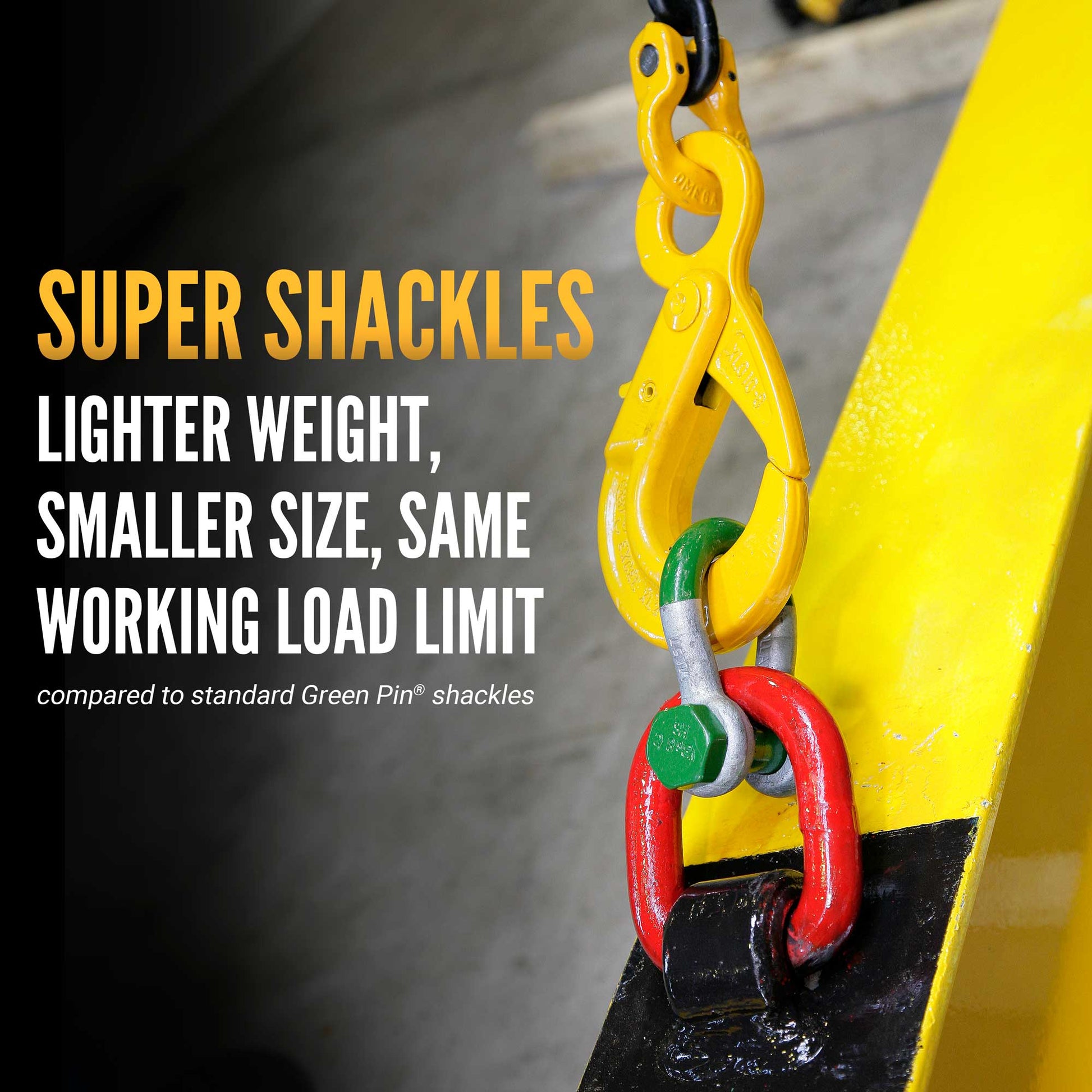

Recent developments with Green Pin® Super shackles have resulted in improved performance. Compared to standard Green Pin® shackles they have an up to 50% higher WLL with comparable physical weight and dimensions. These shackles are specially designed for applications where shackle weight and/or size are critical.

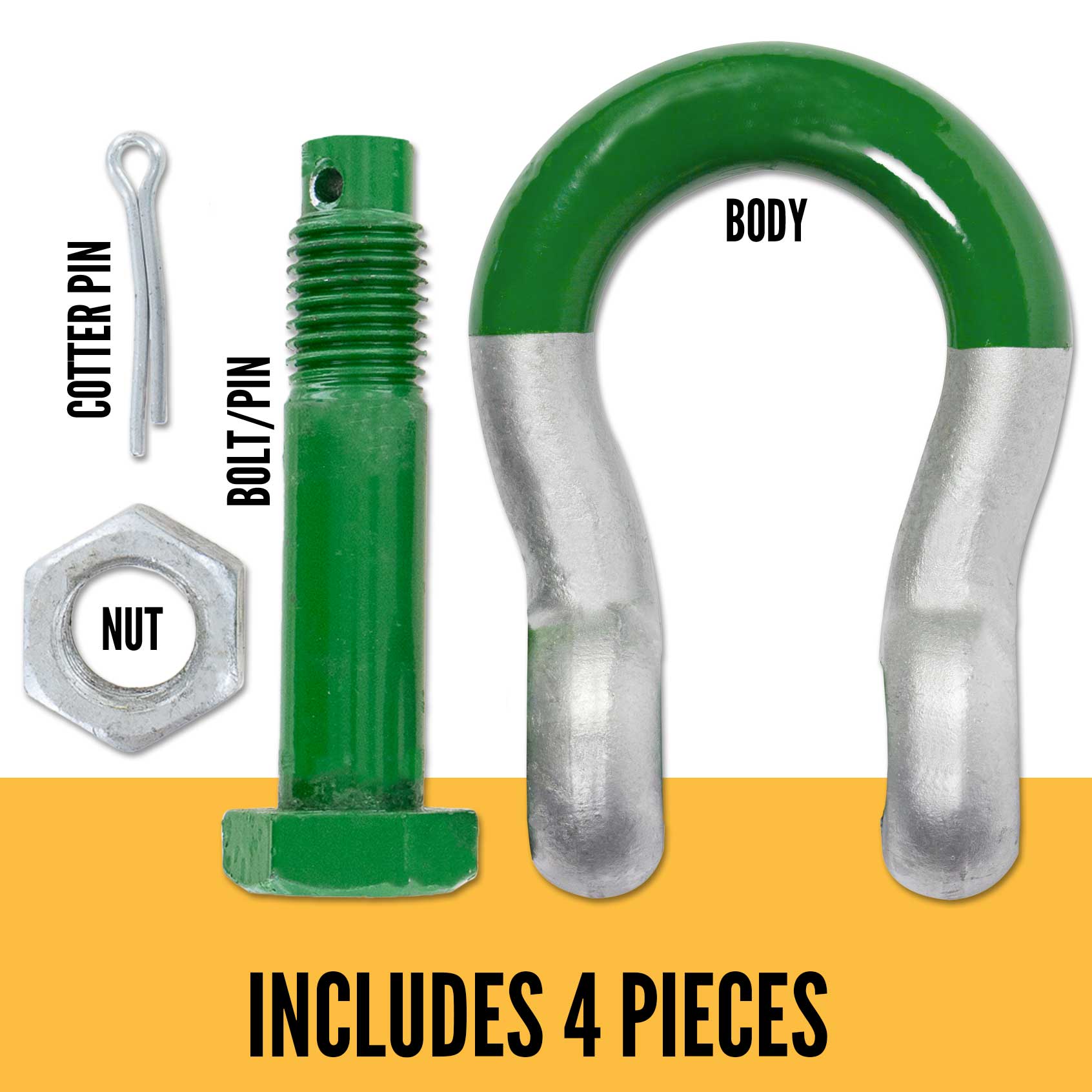

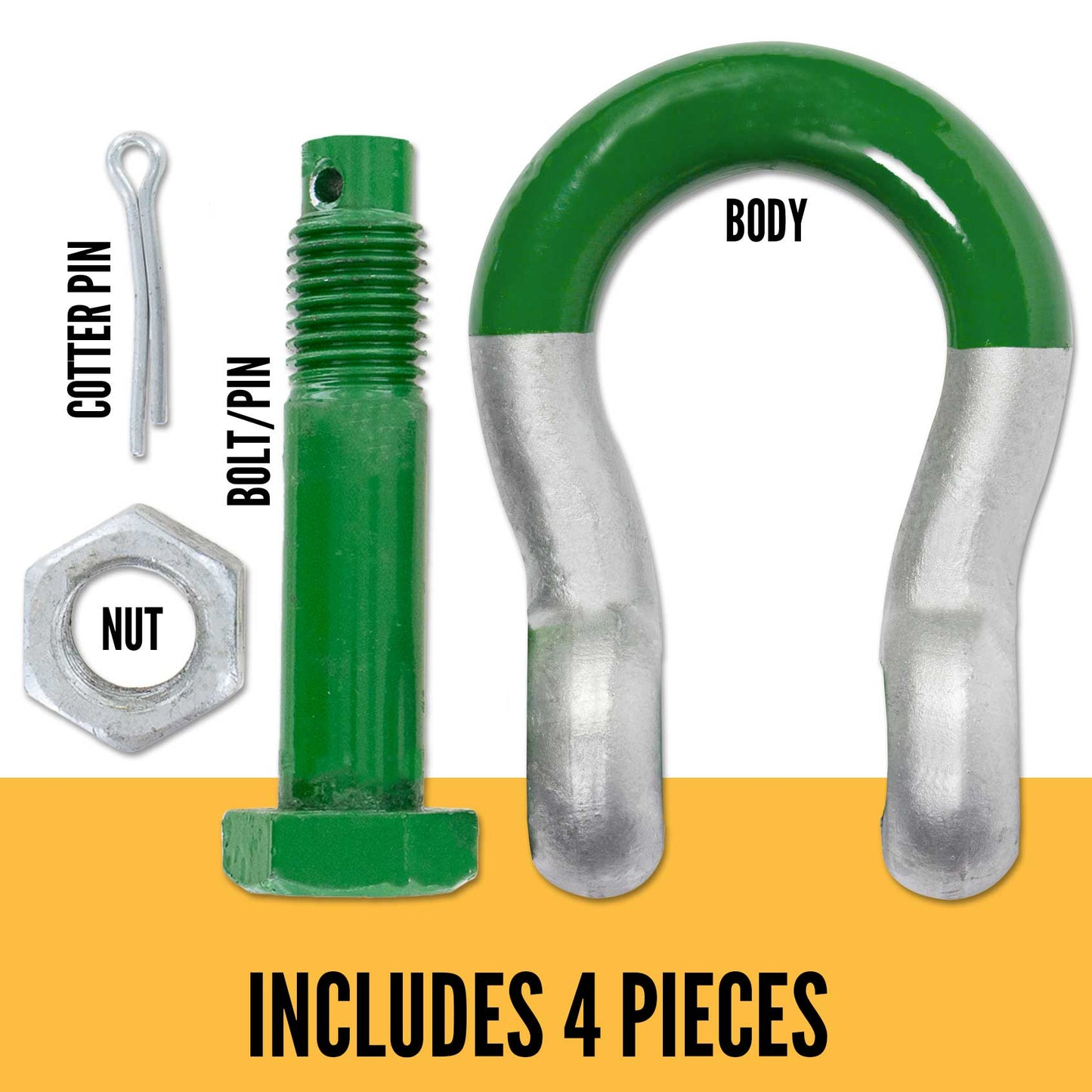

Made from Grade 8 steel, this hot-dipped galvanized shackle offers double the safety - it includes both a split pin and a safety bolt to prevent accidental unscrewing. The chamber in the shackle eye also hides the screw thread to minimize wear and tear on wire rope.

Why Choose Bolt Type Anchor Shackles?

Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
