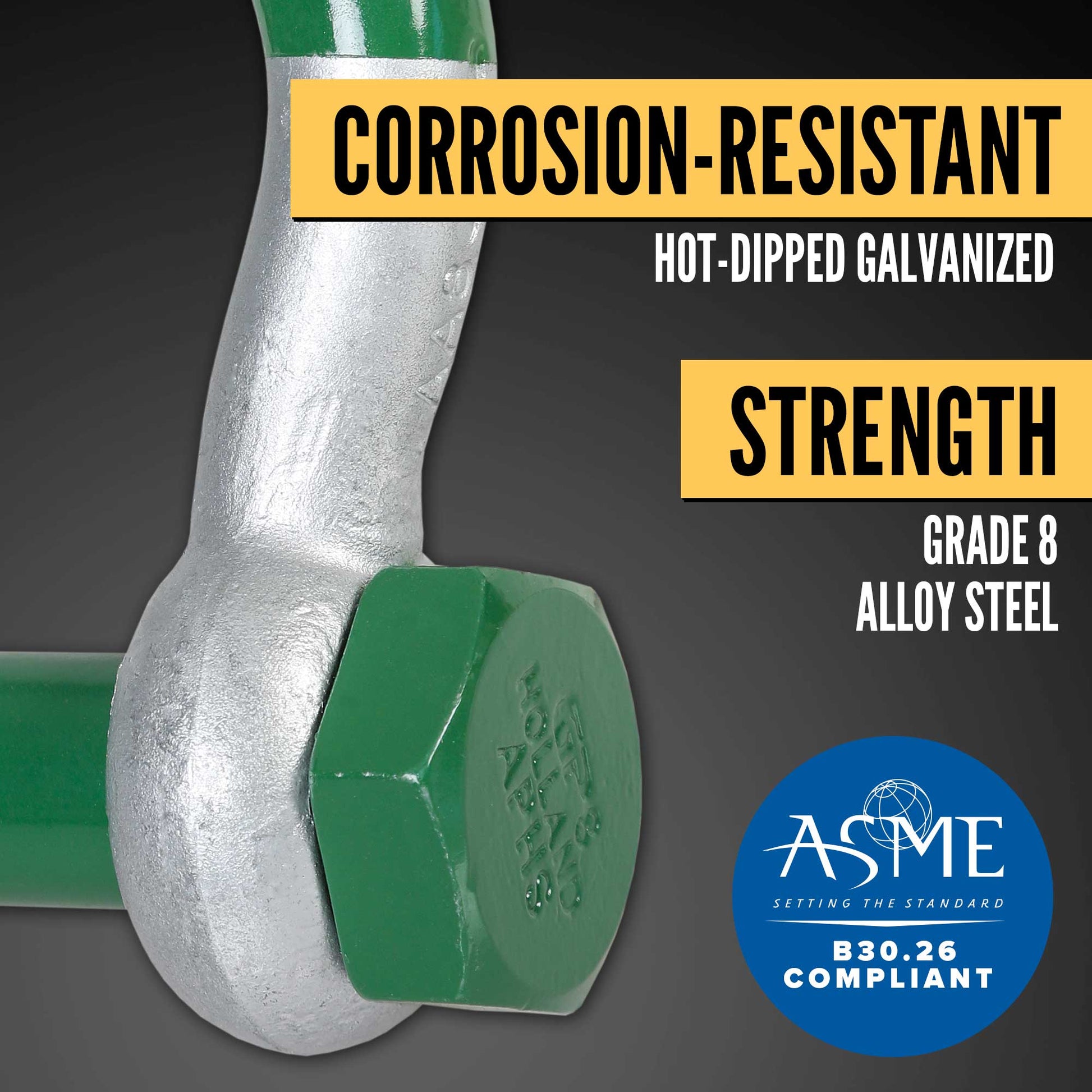

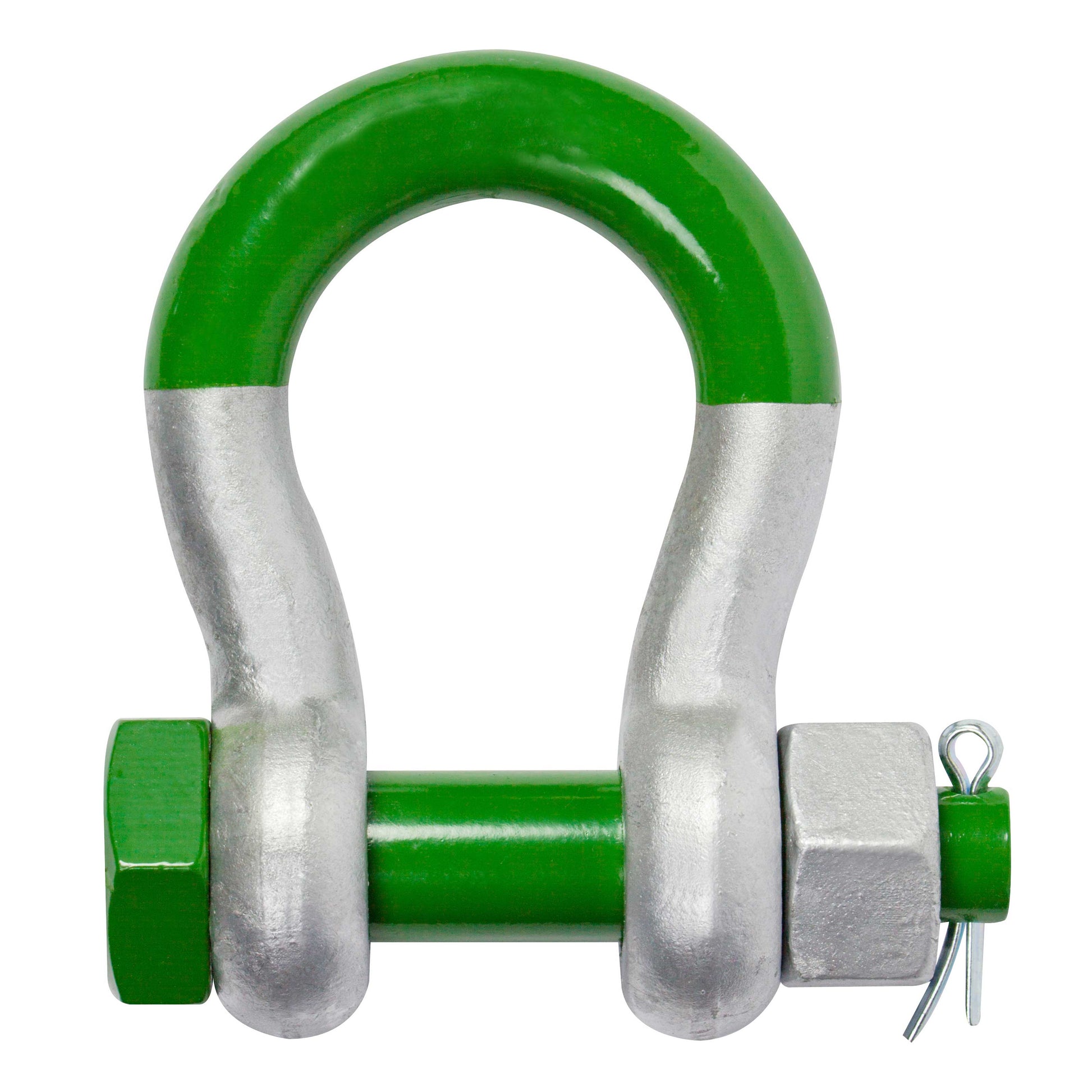

Van Beest Green Pin® Anchor Super Shackles are extremely high quality shackles made in Holland. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy Grade 8 steel from corrosion.

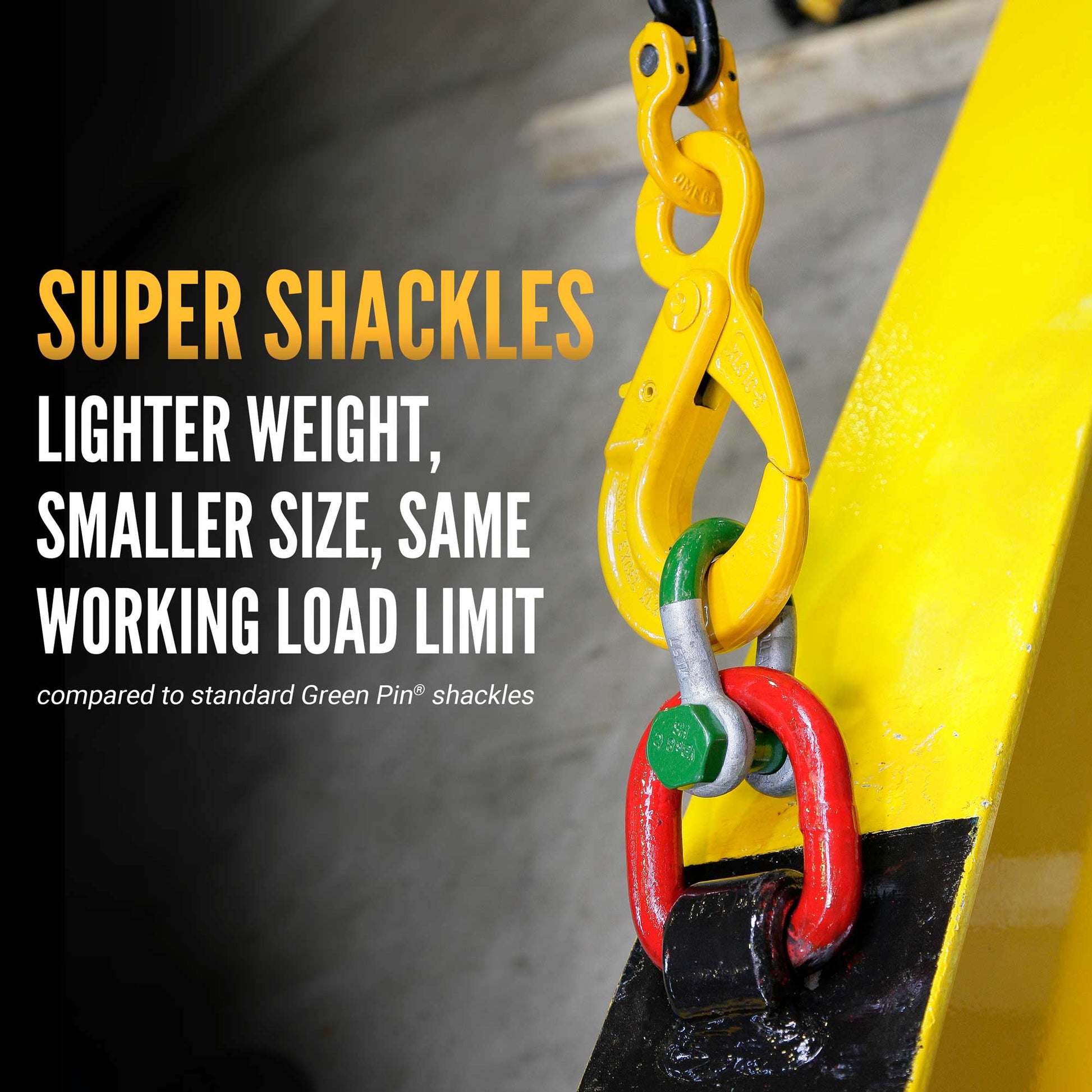

Recent developments with Green Pin® “Super” shackles have resulted in improved performance. Compared to standard Green Pin® shackles they have an up to 50% higher WLL with comparable physical weight and dimensions. These shackles are specially designed for applications where shackle weight and/or size are critical. In order to distinguish the Green Pin® “Super” shackles from standard Green Pin® shackles the new model can be recognized by the Green painted shackle “Crown”.
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles.
California Residents: WARNING
Recent developments with Green Pin® “Super” shackles have resulted in improved performance. Compared to standard Green Pin® shackles they have an up to 50% higher WLL with comparable physical weight and dimensions. These shackles are specially designed for applications where shackle weight and/or size are critical. In order to distinguish the Green Pin® “Super” shackles from standard Green Pin® shackles the new model can be recognized by the Green painted shackle “Crown”.
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles.
California Residents: WARNING
Van Beest Green Pin® Anchor Super Shackles are extremely high quality shackles made in Holland. These shackles are very easily identifiable in the fie...
Van Beest Green Pin® Anchor Super Shackles are extremely high quality shackles made in Holland. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy Grade 8 steel from corrosion.
Recent developments with Green Pin® “Super” shackles have resulted in improved performance. Compared to standard Green Pin® shackles they have an up to 50% higher WLL with comparable physical weight and dimensions. These shackles are specially designed for applications where shackle weight and/or size are critical. In order to distinguish the Green Pin® “Super” shackles from standard Green Pin® shackles the new model can be recognized by the Green painted shackle “Crown”.
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles.
California Residents: WARNING
Recent developments with Green Pin® “Super” shackles have resulted in improved performance. Compared to standard Green Pin® shackles they have an up to 50% higher WLL with comparable physical weight and dimensions. These shackles are specially designed for applications where shackle weight and/or size are critical. In order to distinguish the Green Pin® “Super” shackles from standard Green Pin® shackles the new model can be recognized by the Green painted shackle “Crown”.
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles.
California Residents: WARNING
specifications
Working Load Limit:
30 ton
Product Weight:
19.38
Machine Washable:
false
Manufacturer Name:
Van Beest
Brand:
US Cargo Control
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
With Covers:
false
Inside Height:
5.75"
Inside Width:
3.91"
Mouth Width:
2.34"
Pin Size:
1-5/8"
Shackle Size:
1-1/2"
Product Guide:
Shackle Dimensions:
S:
1-1/2"
A:
1-5/8"
B:
5.75
C:
2.34
D:
3.91
