SKU: BTCS34-VB
3/4" Van Beest Green Pin® Bolt Type Chain Shackle | G-4153 - 4.75 Ton
3/4" Van Beest Green Pin® Bolt Type Chain Shackle | G-4153 - 4.75 Ton!
$33.80
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 4.75 tons (Metric) / 10,471 lbs.
Brand part number: GPGDMB19
Finish: Galvanized
Inside height: 2.31"
Inside width: 1.22"
Manufacturer name: Van Beest
Material: Grade 6 High-Tensile Steel
Mouth width: 1.22"
Pin size: 7/8"
Product weight: 2.39 lbs.
Safety factor: 6:1
Shackle size: 3/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of EN13889, ASME B30.26, ASTM A148M, and Federal Specification RR-C-271.
Type: Bolt Type Chain
Description
Van Beest 4.75 Ton Bolt Type Chain Shackles

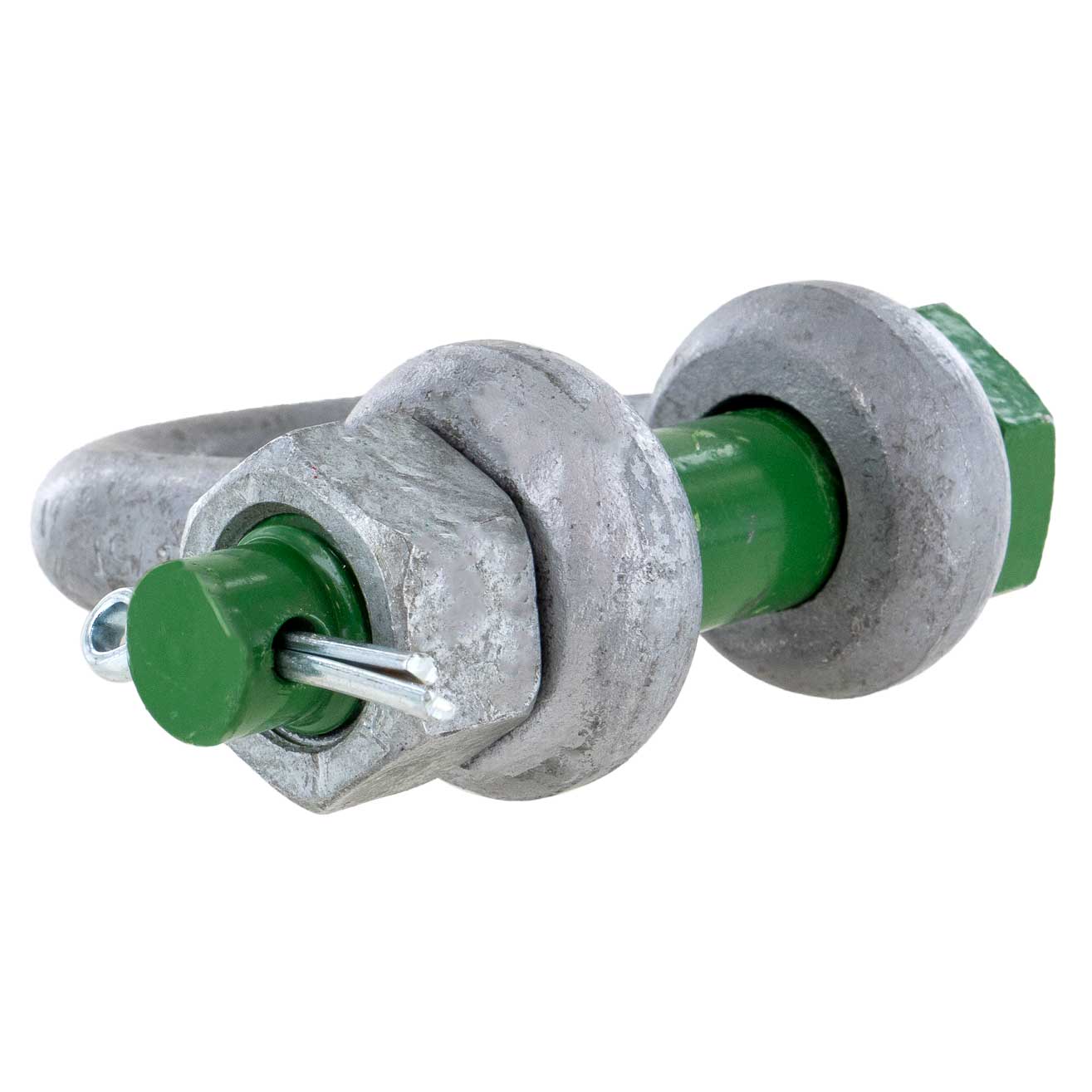

Van Beest Green Pin® Chain Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile, quenched and tempered Grade 6 steel from corrosion.
The shackle design includes a double safety - it has both a split pin and a safety bolt to prevent accidental unscrewing.
Why Choose Bolt Type Chain Shackles?
Bolt type chain shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Chain shackles generally have a higher working load limit than anchor shackles, but are ideal for straight or inline pulls only. Side and racking loads may cause the shackle to twist or bend.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
