Working load limit: 2 tons (Metric) / 4,409 lbs.
Brand part number: GPGDMB13
Finish: Galvanized
Inside height: 1.69"
Inside width: 0.88"
Manufacturer name: Van Beest
Material: Grade 6 High-Tensile Steel
Mouth width: 0.88"
Pin size: 5/8"
Product weight: .85 lbs.
Safety factor: 6:1
Shackle size: 1/2"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of EN13889, ASME B30.26, ASTM A148M, and Federal Specification RR-C-271.
Type: Bolt Type Chain

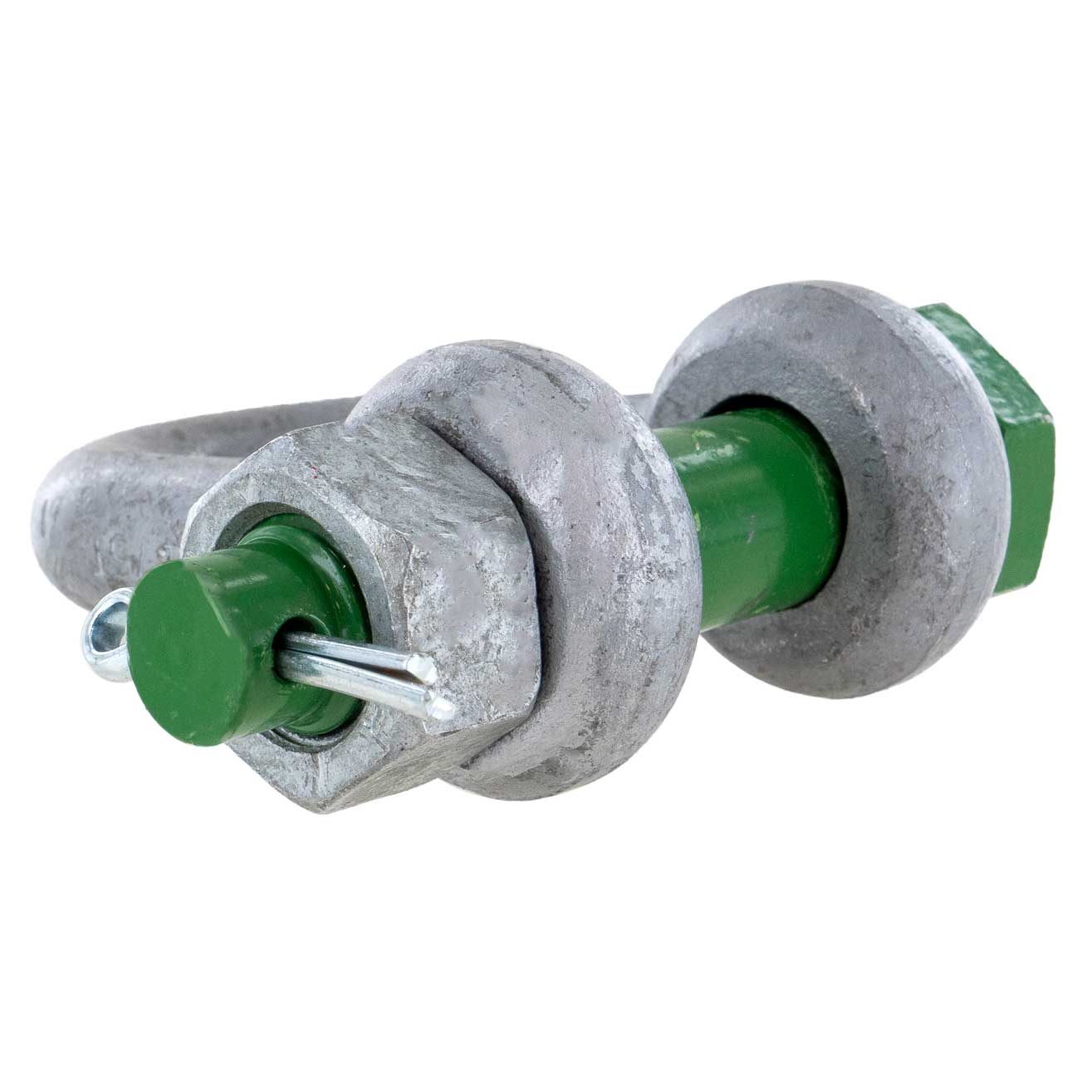

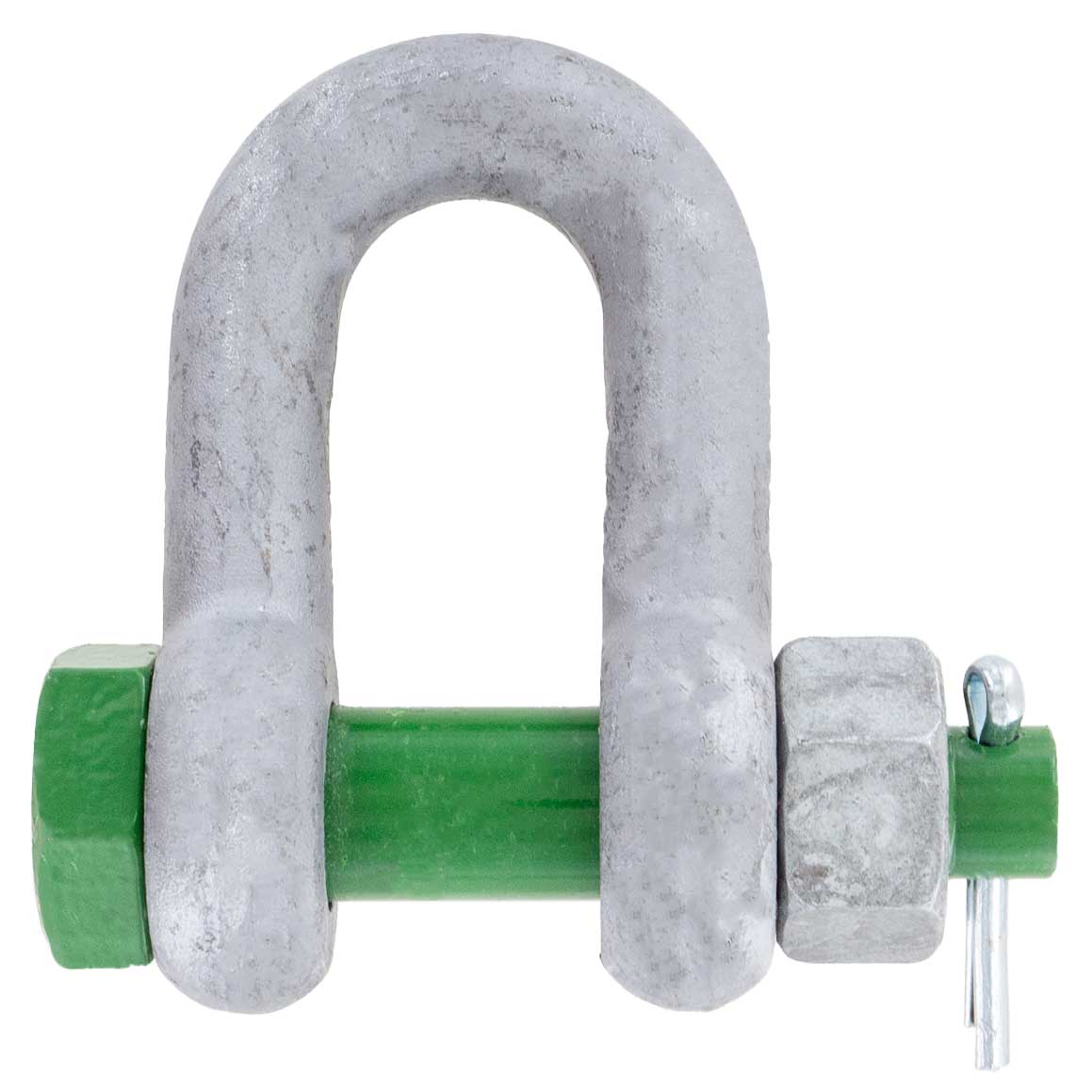

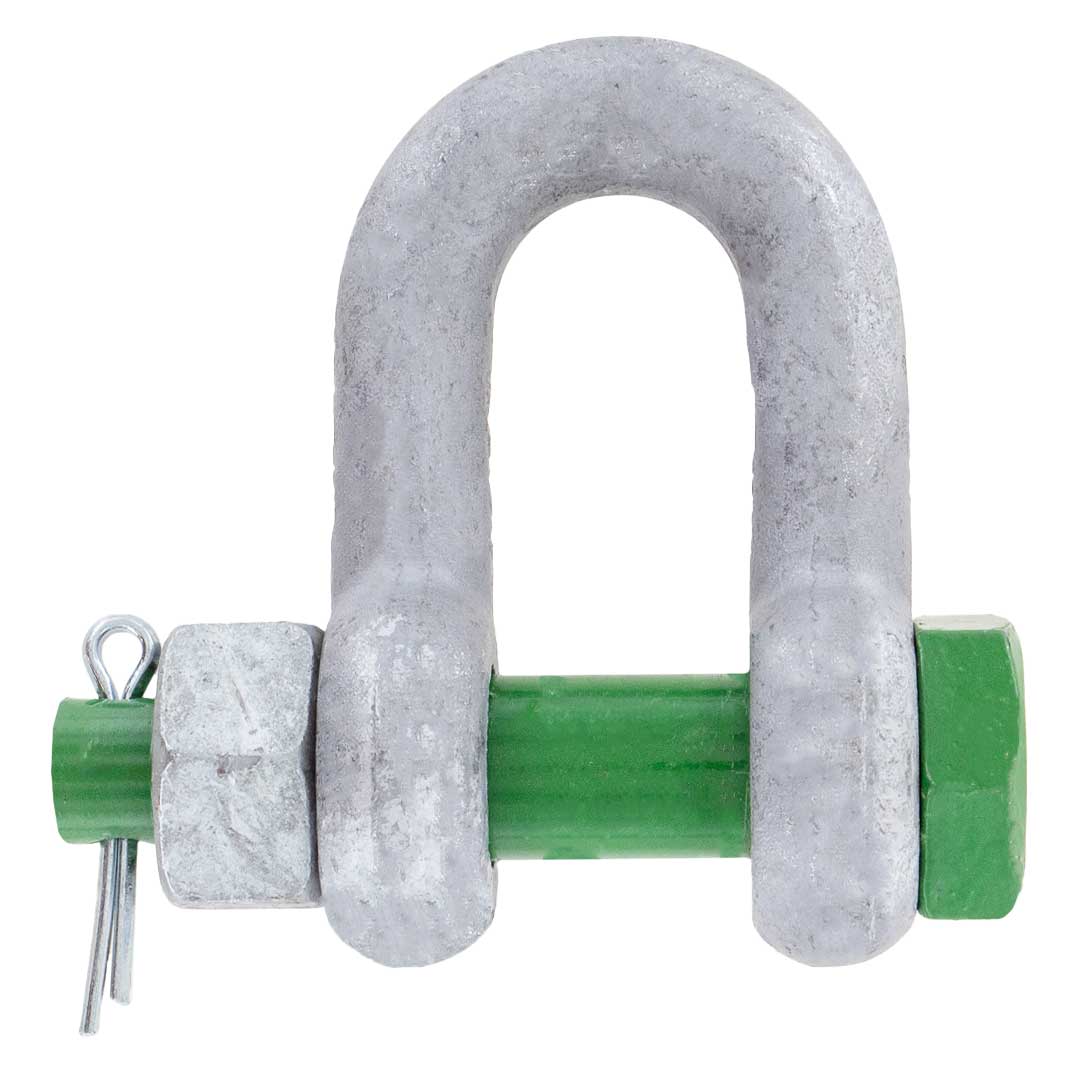

Van Beest 2 Ton Bolt Type Chain Shackles

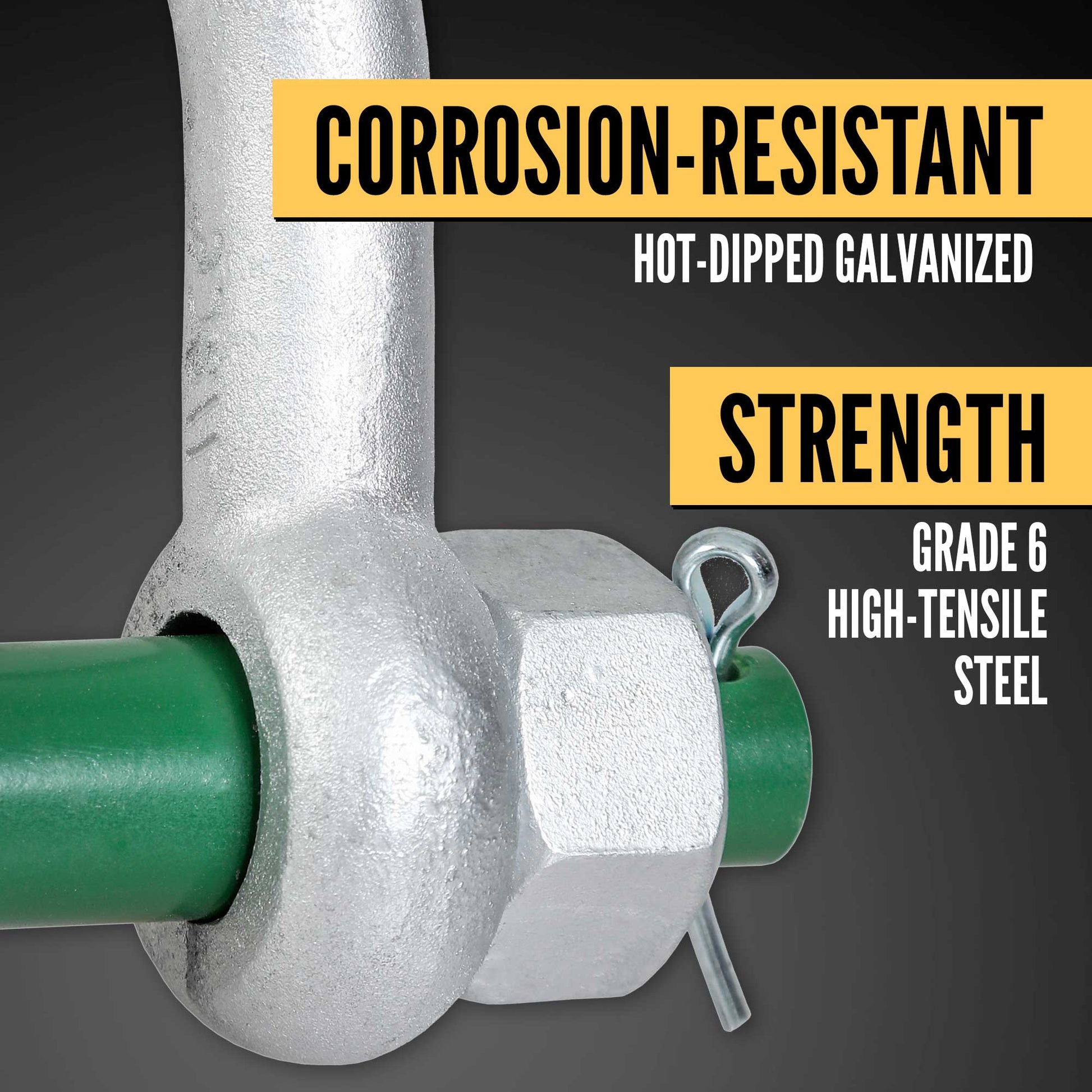

Van Beest Green Pin® Chain Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile, quenched and tempered Grade 6 steel from corrosion.

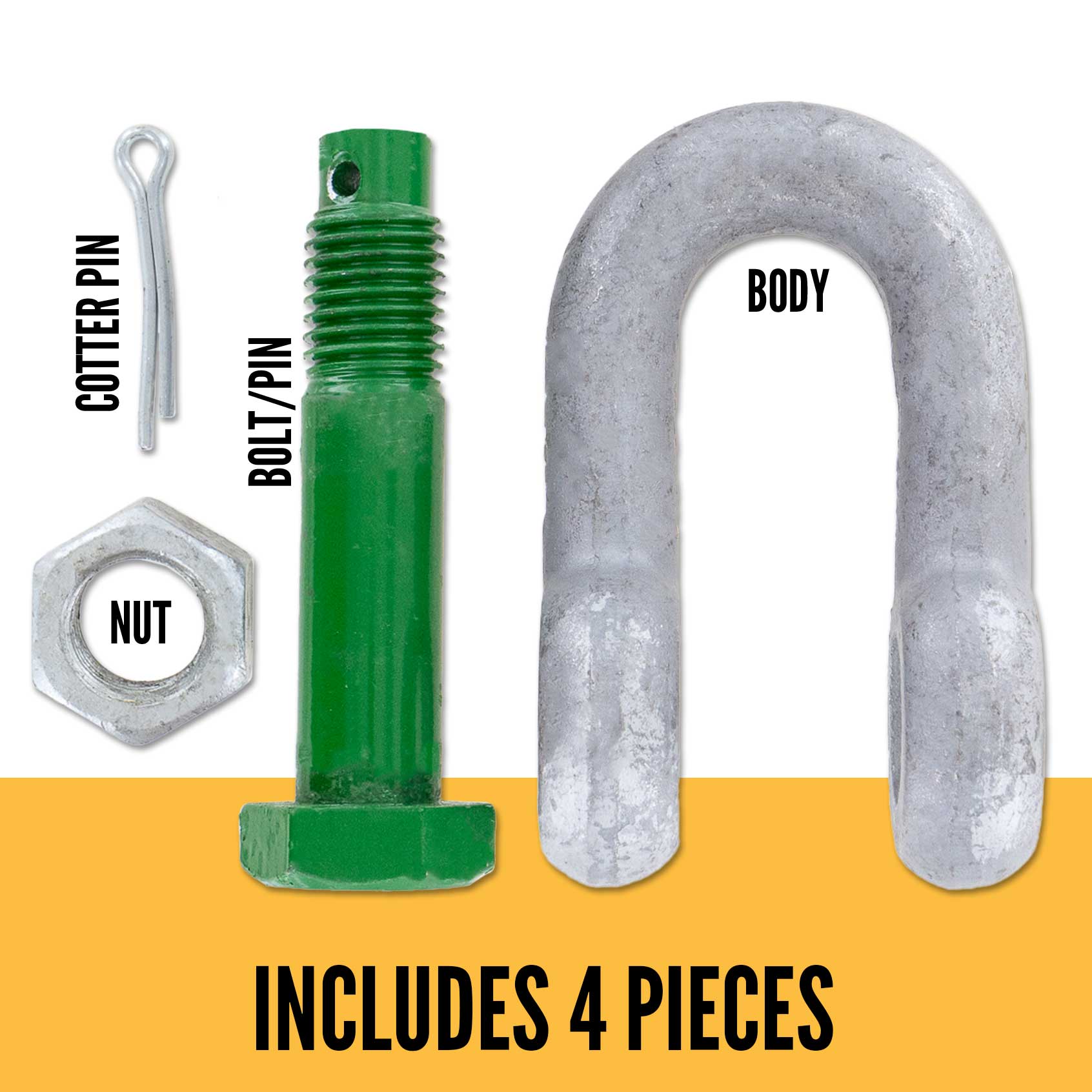

The shackle design includes a double safety - it has both a split pin and a safety bolt to prevent accidental unscrewing.
Why Choose Bolt Type Chain Shackles?
Bolt type chain shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Chain shackles generally have a higher working load limit than anchor shackles, but are ideal for straight or inline pulls only. Side and racking loads may cause the shackle to twist or bend.
