SKU: BTCS1-VB

1" Van Beest Green Pin® Bolt Type Chain Shackle | G-4153 - 8.5 Ton

1" Van Beest Green Pin® Bolt Type Chain Shackle | G-4153 - 8.5 Ton!

Skip to product information
1 of 8

SKU: BTCS1-VB

1" Van Beest Green Pin® Bolt Type Chain Shackle | G-4153 - 8.5 Ton

1" Van Beest Green Pin® Bolt Type Chain Shackle | G-4153 - 8.5 Ton!

Regular price $64.51
Sale price $64.51 Regular price
0% off
Ships in 1-3 business days.
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 8.5 tons (Metric) / 18,739 lbs.
  • Inside width: 1.69"
  • Mouth width: 1.69"
  • Finish: Galvanized
  • Safety factor: 6:1
  • Manufacturer name: Van Beest
  • Brand part number: GPGDMB25
  • Inside height: 3.34"
  • Pin size: 1-1/8"
  • Shackle size: 1"
  • Standards: Meets all requirements of EN13889, ASME B30.26, and Federal Specification RR-C-271.
  • Type: Bolt Type Chain
  • Material: Grade 6 High-Tensile Steel
  • Product weight: 5.42 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

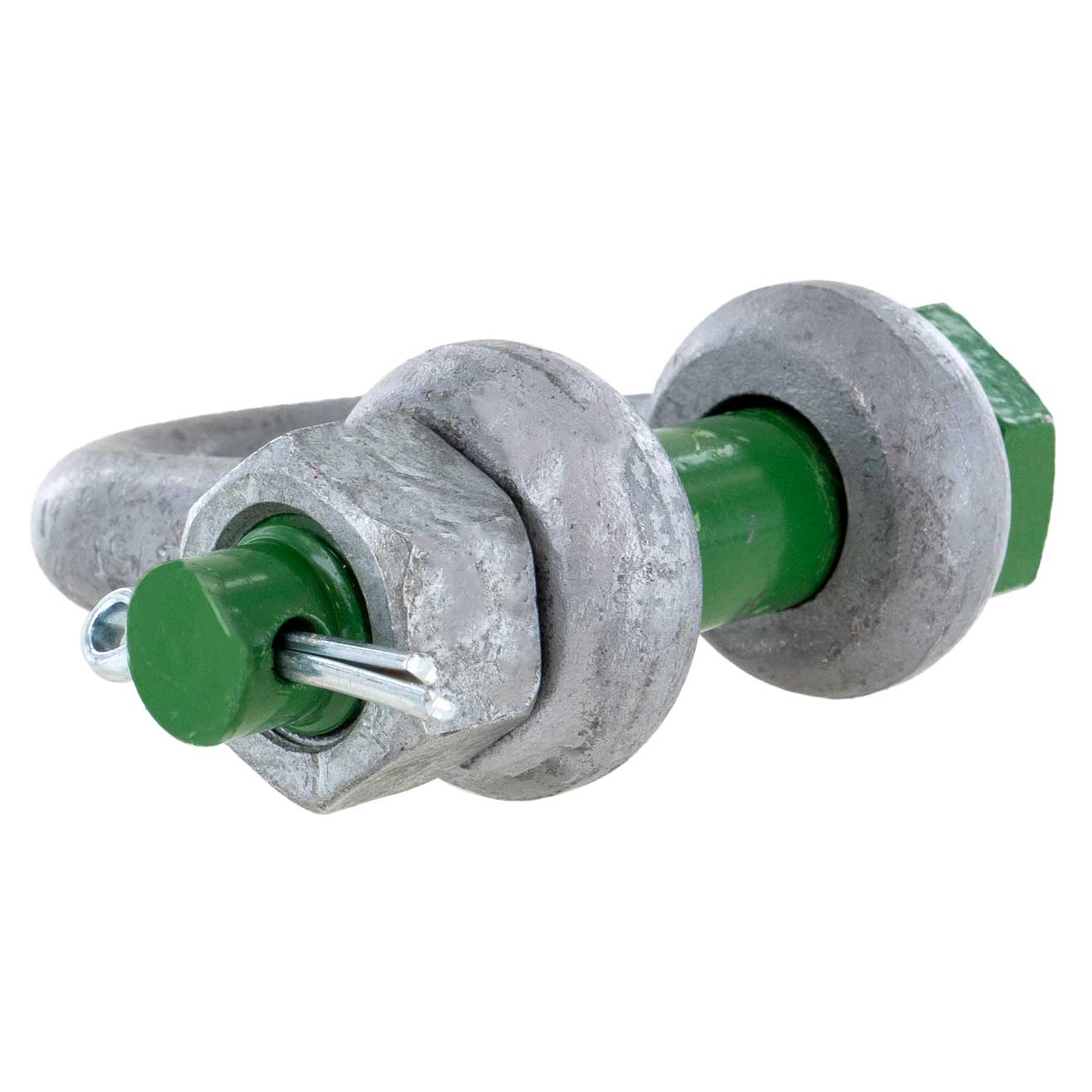

Van Beest 8.5 Ton Bolt Type Chain Shackles

Van Beest Green Pin® Chain Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile, quenched and tempered Grade 6 steel from corrosion.

The shackle design includes a double safety - it has both a split pin and a safety bolt to prevent accidental unscrewing.

Why Choose Bolt Type Chain Shackles?

Bolt type chain shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Chain shackles generally have a higher working load limit than anchor shackles, but are ideal for straight or inline pulls only. Side and racking loads may cause the shackle to twist or bend.

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.

View Product Safety Warnings

California Residents: WARNING

Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
