SKU: SPWBS12-12T-CR
Made in USA

Crosby® Screw Pin Wide Body Shackle | G-2169 - 12.5 Ton

Load Limit (lbs.)

Regular price $22700
Ships FREE in 0-1 business days.

Description

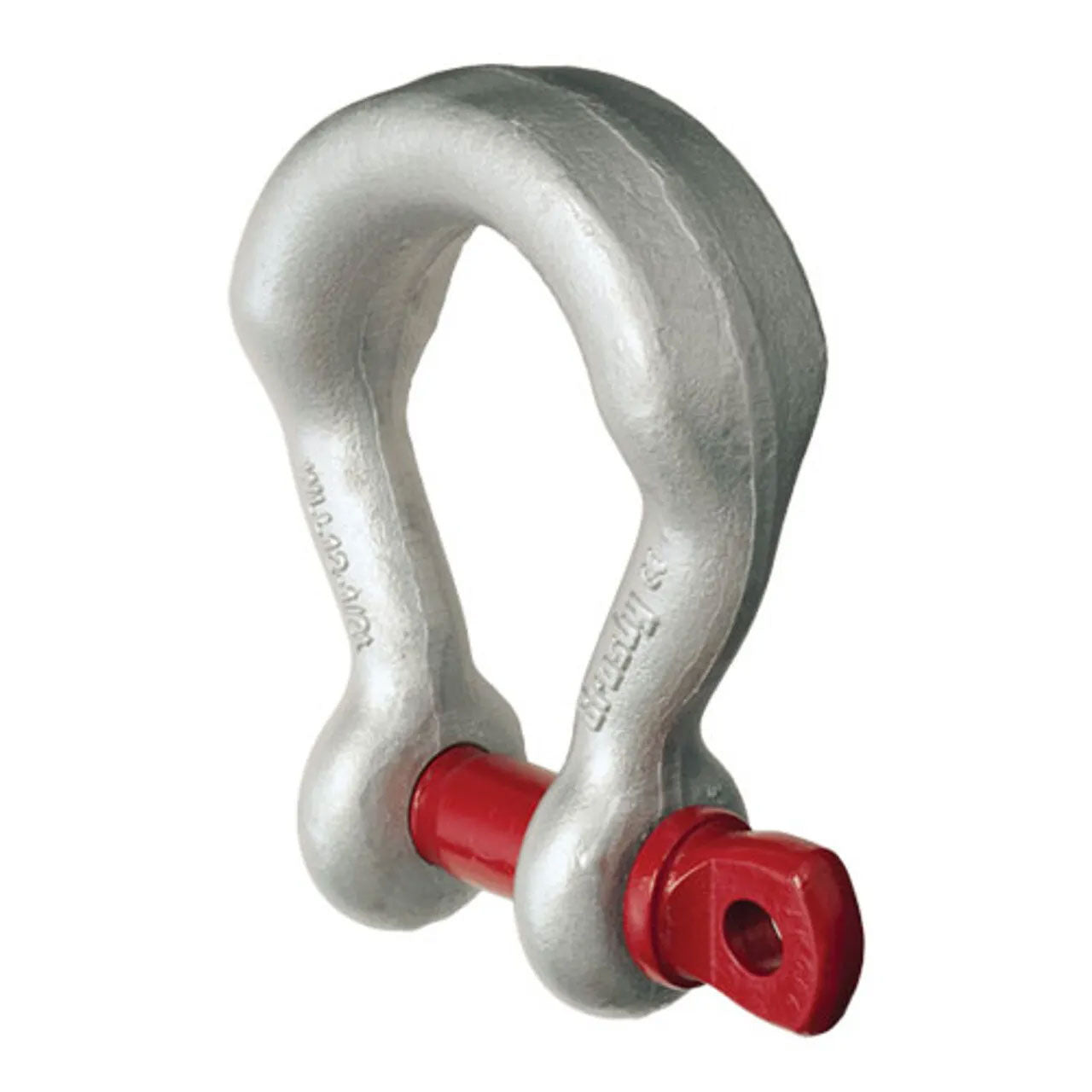

12.5 Ton Crosby Wide Body Shackle

The wide body design from Crosby® is excellent for connecting lifting slings to turnbuckles, eye bolts, and other connection points. The expanded bow radius increases the load-bearing surface, improving the efficiency of your slings and and eliminating the need for a thimble.

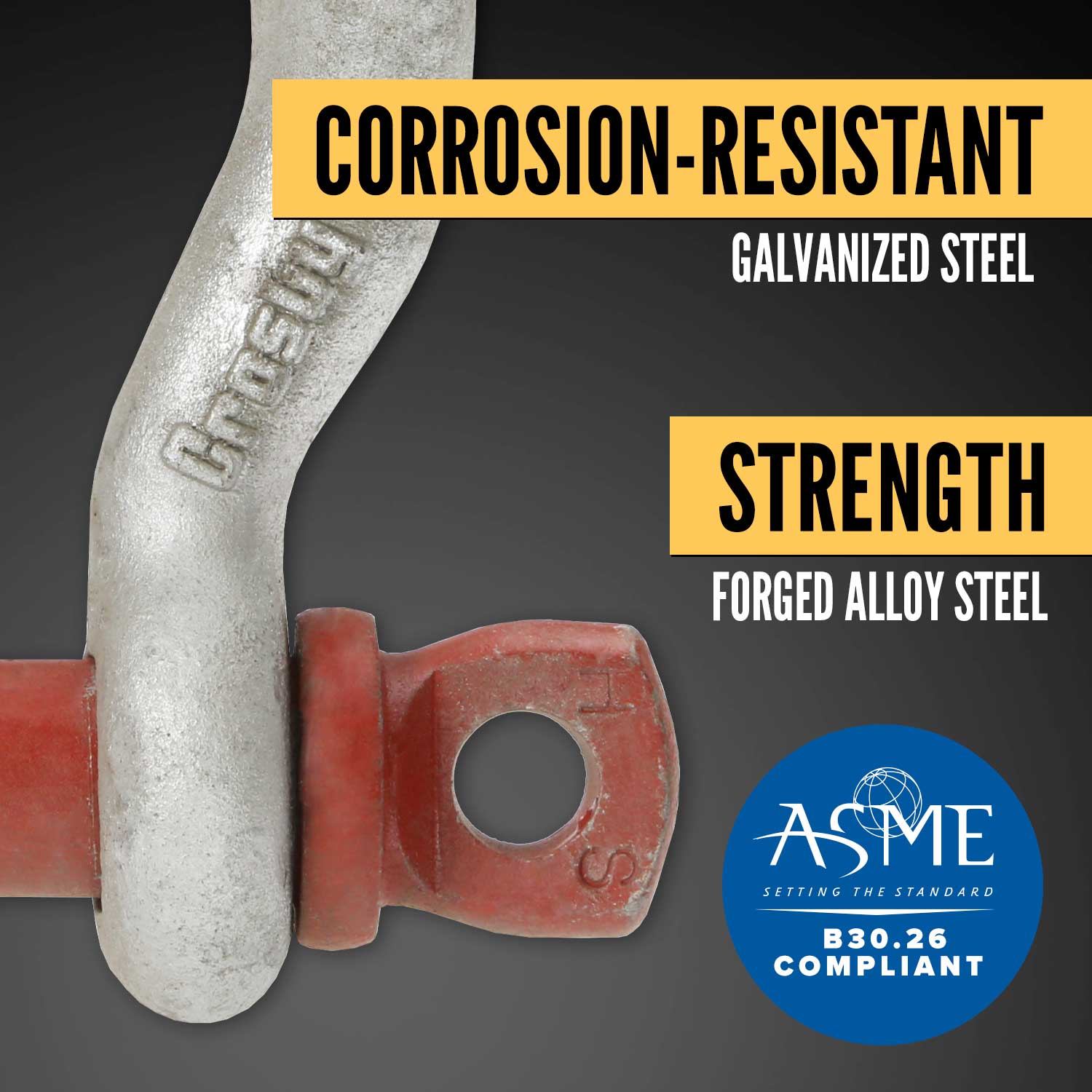

The hot-dip galvanized forged alloy steel is corrosion-resistant and quenched and tempered for superior strength. The painted red pin allows for easy identification. This shackle uses a screw pin configuration, ideal for use in applications that require repeated connecting and disconnecting, or for more temporary applications. If you are looking for a more permanent shackle, check out our wide body bolt type shackles.

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.

View Product Safety Warnings

California Residents: WARNING

Specifications

Working Load Limit (lbs.): 27,557
Safety Factor: 4.5:1
Inside Height: 4.63"
Mouth Width: 1.69"
Pin Size: 1-1/8"
Material: Forged Alloy Steel
Finish: Galvanized
Type: Screw Pin Wide Body
Product Weight: 8.8 lbs.
Standards: Meets or exceeds all requirements of ASME B30.26 & ASTM A148M.
Manufacturer Name: Crosby®
Brand Part Number: 1021673
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: WLL (tons): 12.5
Outside width: 5.51"

Reviews (0)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

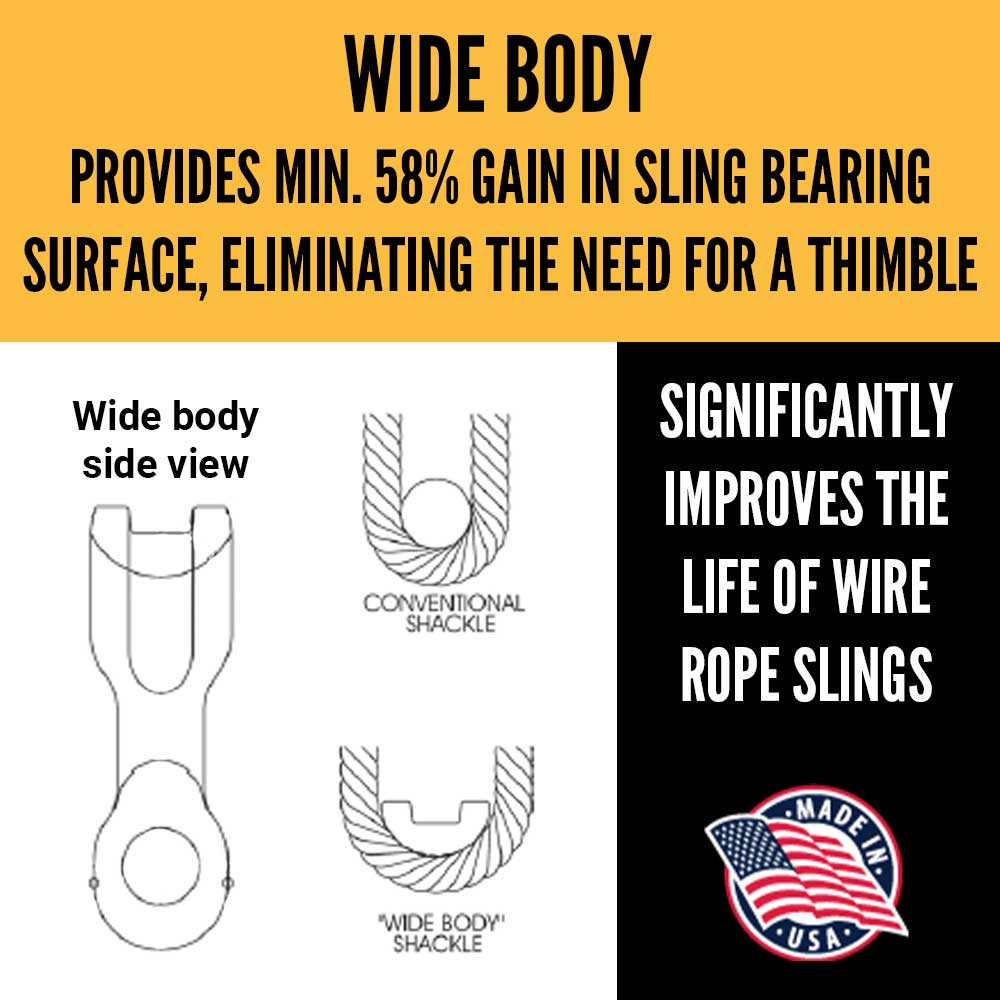

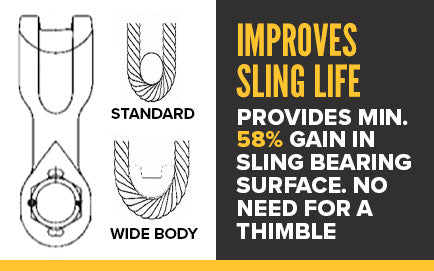

  • Improved Sling Life
