SKU: SPWBS7T-CR
Crosby® Screw Pin Wide Body Shackle | G-2169 - 7 Ton
Crosby® Screw Pin Wide Body Shackle | G-2169 - 7 Ton!
Authorized Distributor
$89.30
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 7 tons (Metric) / 15,432 lbs.
Brand part number: 1021655
Finish: Galvanized
Inside height: 3.56"
Manufacturer name: Crosby®
Material: Forged Alloy Steel
Mouth width: 1.25"
Pin size: 7/8"
Product weight: 3.5 lbs.
Safety factor: 4.5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26 & ASTM A148M.
Type: Screw Pin Wide Body
Additional Info: Outside width: 4.1"
Description
7 Ton Crosby Wide Body Shackle

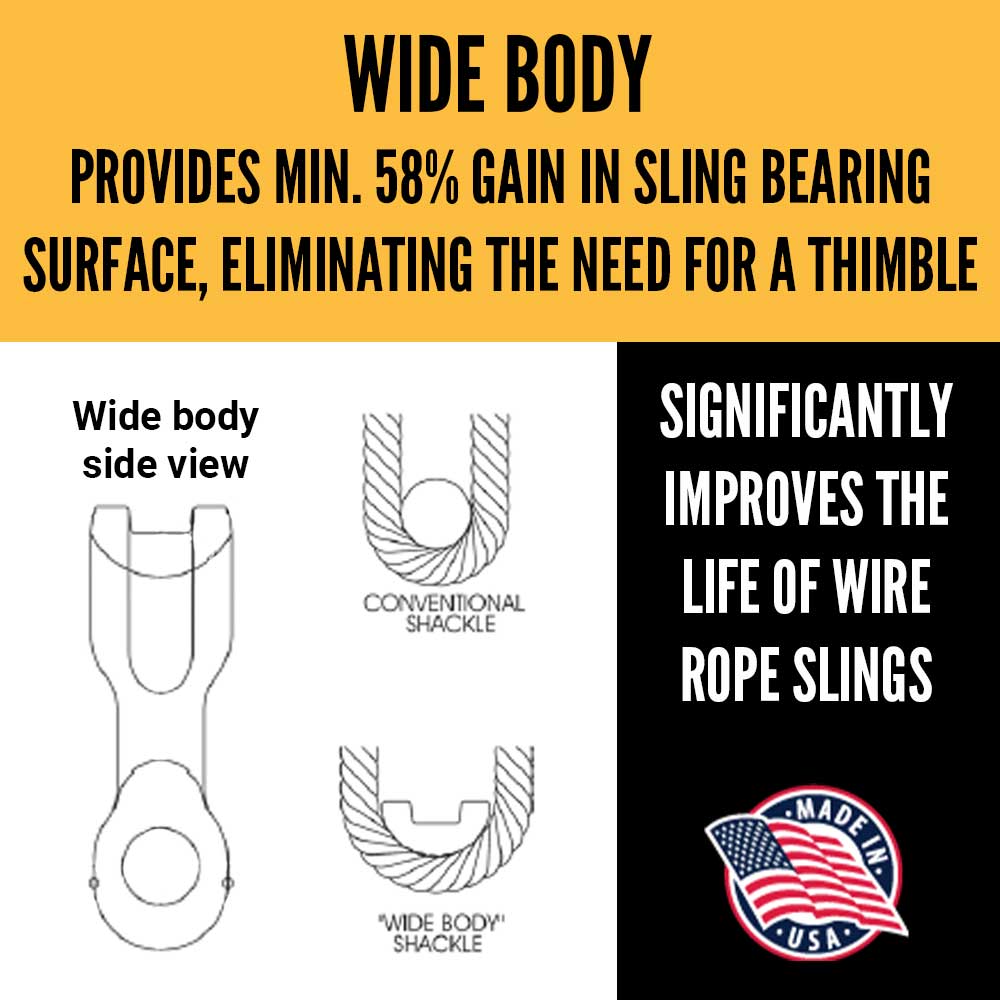

The wide body design from Crosby® is excellent for connecting lifting slings to turnbuckles, eye bolts, and other connection points. The expanded bow radius increases the load-bearing surface, improving the efficiency of your slings and and eliminating the need for a thimble.

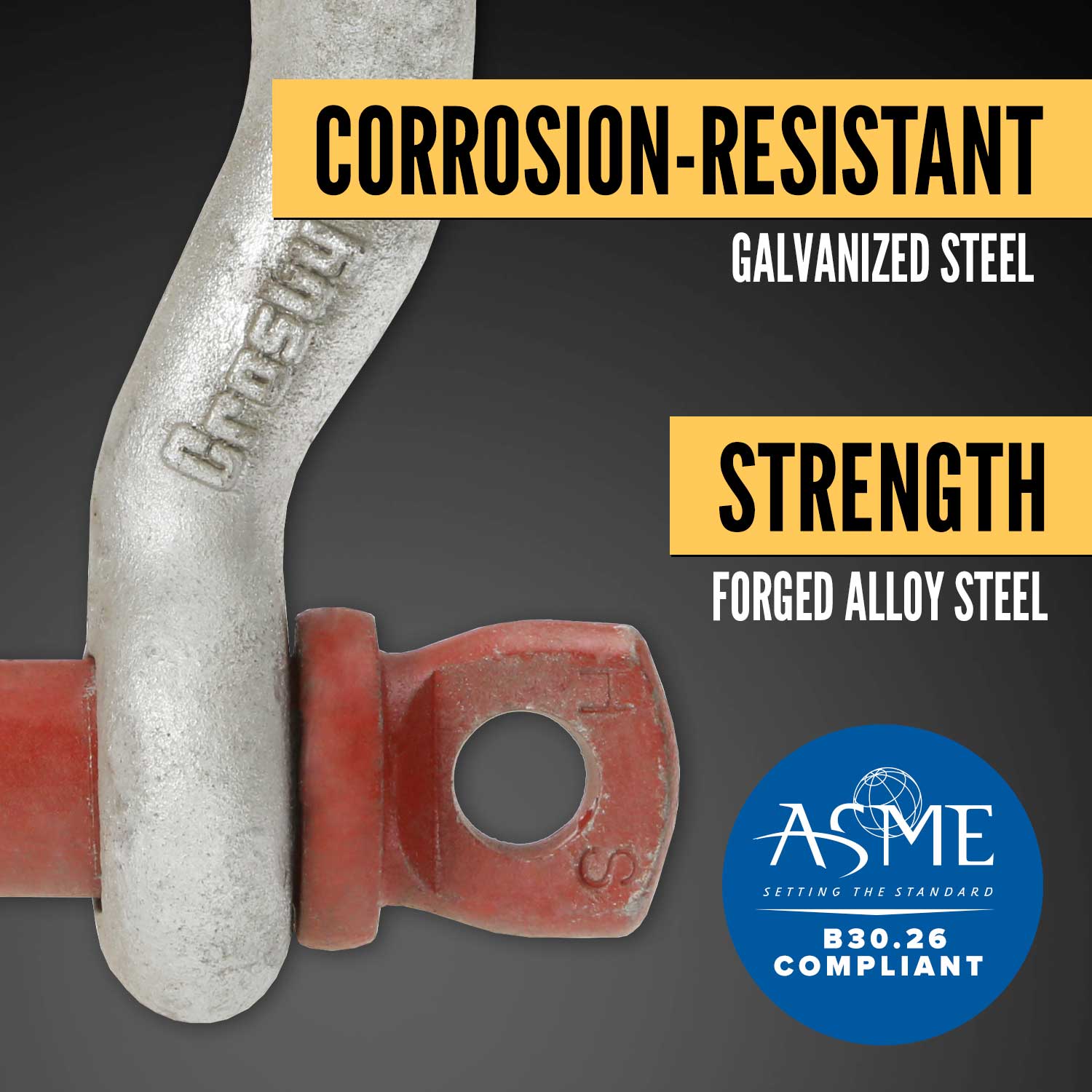

The hot-dip galvanized forged alloy steel is corrosion-resistant and quenched and tempered for superior strength. The painted red pin allows for easy identification. This shackle uses a screw pin configuration, ideal for use in applications that require repeated connecting and disconnecting, or for more temporary applications. If you are looking for a more permanent shackle, check out our wide body bolt type shackles.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
