SKU: SPWSS6-14T-CR
Crosby® Screw Pin Sling Saver Shackle | S-281 - 6.25 Ton
Crosby® Screw Pin Sling Saver Shackle | S-281 - 6.25 Ton!
Authorized Distributor
$82.80
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 5.67 tons (Metric) / 12,500 lbs.
Brand part number: 1021066
Finish: Painted
Inside height: 2"
Inside width: 2.50"
Manufacturer name: Crosby®
Material: Alloy Steel
Mouth width: 1.44"
Pin size: 7/8"
Product weight: 2.5 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, ASTM A148M, and WSTDA-RS1.
Type: Screw Pin Web Sling
Width: 4"
Additional Info: Width refers to the webbing width this shackle can accommodate.
Description

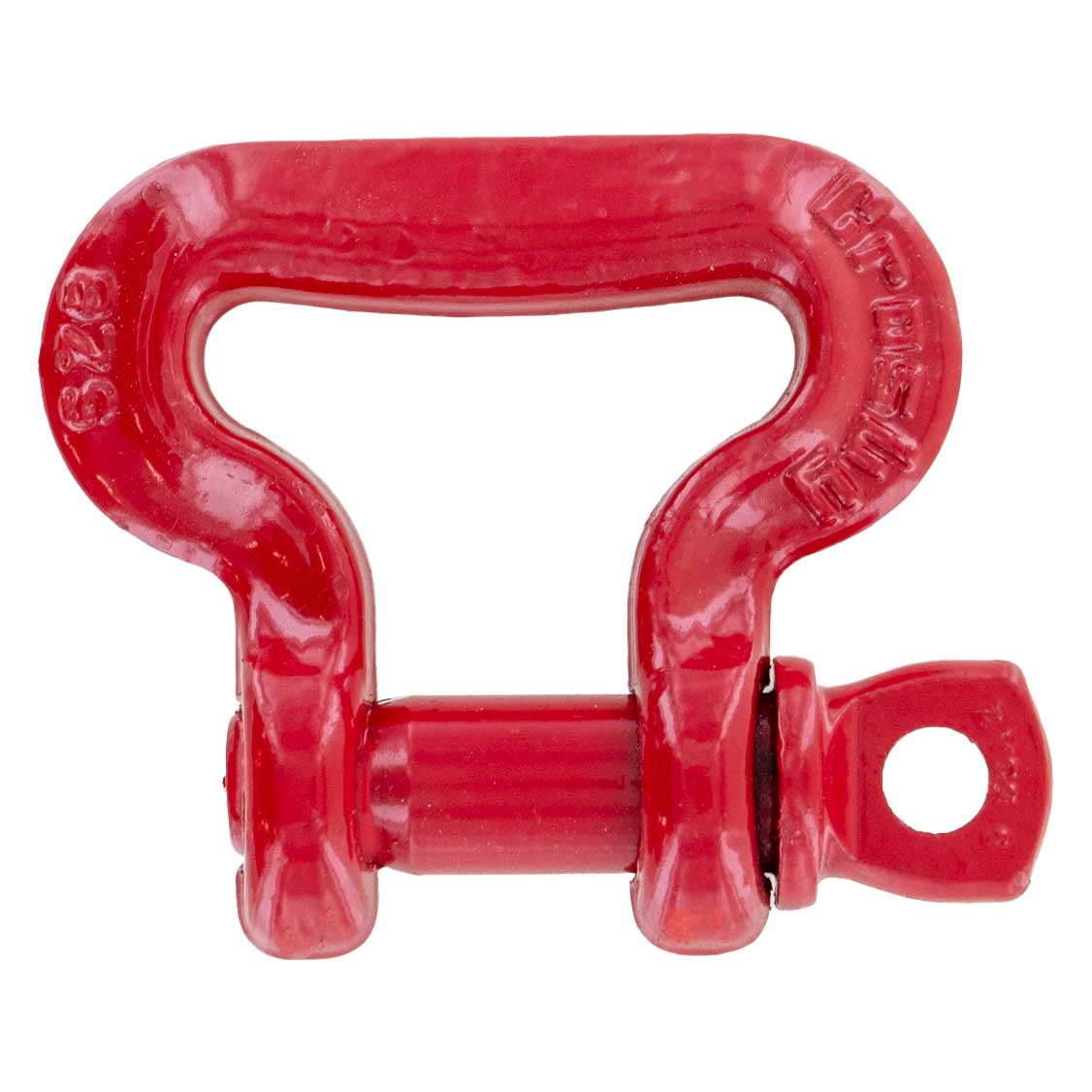

6.25 ton Crosby S-281 Web Sling Shackle

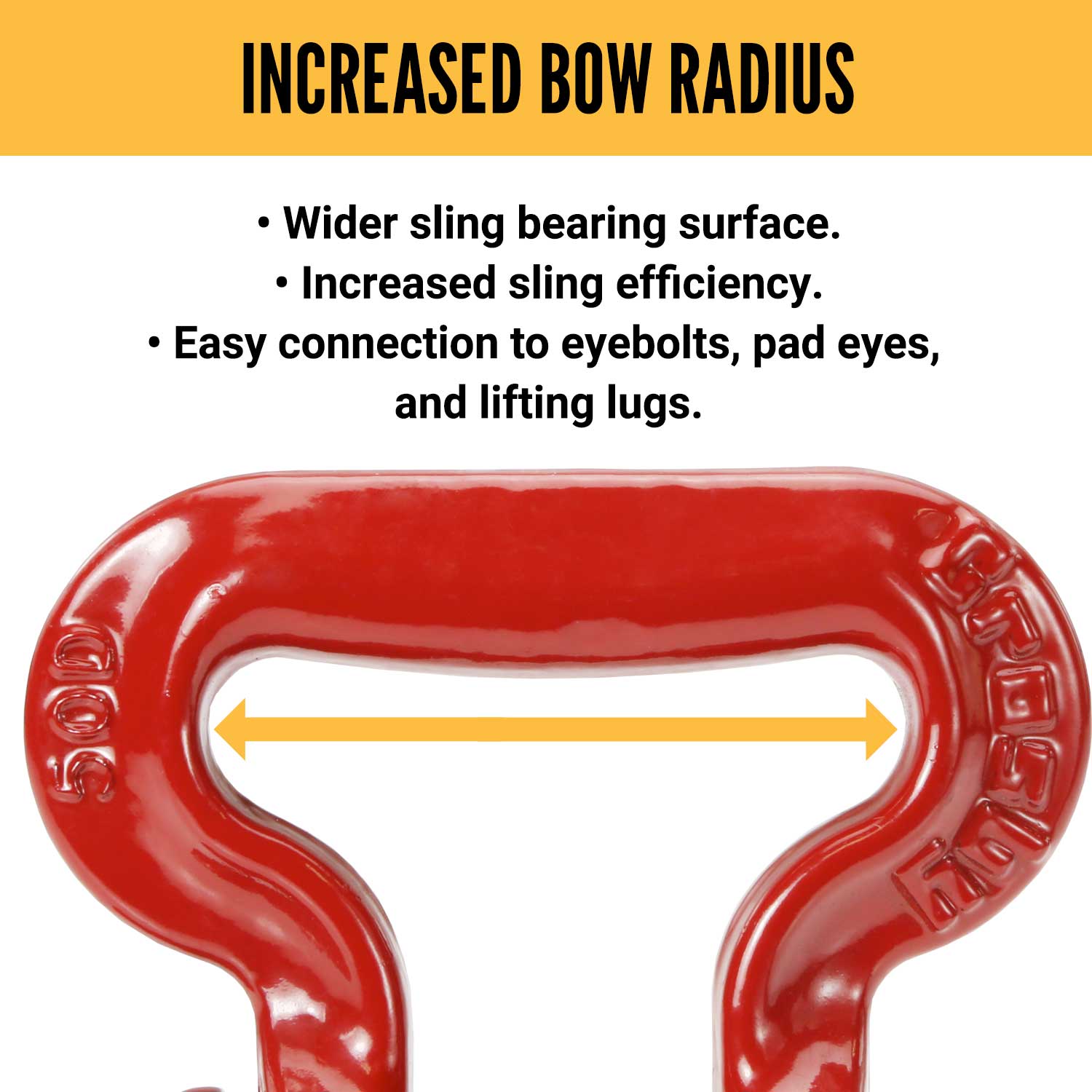

These web sling shackles from Crosby® feature a squared bow that’s excellent for connecting synthetic web slings and round slings to eye bolts, pad eyes, and lifting lugs. The wider sling-bearing surface offers an increased area for load distribution, which can also increase the efficiency of the sling by at least 15% over standard chain and anchor bows and traditional eye hooks, allowing 100% of the slings’ rated Working Load Limit to be achieved.

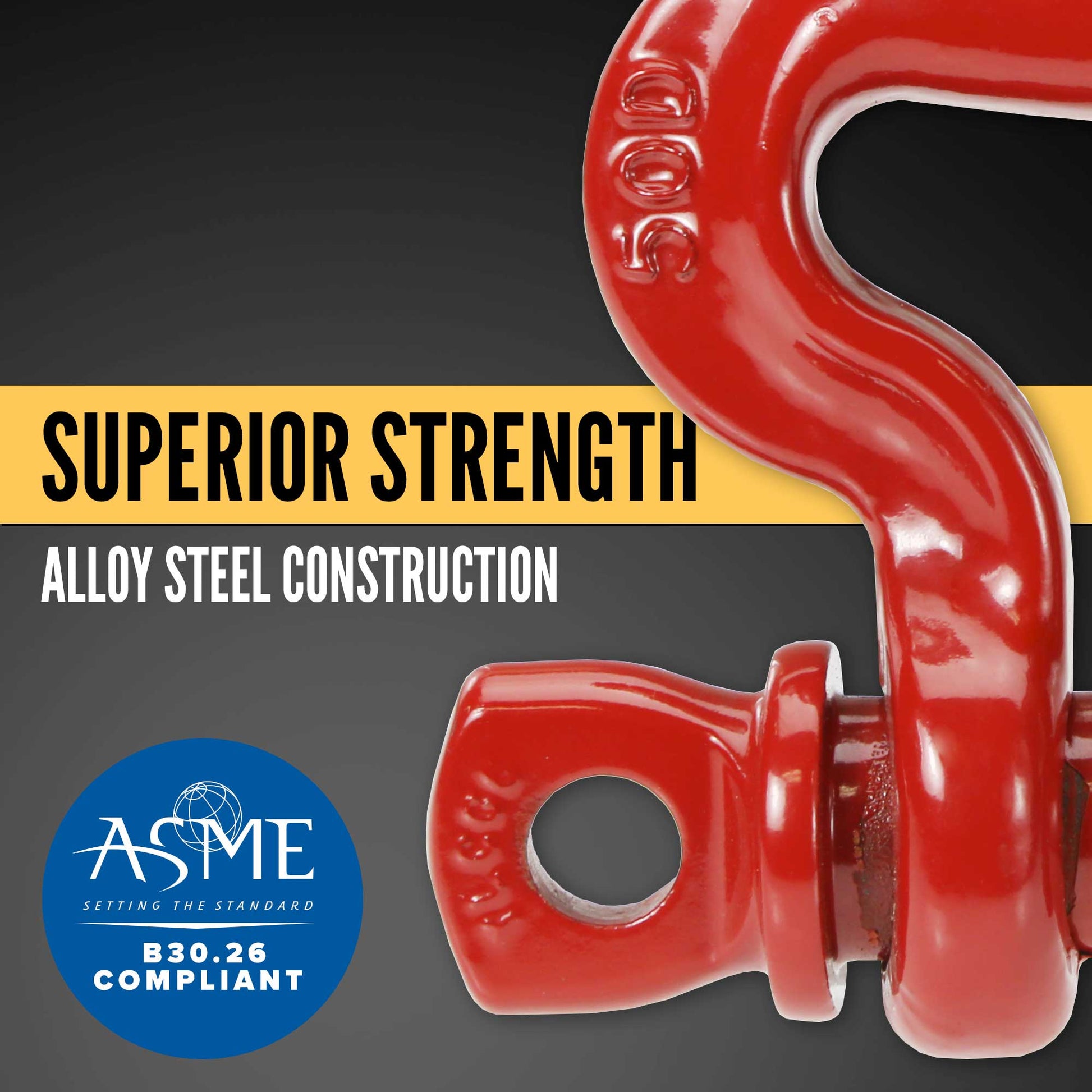

The alloy construction offers superior strength, and the Sling Saver shackle design utilizes the same pin dimensions and ear spread as conventional Crosby® shackles to make connections simple.
Compatible Synthetic Slings
The S-281 web slings should be used with Type 3, Class 7, 2-ply web slings. For webbing widths of 3" and larger, a tapered eye is required.
- Web sling webbing width: 4"
- Web sling eye width: 2"
- Round sling type(s): 4
Crosby S-281 Sling Saver Features

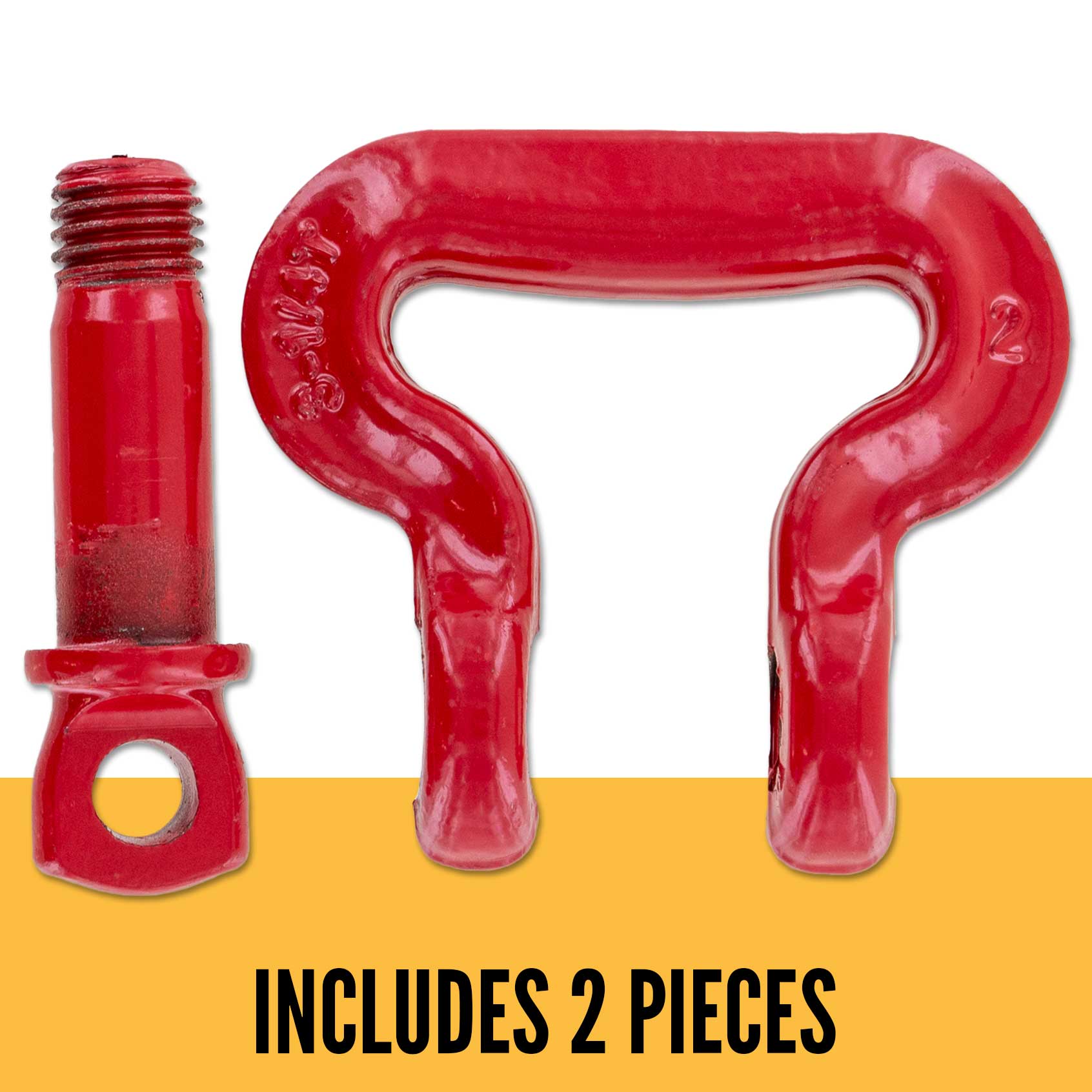

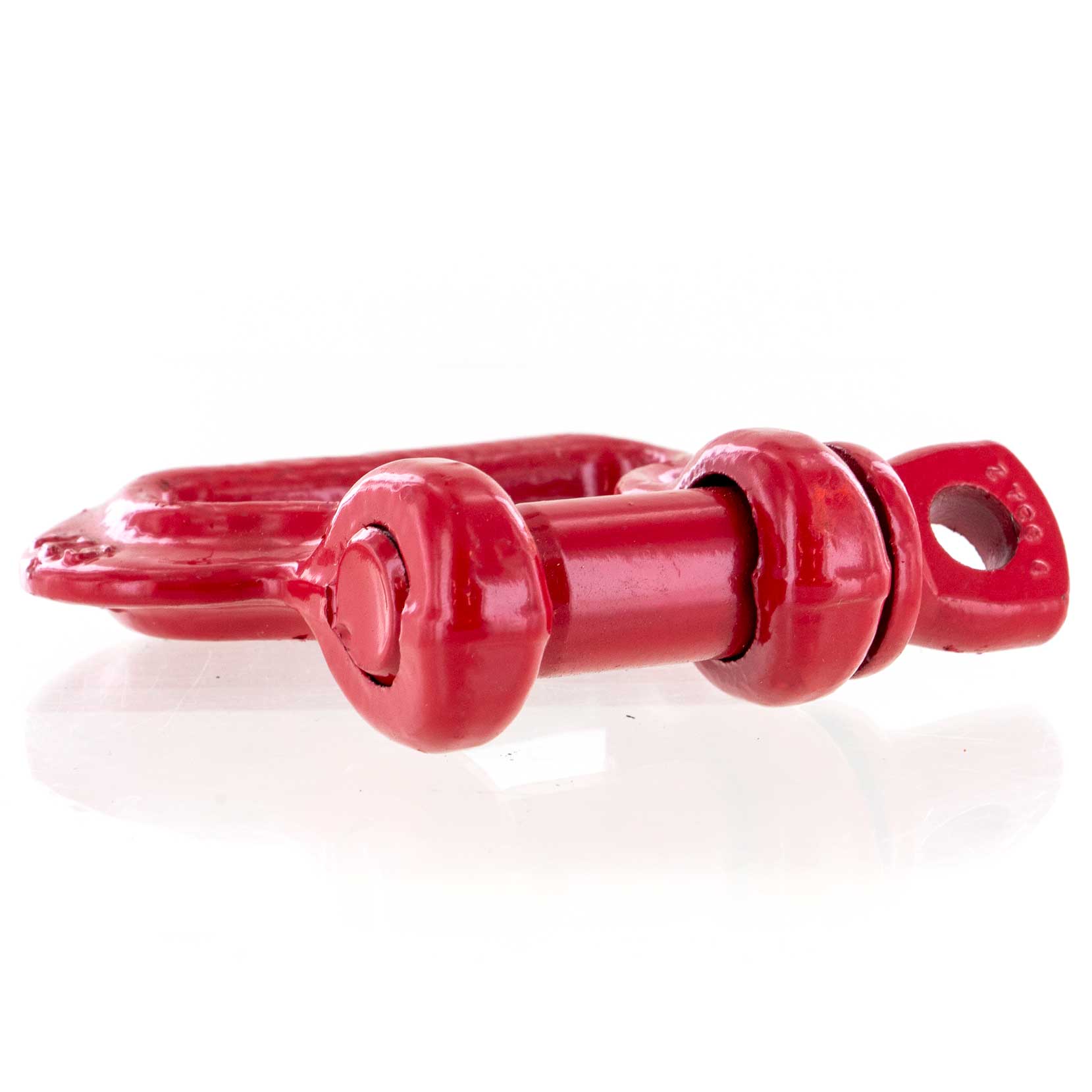

- Screw pin closure.

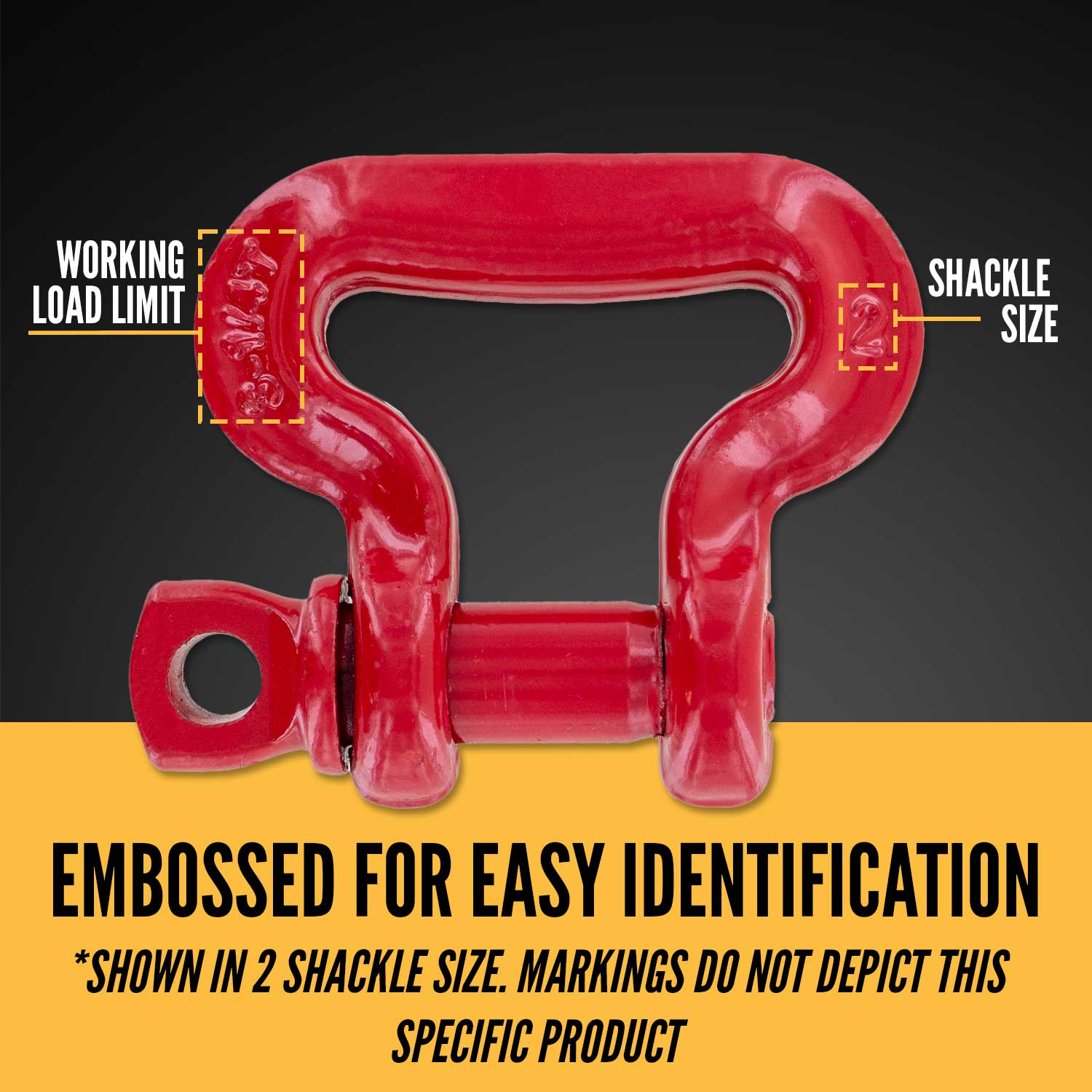

- Stamped with PIC, WLL, and Crosby brand name.
- Maximum proof load is 2 times the working load limit.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
