Crosby® Bolt Type Sling Saver Shackle | S-252 - 1"- 3.25 Ton
Crosby® Bolt Type Sling Saver Shackle | S-252 - 1"- 3.25 Ton!
Authorized Distributor
SKU: BPSSS3-14T-CR
Authorized Distributor
$45.30
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 3.25 tons (Metric) / 7,165 lbs.
Brand part number: 1020485
Finish: Painted
Inside height: 1.5"
Inside width: 1.38"
Manufacturer name: Crosby®
Material: Alloy Steel
Mouth width: 1.06"
Pin size: 3/4"
Product weight: 1.4 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, ASTM-A148M and WSTDA-RS1.
Type: Bolt Type Web Sling
Width: 1"
Additional Info: Width refers to the webbing width this shackle can accommodate.
Description

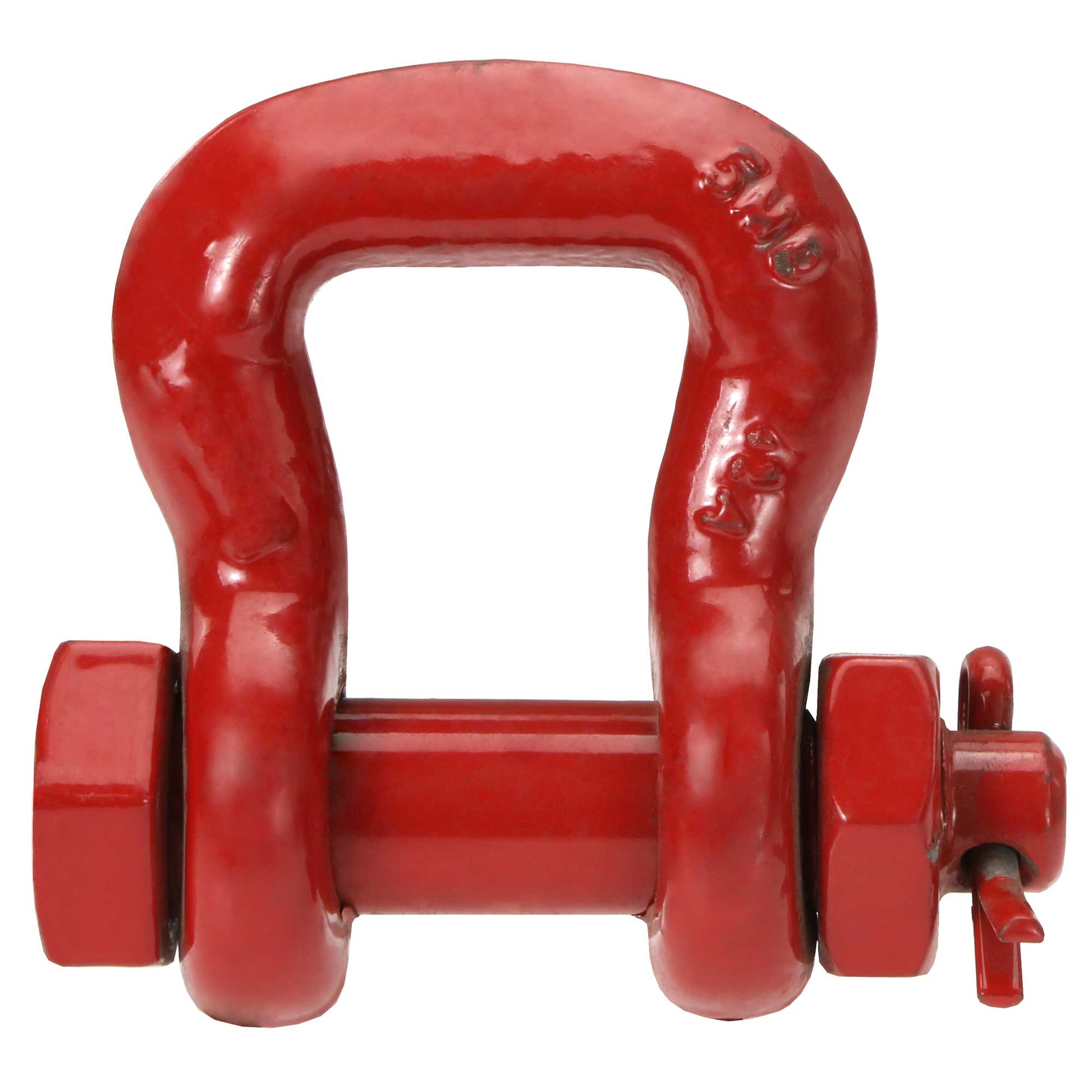

3.25 ton Crosby S-252 Web Sling Shackle

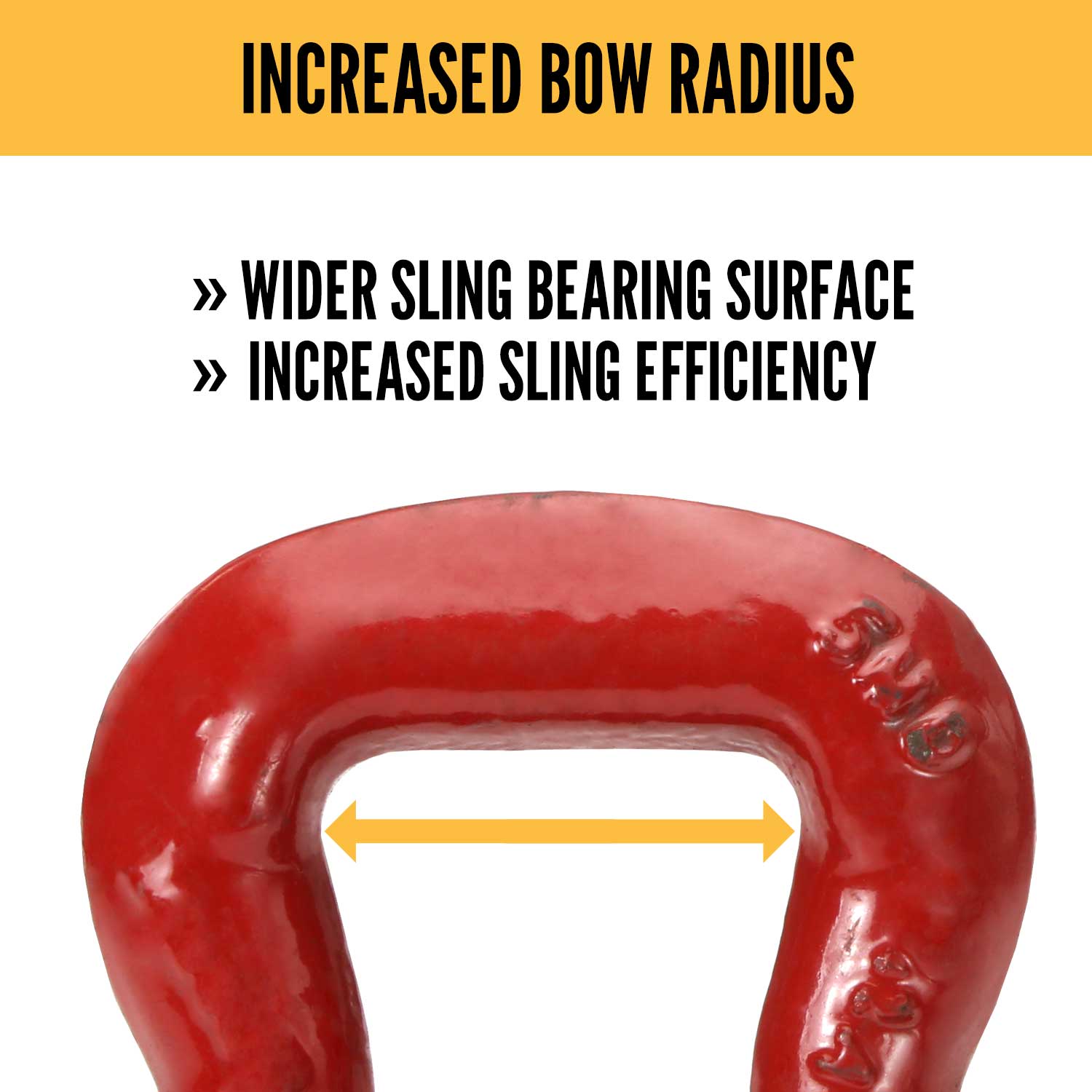

This Sling Saver shackle from trusted manufacturer Crosby has a squared bow that's excellent for connecting synthetic web slings and round slings to eye bolts, pad eyes, and lifting lugs. The wider sling-bearing surface offers an increased area for load distribution, which can increase the efficiency of the sling by at least 15% over standard chain and anchor bows and traditional eye hooks. This feature also allows 100% of the slings’ working load limit to be achieved.
The alloy construction offers superior strength, as well as a non-slip surface that eliminates bunching and sliding.
Compatible Synthetic Slings
- Web sling eye width: 1"
- Round sling type(s): 1 & 2
Crosby S-252 Sling Saver Features
- Bolt type closure with cotter pin.
- Bolt pin features a larger diameter that provides better load distribution over screw pin types.

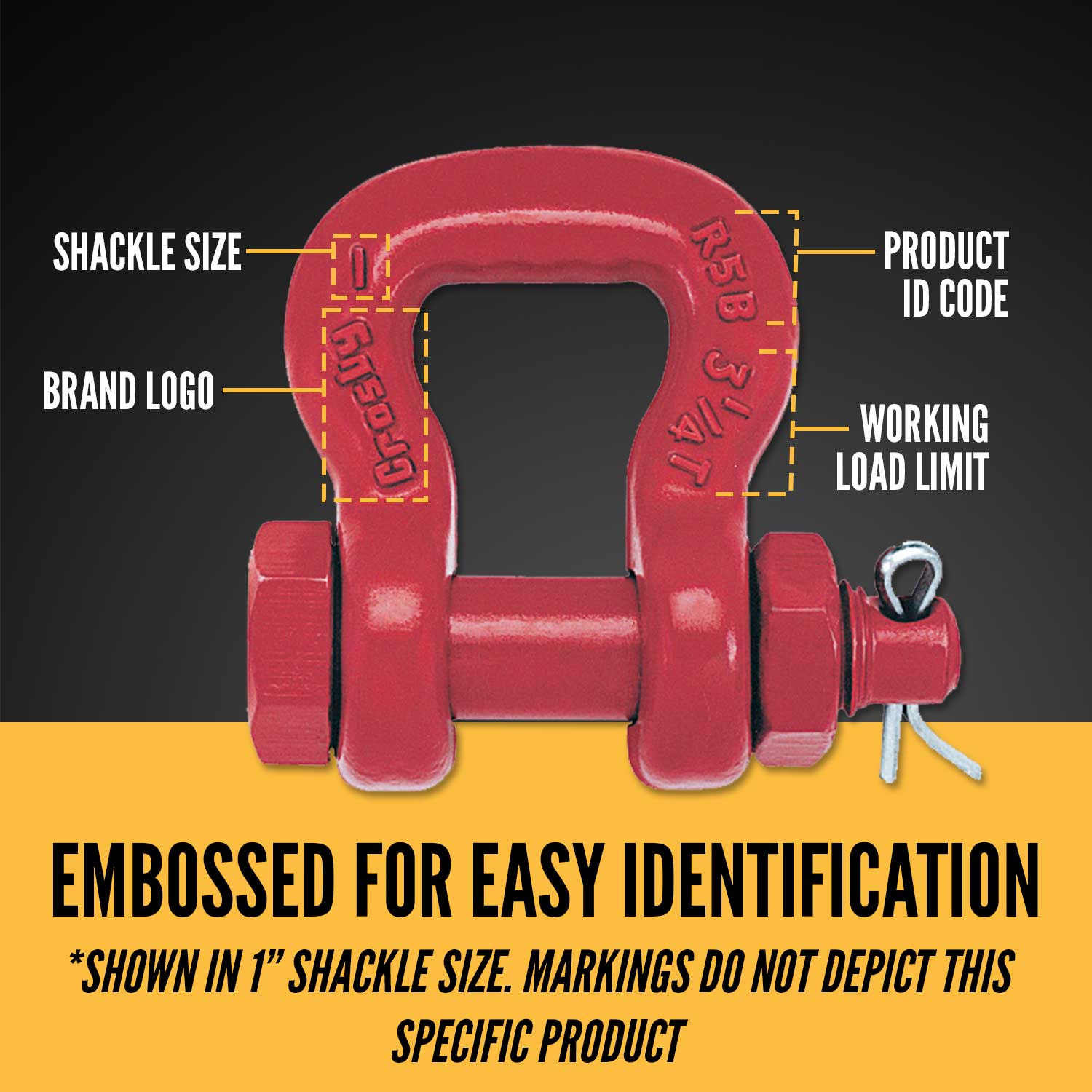

- Stamped with PIC, WLL, and Crosby brand name.
- Maximum proof load is 2.5 times the working load limit.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
