SKU: RPCS1-18-CR
1-1/8" Crosby® Round Pin Chain Shackle | G-215 - 9.5 Ton
1-1/8" Crosby® Round Pin Chain Shackle | G-215 - 9.5 Ton!
Authorized Distributor
SKU: RPCS1-18-CR
1-1/8" Crosby® Round Pin Chain Shackle | G-215 - 9.5 Ton
Authorized Distributor
$147.40
Shackle Sizes:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working Load Limit: 9.5 tons
Safety Factor: 6:1
Inside Width: 1.81"
Inside Height: 3.61"
Mouth Width: 1.81"
Shackle Size: 1-1/8"
Pin Size: 1-1/4"
Material: Carbon Steel Shackle
Alloy Steel Pin
Alloy Steel Pin
Finish: Galvanized
Type: Round Pin Chain
Product Weight: 6.3 lbs.
Standards: Meets or exceeds all requirements of Federal Specification RR-C-271 & ASTM A148M.
Manufacturer Name: Crosby®
Brand Part Number: 1018990
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: WLL (lbs.): 20,943
Description

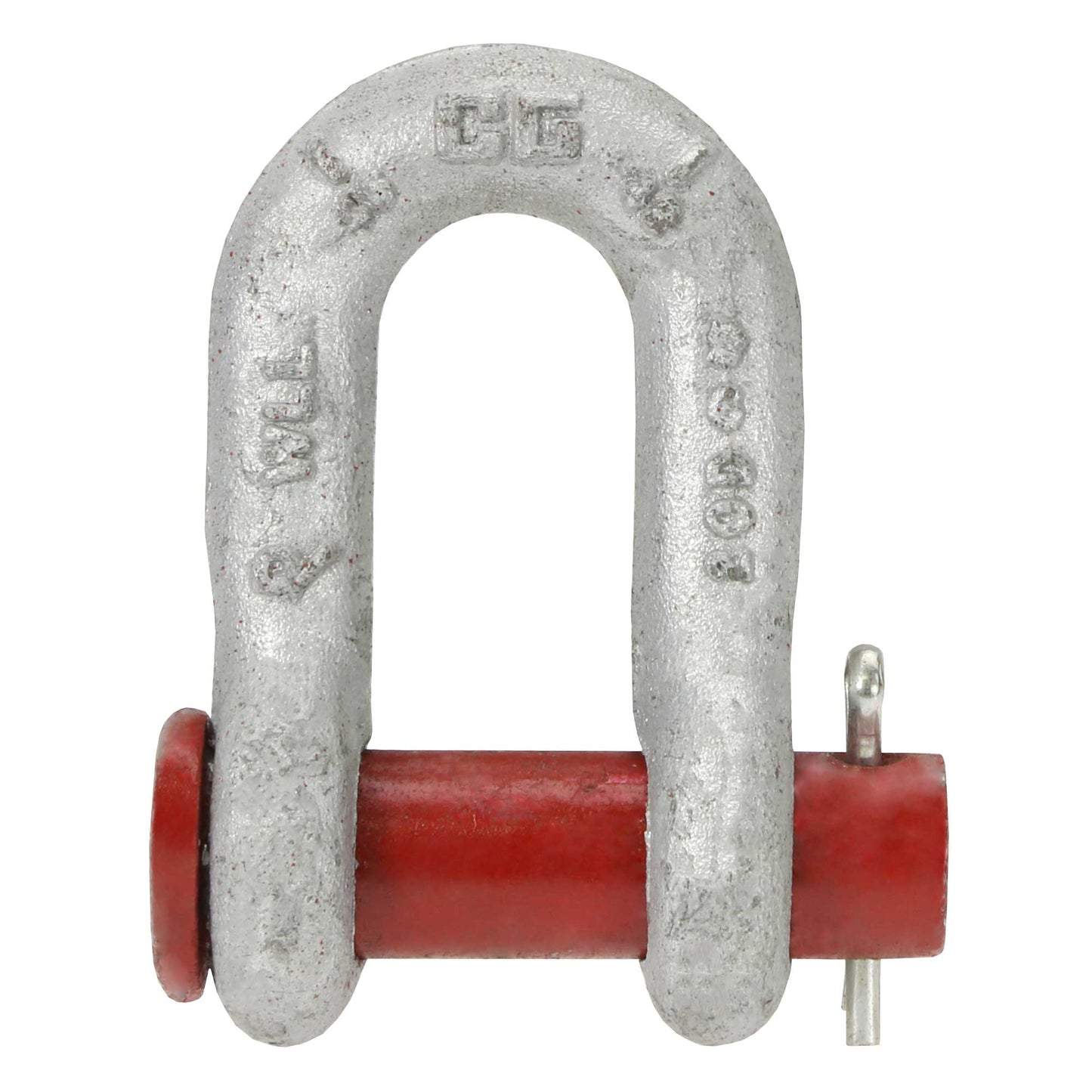

Crosby® 9.5 Ton Round Pin Chain Shackles

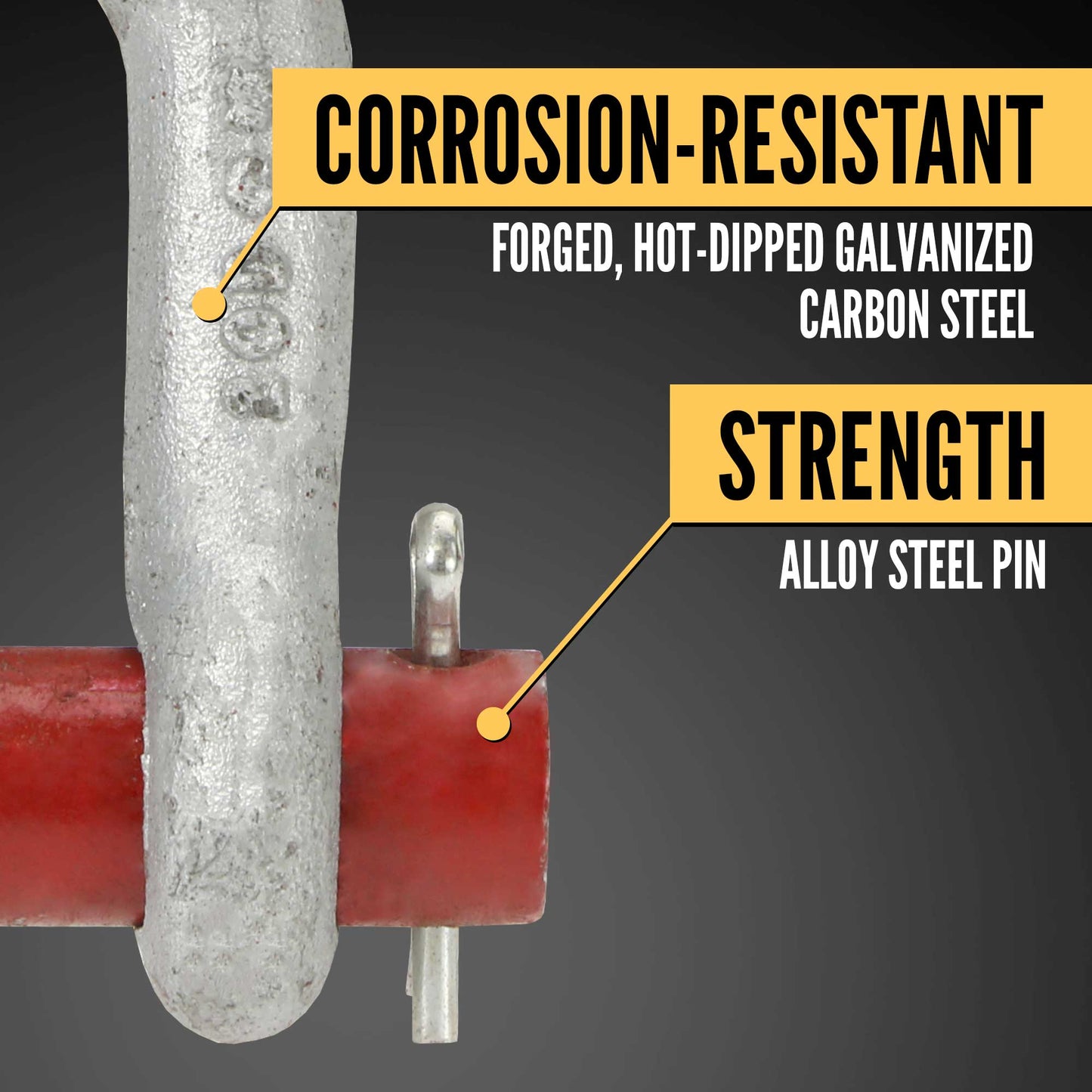

USA-made Crosby shackle is made from hot-dipped galvanized forged steel for corrosion-resistance and has an alloy pin for added strength.
They can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C upon request, and can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.
Why Choose Round Pin Chain Shackles?

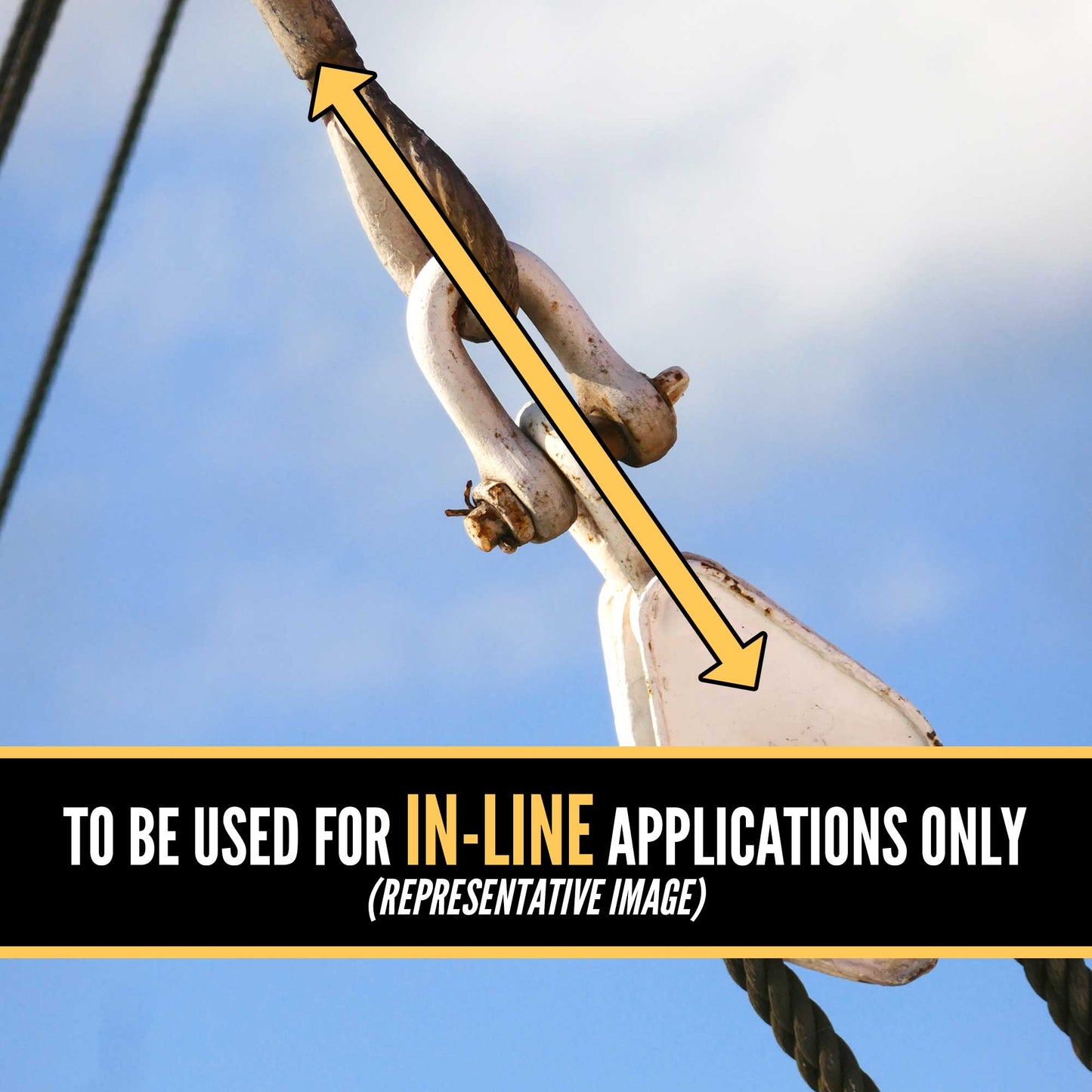

Round pin anchor shackles are a good option for applications where the pin may be subjected to torque or twisting, but not for situations where it will be subjected to an axial load. Chain shackles generally have a higher working load limit than anchor shackles, but are ideal for straight or inline pulls only. Side and racking loads may cause the shackle to twist or bend.
G-215 Shackle Features

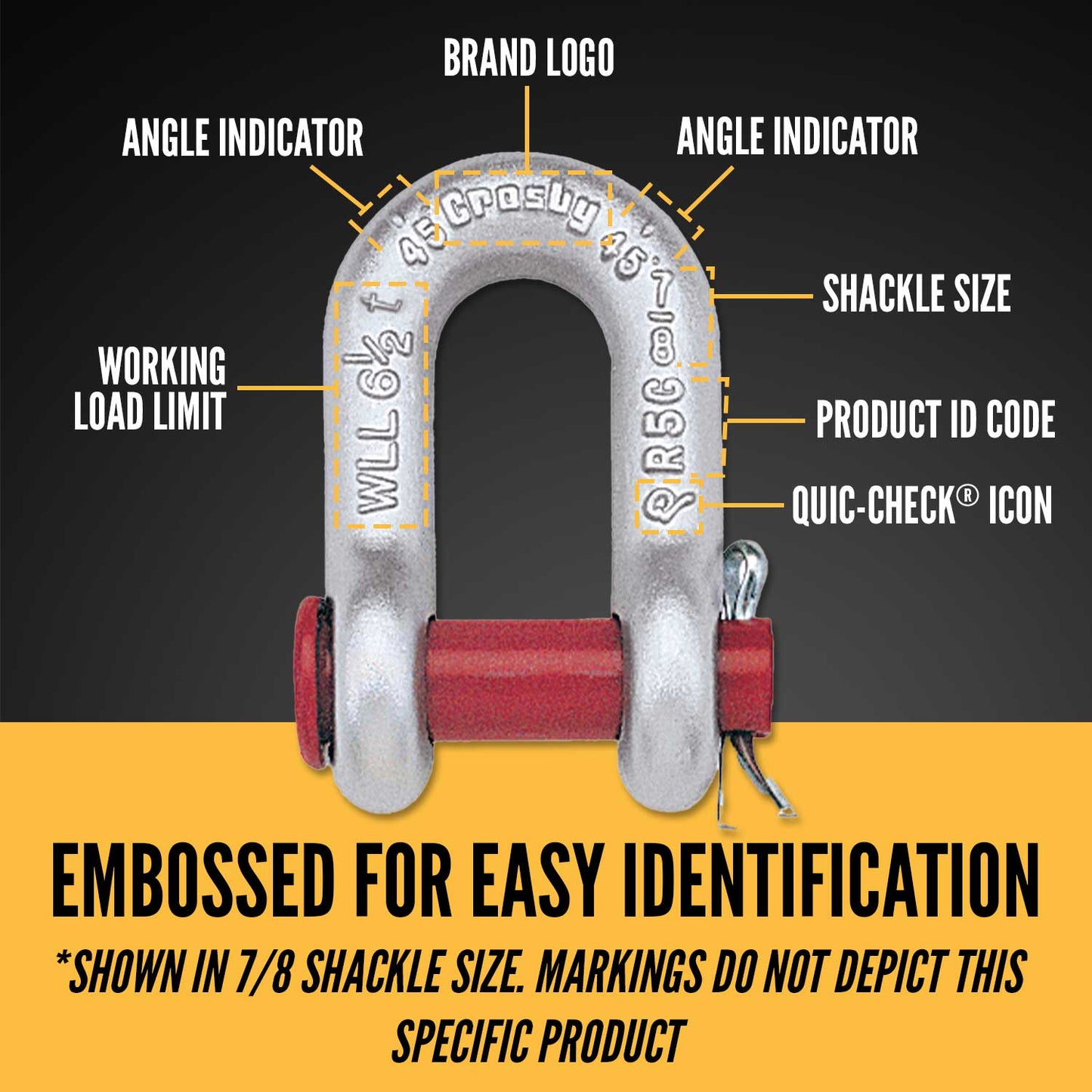

- Working load limit, PIC, and Crosby name on every shackle.
- Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
- Do not side load.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
