SKU: RPCS58-CR

5/8" Crosby® Round Pin Chain Shackle | G-215 - 3.25 Ton

5/8" Crosby® Round Pin Chain Shackle | G-215 - 3.25 Ton!

Skip to product information
1 of 6

SKU: RPCS58-CR

5/8" Crosby® Round Pin Chain Shackle | G-215 - 3.25 Ton

5/8" Crosby® Round Pin Chain Shackle | G-215 - 3.25 Ton!

Authorized Distributor
Regular price $36.60
Sale price $36.60 Regular price
0% off
Call/Chat for ship date
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 3.25 tons (Metric) / 7,165 lbs.
  • Inside width: 1.06"
  • Mouth width: 1.06"
  • Finish: Galvanized
  • Safety factor: 6:1
  • Manufacturer name: Crosby®
  • Brand part number: 1018918
  • Inside height: 2.04"
  • Pin size: 3/4"
  • Shackle size: 5/8"
  • Standards: Meets or exceeds all requirements of Federal Specification RR-C-271.
  • Type: Round Pin Chain
  • Material: Carbon Steel Shackle
    Alloy Steel Pin
  • Product weight: 1.2 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

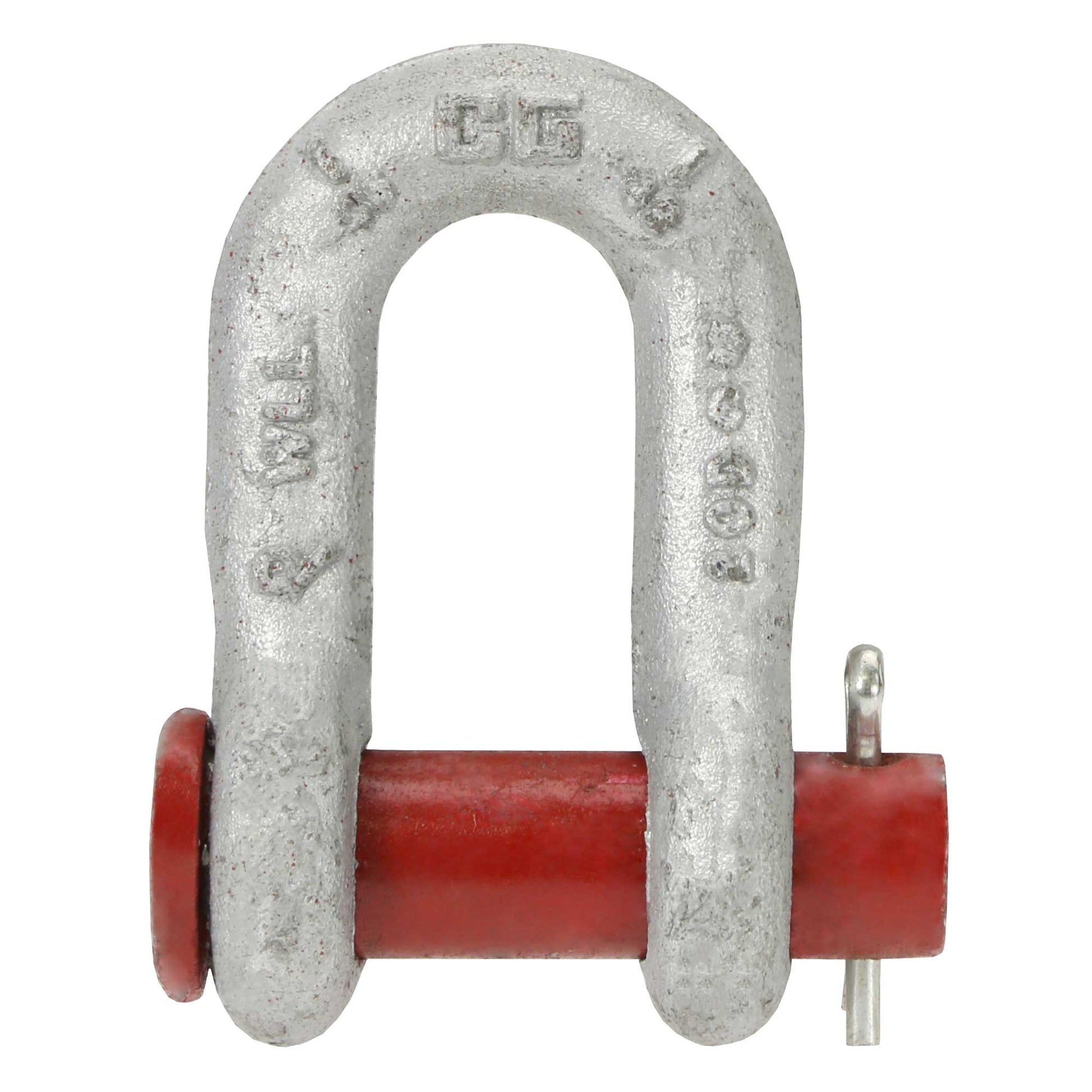

Crosby® 3.25 Ton Round Pin Chain Shackles

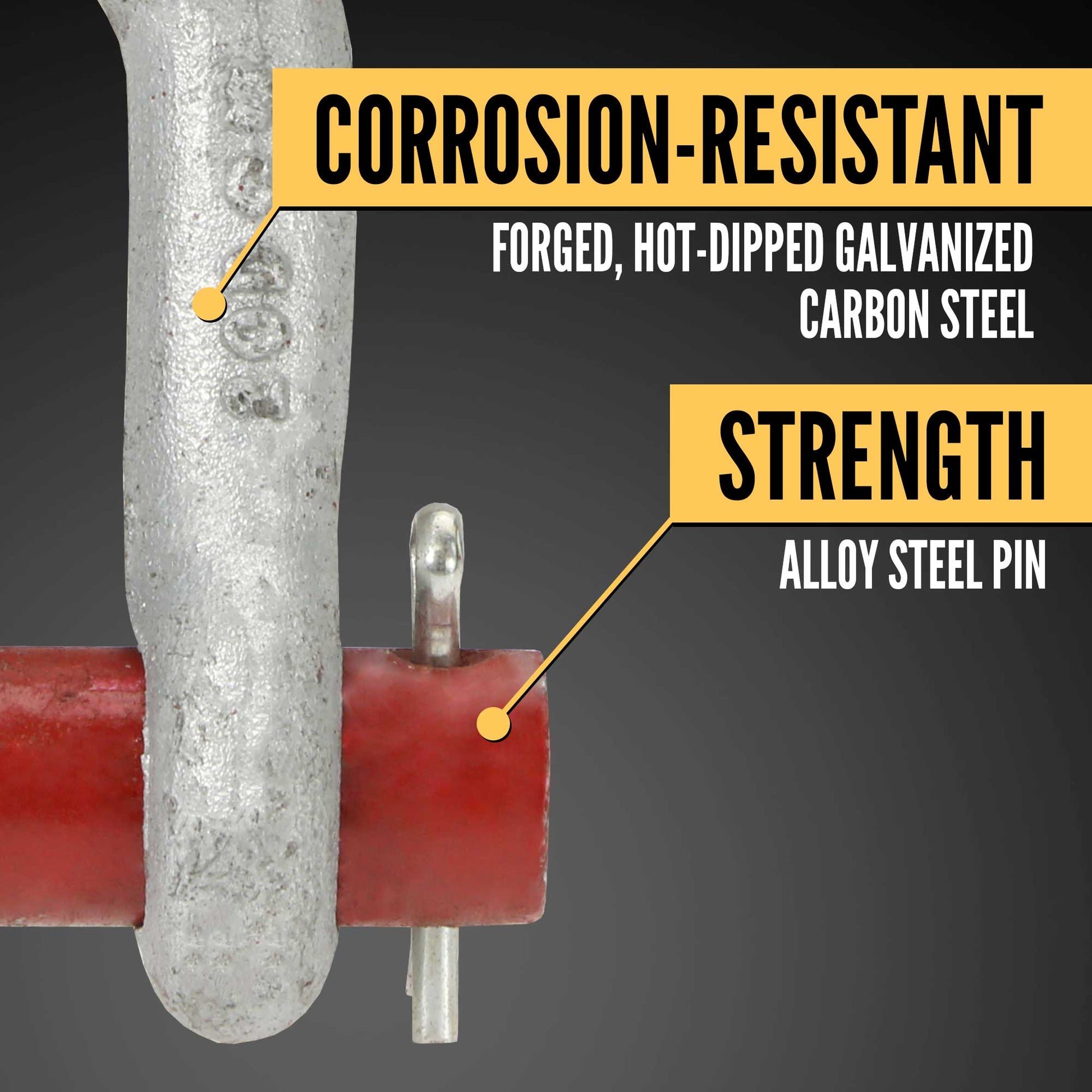

USA-made Crosby shackle is made from hot-dipped galvanized forged steel for corrosion-resistance and has an alloy pin for added strength.

They can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C upon request, and can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.

Why Choose Round Pin Chain Shackles?

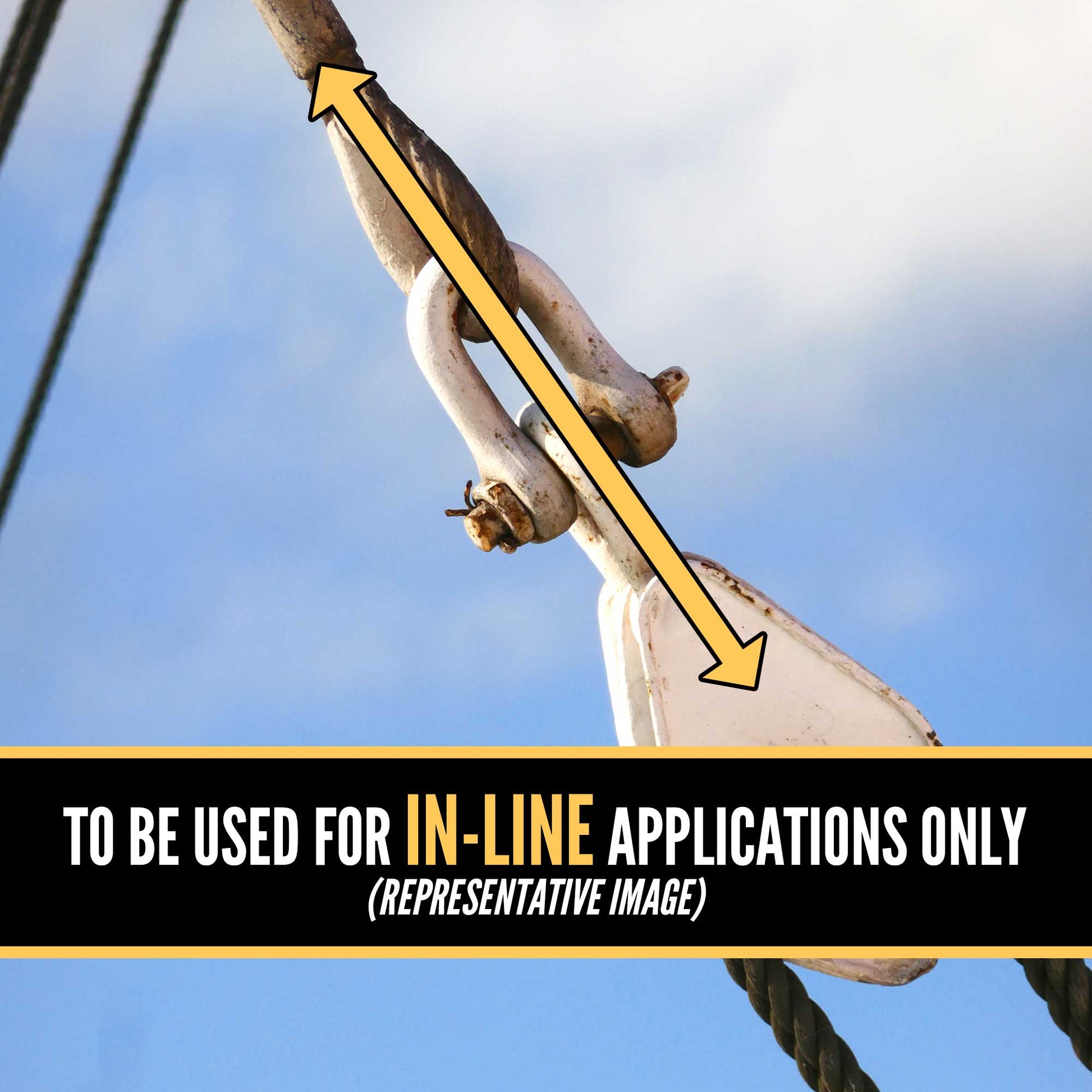

Round pin anchor shackles are a good option for applications where the pin may be subjected to torque or twisting, but not for situations where it will be subjected to an axial load. Chain shackles generally have a higher working load limit than anchor shackles, but are ideal for straight or inline pulls only. Side and racking loads may cause the shackle to twist or bend.

G-215 Shackle Features

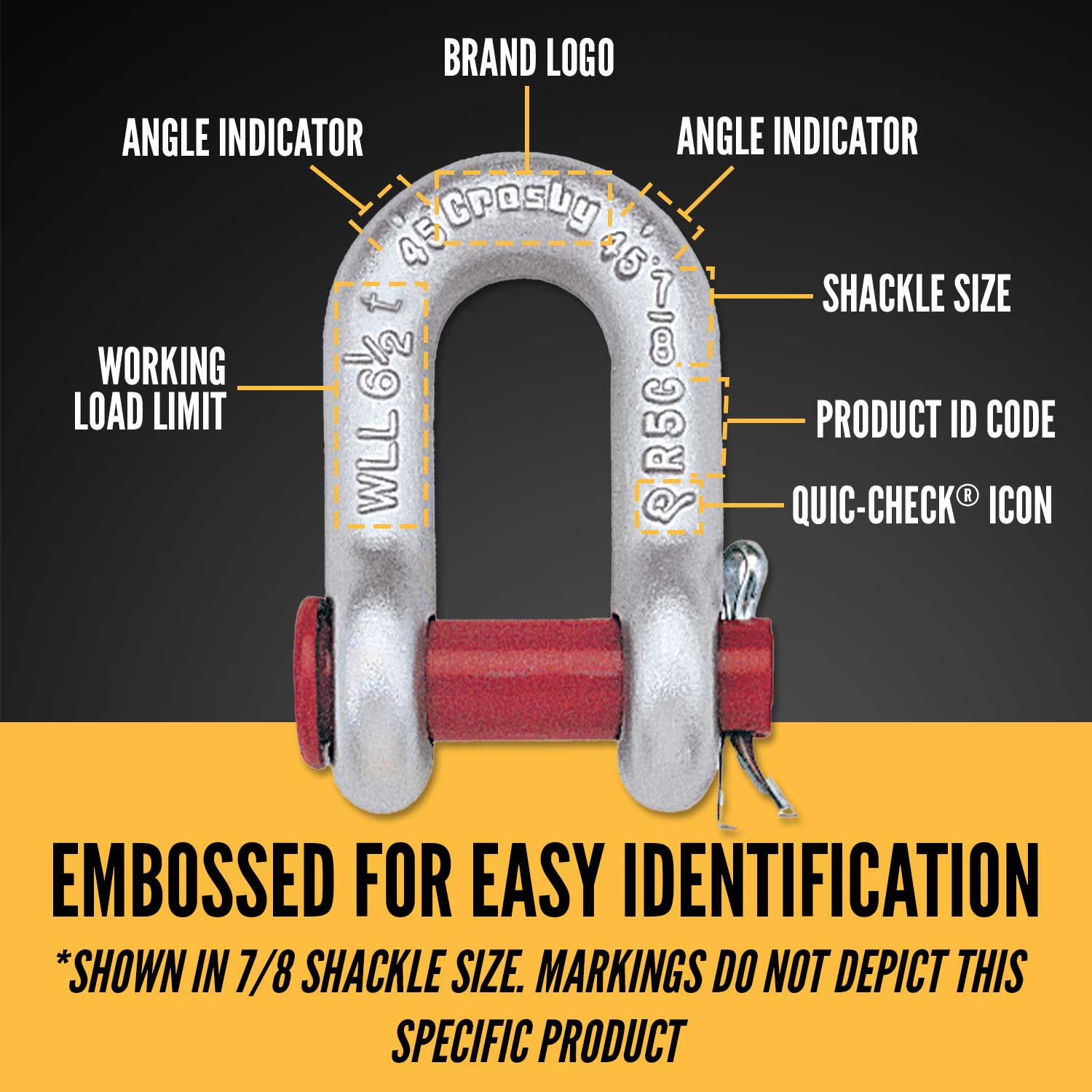

  • Working load limit, PIC, and Crosby name on every shackle.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
  • Do not side load.

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
