SKU: RLP-1-T

Straightpoint® 1 T Radiolink Plus - RLP1T

Regular price $5,60000
Ships FREE in 1-2 business days.

Description

Straightpoint 1-ton Radiolink Plus Tension Meter

Precisely weigh and dynamically monitor your rigging setups with a Radiolink Plus wireless load cell. The high-quality, hard-anodized, aerospace-grade aluminum construction and reliable design allows you to ensure safe tension levels at every job.

Common applications include tandem lifting and lowering, water bag load testing, overhead weighing, bollard pull testing, tug testing, breakbulk applications, heavy lift projects, offshore cranes, spreader beam load monitoring, measurement of vehicle towing loads, ship-to-ship transfers, and single point mooring.

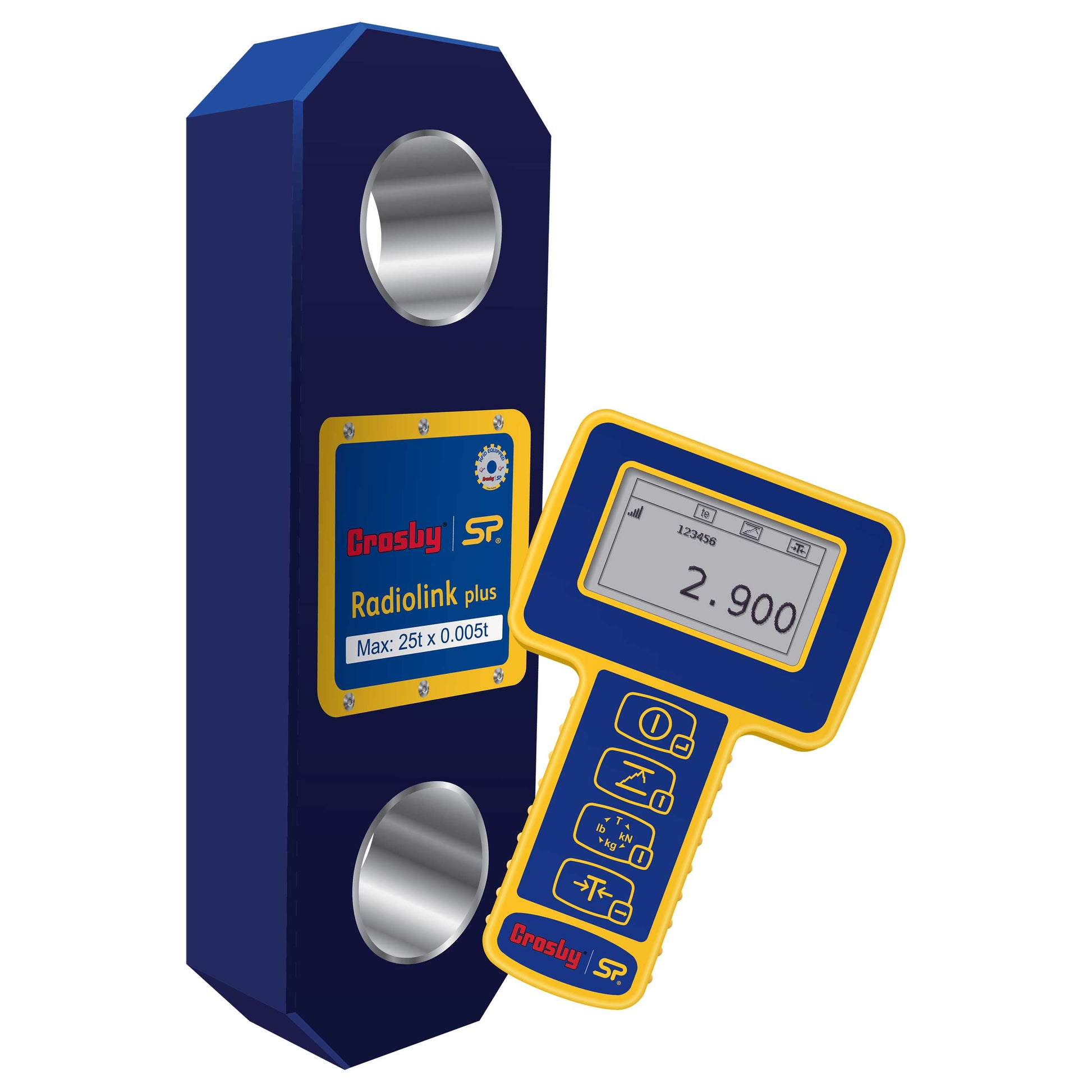

The Radiolink Plus runs on 6 AA alkaline batteries (providing 1,200 hours of power) and uses an internal antenna to wirelessly transmit load cell readings to a SW-HHP handheld device (included with your purchase at no extra charge). It has a range of 3,280 feet, and allows you to check on up to 4 load cells at once.

Additional features of the handheld device include a push tare button, multiple display unit options (t/lbs/kg/kN), and an audible overload alarm.

Tension Load Cell Features

  • Straightpoint part number: RLP1T
  • Crosby part number: 2789084
  • Compatible with INSIGHT computer software (not included with purchase)
  • Internal sealed enclosure provides IP67 or NEMA6 environmental protection for electronic components
  • Tension load cell comes with calibration and proof test certificate and multilingual user manual
  • New and improved carrying case includes dense HLB foam for secure fit, a watertight seal around the lid, easy-to-open double throw latches, and a stackable interlocking system.
  • RFID-tagged
  • Complies with ASME B30.26
  • Includes a 2-year warranty

Other Tension Load Cells

Already have a handheld device? The Compound Plus is identical to the Radiolink Plus, but comes without the wireless handheld unit.

If you're looking for a Bluetooth option, we offer the Compound Plus - Bluetooth version too. Bluetooth transmission data is accessible on your smart phone using the free HHP App, available for both iOS and Android.

View Product Safety Warnings

Specifications

Safety Factor: 12:1
Load Capacity: 2,200 lbs.
Pin Size: 3/4"
Type: Standard Load Cell
Power Source: Handheld: 2 x AA batteries | Loadcell: 4 x AA batteries
Accuracy: +/- 0.1% of Full Scale
Resolution: 1 lbs.
Range: 3,280'
Data Rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Operating Temperature: -10° to +50°C | 14° to 122° F
Battery Life: Handheld: 40 hours continuous | Loadcell: 1,200 hours continuous
Display Type: 240x128 Multi-Line Dot Matrix with Backlight
Product Weight: 3.3 lbs.
Standards: IP67
Manufacturer Name: Crosby Straightpoint
Brand Part Number: RLP1T / 2789084
