SKU: RLP-35-T

Straightpoint® 35 T Radiolink Plus - RLP35T

Straightpoint® 35 T Radiolink Plus - RLP35T!

Skip to product information
$8,775.00

Request Bulk Pricing
Request Bulk Pricing
Ships FREE in 1-2 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Load capacity: 77,000 lbs.
Accuracy: +/- 0.1% of Full Scale
Battery life: Handheld: 40 hours continuous | Loadcell: 1,200 hours continuous
Battery type: Handheld: 2 x AA | Loadcell: 4 x AA
Brand part number: RLP35T / 2789091
Data rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Display type: 240x128 Multi-Line Dot Matrix with Backlight
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Pin size: 2-1/4"
Product weight: 19 lbs.
Range: 3,280'
Resolution: 10 lbs.
Safety factor: 5:1
Standards: IP67
Description

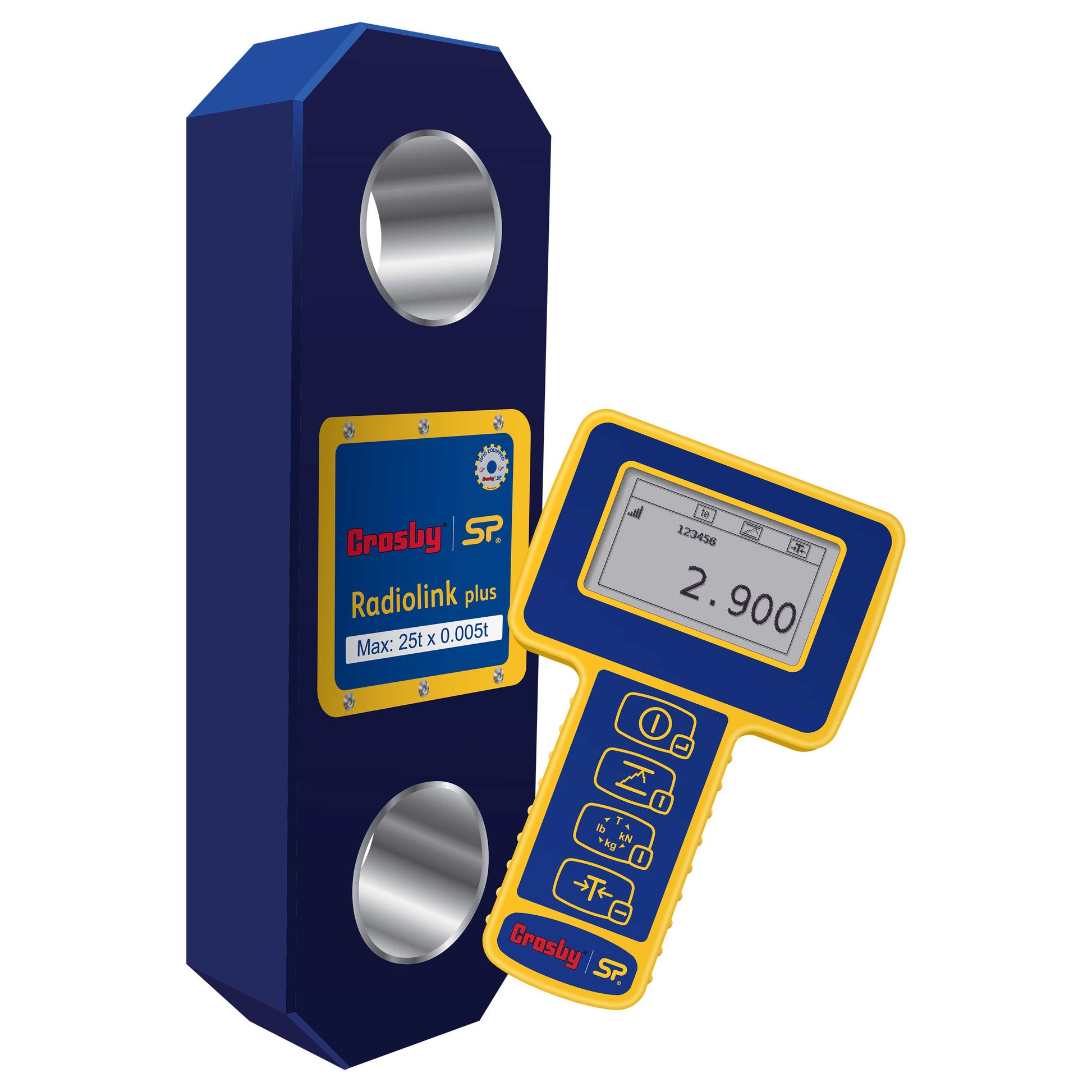

Radiolink Plus from Straightpoint is a powerful wireless load cell that allows you to precisely weigh and dynamically monitor rigging setups to ensure safe and optimal tension levels. This particular model (Straightpoint part #RLP35T and Crosby part #2789091) is a 35-ton rated tension load cell that's constructed from high-quality hard anodized aerospace grade aluminum. Straightpoint Radiolink load cells are designed to be used with Crosby shackles, however they are also compatible with other shackle brands. Unlike Wirelink Plus load cell, which relies on a wired cable for data output, the Radiolink Plus runs on 6 AA alkaline batteries that provide an impressive 1,200 hours of power. Straightpoint Radiolink uses an internal antenna to wirelessly transmit load cell readings to the included SW-HHP handheld device. This handheld device, which is included with your purchase at no additional charge, allows for a safe 3280-foot wireless range. Use the LCD screen to remotely read up to 4 load cells at once while enjoying the convenience of a push tare button, multiple display unit options (t/lbs/kg/kN), and audible overload alarm. Radiolink Plus is also compatible with the INSIGHT computer software (purchase not included). If you are looking for an additional loadcell to pair with an existing handheld device, the Compound Plus is available without the handheld. We also offer individual SW-HHP handheld device if you are looking for an additional or a replacement. If you are looking for a Bluetooth option, we offer the Compound Plus - Bluetooth version. Bluetooth transmission data is accessible on your smart phone using the free HHP App, available for both iOS and Android.

Common applications for this 35-ton Radiolink Plus tension load cell include tandem lifting and lowering, water bag load testing, overhead weighing, bollard pull testing, tug testing, breakbulk applications, heavy lift projects, offshore cranes, spreader beam load monitoring, measurement of vehicle towing loads, ship to ship transfers, and single point mooring.

The Radiolink Plus is suitable for even the harshest of environments, as it allows the use of a separate internal sealed enclosure that provides the load cell's electronic components with IP67 or NEMA6 environmental protection. This 35-ton Radiolink tension load cell complies with ASME B30.26 and comes with a 2-year warranty, calibration & proof test certificate, multilingual user manual, carry case, and is RFID tagged. It also includes six AA alkaline batteries and the SW-HHP handheld display at no additional charge. Don't risk an overloaded lift ever again, get your hands on this game changing tension meter today.
