SKU: SP18-716

Bolthold SP18-716 Asphalt Anchor, Zinc Plated, 6 Pkg

Regular price $10200
Ships Nov 17 when you order now

Description

Bolthold SP18-716 Asphalt Anchor - Zinc Plated

The Bolthold SP18-716 asphalt anchor is a heavy-duty anchoring solution engineered for demanding asphalt applications. This 12" asphalt anchor bolt is ideal for mounting plates, fencing, machinery, and other heavy fixtures directly into asphalt surfaces. Each anchor comes pre-installed with a bolt and washer and installs flush with the surface for a clean, professional finish.

Load anchors to no more than 80% of rated pull strength when the structure is self-supporting. If the structure applies a static pull force on the anchors, limit loading to 20% of the rated pull strength.

SP18-716 Asphalt Anchor - Deep-Set Flush Mount Asphalt Anchoring

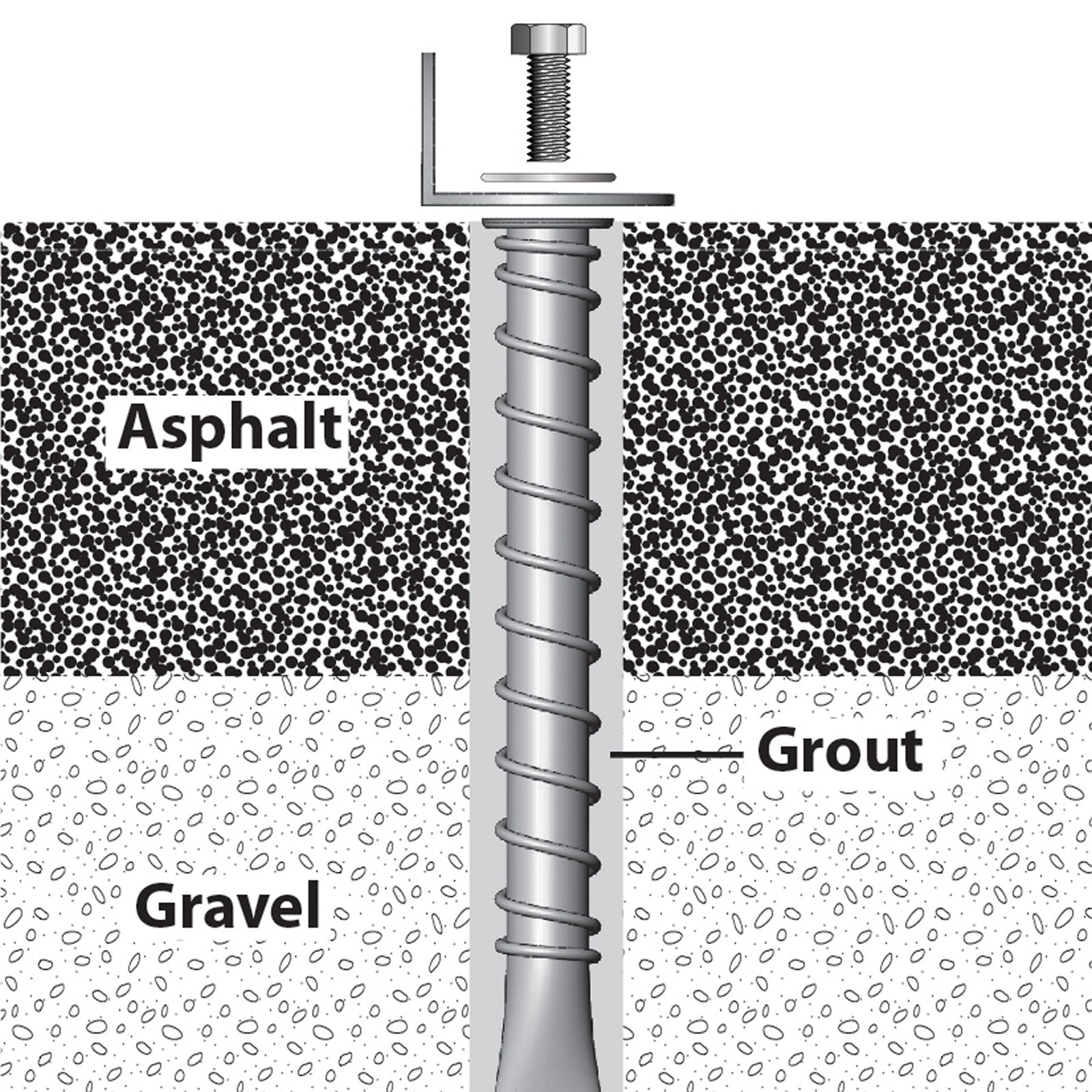

Designed for strength and removability, the SP18-716 anchor requires a 1" diameter hole drilled 12" deep and the use of compatible grout to achieve proper holding power. A wide top header prevents pull-through during tightening while allowing mounted objects to be removed without leaving surface protrusions.

Key Features

  • Flush-Mount Design: Installs level with the asphalt surface for a clean, trip-free result.
  • Oversized Top Header: 1.4" header prevents anchors from dropping below the surface or pulling into the mounting plate.

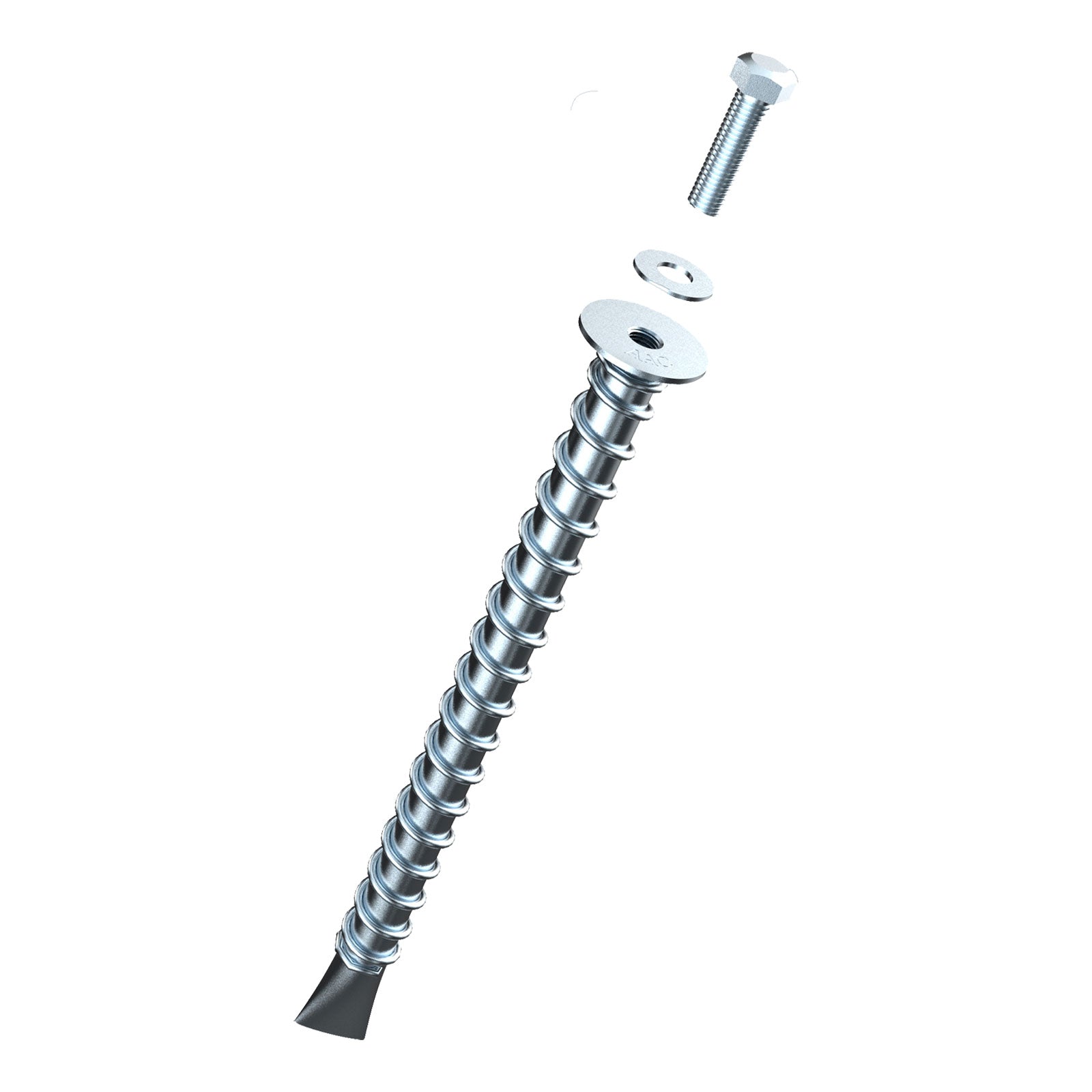

  • Pre-Assembled Hardware: Includes factory-installed bolt and washer for easier installation.
  • Heavy-Duty Asphalt Anchor: Designed for deep embedment and high-load asphalt applications.

Common Applications

  • Mounting plates and base plates
  • Fencing and perimeter barriers
  • Machinery and equipment anchoring
  • Bollards and site furnishings
  • Removable asphalt-mounted installations

Installation Tips

  • Drill a 1" diameter hole to a depth of 12" for proper anchor embedment.
  • Ensure the bolt length inside the anchor does not exceed 2.5".

Required Grout:

Listed below are the approximate amounts of grout required to install one six-pack of SP18-716 asphalt anchors.

Specifications

Diameter: 7/8"
Length: 12"
Head Diameter: 1.35"
Thread Type: 7/16"-14 UNC Coarse Female Thread
Torque: 280 lb.-in.
Manufacturer Name: Bolthold Asphalt anchors
Quantity: 6
Additional Info: Shear Resistance: 2000 lbs.
Pull Force: 2500 lbs.
