SKU: SP10-38S

Bolthold SP10-38S Asphalt Anchor, 304 Stainless Steel, 6 Pkg

Regular price $13799
Ships Nov 17 when you order now

Description

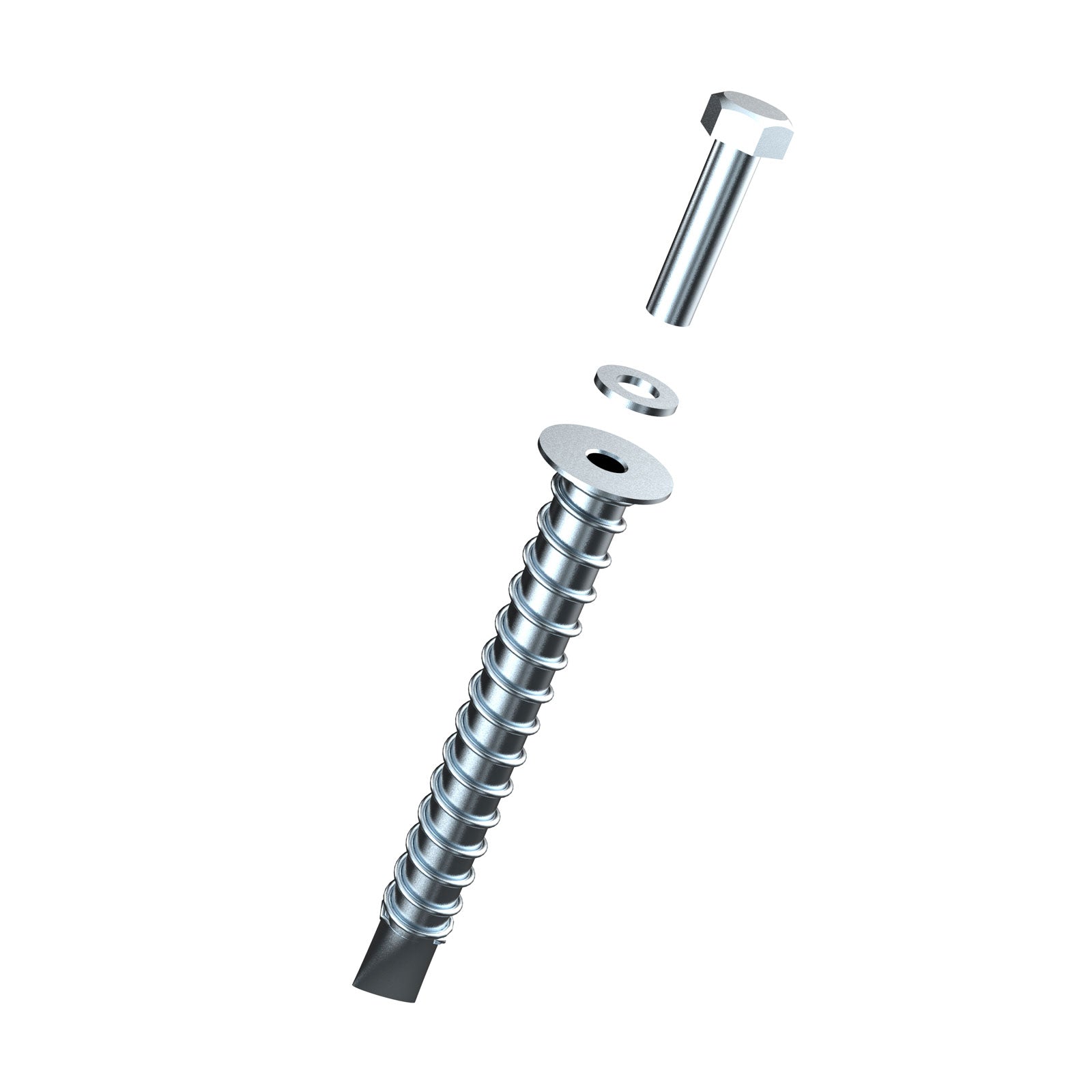

Bolthold SP10-38S Asphalt Anchor - 304 Stainless Steel

The Bolthold SP10-38S asphalt anchor is a heavy-duty anchoring solution engineered for asphalt installations where corrosion resistance is critical. Designed to perform reliably in 2.5" shallow asphalt, common in walkways and parking lots, this 6" anchor is ideal for mounting bike racks, signage, machinery, and similar fixtures. The 304 stainless steel construction provides enhanced resistance to corrosion, making it well suited for coastal and saltwater-adjacent environments.

Load anchors to no more than 80% of rated pull strength when the structure is self-supporting. If the structure applies a static pull force on the anchors, limit loading to 20% of the rated pull strength.

SP10-38S Asphalt Anchor - Corrosion-Resistant Flush-Mount Anchoring

Built for strength and serviceability, the SP10-38S anchor requires a 7/8" diameter hole drilled 6" deep and the use of compatible grout to achieve proper holding power. A wide top header prevents pull-through during tightening while allowing mounted objects to be removed cleanly without leaving surface protrusions.

Key Features

  • 304 Stainless Steel Construction: Provides excellent corrosion resistance for coastal and outdoor environments.
  • Optimized for Shallow Asphalt: Performs effectively in 2.5" asphalt commonly found in walkways and parking lots.
  • Flush-Mount Design: Installs level with the asphalt surface for a clean, trip-free finish.

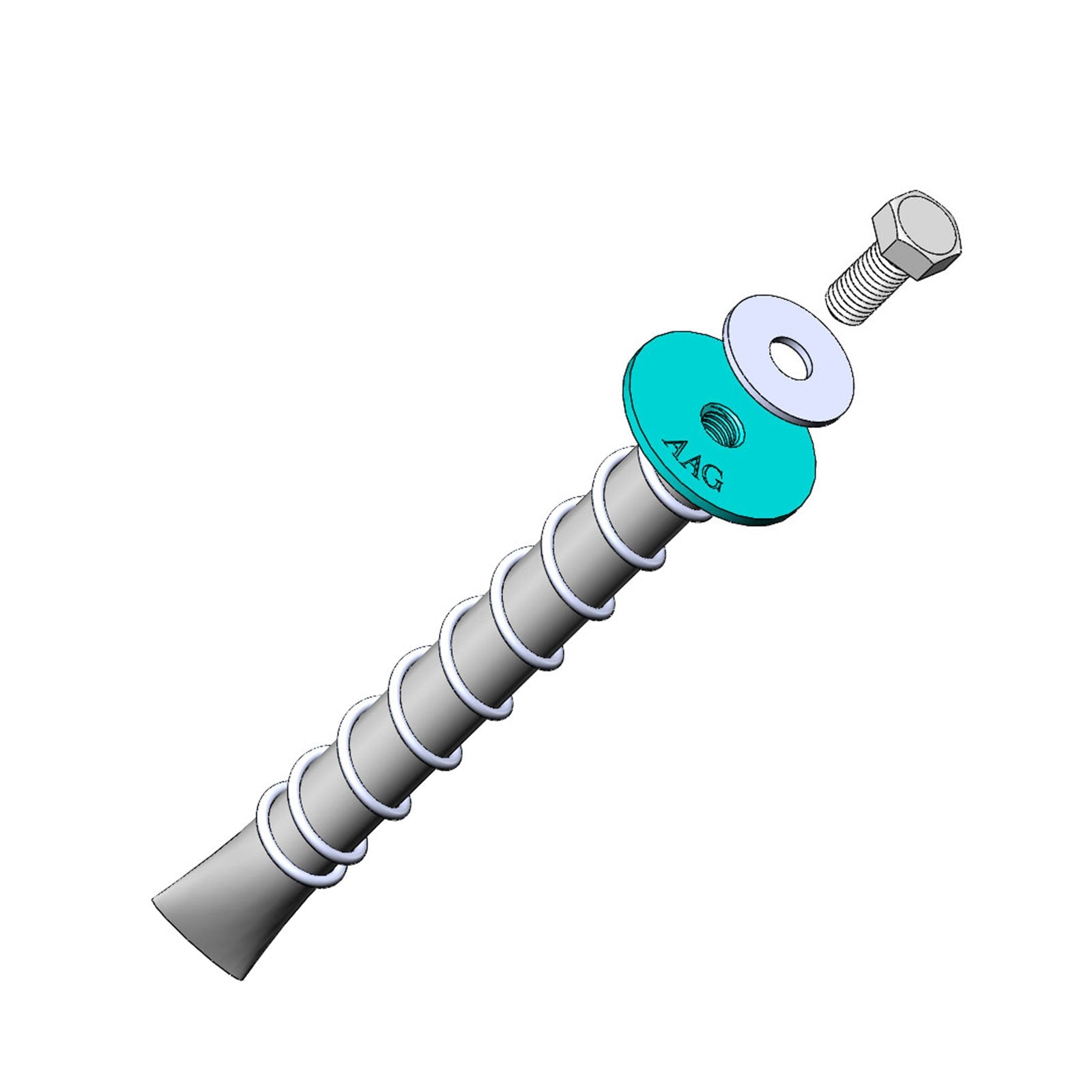

  • Pre-Assembled Hardware: Includes a 1" hex bolt and 1" diameter washer.

Common Applications

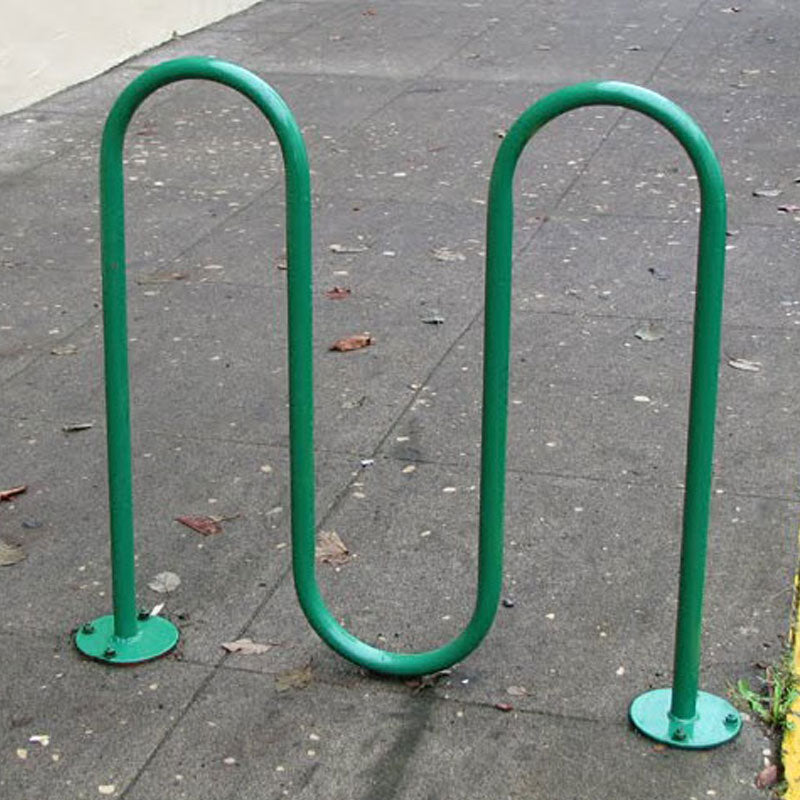

  • Bike racks and bicycle infrastructure
  • Parking and wayfinding signage
  • Machinery and equipment mounting
  • Site furnishings and fixtures
  • Removable asphalt-mounted installations

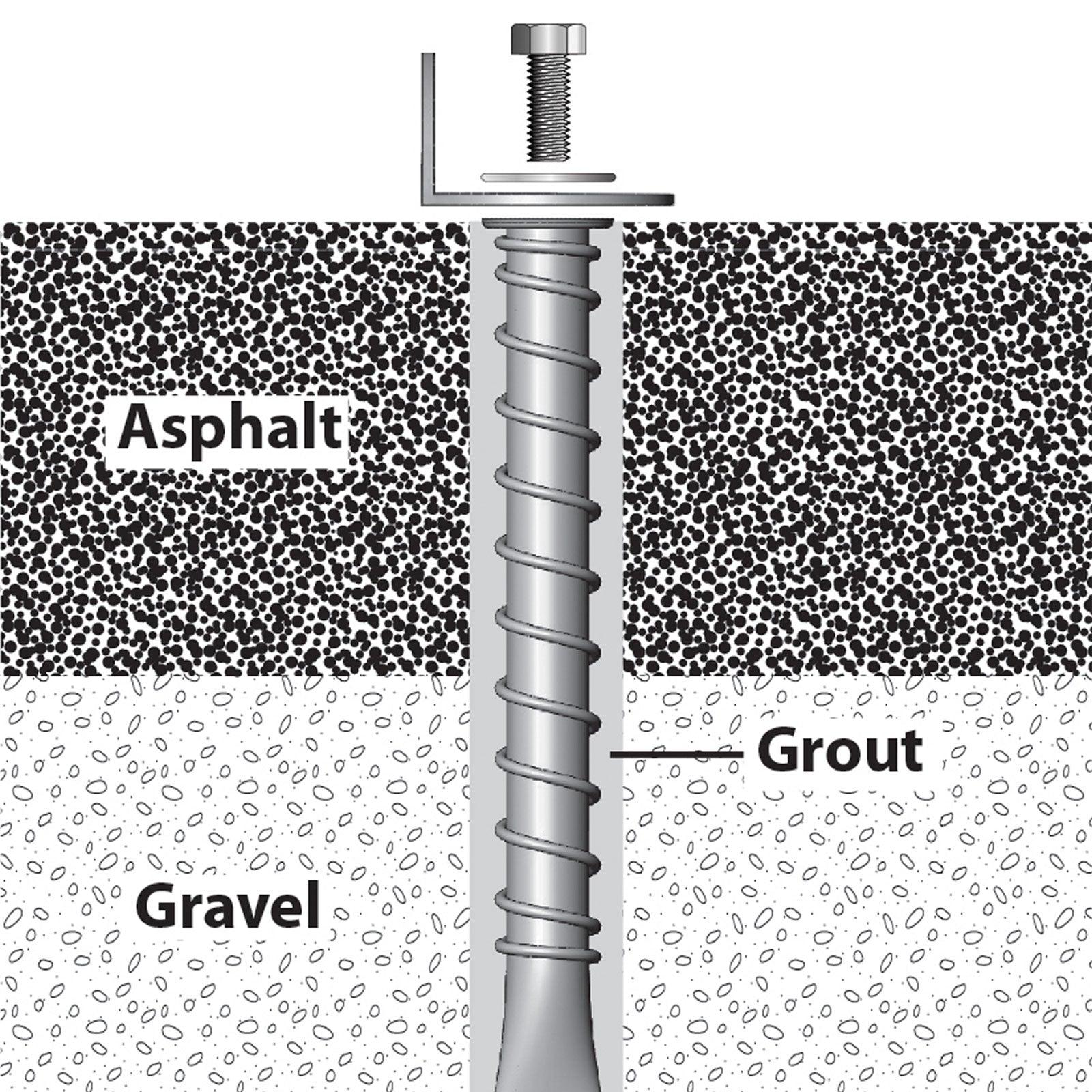

Installation Tips

  • Drill a 7/8" diameter hole to a depth of 6" for proper anchor embedment.
  • Ensure the bolt length inside the anchor does not exceed 3".
  • Use approved grout and allow full cure time before applying load.

Required Grout:

Listed below are the approximate amounts of grout required to install one six-pack of SP10-38S asphalt anchors.

Specifications

Diameter: 5/8"
Length: 6"
Head Diameter: 1.35"
Thread Type: 3/8"-16 UNC Coarse Female Thread
Torque: 200 lb.-in.
Manufacturer Name: Bolthold Asphalt anchors
Quantity: 6
Additional Info: Shear Resistance: 1000 lbs.
Pull Force: 1500 lbs.
