Bolthold eAK4 Asphalt Anchor Kit w/ 4 SP10 & Epoxy Grout

Regular price $7799
Ships Nov 17 when you order now

Description

Bolthold eAK-4 Asphalt Anchor Kit w/ 4 SP10-38 Anchors & Epoxy Grout

The Bolthold eAK-4 asphalt anchor kit delivers a complete, job-ready solution for anchoring fixtures directly into asphalt surfaces. This kit includes SP10-38 asphalt anchors paired with epoxy grout to ensure proper installation and dependable holding strength. Each anchor comes pre-installed with a 1" hex bolt and 1" diameter washer, making it ideal for mounting bike racks, signage, machinery, and similar equipment into asphalt.

Load anchors to no more than 80% of rated pull strength when the structure is self-supporting. If the structure applies a static pull force on the anchors, limit loading to 20% of the rated pull strength.

eAK-4 Asphalt Anchor Kit - Epoxy-Set Flush Mount Anchoring

Designed specifically for asphalt applications, the Bolthold eAK-4 kit removes guesswork by pairing SP10-38 anchors with compatible epoxy grout. The anchors install flush with the surface and feature a wide top header that prevents pull-through, while allowing mounted items to be removed cleanly without leaving surface obstructions.

Key Features

  • Flush-Mount Asphalt Anchors: Install level with the asphalt surface for a clean, trip-free finish.
  • Oversized Top Header: 1.4" header prevents anchors from dropping below the surface or pulling into the mounting plate.
  • Pre-Assembled Hardware: Each anchor includes a 1" hex bolt and 1" washer for faster installation.

Common Applications

  • Bike racks and bicycle infrastructure
  • Parking, traffic, and wayfinding signage
  • Machinery and equipment mounting
  • Bollards and site furnishings
  • Temporary or removable asphalt installations

Installation Tips

  • Drill a 7/8" diameter hole to a depth of 6" for proper anchor embedment.
  • Ensure the bolt length inside the anchor does not exceed 3".
  • Inject epoxy grout fully and allow proper cure time before applying load.

Kit Includes:

Specifications

Diameter: 5/8"
Length: 6"
Head Diameter: 1.35"
Thread Type: 3/8"-16 UNC Coarse Female Thread
Torque: 200 lb.-in.
Manufacturer Name: Bolthold Asphalt Anchors
Additional Info: Shear Resistance: 1000 lbs.
Pull Force: 1500 lbs.

Reviews
(3)

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
LARRY L MURRAY
Excellent Product, Easy and Effective

We installed 16 seperate bolts in an hour with no mess and no fuss. 1 hour later it was cured and we installed our stands. A+

D
David Schaerdel

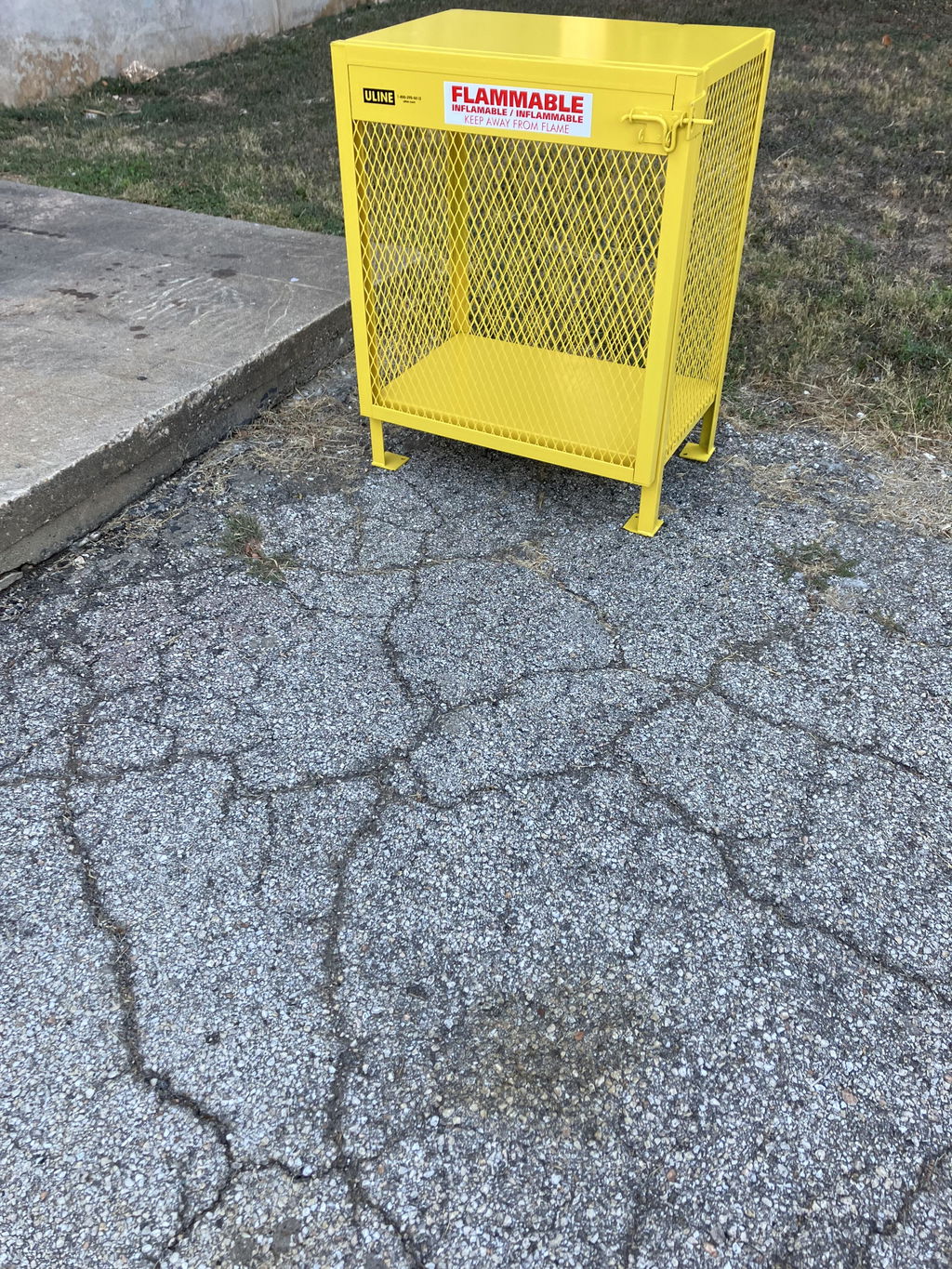

Anchor down propane rack
