Bolthold AK-4 Asphalt Anchor Kit w/ 4 SP10 & 2 EPX2 Grout

Regular price $6799
Ships Nov 17 when you order now

Description

Bolthold AK-4 Asphalt Anchor Kit w/ 4 SP10-38 Anchors & 2 EPX2 Grout

The Bolthold AK-4 asphalt anchor kit provides a complete solution for securely anchoring fixtures into asphalt surfaces. This kit includes the correct quantity of SP10-38 asphalt anchors and EPX2 grout to ensure proper installation and dependable holding strength. Each anchor comes pre-installed with a 1" hex bolt and 1" diameter washer, making it ideal for mounting bike racks, signage, machinery, and similar fixtures directly into asphalt.

Load anchors to no more than 80% of rated pull strength when the structure is self-supporting. If the structure applies a static pull force on the anchors, limit loading to 20% of the rated pull strength.

AK-4 Asphalt Anchor Kit - Flush-Mount Anchoring for Asphalt Surfaces

Designed specifically for asphalt installations, the Bolthold AK-4 kit eliminates guesswork by pairing SP10-38 anchors with compatible EPX2 grout. The anchors install flush with the surface and feature an oversized top header to prevent pull-through, while allowing mounted objects to be removed cleanly without leaving protrusions.

Key Features

  • Flush-Mount Asphalt Anchors: Install level with the asphalt surface for a clean, trip-free finish.
  • Oversized Top Header: 1.4" header prevents anchors from dropping below the surface or pulling into the mounting plate.
  • Pre-Assembled Hardware: Each anchor includes a 1" hex bolt and 1" washer for fast installation.

Common Applications

  • Bike racks and bicycle infrastructure
  • Parking, traffic, and wayfinding signage
  • Machinery and equipment mounting
  • Bollards and site furnishings
  • Temporary or removable asphalt installations

Installation Tips

  • Drill a 7/8" diameter hole to a depth of 6" for proper anchor embedment.
  • Ensure the bolt length inside the anchor does not exceed 3".
  • Fully grout the anchor using EPX2 and allow proper cure time before loading.

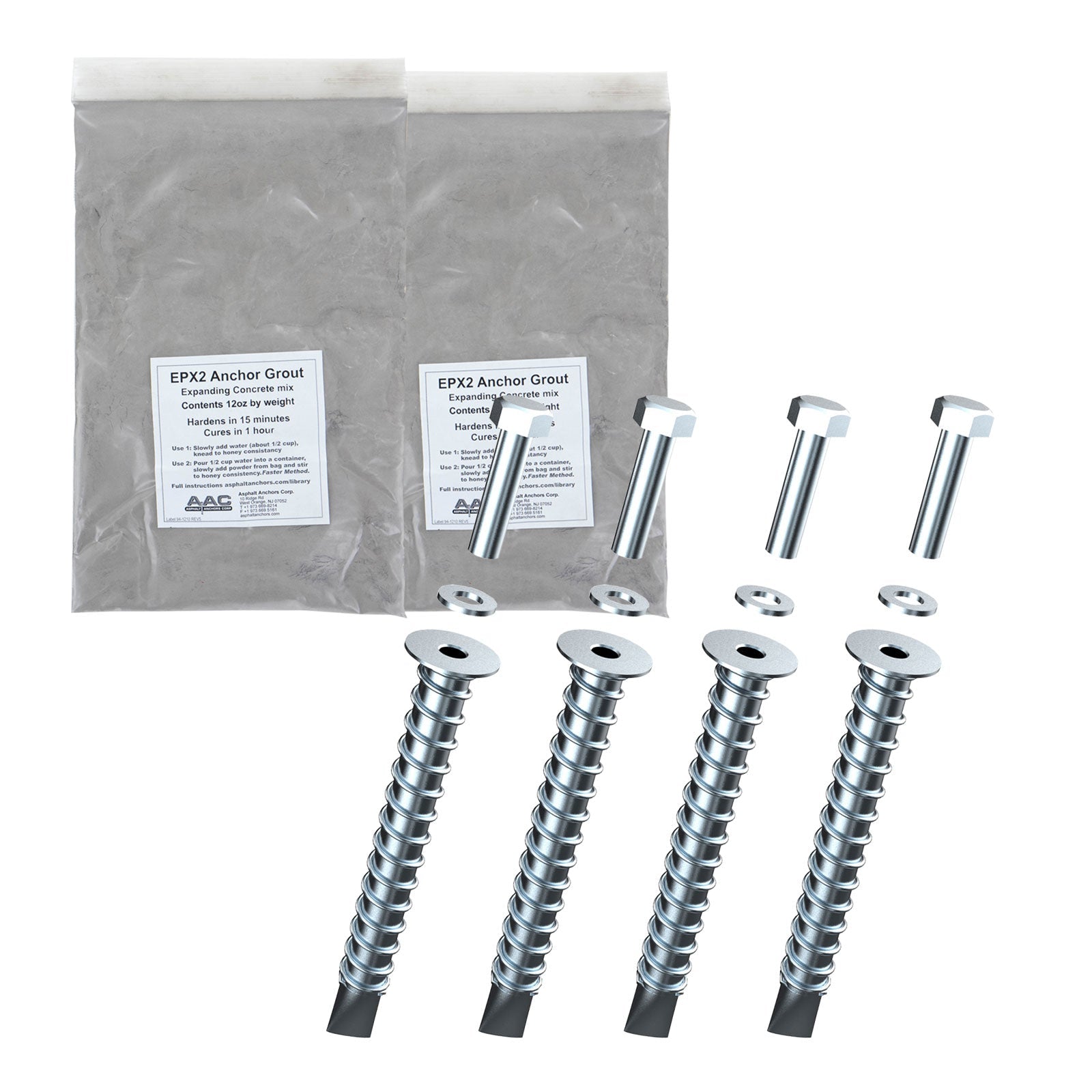

Kit Includes:

Specifications

Diameter: 5/8"
Length: 6"
Head Diameter: 1.35"
Thread Type: 3/8"-16 UNC Coarse Female Thread
Torque: 200 lb.-in.
Manufacturer Name: Bolthold Asphalt Anchors
Additional Info: Shear Resistance: 1000 lbs.
Pull Force: 1500 lbs.
