Specifications
Pull Force: 2000 lbs.
Bolthold SP12-38S Asphalt Anchor - 304 Stainless Steel
The Bolthold SP12-38S asphalt anchor is a heavy-duty anchoring solution engineered for asphalt applications where corrosion resistance and deep embedment are required. This 12" asphalt anchor bolt is ideal for mounting plates, fencing, and machinery directly into asphalt surfaces. Constructed from 304 stainless steel, it provides enhanced corrosion resistance, making it well suited for coastal and saltwater-adjacent environments.
Load anchors to no more than 80% of rated pull strength when the structure is self-supporting. If the structure applies a static pull force on the anchors, limit loading to 20% of the rated pull strength.
SP12-38S Asphalt Anchor - Corrosion-Resistant Deep-Set Asphalt Anchoring

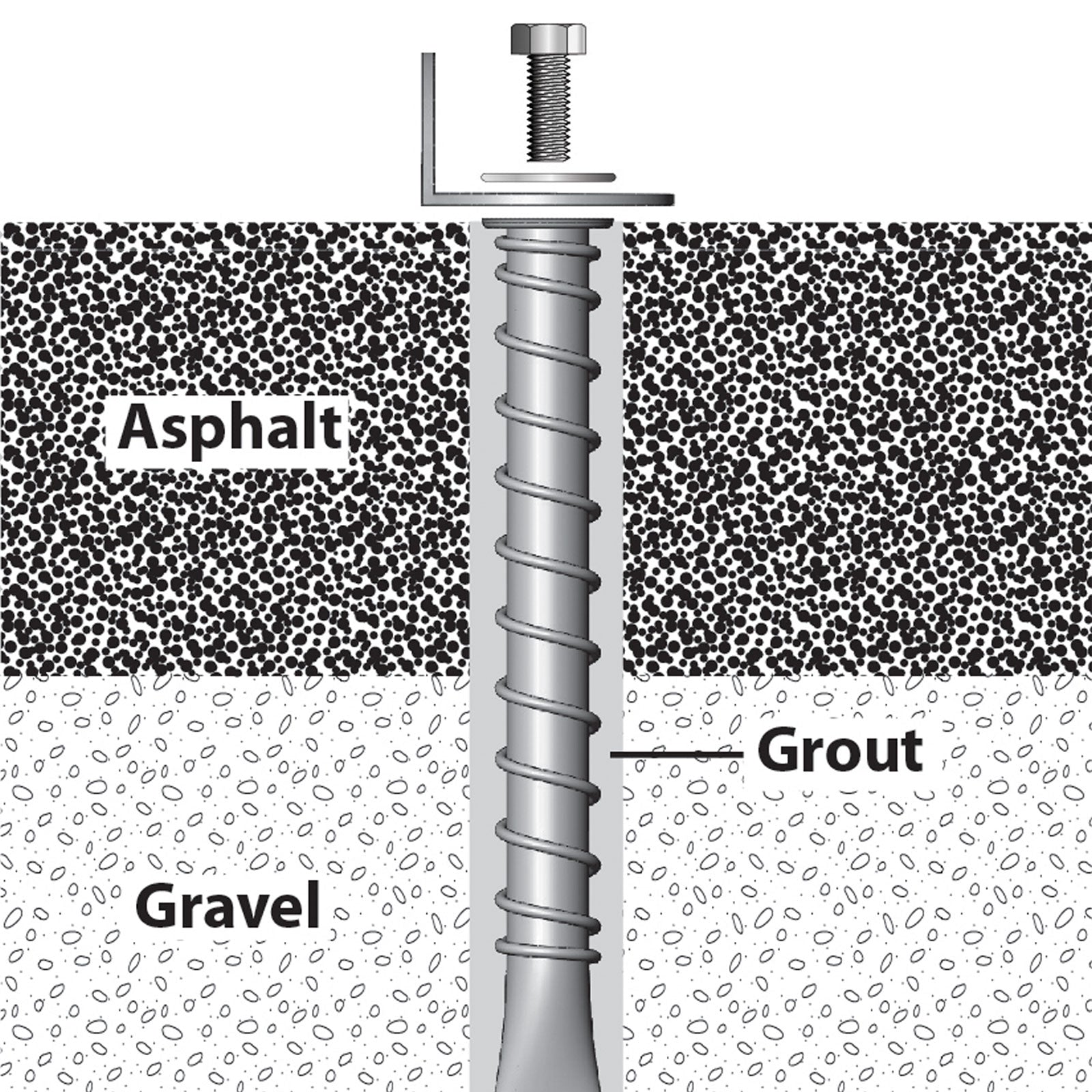

Designed for strength, longevity, and clean removability, the SP12-38S anchor requires a 7/8" diameter hole drilled 12" deep and the use of approved grout to achieve proper holding power. A wide top header prevents pull-through during tightening while allowing mounted objects to be removed without leaving surface protrusions.
Key Features
- 304 Stainless Steel Construction: Offers excellent corrosion resistance for coastal and outdoor environments.
- Flush-Mount Design: Installs level with the asphalt surface for a clean, trip-free finish.
- Oversized Top Header: 1.4" header prevents anchors from dropping below the surface or pulling into the mounting plate.

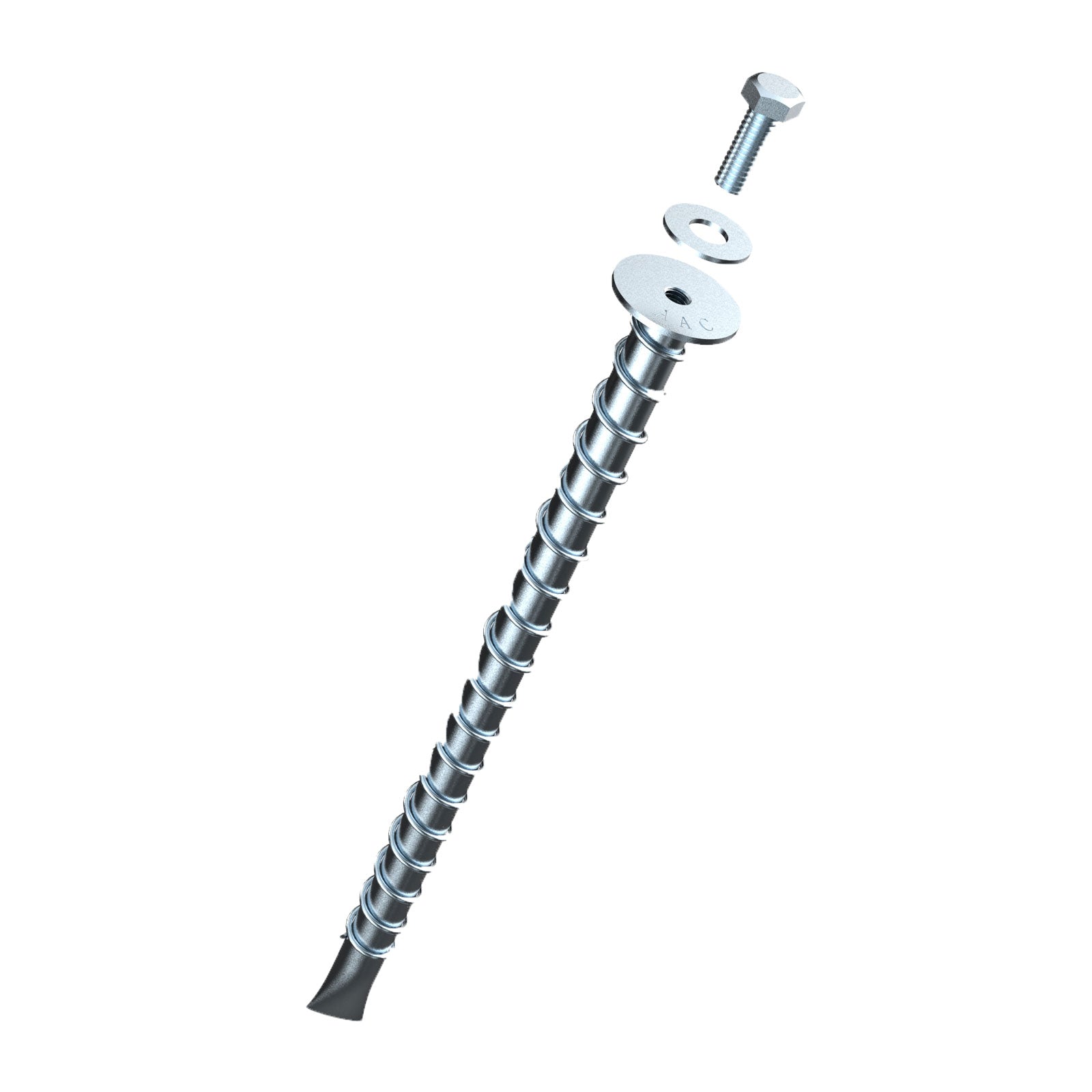

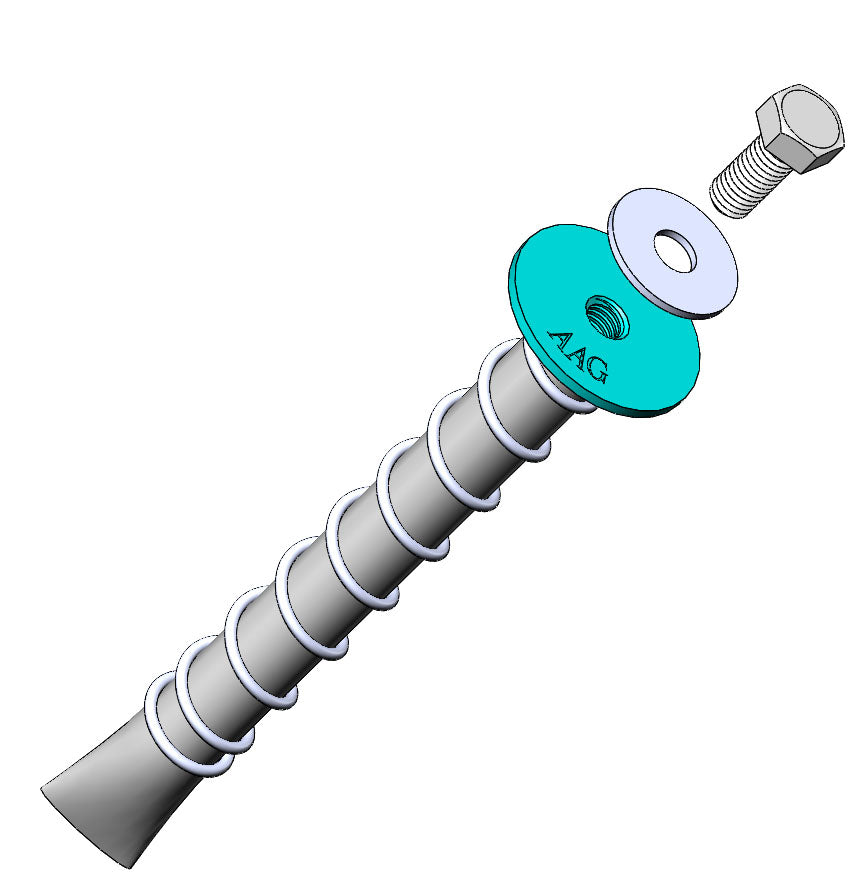

- Pre-Assembled Hardware: Includes a 1" bolt and 1" washer for faster installation.
Common Applications
- Mounting plates and base plates

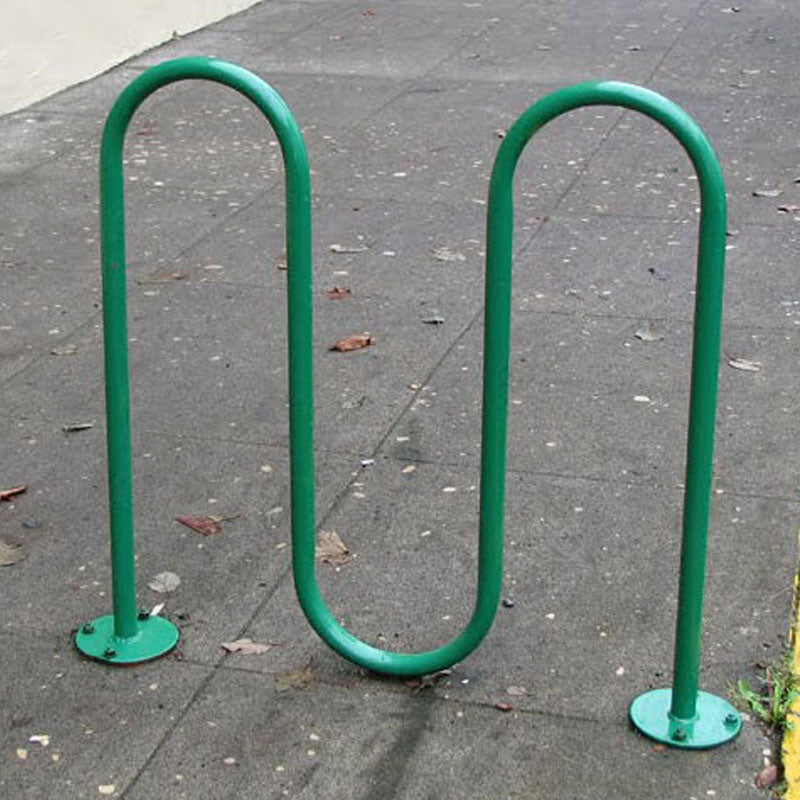

- Fencing and perimeter barriers
- Machinery and equipment anchoring
- Site furnishings and structural fixtures
- Removable asphalt-mounted installations
Installation Tips
- Drill a 7/8" diameter hole to a depth of 12" for proper anchor embedment.
- Ensure the bolt length inside the anchor does not exceed 5".
- Use approved grout and allow full cure time before applying load.
Required Grout:
Listed below are the approximate amounts of grout required to install one six-pack of SP12-38S asphalt anchors.
- One six-pack of EPX2 grout. (12 oz. bags) - Each Bag Of EPX2 grout installs (3) SP12-38S Anchors.
- One EPX2 tub of grout. (10 lb. tub) - Each Tub Of EPX2 grout installs (30) SP12-38S Anchors.
- Two EPX3 cartridges of grout. (10 oz. tube) - Each Tube Of EPX3 grout installs (3) SP12-38S Anchors.
