SKU: 78BWR636-5000FT-D
7/8" 6x37 Bright Wire Rope - EIPS IWRC | 5,000' Coil - Domestic
7/8" 6x37 Bright Wire Rope - EIPS IWRC | 5,000' Coil - Domestic!
SKU: 78BWR636-5000FT-D
7/8" 6x37 Bright Wire Rope - EIPS IWRC | 5,000' Coil - Domestic
$53,363.64
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 39.8 tons / 79,600 lbs.
Grade: EIPS
Length: 5,000'
Core: IWRC
Finish: Bright
Product weight: 7100 lbs.
Rated for Overhead Lifting: Yes
Rope construction: 6x36
Shipping and returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 1.42 lbs.
Wire rope class: 6x37
Wire rope diameter: 7/8"
Additional Info: Right Hand Regular Lay
Description

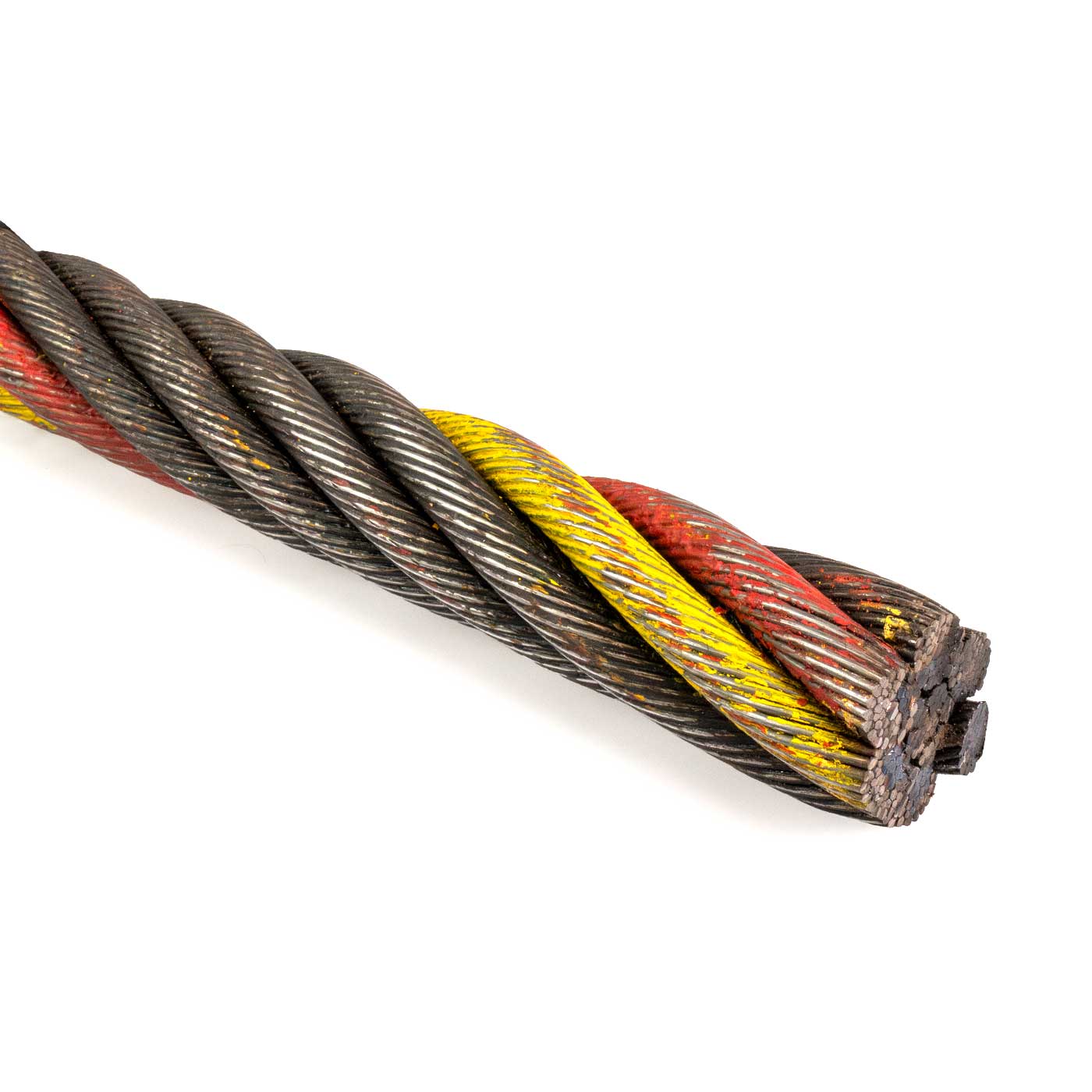

Domestic 7/8" 6x37 Bright Wire Rope - EIPS IWRC
Made in the USA from Extra Improved Plow Steel (EIPS), this 7/8" bright wire rope offers exceptional flexibility and fatigue resistance for demanding lifting and rigging tasks. Its 6x36 construction and Independent Wire Rope Core (IWRC) allow it to perform well under repetitive bending, making it ideal for hoisting, suspension, and winch line systems used in dynamic industrial applications.
Colored strands may appear in some domestic wire ropes for manufacturer ID or visibility purposes; these color variations do not affect assembly break strength.High-Flex Steel Cable for Winching, Suspension & Lifting
The 6x36 construction allows for smoother operation with better bend fatigue resistance than 6x19 alternatives. While it sacrifices a bit of abrasion resistance, it excels in high-cycle environments. The bright finish is uncoated and treated with a petroleum-based lubricant to reduce internal friction and provide light moisture protection. This rope is manufactured to meet RR-W-410 and ASTM A1023 specifications, ensuring consistent quality and performance in tough conditions.

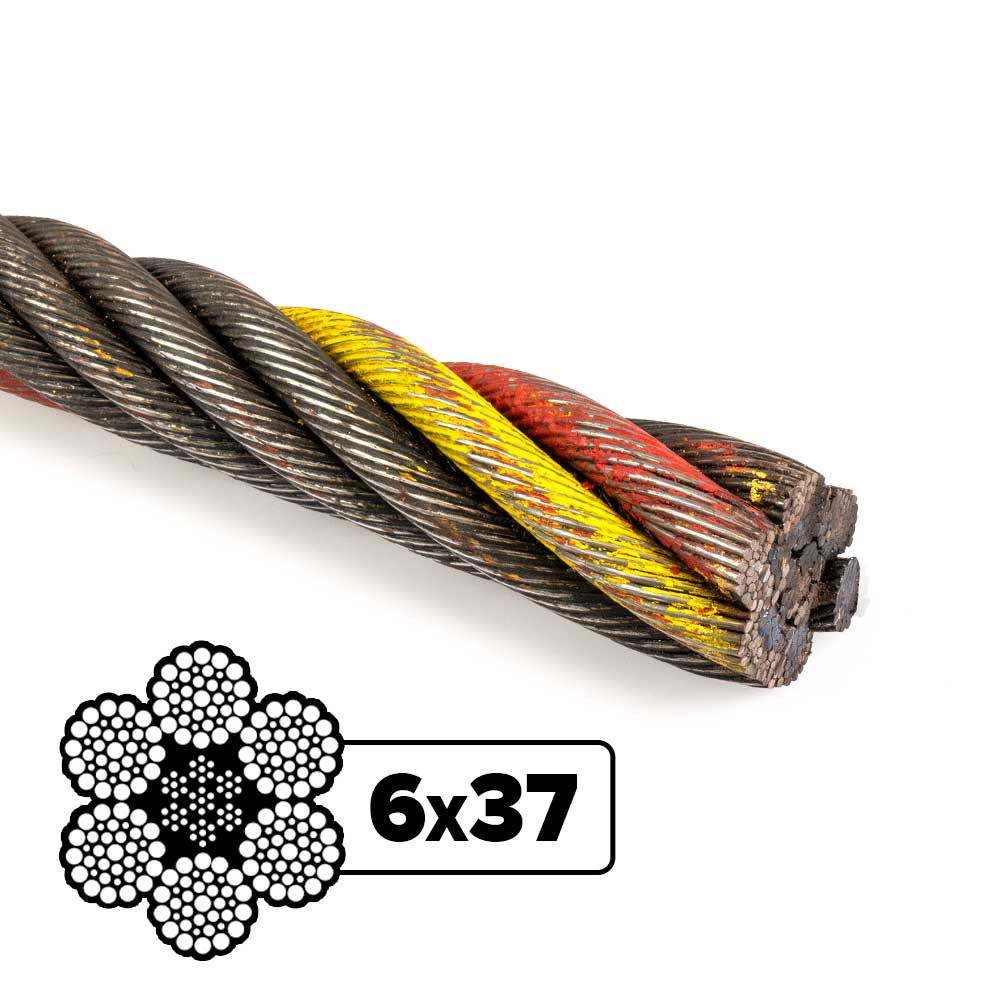

6x37 Wire Rope Configuration

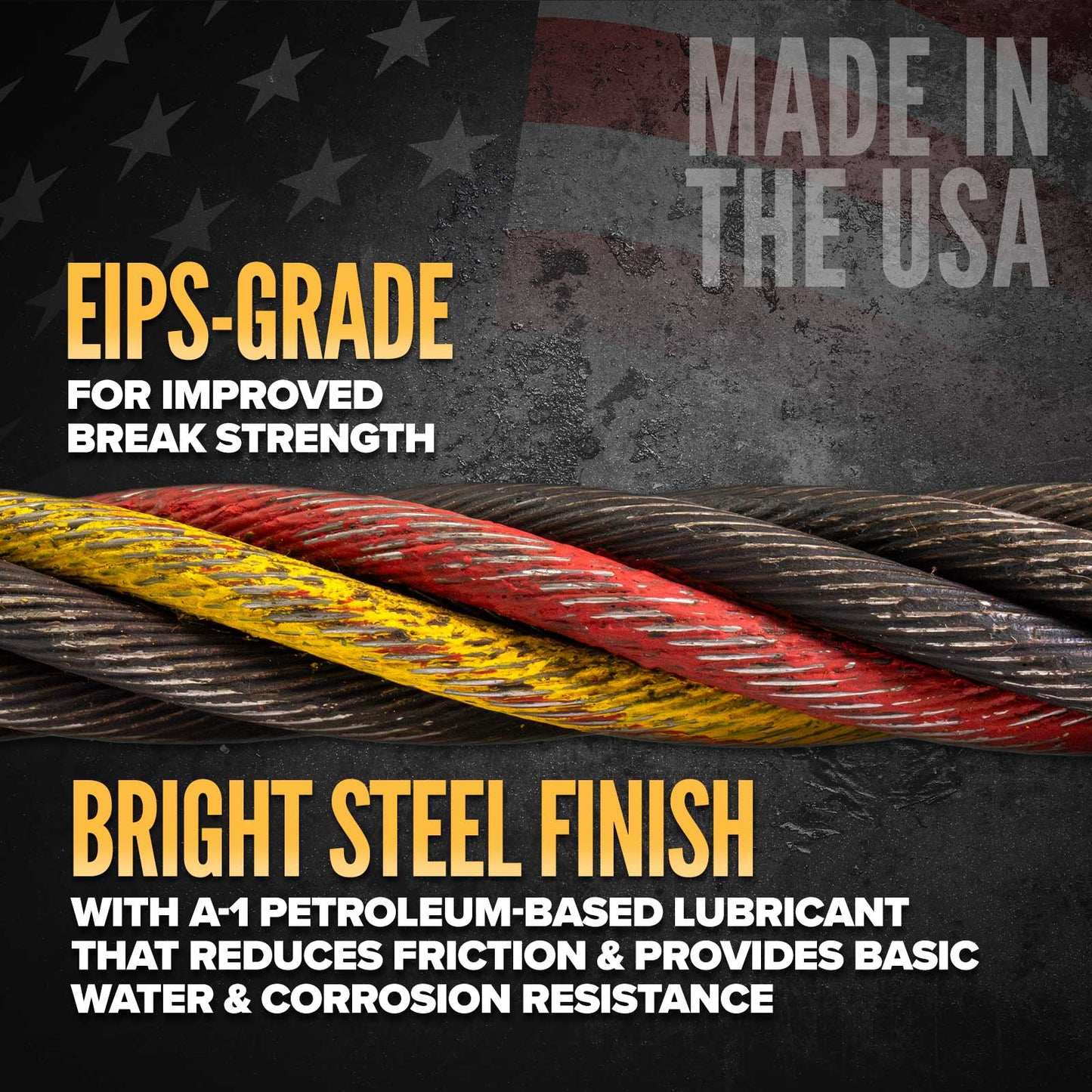

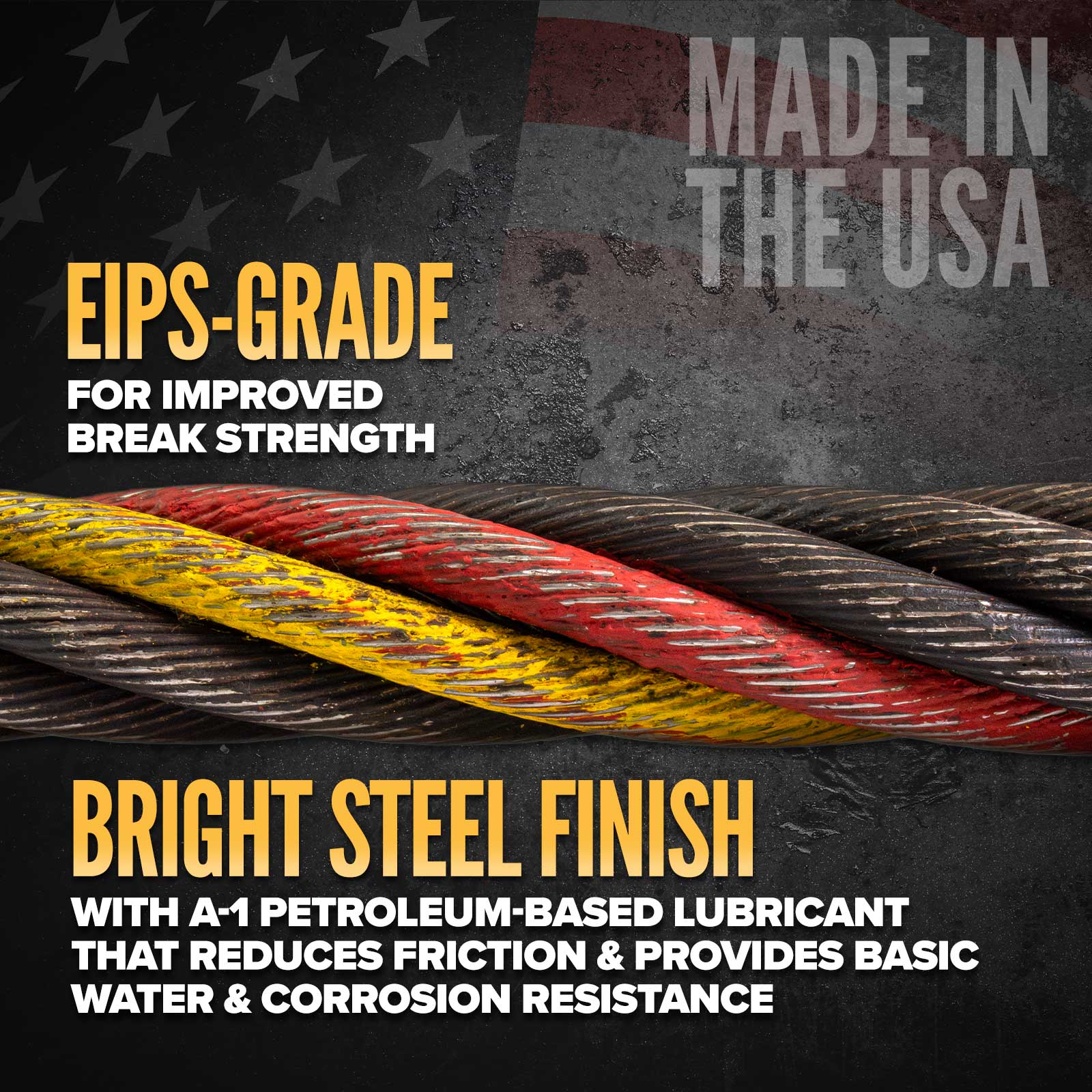

Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.
The class of this wire rope is 6x37. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. so for a 6x37 class, the number of outer strands is 6, and the number of wires making up each strand can range from 27-49. The construction of the rope you will be receiving is 6x36 - if you are looking for something different, please call.
Key Features
- USA-made with high-tensile EIPS steel for strength and reliability
- 6x36 construction designed for maximum flexibility and fatigue resistance
- Bright finish with petroleum-based lubricant for basic moisture protection

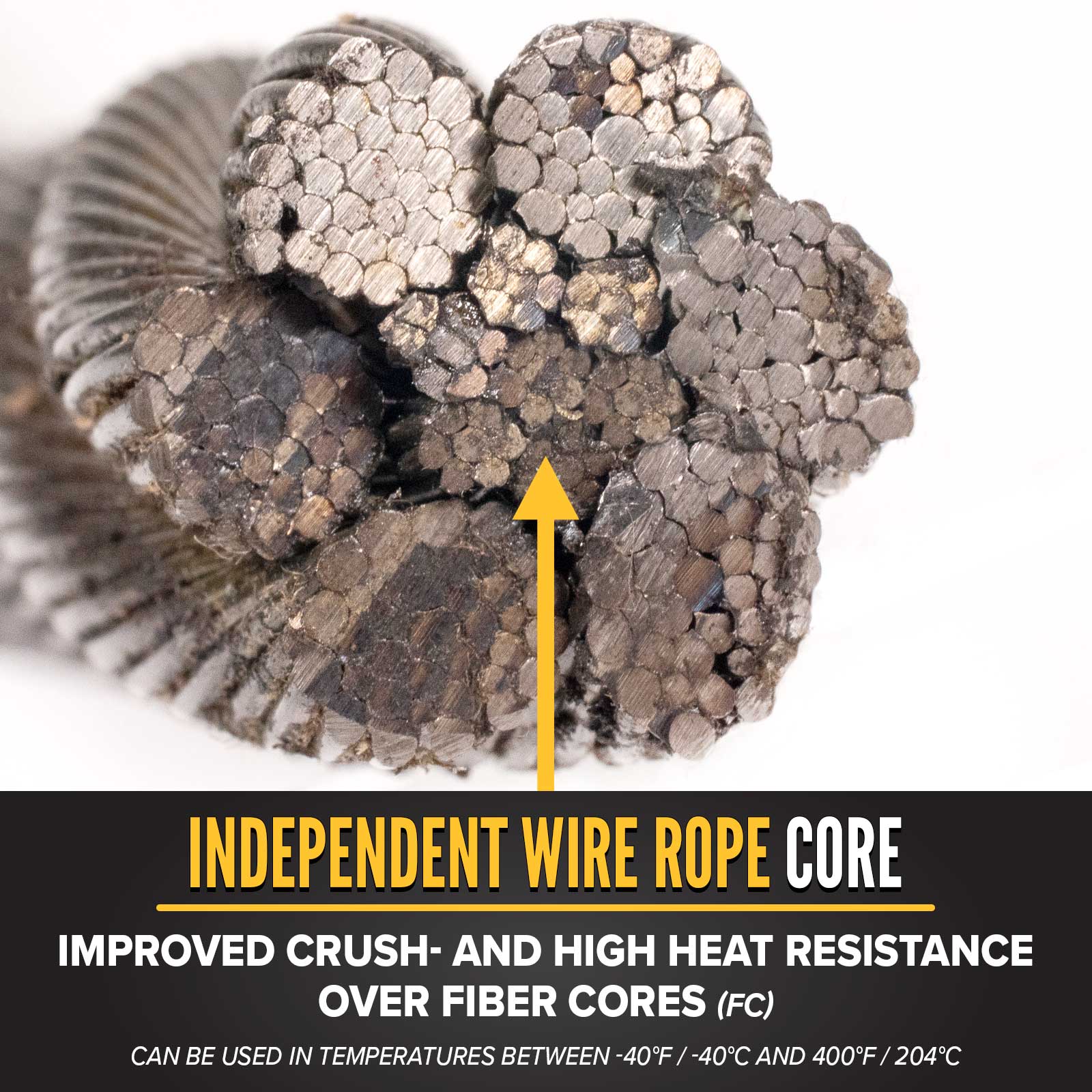

- IWRC core improves crush resistance and maintains shape under load
- Compliant with RR-W-410 and ASTM A1023 federal performance specs
- Ideal for hoisting, rigging, winch lines, and suspension systems
Compatible Accessories for Full System Setup
Pair this rope with our full range of wire rope fittings and trusted rigging hardware, including shackles, eye bolts, and turnbuckles. To reduce wear at connection points, use wire rope thimbles and secure terminations with Crosby wire rope clips. Need a custom build? We also offer custom wire rope assemblies to match your exact application needs.
