How to Use Wire Rope Clips
What Are Wire Rope Clips?

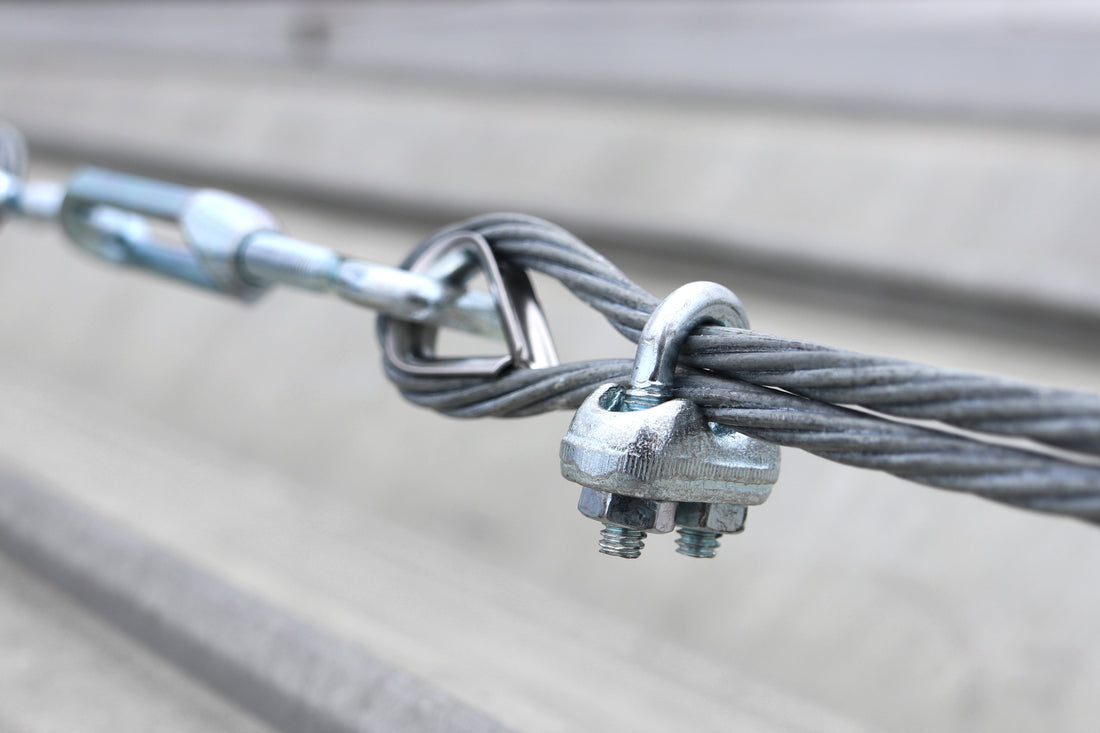

Wire rope clips or cable clamps are installed onto the wire rope to create a load-bearing eye at the end of your wire when used with wire rope thimbles.
While these clips are not designed for overhead lifting applications (swage sleeves should be used instead), wire rope clips are heavy-duty clips that are used for sustaining overhead loads. Use cases include guy lines, support lines, scaffolding, and more.
Types of Wire Rope Clips
U.S. Cargo Control offers two types of wire rope clips: standard (or U-Bolt) and fist-grip (or "double saddle"). Our line includes high-quality clips that work for any situation, including:
- Crosby® G-450 Galvanized
- Crosby® G-429 Fist-Grip
- Zinc Plated Malleable
- Stainless Steel Drop Forged Type 316
- Precision Cast Type 316 Stainless Steel
- Precision Cast Type 304 Stainless Steel
- Stainless Steel Fist Grip
NOTE: Before using these products, inspect the wire rope for any wear and abuse. If you notice any damage, remove the wire rope from service.
These products are NOT to be used for making slings.
How to Install a Wire Rope Clip
- Wrap the wire rope around the thimble to form the eye, and turn the remainder of the rope back.
- Install the first clip at the dead-end side of the rope. The "U" side of the clip must always cover the dead end of the rope, and the "saddle" side of the clip on the live end of the rope. Place the nuts of the clip and tighten them using a torque wrench.
- Next, apply the second clip and place it as close to the eye loop as possible. Same application for the clip. Tighten the nuts of the clip with a wrench. (If you're planning on using more than two clips, do not tighten the nuts on the clips.)
- Place more clips on the rope if you need more than two on the wire rope. Be sure to space them evenly between the end clips. Finally, tighten the end clips and apply tension to reach the recommended torque for the wire rope.
Rope Clips: Do's & Don't's
