SKU: 916BWR636-D
9/16" 6x37 Bright Wire Rope - EIPS IWRC | Linear Foot - Domestic
9/16" 6x37 Bright Wire Rope - EIPS IWRC | Linear Foot - Domestic!
SKU: 916BWR636-D
9/16" 6x37 Bright Wire Rope - EIPS IWRC | Linear Foot - Domestic
$6.76
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 16.8 tons / 33,600 lbs.
Grade: EIPS
Length: 1'
Core: IWRC
Finish: Bright
Product weight: 0.59 lbs.
Rated for Overhead Lifting: Yes
Rope construction: 6x36
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 0.59 lbs.
Wire rope class: 6x37
Wire rope diameter: 9/16"
Additional Info: Right Hand Regular Lay
Description

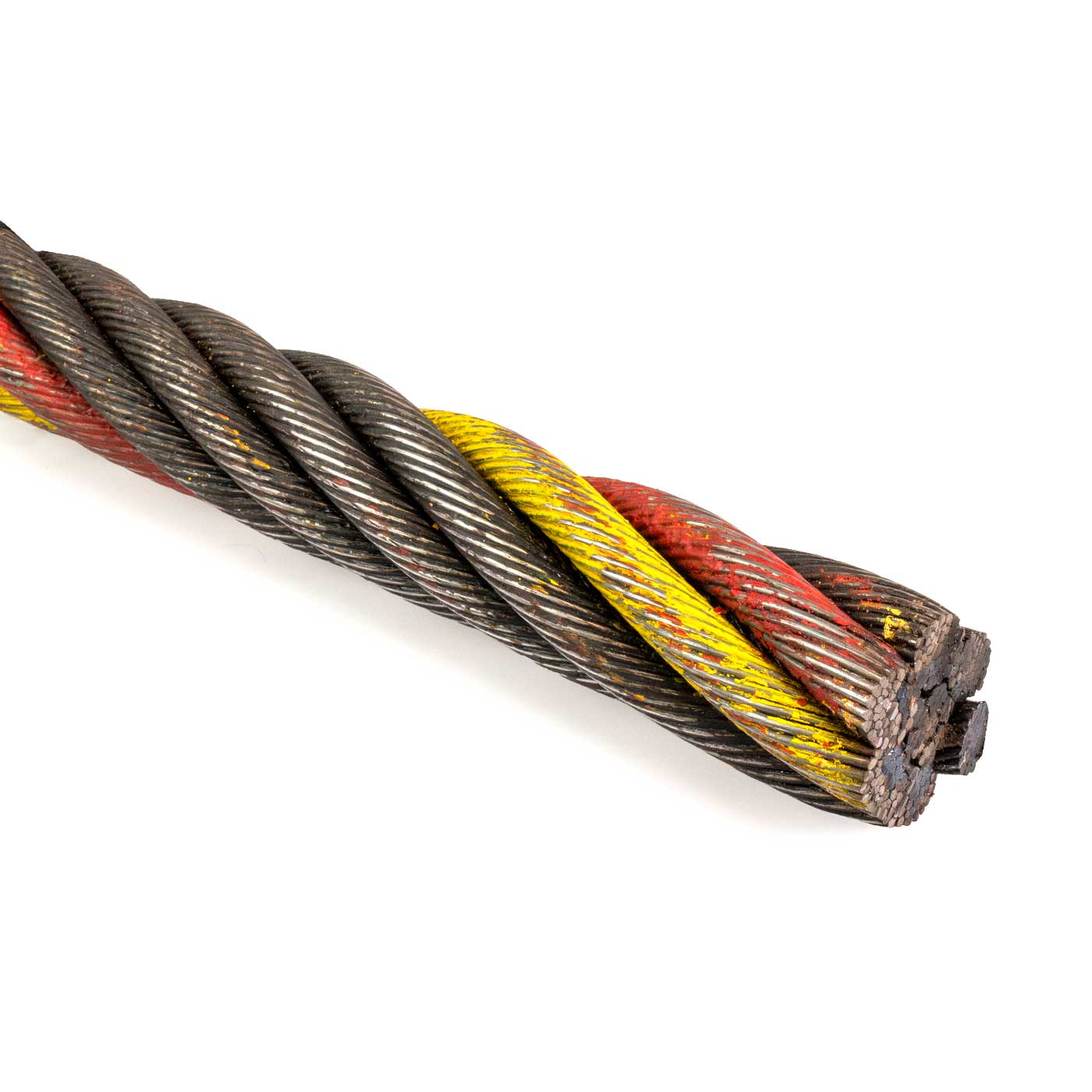

Domestic 9/16" 6x37 Bright Wire Rope - EIPS IWRC
This USA-made 9/16" bright wire rope is built with Extra Improved Plow Steel (EIPS) and a 6x36 construction to maximize flexibility and fatigue resistance. Its Independent Wire Rope Core (IWRC) provides enhanced structural support, making it ideal for hoisting, winching, suspension, and high-cycle lifting applications where repeated bending is required.
Colored strands may appear in some domestic wire ropes for manufacturer ID or visibility purposes; these color variations do not affect assembly break strength.High-Flex Steel Cable for Rigging, Suspension & Winch Systems
The 6x36 construction allows for smoother operation around pulleys and sheaves while resisting metal fatigue. Although slightly less abrasion-resistant than 6x19 class ropes, this design excels in repetitive-use scenarios. A petroleum-based lubricant protects both internal and external wires, while the bright finish keeps it lightweight and easy to inspect. Meets RR-W-410 and ASTM A1023 standards for strength and dimensional accuracy.
6x37 Wire Rope Configuration
Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.

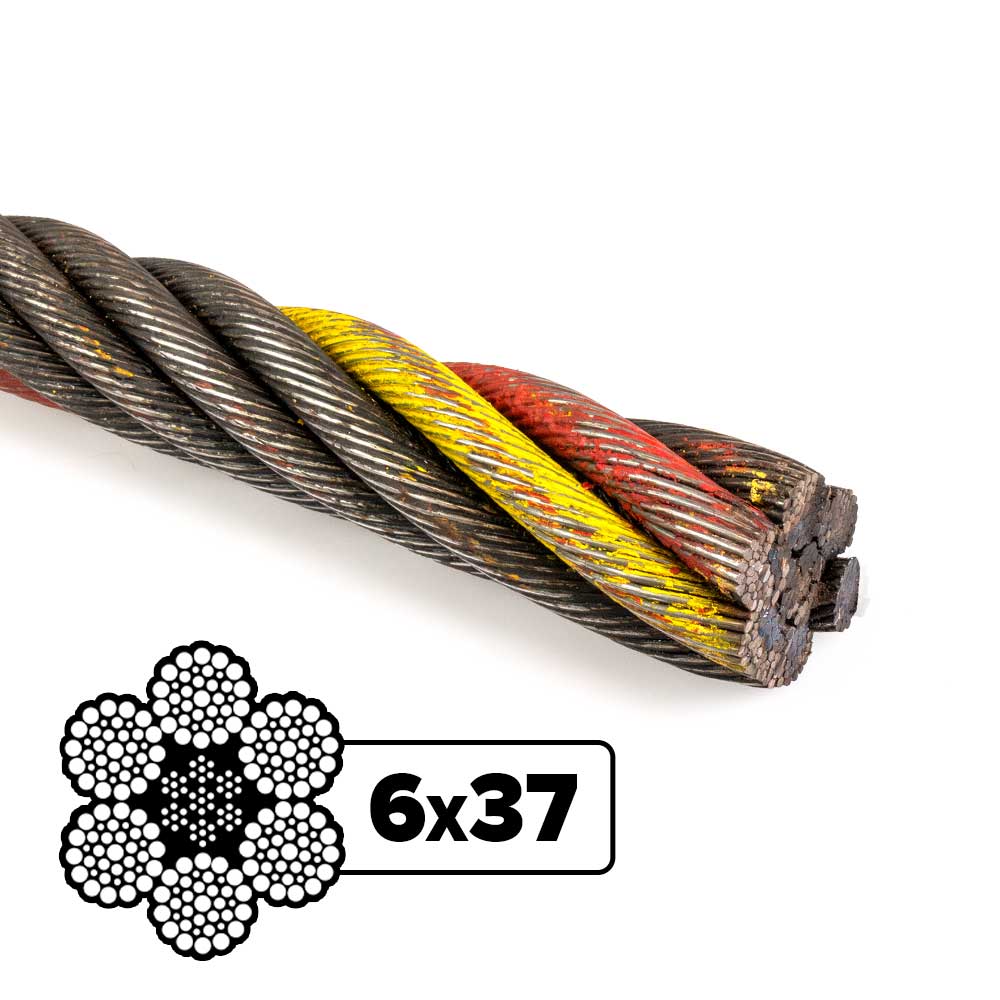

The class of this wire rope is 6x37. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. so for a 6x37 class, the number of outer strands is 6, and the number of wires making up each strand can range from 27-49. The construction of the rope you will be receiving is 6x36 - if you are looking for something different, please call.
Key Features
- USA-made with EIPS steel for increased tensile strength and durability
- 6x36 construction offers superior flexibility and fatigue resistance
- Bright uncoated finish treated with petroleum lubricant to reduce friction and moisture exposure

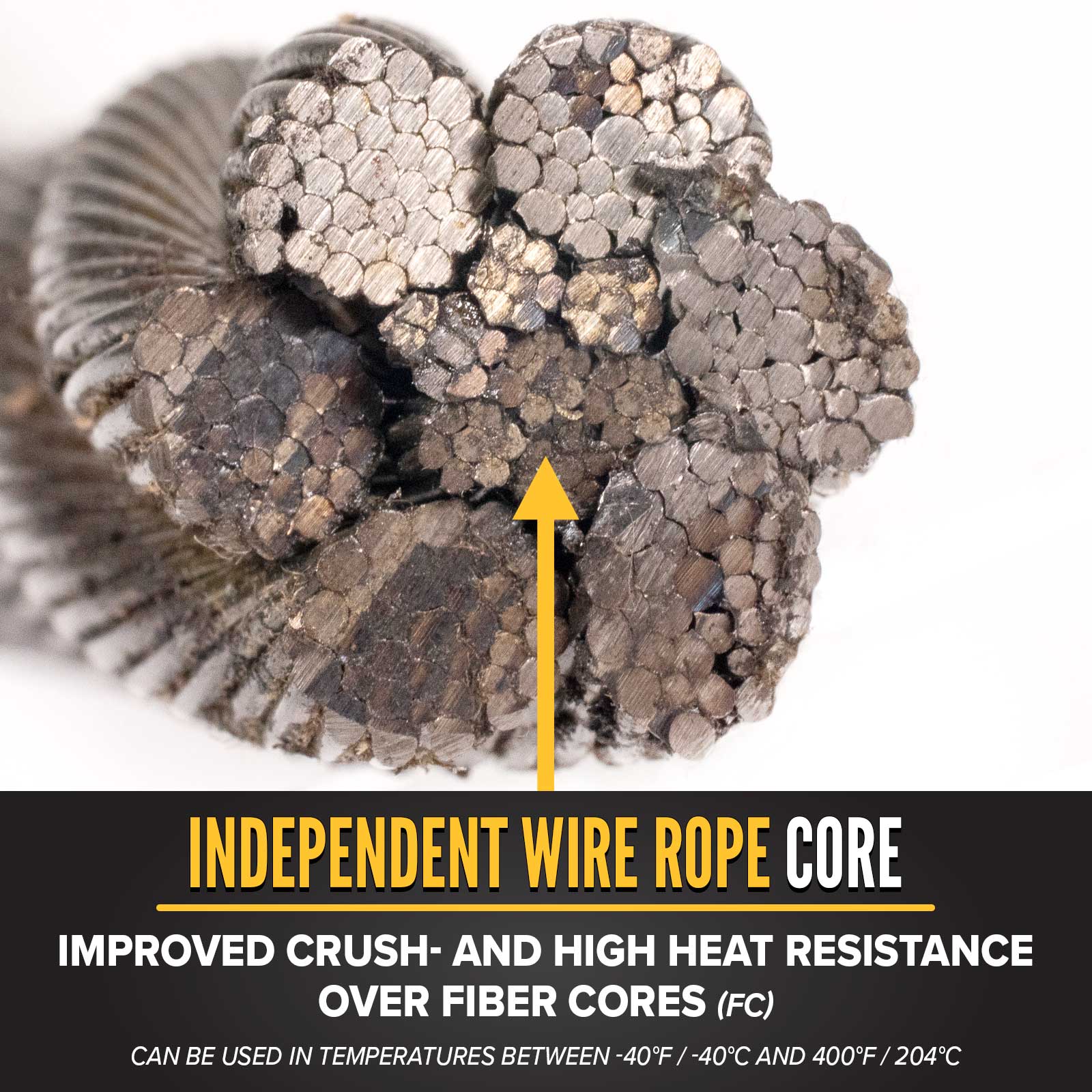

- IWRC provides stability under pressure and resistance to crushing
- Engineered to meet RR-W-410 and ASTM A1023 federal standards
- Great for winching, lifting, and dynamic suspension systems
- Sold by the foot and shipped as one continuous length
Compatible Accessories for Full System Setup
Build a complete system with dependable wire rope fittings and rugged rigging hardware, including eye bolts and turnbuckles. Add wire rope thimbles to protect looped ends and secure terminations using Crosby wire rope clips. For unique builds, we also offer custom wire rope assemblies made to your exact specs.
Wire Rope by the Foot Ordering FAQ
Does this wire rope come as one length? Yes, the quantity you add to the cart will be provided as one unbroken length of rope. So if you add this to the cart with a quantity of 1000, you will receive one 1000-foot long rope.
Can I order multiple separate lengths? Yes. For example, if you need two 1500-foot lengths of rope, you would set the quantity to 1500 and then add that to the cart twice. For each separate instance you add this to the cart, you will get a separate length of rope.
