SKU: SPCS2-VB

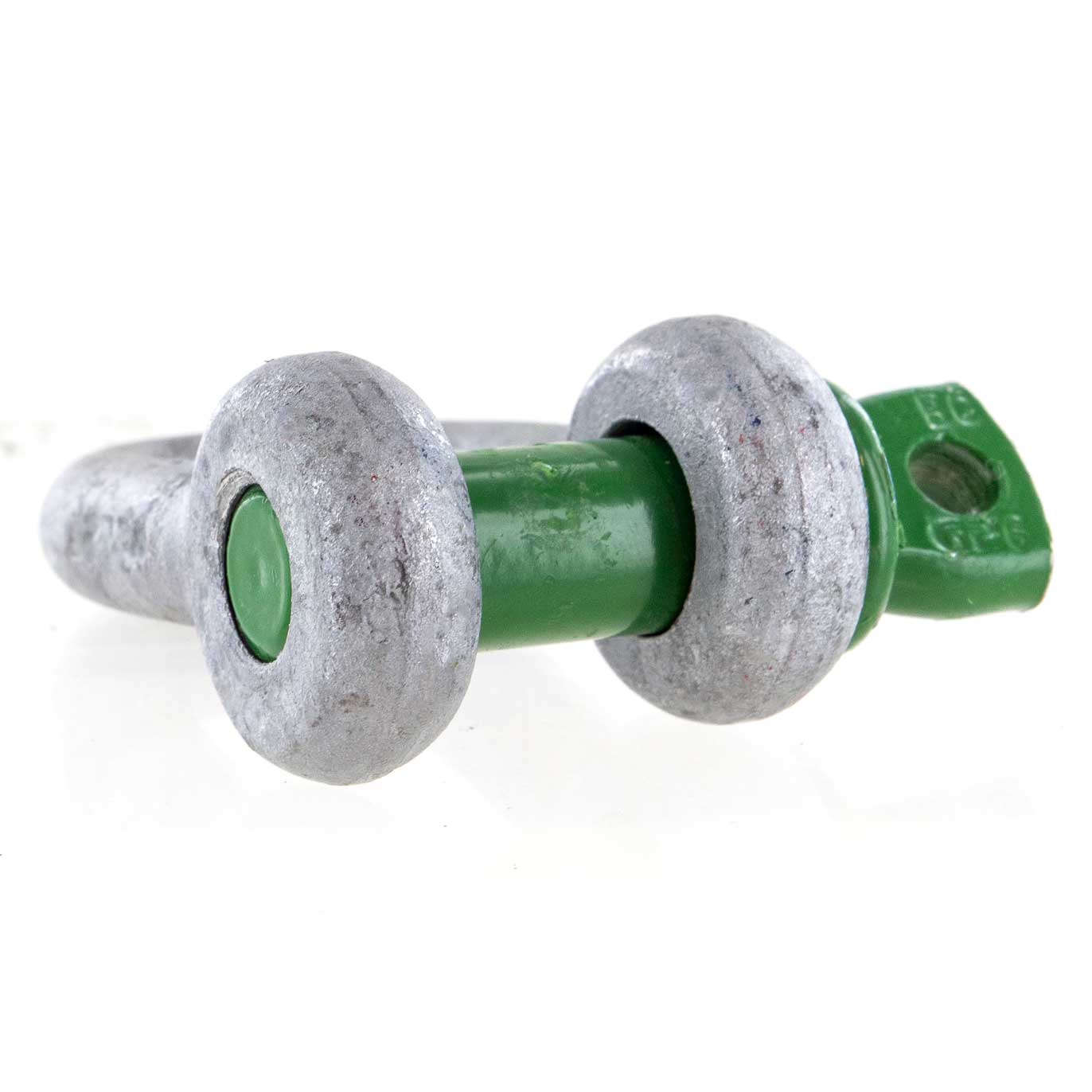

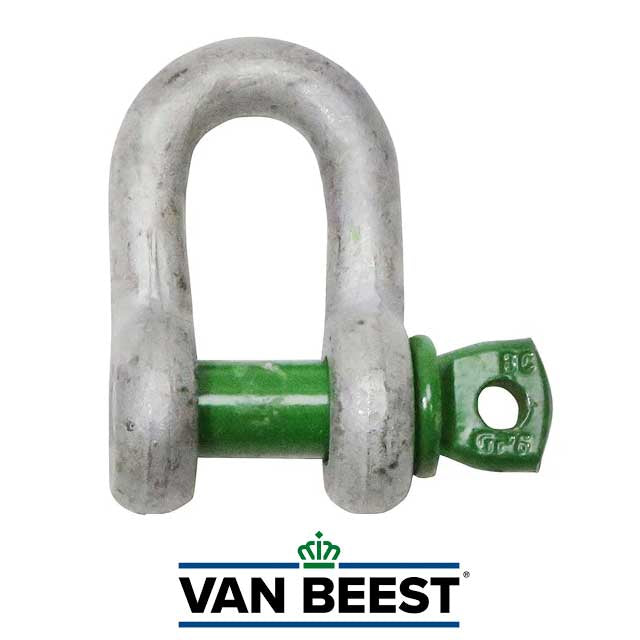

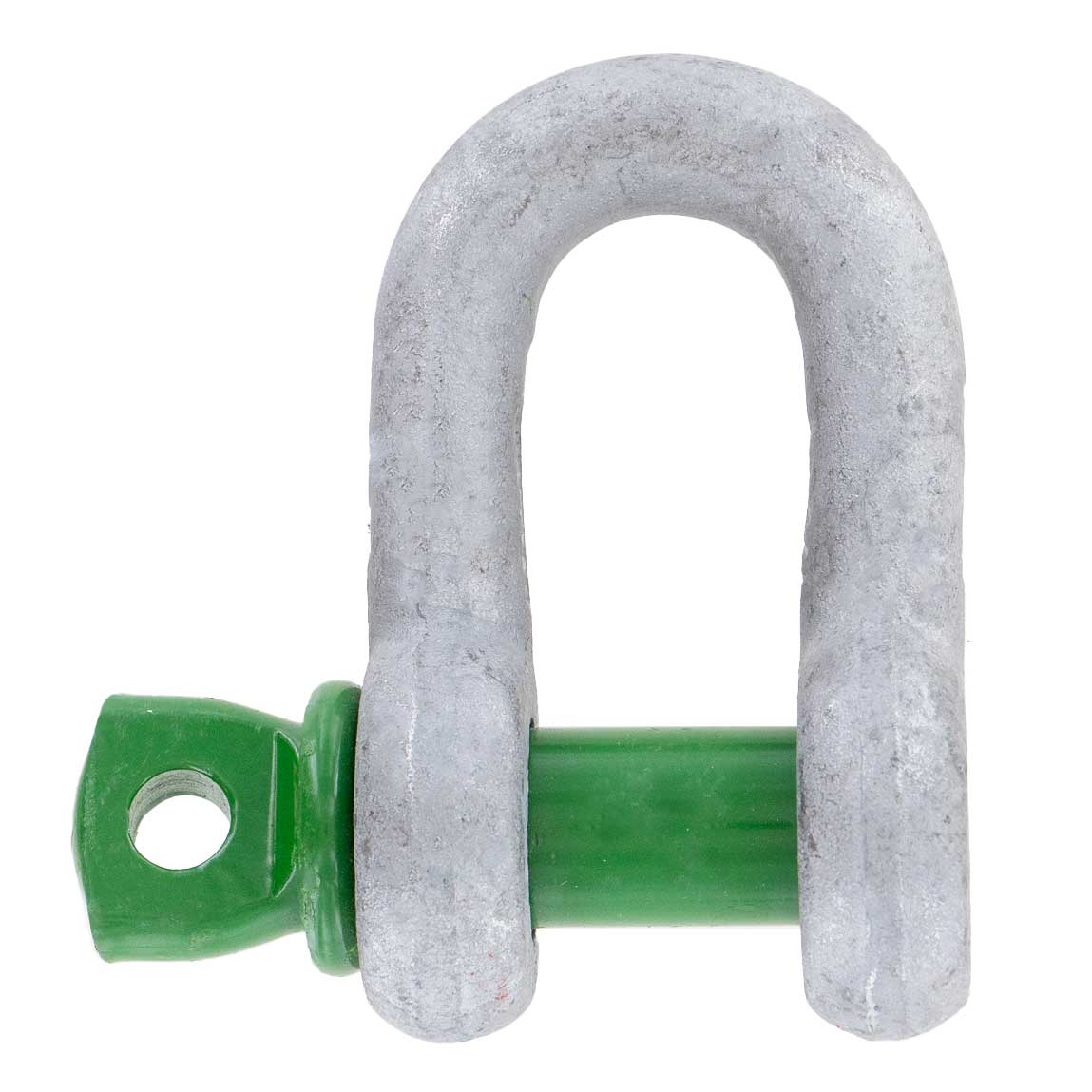

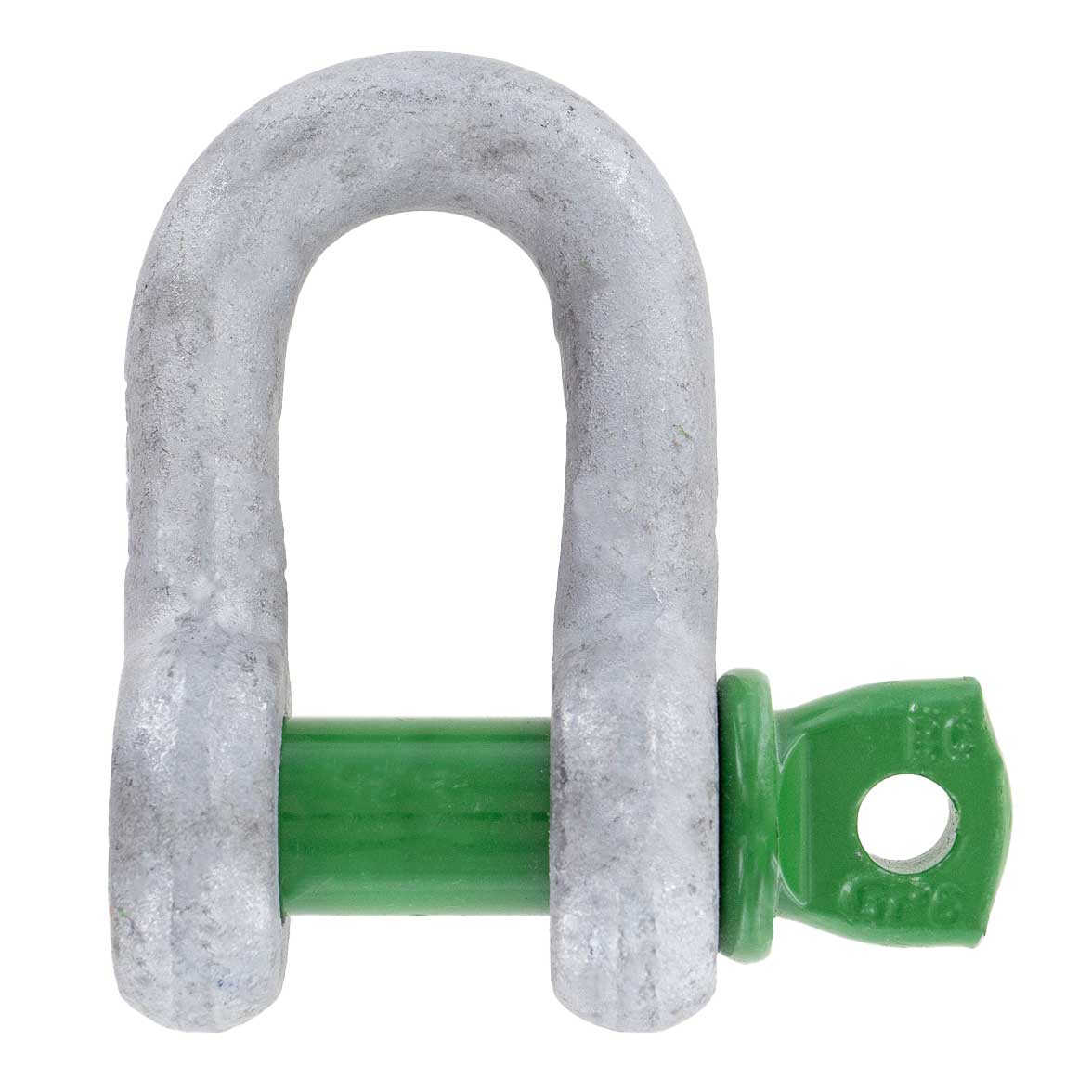

2" Van Beest Green Pin® Screw Pin Chain Shackle | G-4151 - 35 Ton
2" Van Beest Green Pin® Screw Pin Chain Shackle | G-4151 - 35 Ton!
$455.89
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 35 tons (Metric) / 77,161 lbs.
Brand part number: GPGDBB50
Finish: Galvanized
Inside height: 6.75"
Inside width: 3.28"
Manufacturer name: Van Beest
Material: Grade 6 High-Tensile Steel
Mouth width: 3.28"
Pin size: 2-1/4"
Product weight: 37.17 lbs.
Safety factor: 6:1
Shackle size: 2"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of EN13889, ASME B30.26, ASTM A148M, and Federal Specification RR-C-271.
Type: Screw Pin Chain
Description
Van Beest 35 Ton Screw Pin Chain Shackles

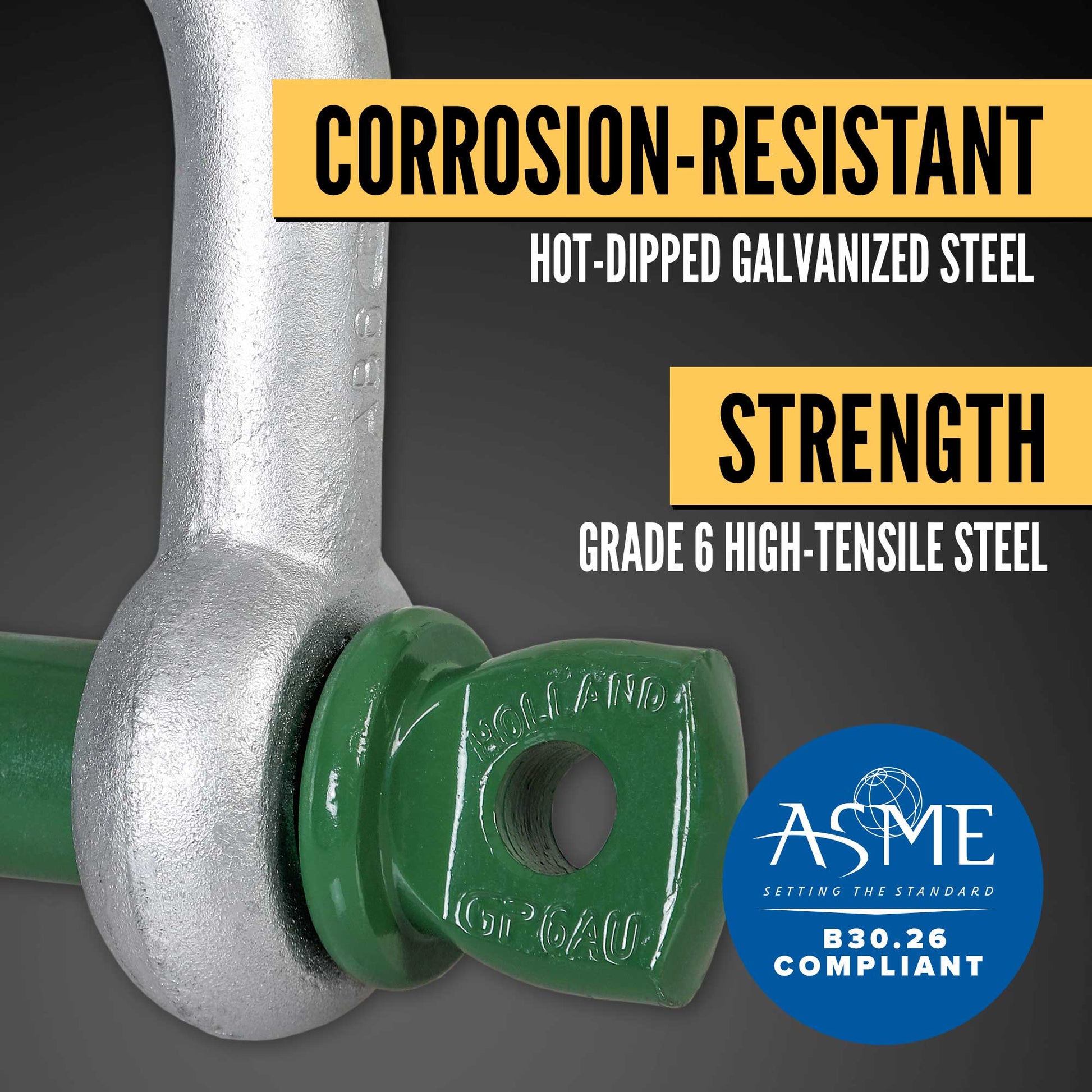

Van Beest Green Pin® Chain Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile quenched and tempered Grade 6 steel from corrosion.
Designed to reduce wire rope wear by hiding the screw thread in a chamber.
Why Choose Screw Pin Chain Shackles?
A quick release screw style pin allows these shackles to attach and detach quickly, making them perfect for temporary or non-permanent lifting jobs. Chain shackles generally have a higher working load limit than anchor shackles, but are ideal for straight or inline pulls only. Side and racking loads may cause the shackle to twist or bend.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
