SKU: WLP-300-T

Straightpoint® 300 T Wirelink Plus - WLP300T

Straightpoint® 300 T Wirelink Plus - WLP300T!

Skip to product information
1 of 3
$53,339.00

Request Bulk Pricing
Request Bulk Pricing
Call/Chat for ship date
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Load capacity: 660,000 lbs.
Accuracy: +/- 0.1% of Full Scale
Brand part number: WLP300T / 2789159
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Pin size: 6"
Product weight: 260 lbs.
Resolution: 200 lbs.
Safety factor: 5:1
Standards: IP67
Description

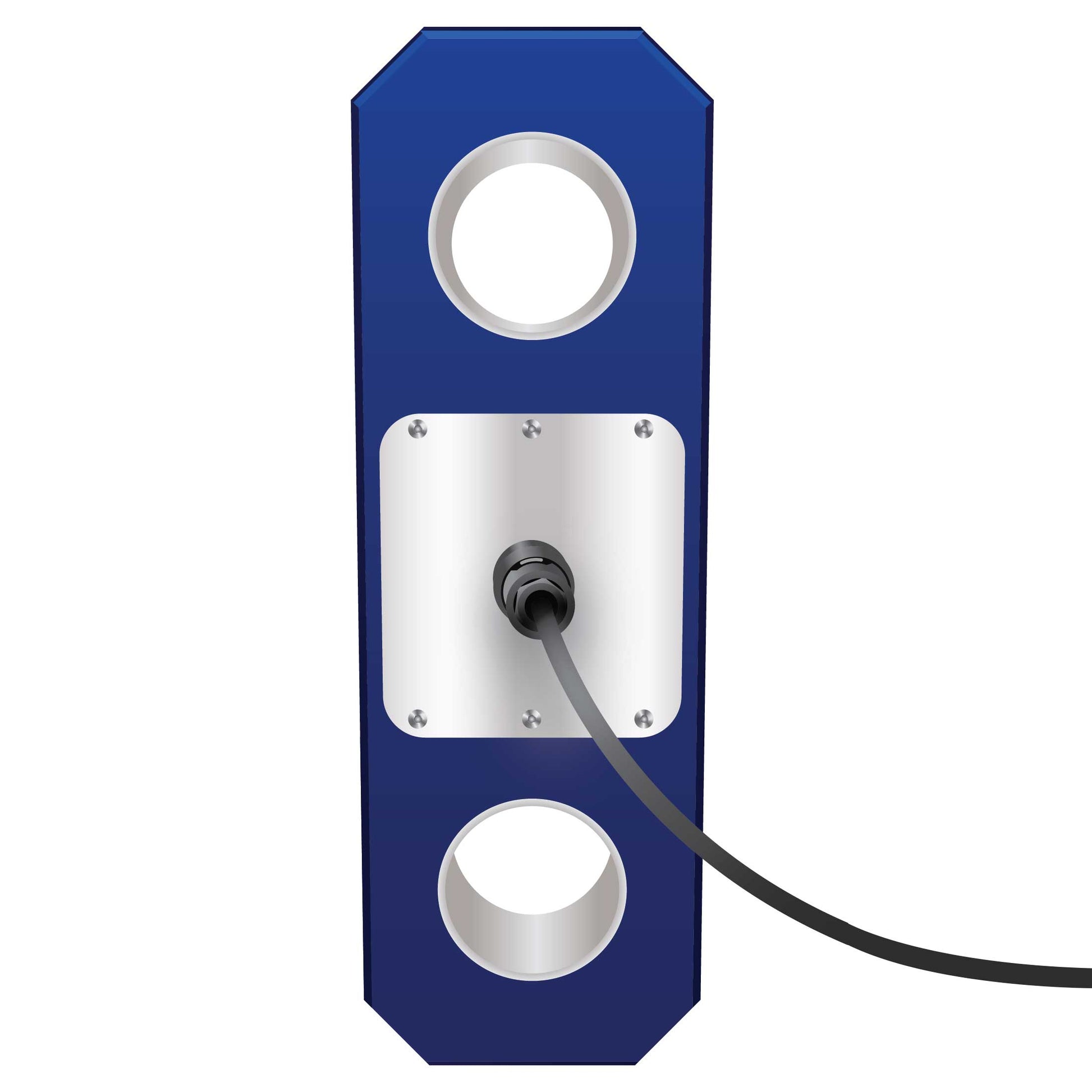

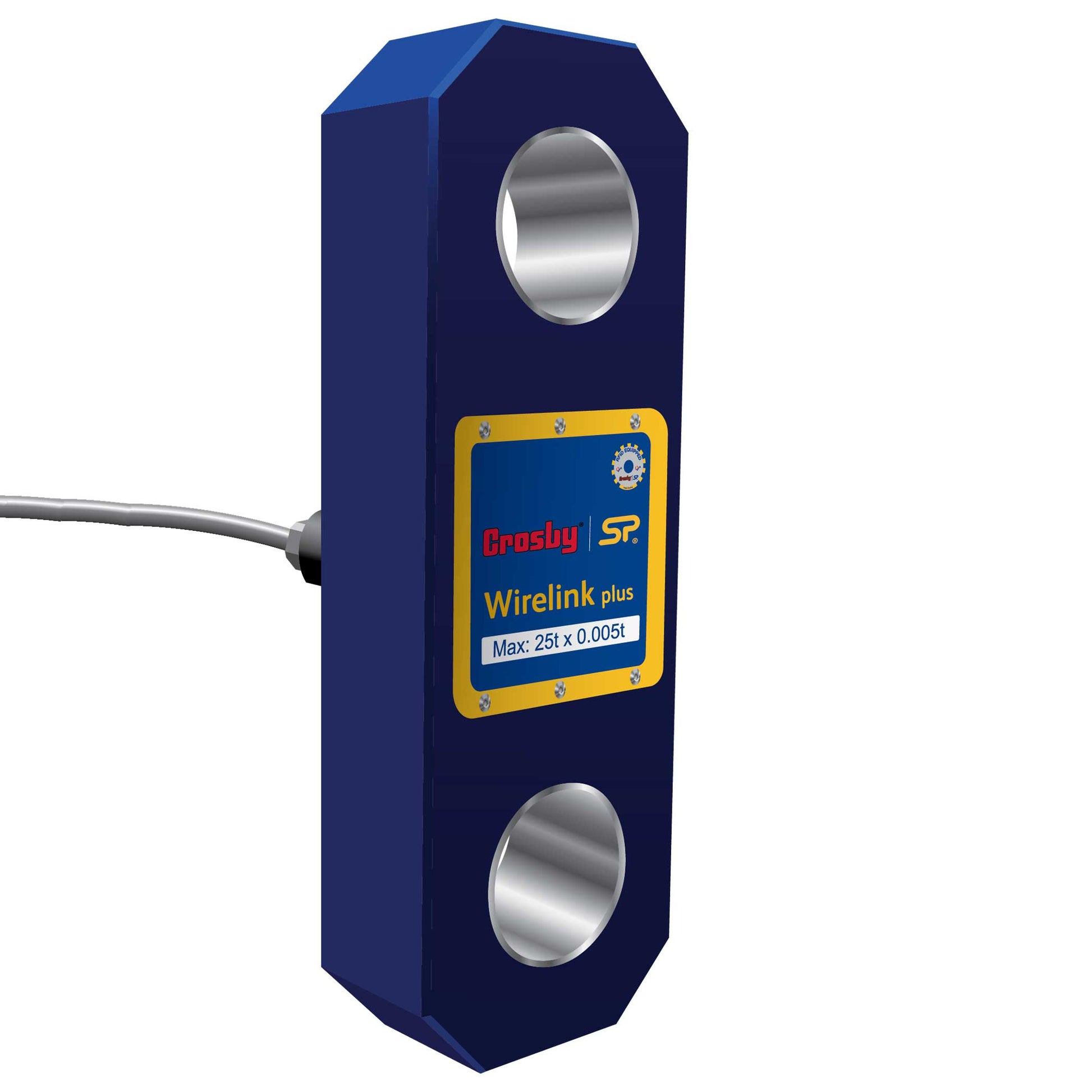

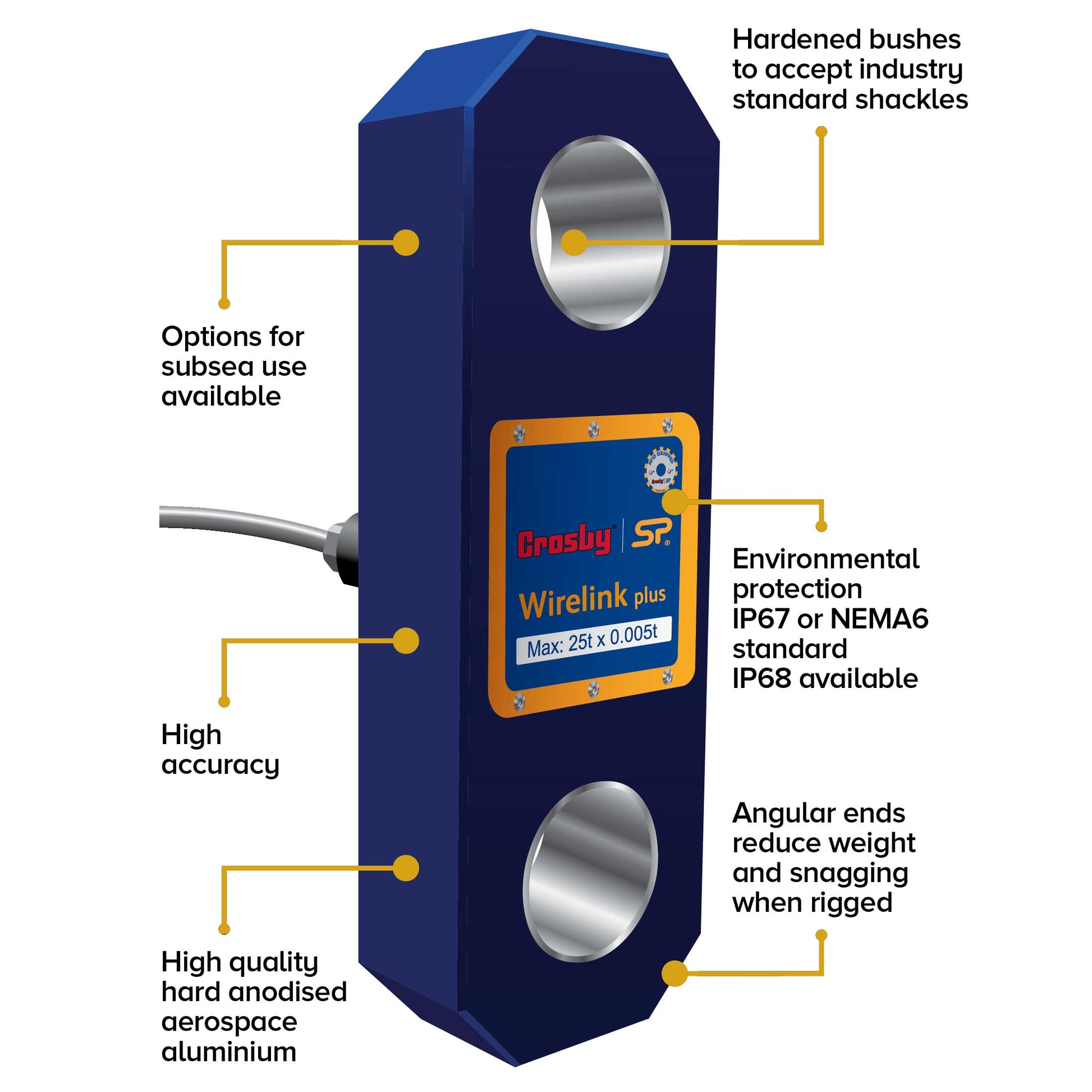

Wirelink Plus from Straightpoint is a powerful cabled load cell that allows you to precisely weigh and dynamically monitor rigging setups to ensure safe and optimal tension levels. This particular model (Straightpoint part #WLP300T and Crosby part #2789159) is a 300-ton rated tension load cell that's constructed from high-quality hard anodized aerospace grade aluminum. Straightpoint Wirelink load cells are designed to be used with Crosby shackles, however they are also compatible with other shackle brands. Unlike the Straightpoint Radiolink Plus, which runs wirelessly using an internal antenna, this Wirelink load cell uses the included 32-foot wired cable in order to transmit data to a digital display output. There are many options for how you digitally display and view the output data including the Straightpoint HHP Handheld Plus, PLCs, Data Acquisition systems (DAQ). Wirelink is also configured with a vast array of output formats including mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS RTU and CAN-BUS protocols. Common applications for this 300-ton Wirelink Plus tension load cell include overhead weighing, testing, bollard pulling, tug testing, cable tensioning, and heavy lift. The Wirelink Plus is suitable for even the harshest of environments and is available with IP68 environmental protection and option for subsea use. This 300-ton Wirelink tension load cell complies with ASME B30.26 and comes with a 2-year warranty, proof test certificate, operator manual, carry case, and is RFID tagged. Don't risk an overloaded lift ever again, get your hands on this game changing tension meter today.

View Product Safety Warnings

View full details
