Straightpoint® 1 T Wirelink Plus - WLP1T

  • Straightpoint® 1 T Wirelink Plus - WLP1T
  • Straightpoint® 1 T Wirelink Plus - WLP1T
  • Straightpoint® 1 T Wirelink Plus - WLP1T
  • Straightpoint® 1 T Wirelink Plus - WLP1T
  • Straightpoint® 1 T Wirelink Plus - WLP1T Thumbnail image
  • Straightpoint® 1 T Wirelink Plus - WLP1T Thumbnail image
  • Straightpoint® 1 T Wirelink Plus - WLP1T Thumbnail image
  • Straightpoint® 1 T Wirelink Plus - WLP1T Thumbnail image
SKU: WLP-1-T

$2,788.00
Free Shipping
Call/Chat for exact lead times
Standard Lead Time 14-21 business days.

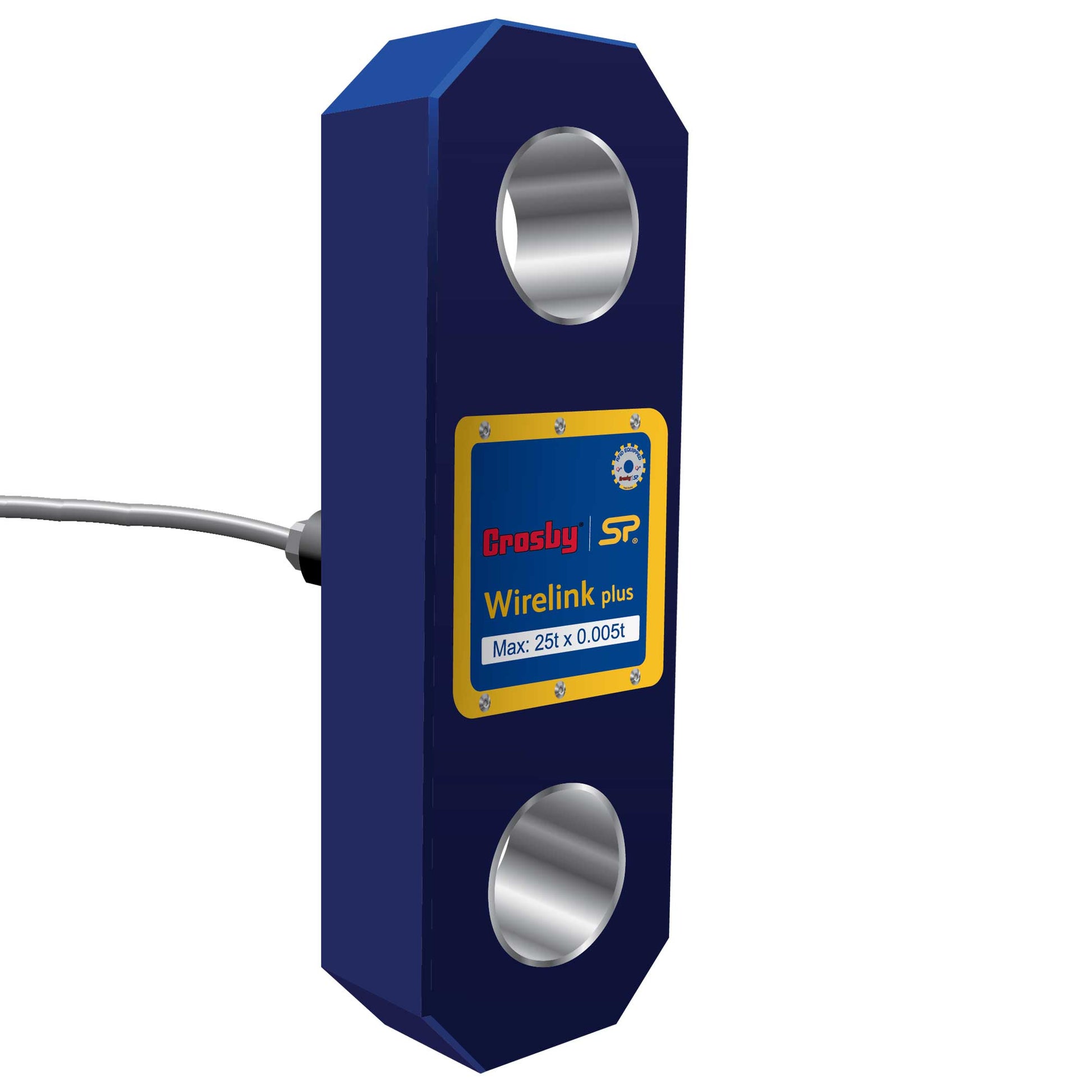

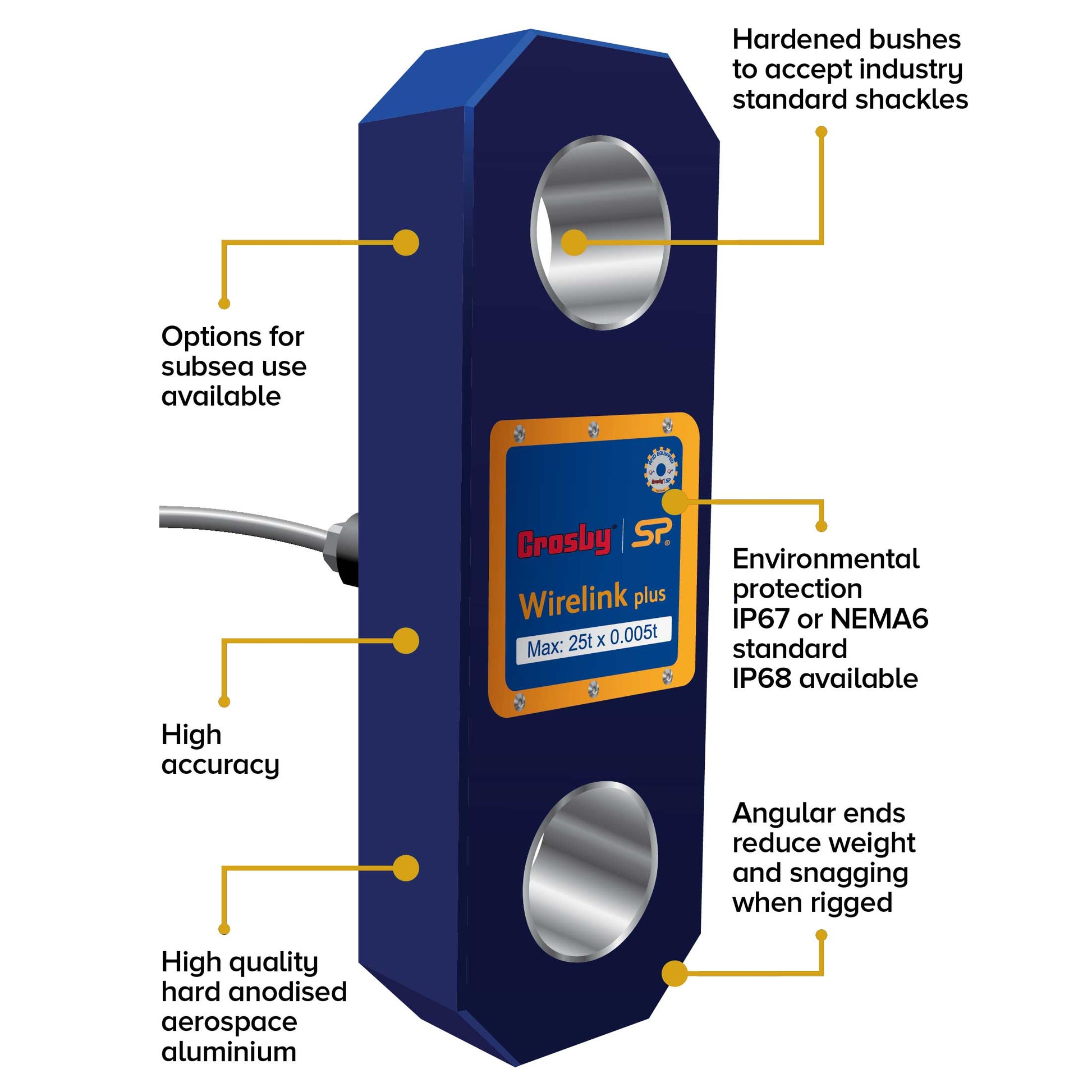

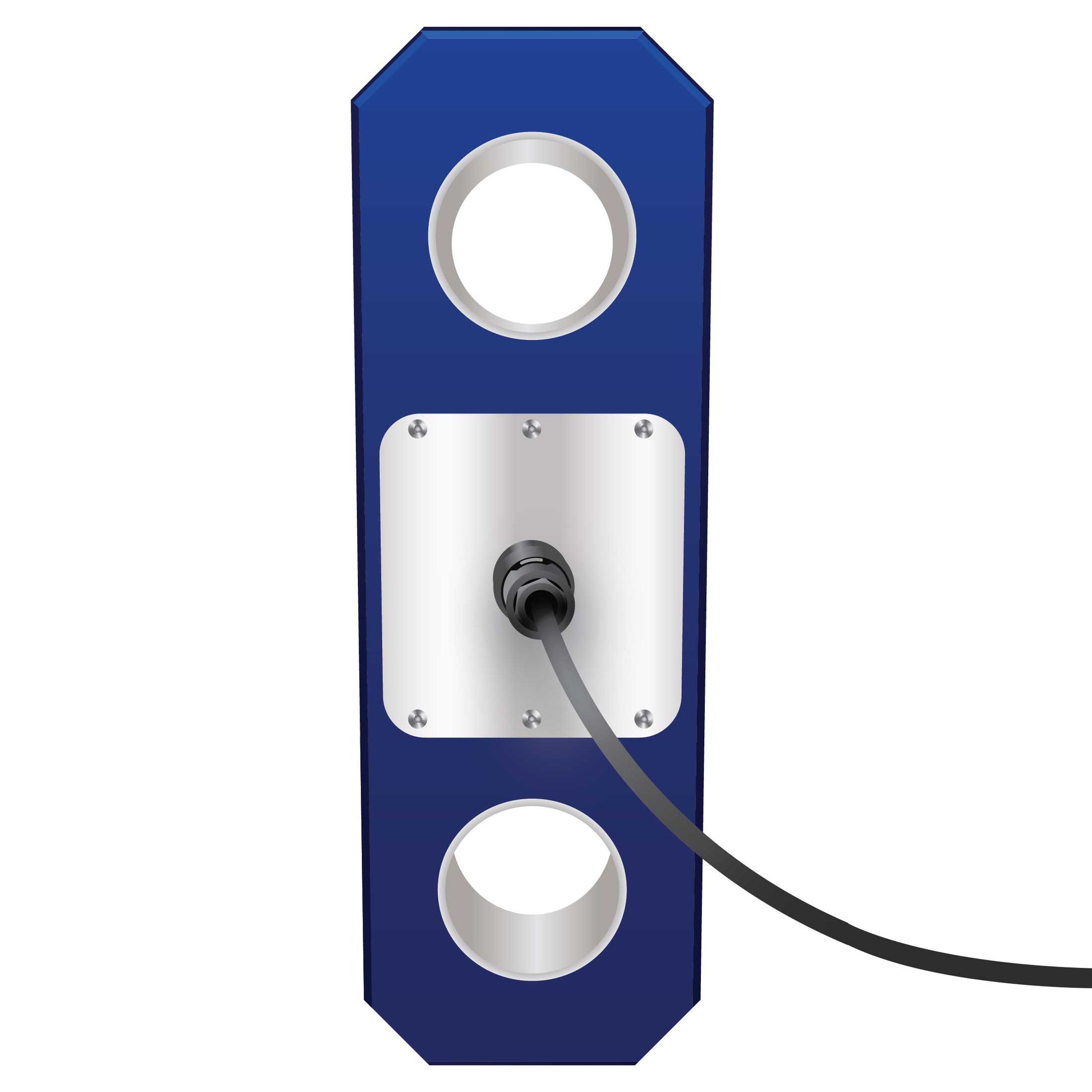

Wirelink Plus from Straightpoint is a powerful cabled load cell that allows you to precisely weigh and dynamically monitor rigging setups to ensure safe and optimal tension levels. This particular model (Straightpoint part #WLP1T and Crosby part #2789154) is a 1-ton rated tension load cell that's constructed from high-quality hard anodized aerospace grade aluminum. Straightpoint Wirelink load cells are designed to be used with Crosby shackles, however they are also compatible with other shackle brands. Unlike the Straightpoint Radiolink Plus, which runs wirelessly using an internal antenna, this Wirelink load cell uses the included 32-foot wired cable in order to transmit data to a digital display output. There are many options for how you digitally display and view the output data including the Straightpoint HHP Handheld Plus, PLCs, Data Acquisition systems (DAQ). Wirelink is also configured with a vast array of output formats including mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS RTU and CAN-BUS protocols. Common applications for this 1-ton Wirelink Plus tension load cell include overhead weighing, testing, bollard pulling, tug testing, cable tensioning, and heavy lift. The Wirelink Plus is suitable for even the harshest of environments and is available with IP68 environmental protection and option for subsea use. This 1-ton Wirelink tension load cell complies with ASME B30.26 and comes with a 2-year warranty, proof test certificate, operator manual, carry case, and is RFID tagged. Don't risk an overloaded lift ever again, get your hands on this game changing tension meter today.
Wirelink Plus from Straightpoint is a powerful cabled load cell that allows you to precisely weigh and dynamically monitor rigging setups to ensure sa...

Read More

Wirelink Plus from Straightpoint is a powerful cabled load cell that allows you to precisely weigh and dynamically monitor rigging setups to ensure safe and optimal tension levels. This particular model (Straightpoint part #WLP1T and Crosby part #2789154) is a 1-ton rated tension load cell that's constructed from high-quality hard anodized aerospace grade aluminum. Straightpoint Wirelink load cells are designed to be used with Crosby shackles, however they are also compatible with other shackle brands. Unlike the Straightpoint Radiolink Plus, which runs wirelessly using an internal antenna, this Wirelink load cell uses the included 32-foot wired cable in order to transmit data to a digital display output. There are many options for how you digitally display and view the output data including the Straightpoint HHP Handheld Plus, PLCs, Data Acquisition systems (DAQ). Wirelink is also configured with a vast array of output formats including mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS RTU and CAN-BUS protocols. Common applications for this 1-ton Wirelink Plus tension load cell include overhead weighing, testing, bollard pulling, tug testing, cable tensioning, and heavy lift. The Wirelink Plus is suitable for even the harshest of environments and is available with IP68 environmental protection and option for subsea use. This 1-ton Wirelink tension load cell complies with ASME B30.26 and comes with a 2-year warranty, proof test certificate, operator manual, carry case, and is RFID tagged. Don't risk an overloaded lift ever again, get your hands on this game changing tension meter today.

Show Less

Product Weight (lbs.):
3.3

Load Capacity:
2,200 lbs.

Safety Factor:
12:1

Pin Size:
3/4"

Resolution:
1 lbs.

Protection:
IP67

Operating Temperature:
-10° to +50°C | 14° to 122° F

Accuracy:
+/- 0.1% of Full Scale

Product Guide:

Read More

Show Less
