Single Stud Fitting w/ Round Ring - Black

SKU: 1519-SSRBL

$4.99

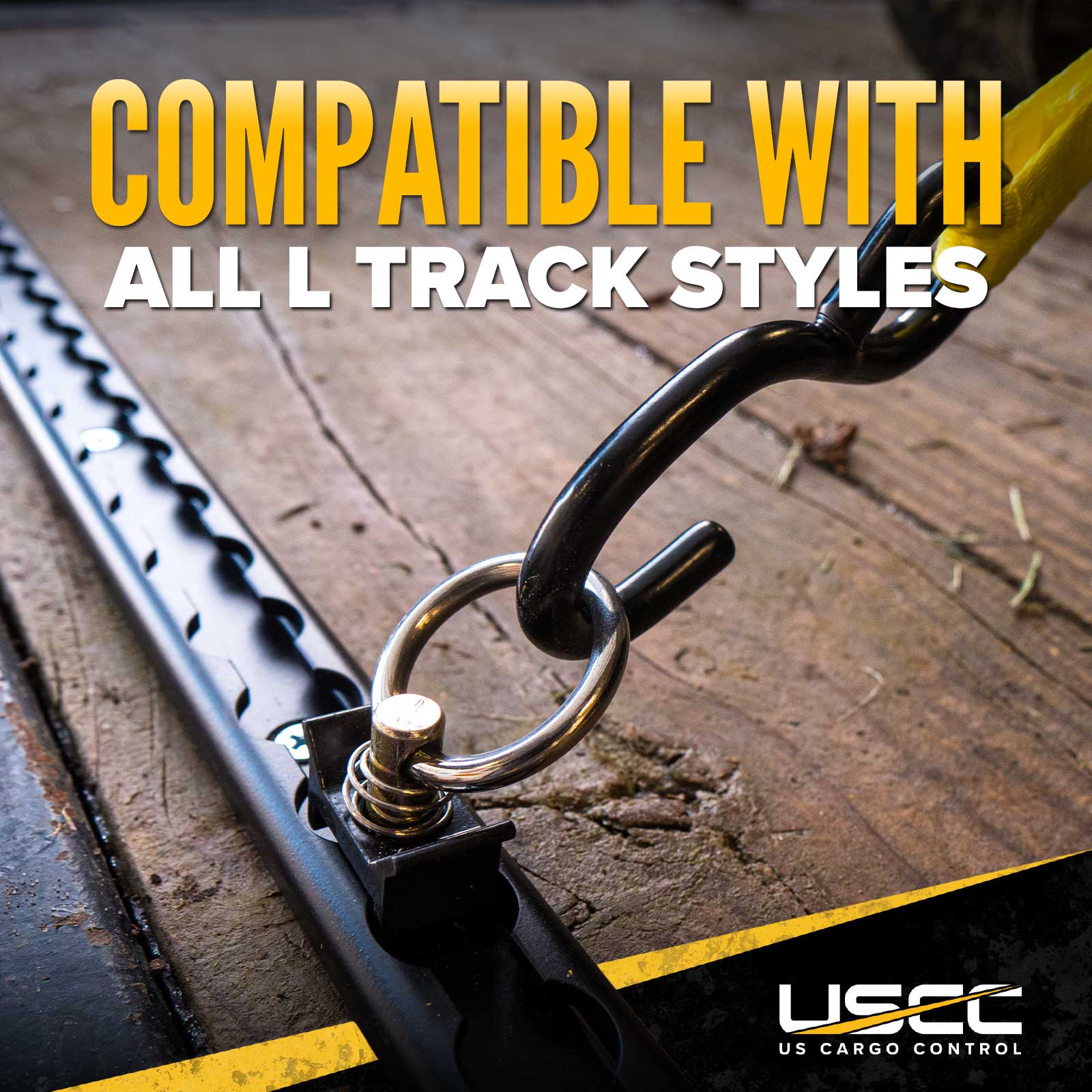

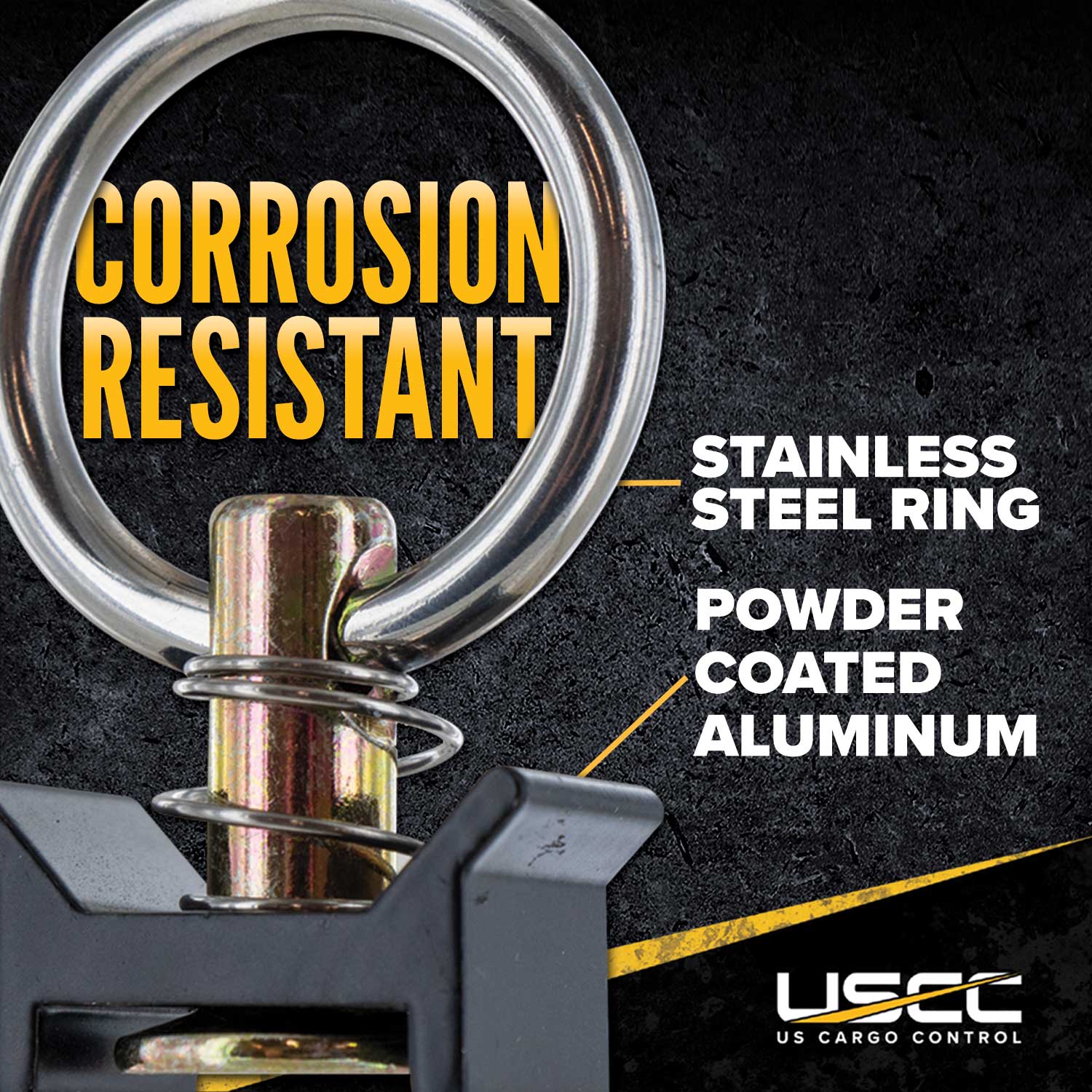

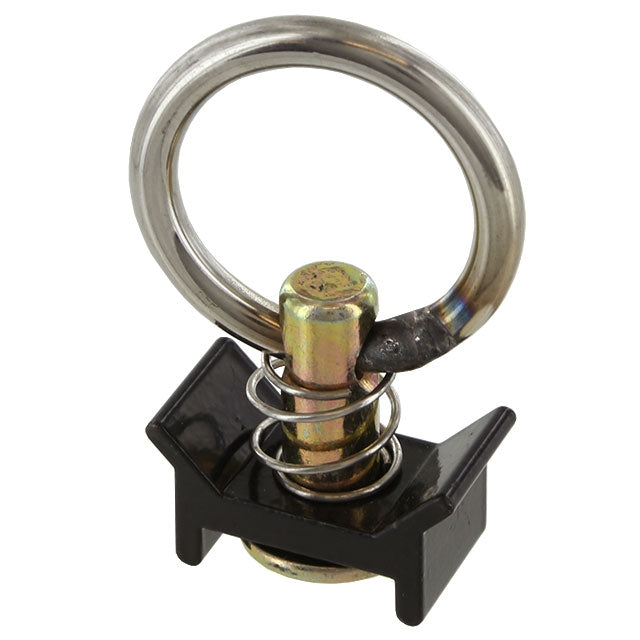

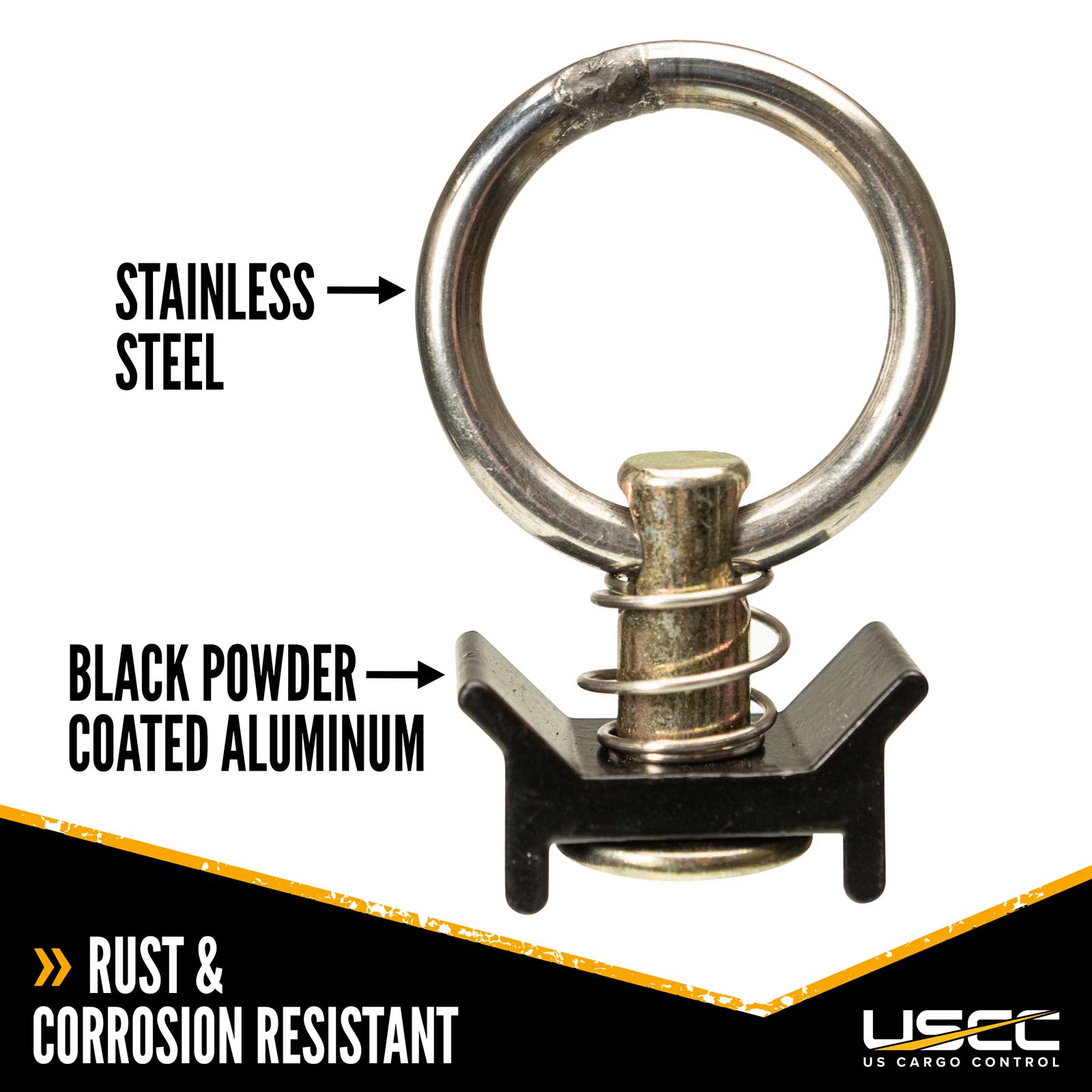

L-Track Single Stud Fittings are designed to create secure tie-down points on L-Track rails, also known as logistic track or airline track. This L-Track fitting features a large O-Ring which accepts a wide variety of hooks, snaps, and straps. Once installed, it can handle 4,000 lbs. of pressure, so you can tie-down with confidence knowing your cargo is safe and secure. It's manufactured with a stainless steel ring and black powder coat finish to resist rust and corrosion. For additional black L-Track components, see our Black Painted L Track page.

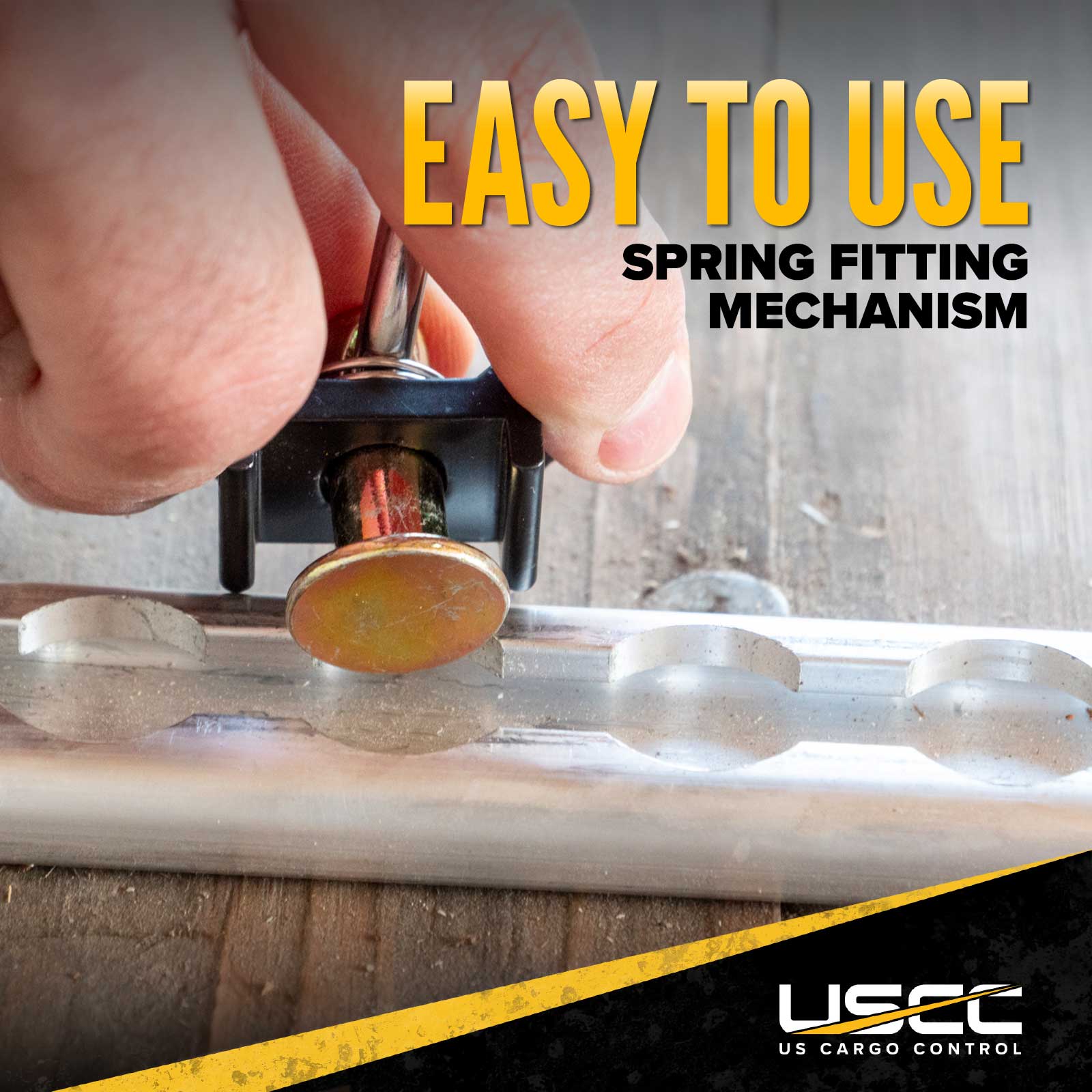

The spring-loaded plunger-style mechanism is easy to use: place thumb inside the ring and push down on the stud while lifting the clip with your index and middle fingers. Insert the bottom disc into the desired round opening on the track. Slide the fitting in either direction so it's halfway between two of the tracks openings and let the clip fall on both sides of the fitting in the round slots on either side of the stud. To remove, simply lift the clip, slide to an opening and remove from the track.


For even more strength, consider our Double Stud Fitting with O-Ring. Other versatile options include our Double Stud Fitting with Delta Link and Double Stud Fittings with Pear Link.


Looking for more L-Track Accessories? We carry a wide selection of L-Track fittings as well as L-Track straps so you can create a custom L-Track System to meet your cargo tie-down needs.





California Residents: WARNING

L-Track Single Stud Fittings are designed to create secure tie-down points on L-Track rails, also known as logistic track or airline track. This L-...

Read More

L-Track Single Stud Fittings are designed to create secure tie-down points on L-Track rails, also known as logistic track or airline track. This L-Track fitting features a large O-Ring which accepts a wide variety of hooks, snaps, and straps. Once installed, it can handle 4,000 lbs. of pressure, so you can tie-down with confidence knowing your cargo is safe and secure. It's manufactured with a stainless steel ring and black powder coat finish to resist rust and corrosion. For additional black L-Track components, see our Black Painted L Track page.


The spring-loaded plunger-style mechanism is easy to use: place thumb inside the ring and push down on the stud while lifting the clip with your index and middle fingers. Insert the bottom disc into the desired round opening on the track. Slide the fitting in either direction so it's halfway between two of the tracks openings and let the clip fall on both sides of the fitting in the round slots on either side of the stud. To remove, simply lift the clip, slide to an opening and remove from the track.


For even more strength, consider our Double Stud Fitting with O-Ring. Other versatile options include our Double Stud Fitting with Delta Link and Double Stud Fittings with Pear Link.


Looking for more L-Track Accessories? We carry a wide selection of L-Track fittings as well as L-Track straps so you can create a custom L-Track System to meet your cargo tie-down needs.





California Residents: WARNING

Show Less

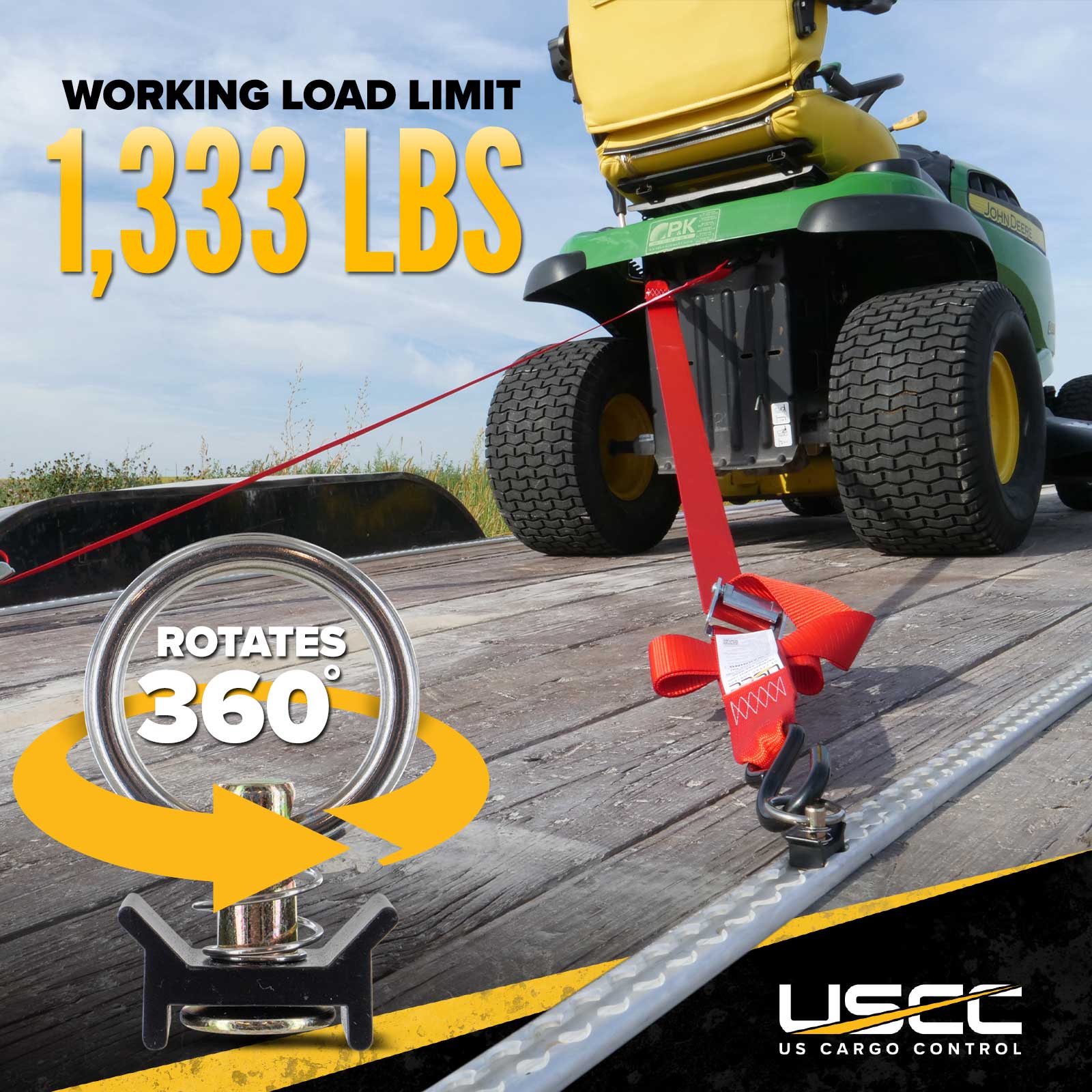

Working Load Limit:
1,333 lbs.

Assembly Break Strength:
4,000 lbs.

Product Weight:
0.1

Brand:
US Cargo Control

Pull Angle Break Strengths:
Straight Pull:
4,000 lbs.
45 Degree Pull:
3,000 lbs.
90 Degree Pull:
2,000 lbs.

Read More

Show Less

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Andres
Excelent customer service!

Use them in our Cessnas, they work perfect.
Great customer service, Brad was very helpful.

B
Brad Jannenga
Excellent Product

Fit the helicopter mounts perfectly. They are a very quality product.

E
Edward Smith
This fitting has

This fitting has worked very well for me. I just ordered ten more.
