SKU: SSREB516X4-78

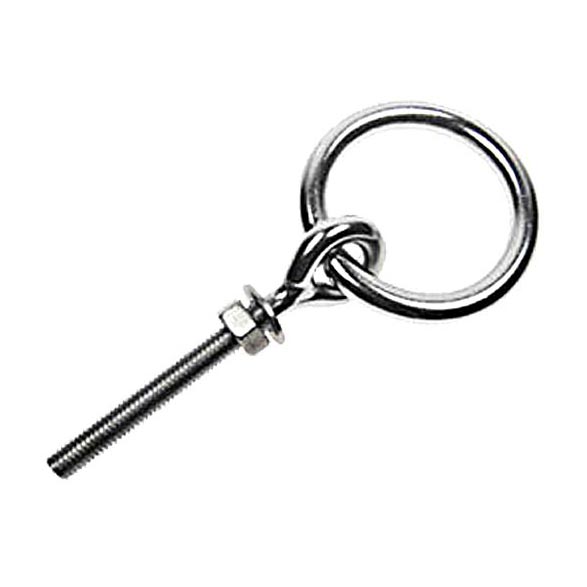

Ring Eye Bolt - Stainless Steel Type 304 - 5/16" x 4-7/8"
Ring Eye Bolt - Stainless Steel Type 304 - 5/16" x 4-7/8"!
Shop more Stainless Steel w/ Ring
SKU: SSREB516X4-78
Ring Eye Bolt - Stainless Steel Type 304 - 5/16" x 4-7/8"
Ring Eye Bolt - Stainless Steel Type 304 - 5/16" x 4-7/8"!
Specifications
Specifications
- Shank length: 4-7/8"
- Working load limit: 400 lbs.
- Assembly break strength: 1,600 lbs.
- Brand part number: 319S-8120
- Diameter: 5/16"
- Product weight: .31 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
Description
Description
A ring eye bolt has a ring designed to receive a shackle, wire rope or other rigging products. Stainless steel type 304 is the material of choice for exterior or marine applications since stainless steel forms a passive layer of rust on the surface that does not accelerate to the core. The chromium element in stainless steel also allows the eye bolt to "repair itself" if the surface is scratched forming another passive layer to protect the core.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
