SKU: JETBGV1X18
1" x 18" Jaw & Eye Galvanized Turnbuckle
1" x 18" Jaw & Eye Galvanized Turnbuckle!
SKU: JETBGV1X18
$65.99
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 10,000 lbs.
Body length: 18"
Finish: Galvanized
Jaw opening: 1.25
Length closed: 32.89"
Length open: 54"
Pin size: 0.88
Product weight: 12.9 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM F-1145.
Turnbuckle size: 1"
Additional Info: Jaw end fitted with nut, bolt, and cotter
Description
Jaw and Eye Turnbuckle | 1" x 18"
Turnbuckles are a popular tool in the rigging industry - from tower and suspension jobs to oil rigging and mining, they offer essential tensioning capabilities. Our hot-dip galvanized steel turnbuckles are corrosion- and weather-resistant, and they meet / exceed all of the ASTM F-1145 requirements (formerly Federal Specification FF-T-791).
Galvanized Turnbuckle End Fittings

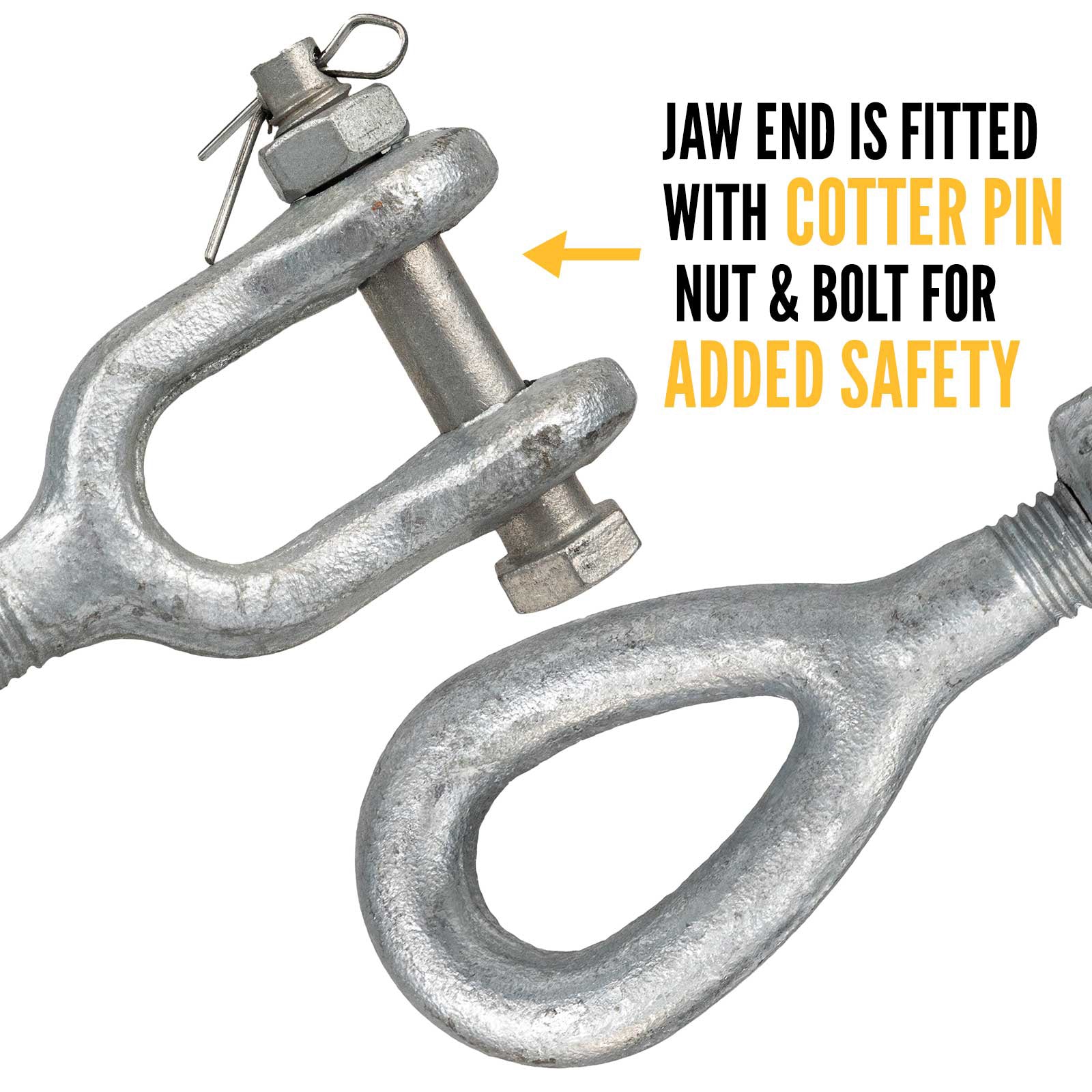

The eye end fitting is the most secure option available - the circular design has no vulnerable points, meaning your wire rope or cable won't slip through. The eye is elongated as well, minimizing component stress. The jaw end is securely fitted with a nut, bolt, and cotter pin assembly.
The turnbuckle body has marking to indicate the thread direction for each side. Which end fitting is right threaded and which is left threaded may vary - if you need a specific configuration, please contact us.
Note: Turnbuckles are only recommended for straight or in-line pulls.
Looking for additional rigging supplies? Our selection includes wire rope, rigging hooks, and more!
Source: Import
