SKU: JJTBGV2X24-VB

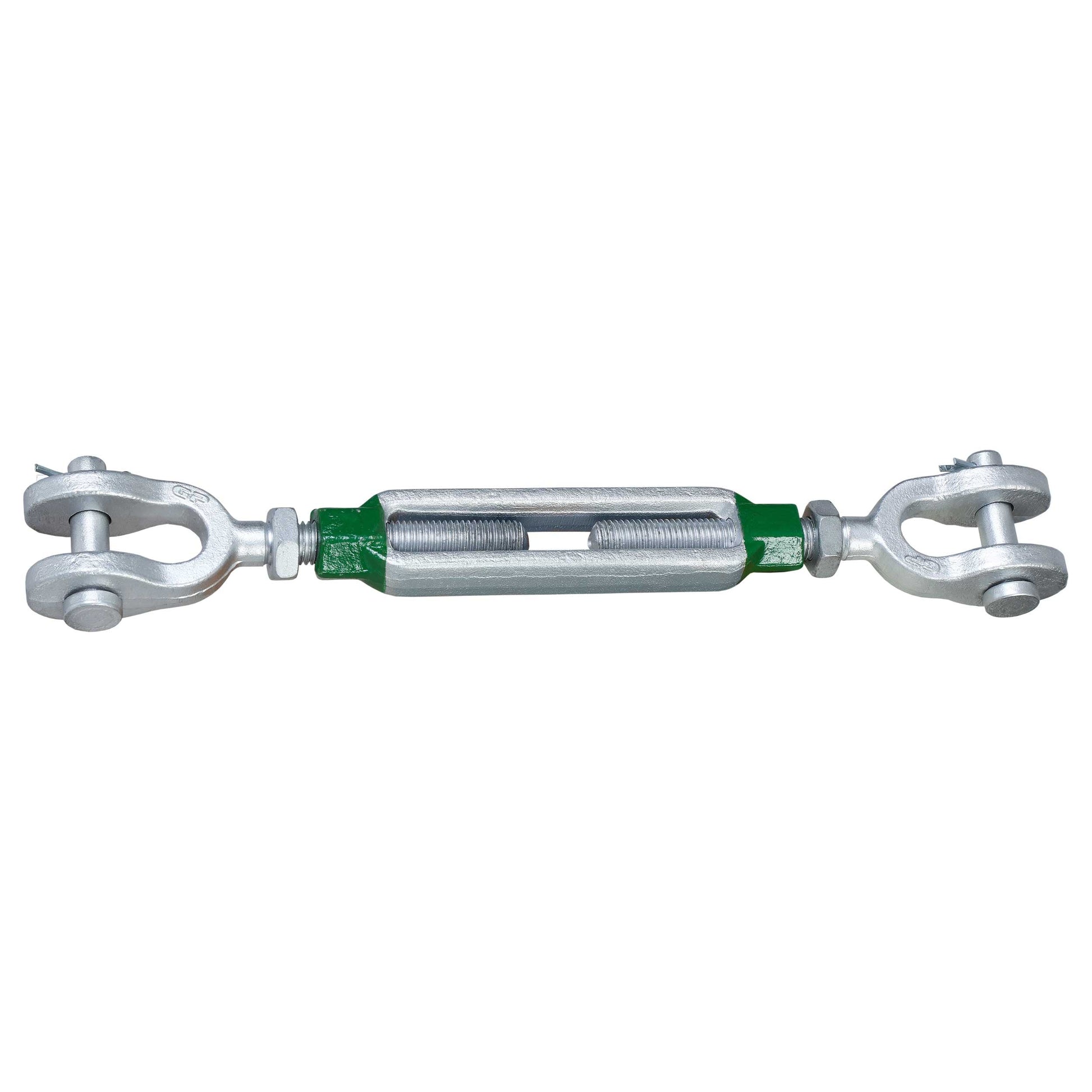

2" x 24" Van Beest® Jaw & Jaw Galvanized Turnbuckle - G-6313
2" x 24" Van Beest® Jaw & Jaw Galvanized Turnbuckle - G-6313!
$2,275.00
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 37,000 lbs.
Body length: 24"
Brand part number: SSGPGG5024
Finish: Galvanized
Jaw opening: 2-1/2"

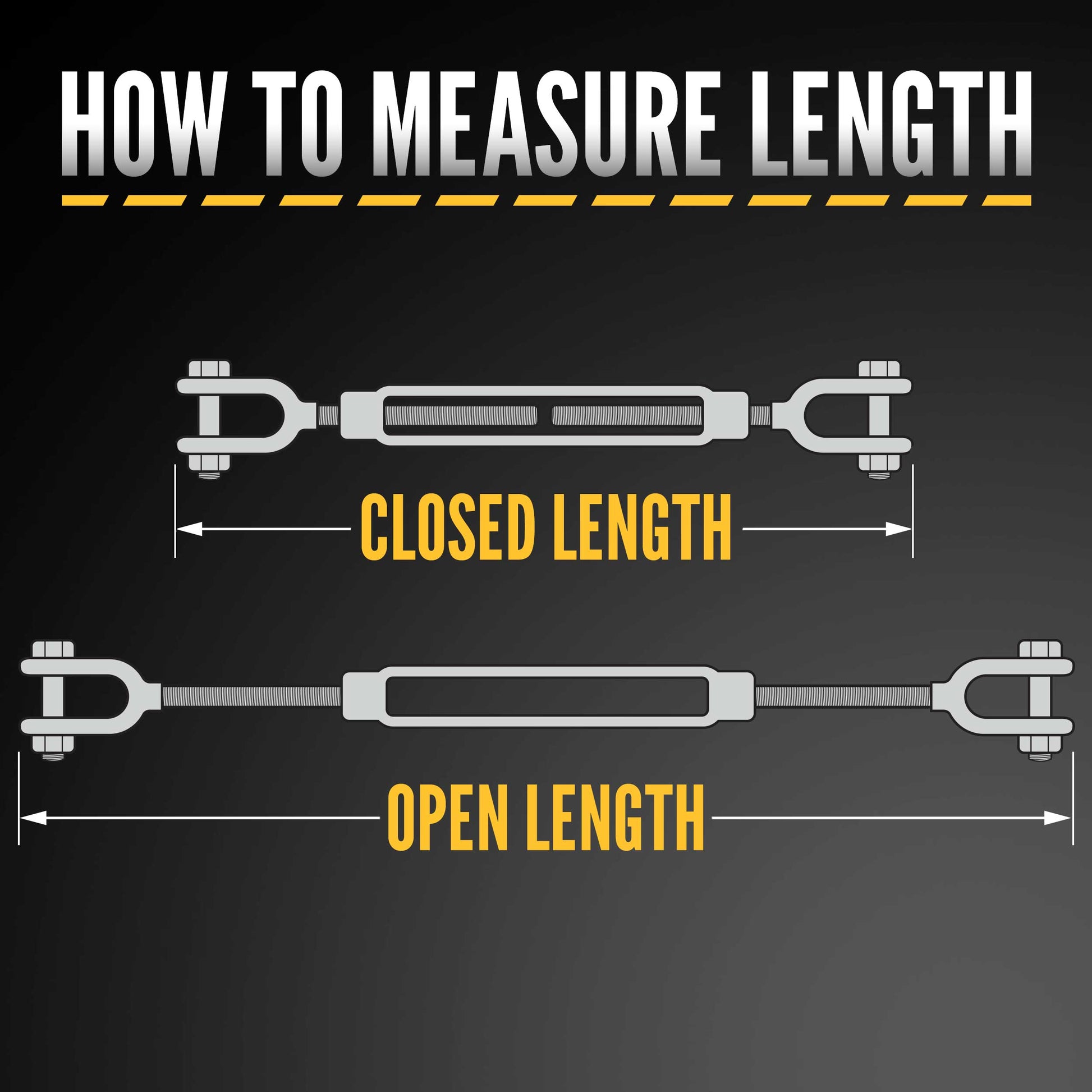

Length closed: 52-11/16"
Length open: 65-25/32"
Manufacturer name: Van Beest
Material: Drop-forged high tensile steel
Pin size: 2"
Product weight: 100.1 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM F-1145.
Turnbuckle size: 2"

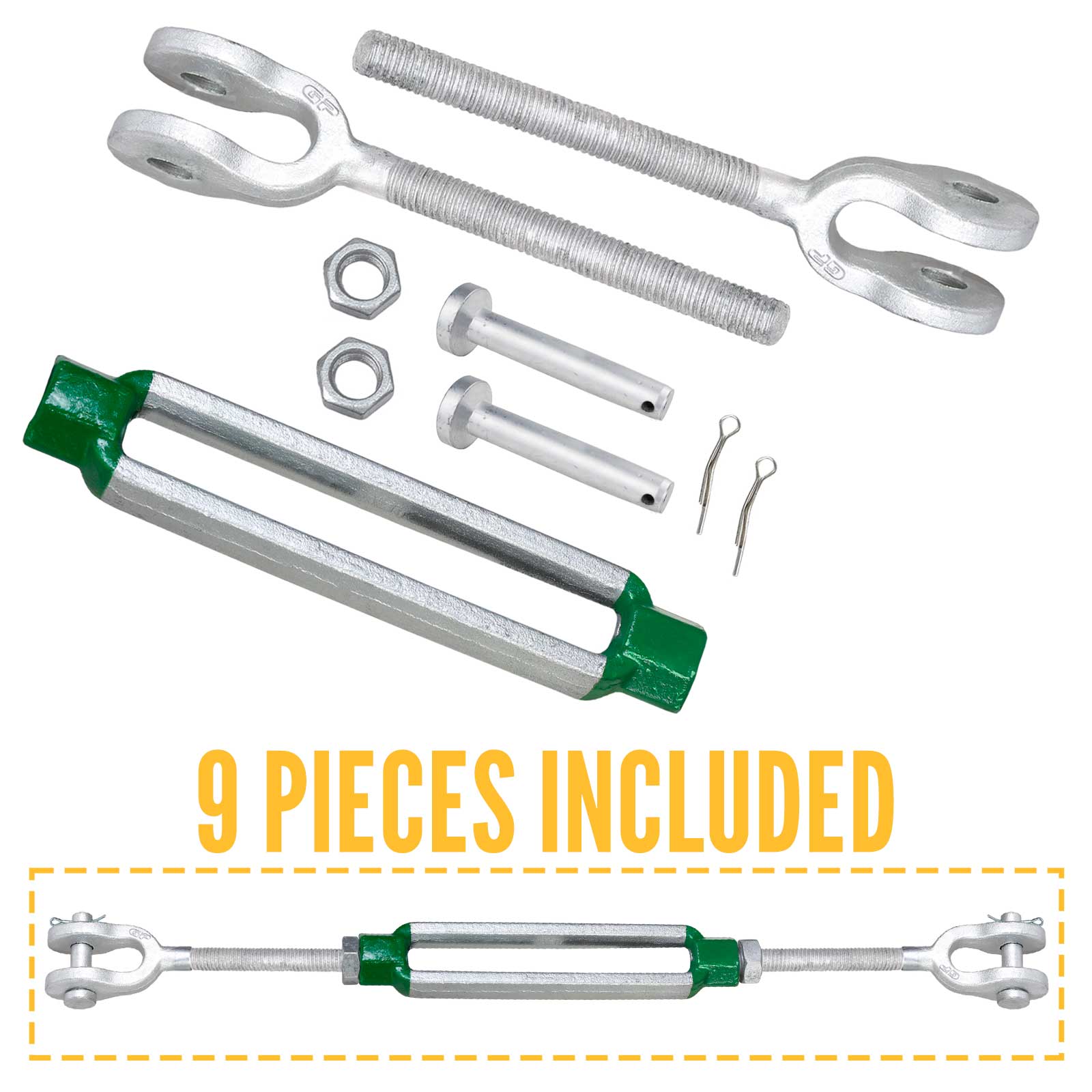

Additional Info: Jaw end fitted with cotter pin
Description
Van Beest Jaw and Jaw Turnbuckle | 2" x 24"

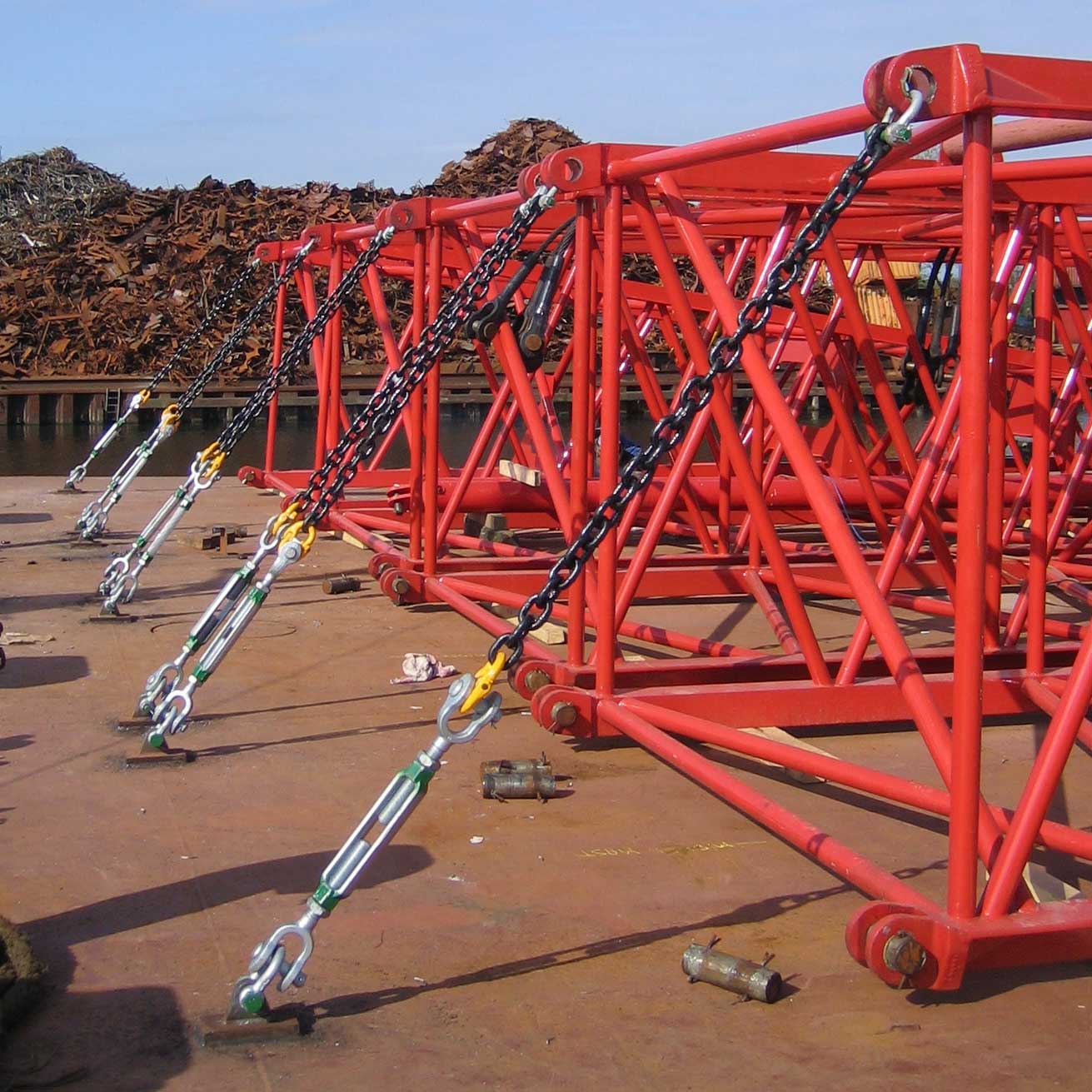

Used to adjust line tension in a variety of rigging and lifting applications, turnbuckles are an essential rigging component. They are commonly used in mining, construction, and suspension jobs where equipment failure could lead to a catastrophe. Make sure your turnbuckles are up to the task by choosing Van Beest. They've been a reliable manufacturer of turnbuckles for many years, prioritizing long-term durability and performance.

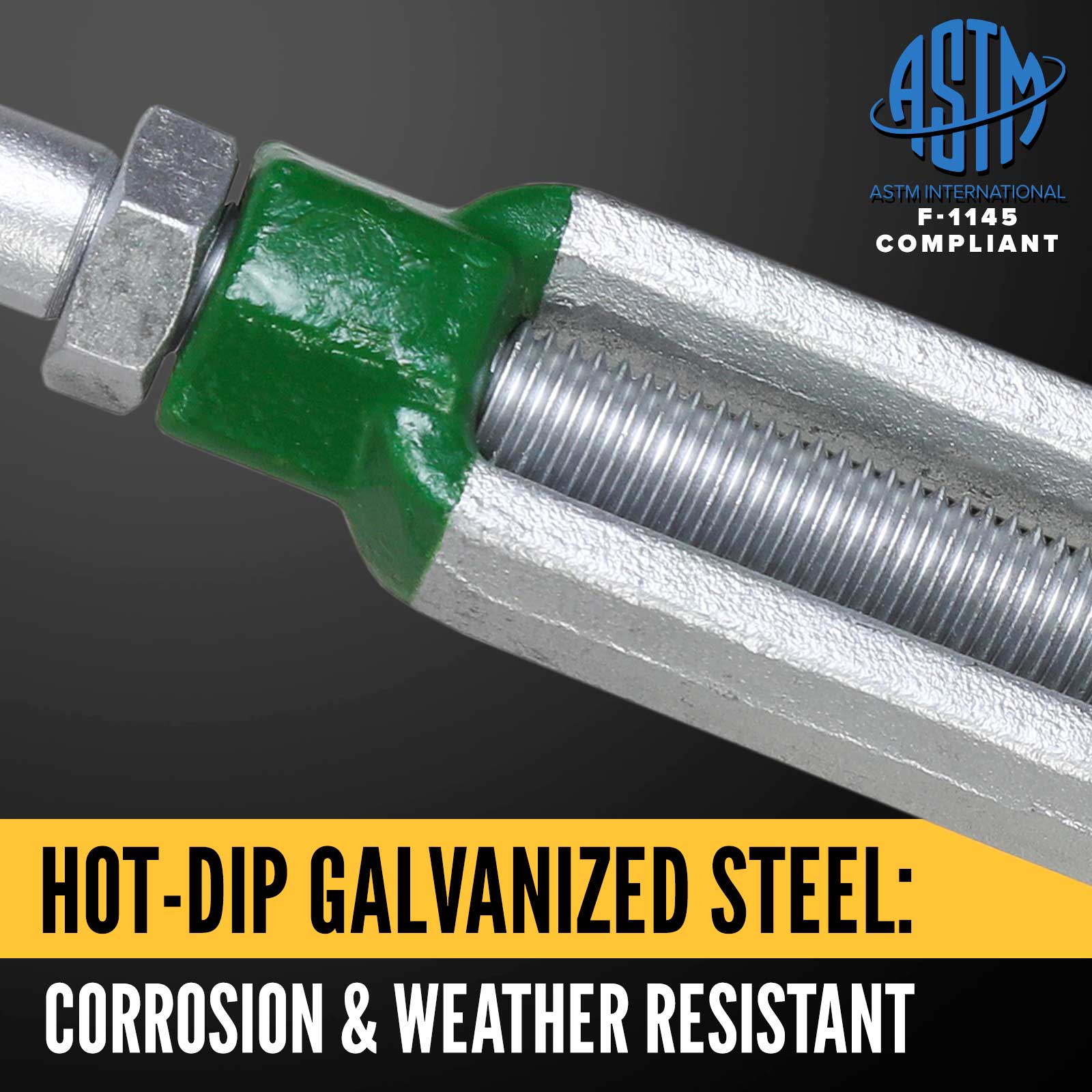

Constructed from drop-forged high tensile steel, they are hot-dipped galvanized for corrosion-resistance and can be used for lashing and lifting if used in accordance with Van Beest's official use instructions. The jaw end fitting is secured with a cotter pin.
Green Pin Turnbuckle Features:
- Compliant with ASTM F1145-92 (formerly US Federal Specification FF-T-791b).
- Works certificate and proof load certificate available upon request.
- Approved for use in temperatures from -4°F (-20°C) to 492°F (200°C).

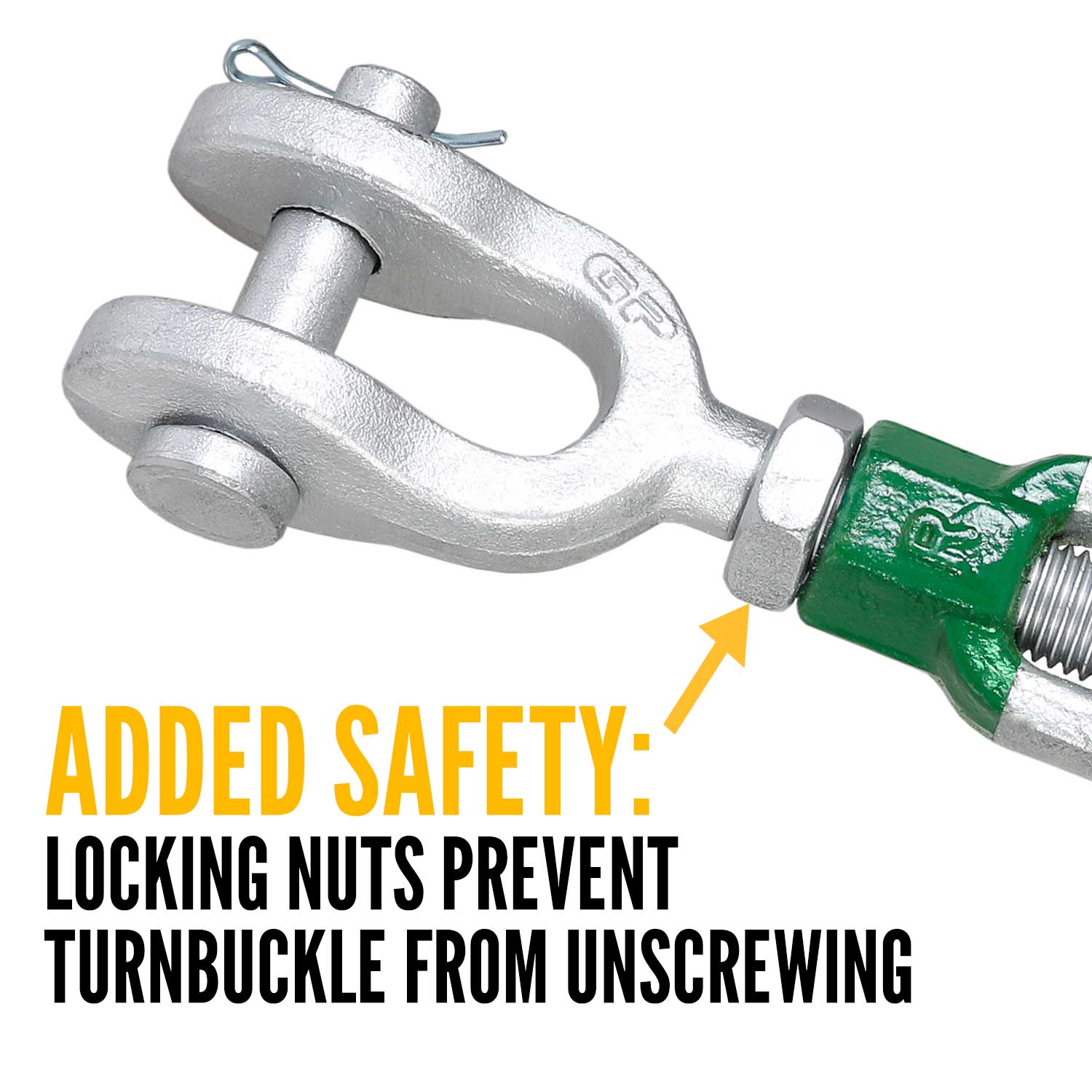

- Lock nuts included.
- Note: Turnbuckles are only recommended for straight or in-line pulls.
Looking for additional rigging supplies? Check out our full selection of Van Beest rigging products, as well as our wire rope and rigging hooks!
Source: Import
