description
Features:
California Residents: WARNING

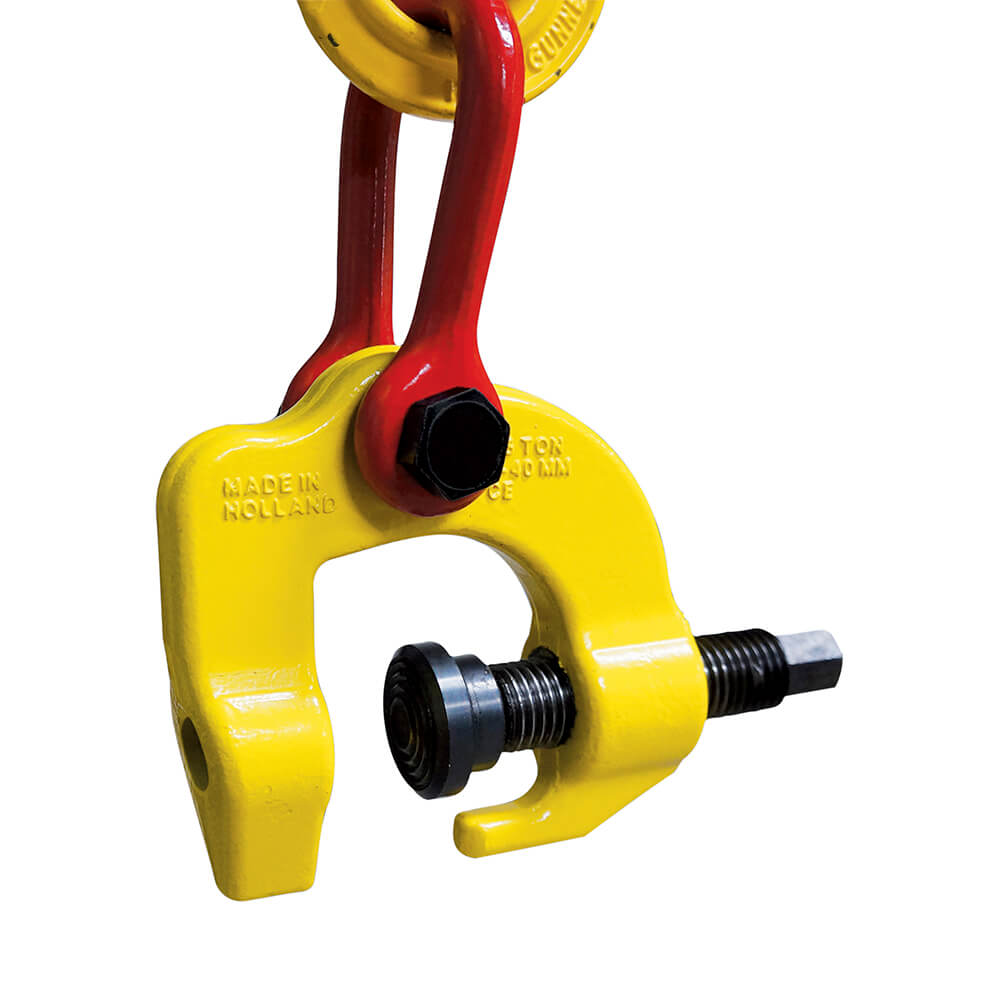

- Universal lifting screw clamp designed for lifting a wide variety of steel structures.
- Can be used for both horizontal and vertical lifting of steel structures.
- Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
- Articulated lifting eye ensures an effective clamping force in every position.
- The hardness of the cam and pivot is suitable for lifting materials with a max hardness of 37 HRC/420 Brinell.
- No minimum working load limit
- Tightening Forces (Depending on material, could vary):
- TSCC 1/2 ton - at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
- TSCC 1 - 6 ton - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)
California Residents: WARNING
Features:
- Universal lifting screw clamp designed for lifting a wide variety of steel structures.
- Can be used for both...
Features:
California Residents: WARNING
- Universal lifting screw clamp designed for lifting a wide variety of steel structures.
- Can be used for both horizontal and vertical lifting of steel structures.
- Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
- Articulated lifting eye ensures an effective clamping force in every position.
- The hardness of the cam and pivot is suitable for lifting materials with a max hardness of 37 HRC/420 Brinell.
- No minimum working load limit
- Tightening Forces (Depending on material, could vary):
- TSCC 1/2 ton - at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
- TSCC 1 - 6 ton - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)
California Residents: WARNING
specifications
Working Load Limit:
1 ton
Product Weight:
7
Manufacturer Name:
Terrier
Brand Part Number:
862711
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Eye Diameter:
1.77"
Jaw Opening:
1.97"-3.94"

TSCC Lifting Clamp Dimensions (in.):
Jaw Opening:
1.97"-3.94"
A:
10.16"
B:
10.75"
C:
1.65"
D:
6.10"
E:
7.48"
F:
1.81"
G:
1.77"
H:
3.46"
