SKU: TSCCW-3T

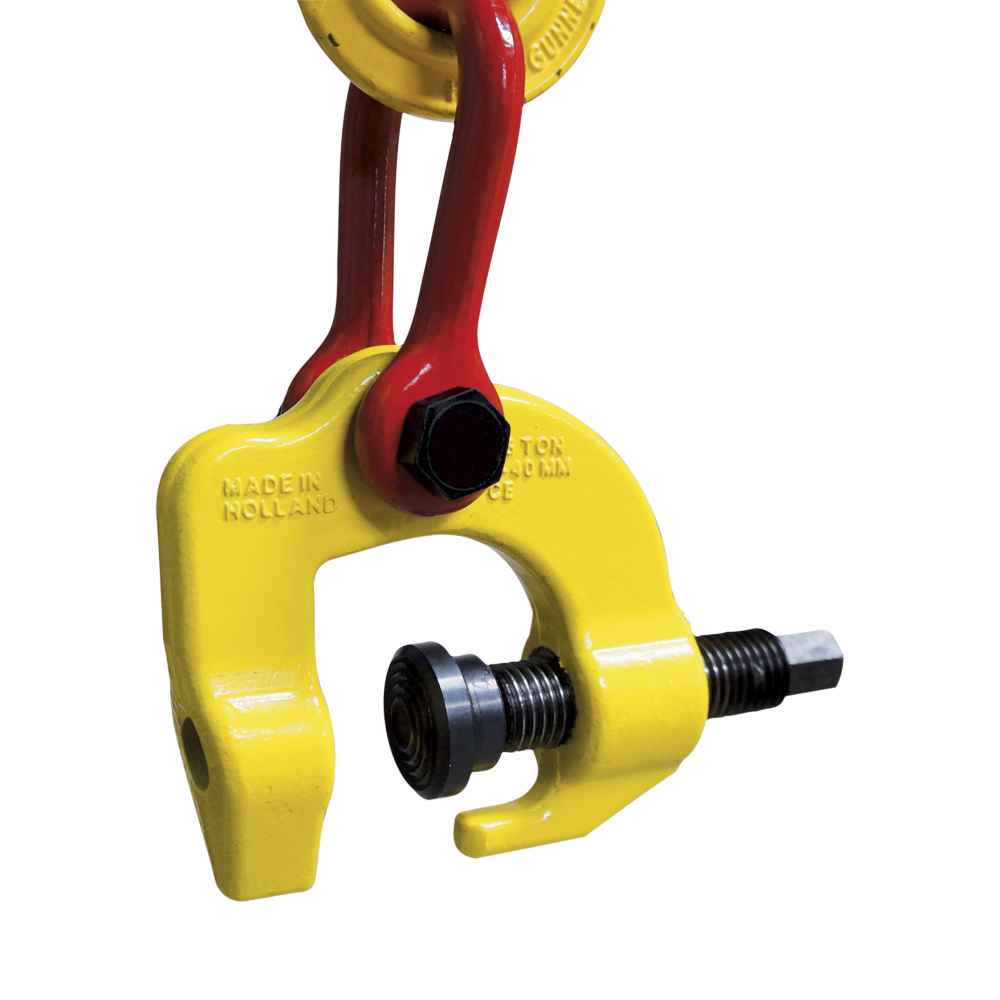

Terrier TSCC-W 3 Ton Universal Lifting Screw Clamp - 862731

Terrier TSCC-W 3 Ton Universal Lifting Screw Clamp - 862731!

Skip to product information
1 of 5

SKU: TSCCW-3T

Terrier TSCC-W 3 Ton Universal Lifting Screw Clamp - 862731

Terrier TSCC-W 3 Ton Universal Lifting Screw Clamp - 862731!

Regular price $1,505.54
Sale price $1,505.54 Regular price
0% off
Ships FREE in 7-10 business days.
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 3 ton
  • Manufacturer name: Terrier
  • Brand part number: 862731
  • Eye diameter: 1.97"
  • Jaw opening: 0.98"-2.95"
  • Product weight: 18 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
  • Additional info: All Terrier lifting clamps are tested up to 2x the WLL and are designed with a break factors of 5x the WLL.

Description

Features:

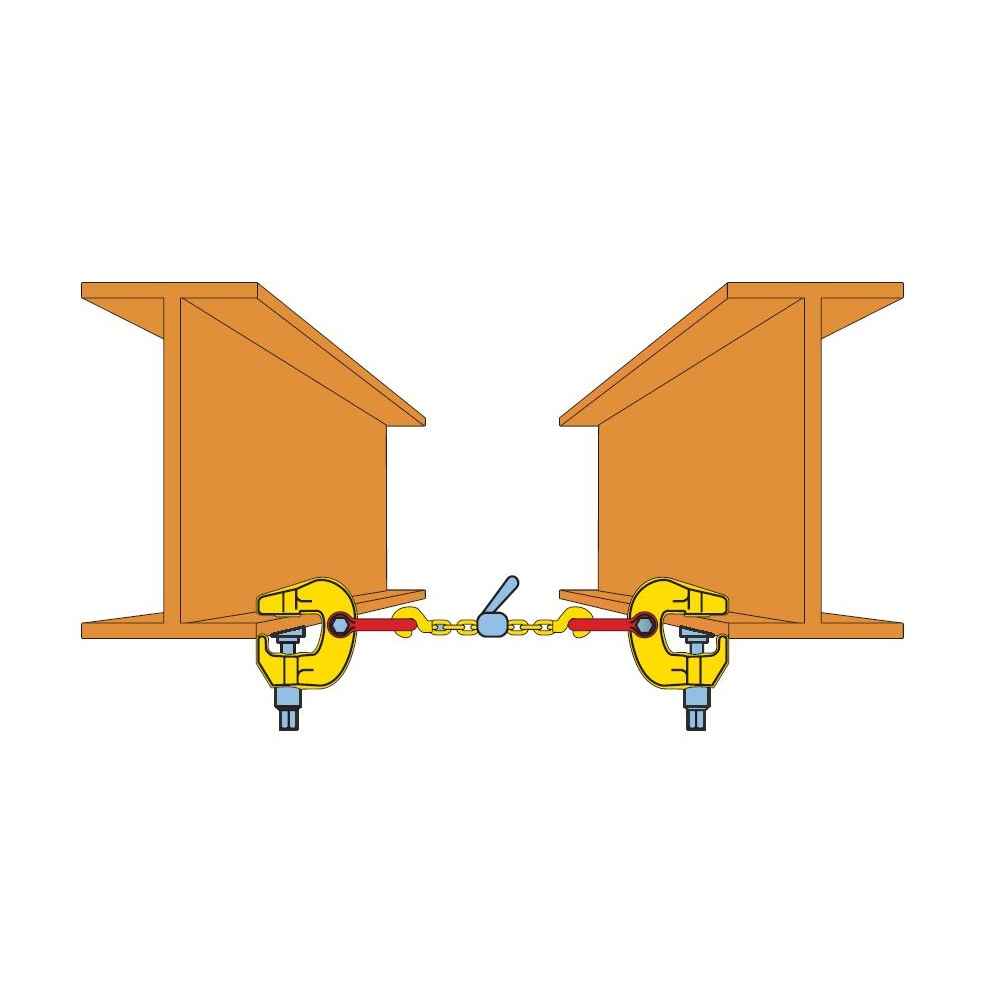

  • Universal lifting screw clamp designed for lifting a wide variety of steel structures.

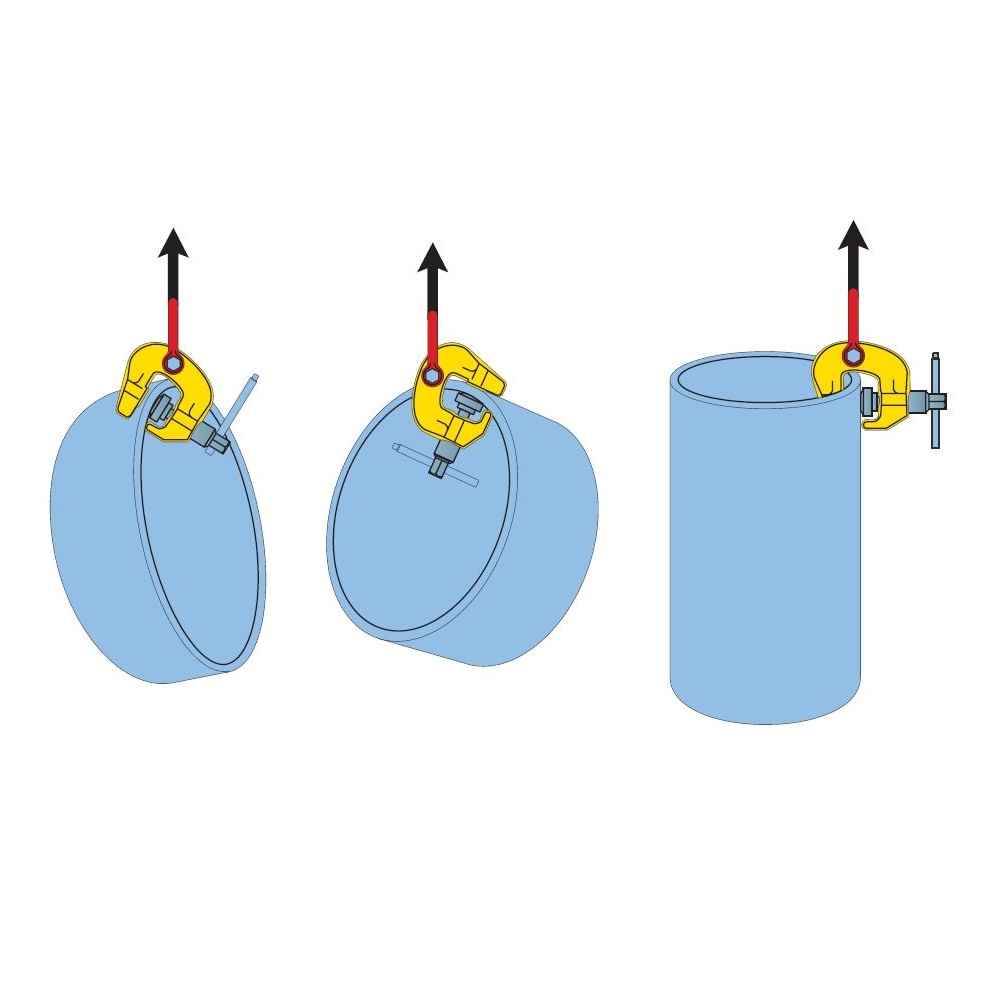

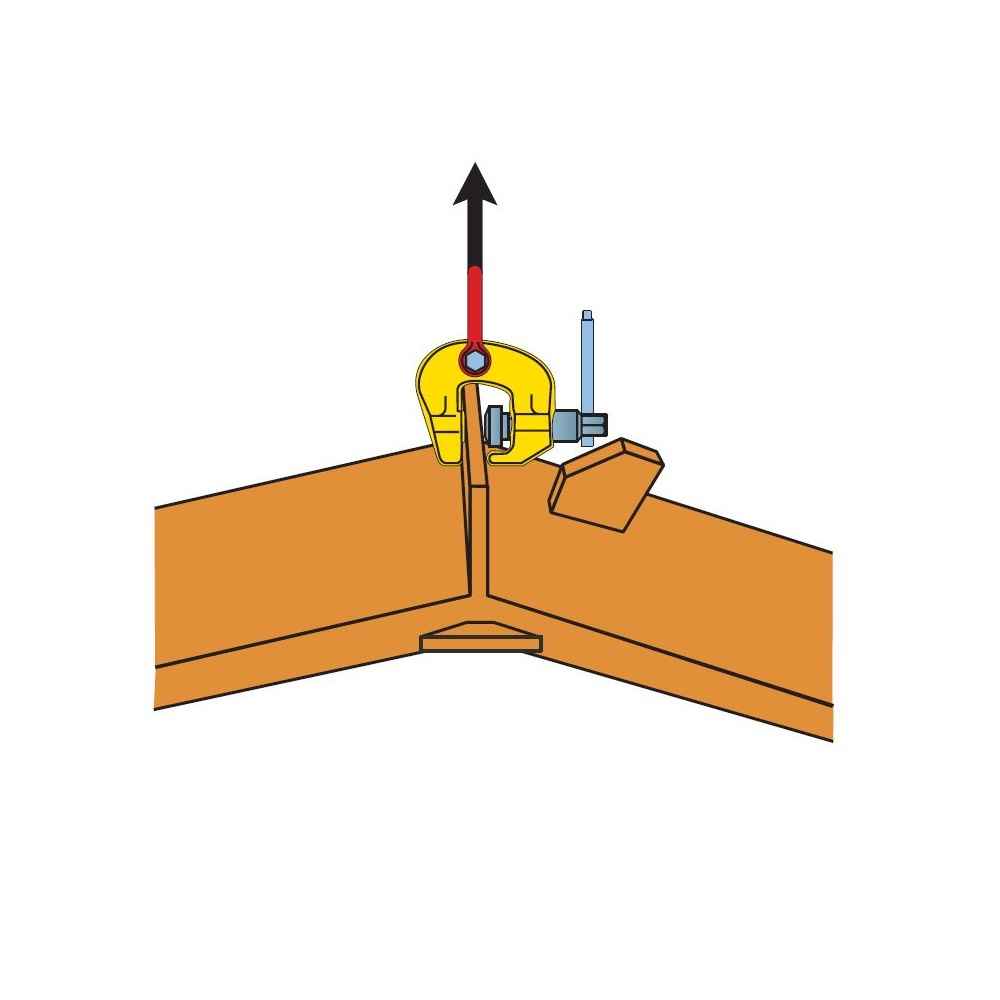

  • Can be used for both horizontal and vertical lifting of steel structures.
  • Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
  • Articulated lifting eye ensures an effective clamping force in every position.
  • The hardness of the cam and pivot is suitable for lifting materials with a max hardness of 37 HRC/420 Brinell.
  • No minimum working load limit
  • Tightening Forces (Depending on material, could vary):
  • TSCC 1/2 ton - at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
  • TSCC 1 - 6 ton - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)
