SKU: GVSEB58X6-CR
Crosby® 5/8" x 6" Galvanized Shoulder Eye Bolt - G-277
Crosby® 5/8" x 6" Galvanized Shoulder Eye Bolt - G-277!
Authorized Distributor
SKU: GVSEB58X6-CR
Crosby® 5/8" x 6" Galvanized Shoulder Eye Bolt - G-277
Authorized Distributor
$43.00
Diameters:
Shank Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working Load Limit: 5,200 lbs.
Safety Factor: 5:1
Diameter: 5/8"
Shank Length: 6"
Material: Steel
Finish: Galvanized
Product Weight: 1.02 lbs.
Standards: Meets or exceeds ASTM F541 & ASME B30.26 requirements.
Manufacturer Name: Crosby®
Brand Part Number: 1045194
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Description

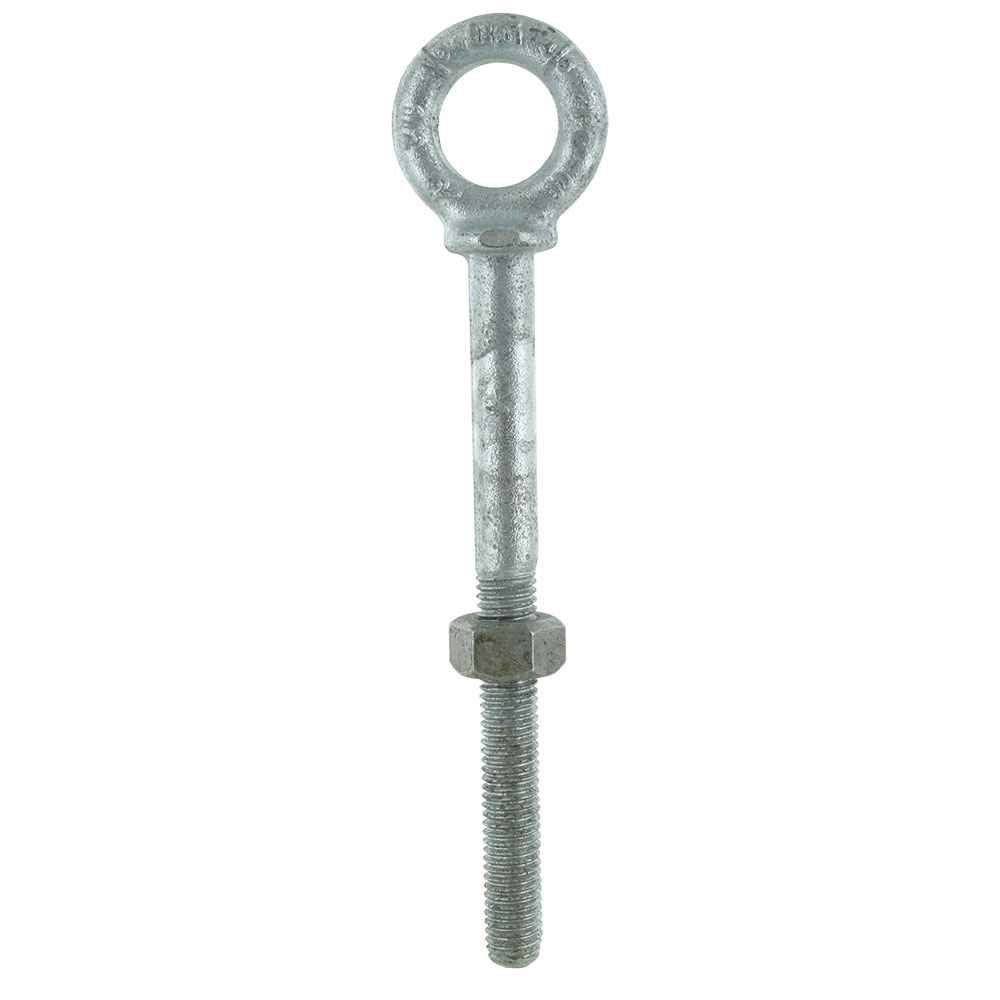

These Crosby shoulder nut eye bolts are designed for durability. Made from forged steel, they are quenched and tempered for extra strength and are fatigued-rated at 1-1/2 times the WLL at 20,000 cycles. The design factor is 5:1.
Both the heavy hex nuts and the bolts are hot-dipped galvanized, and this product meets or exceeds all requirements of ASME B30.26.
Note: The WLLs are for in-line pull only.
