SKU: SCWCC-115-EG
Made in USA

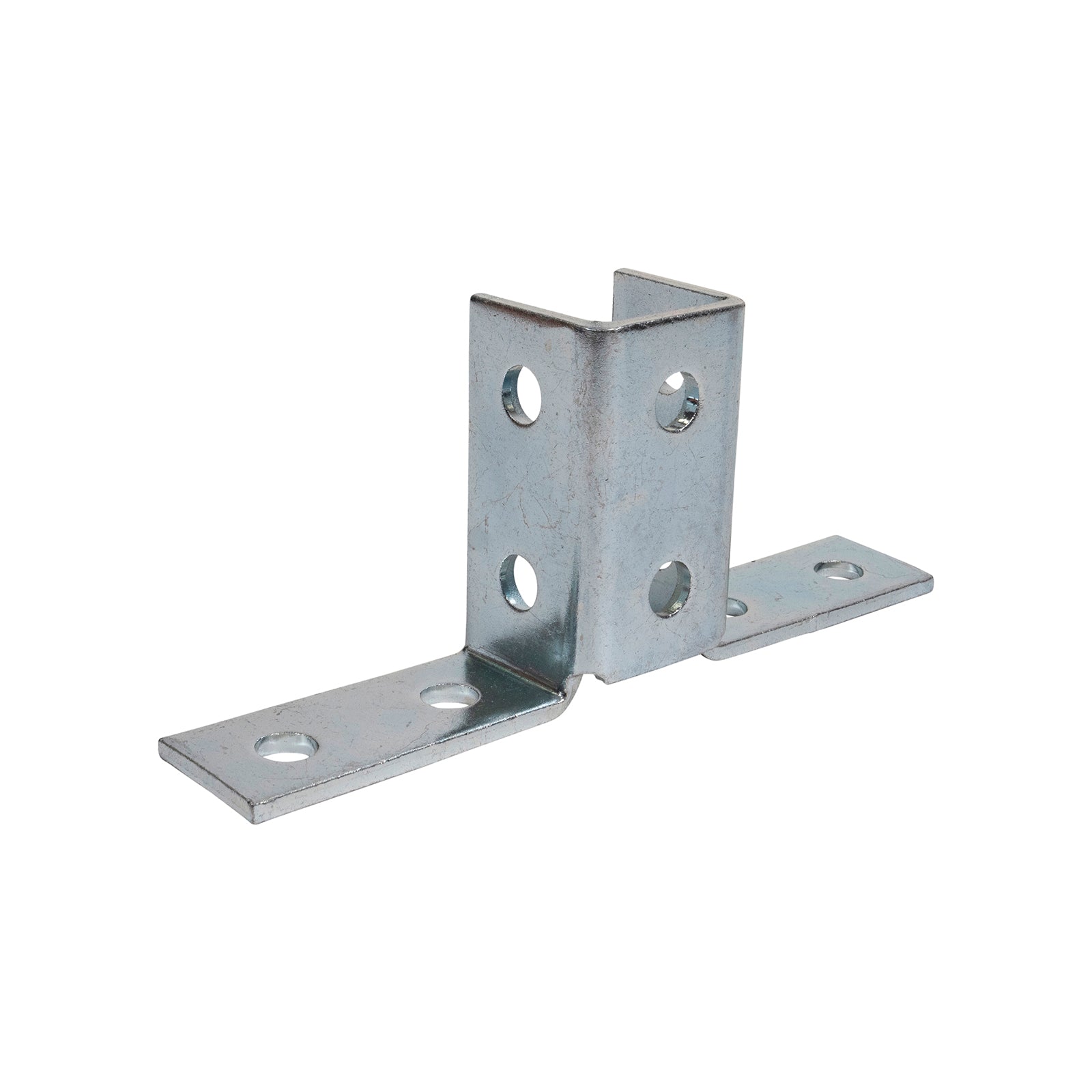

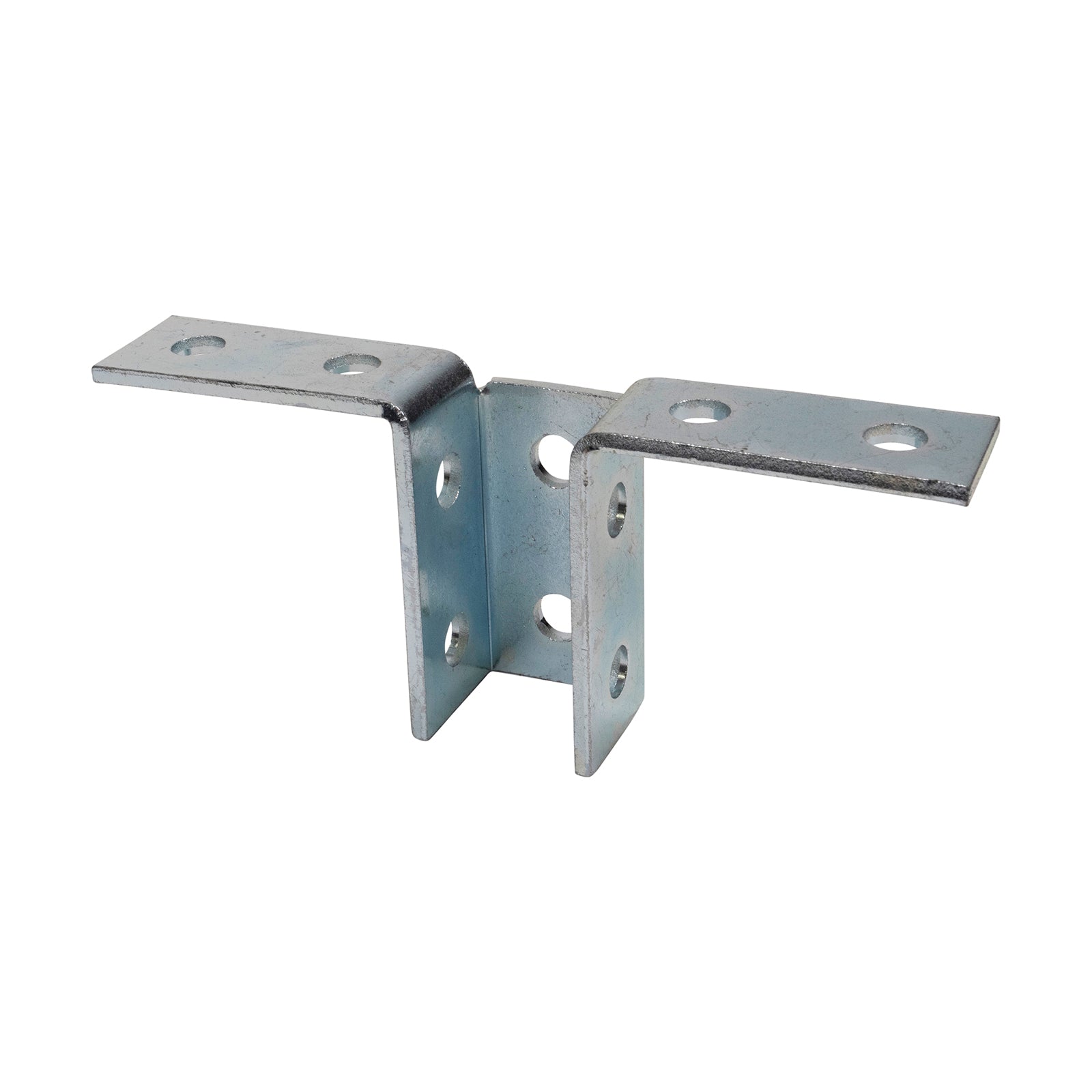

10-Hole 2-Way Channel Wing Connector - Electro-Galvanized

Regular price $2499
Ships Nov 17 when you order now

Description

10-Hole 2-Way Channel Wing Connector - Electro-Galvanized

The 10-Hole 2-Way Channel Wing Connector - Electro-Galvanized is designed to create strong, perpendicular strut channel connections with added fastening capacity. Its extended hole pattern allows for two channel arms to branch from a single joint, providing increased stability in framed systems. A dependable fitting for interior builds that require reinforced, multi-directional support.

Electro-Galvanized 10-Hole 2-Way Wing Connector for Strut Channel

This T-shaped wing fitting connects strut channel sections at right angles and can be installed along a vertical channel to form two extending arms. With 9/16" punched holes, it installs easily using standard channel hardware in dry, low-humidity indoor environments.

Key Features

  • Two-Way Channel Connection: Allows two strut channel runs to extend from a single junction.
  • Extended Hole Pattern: Ten 9/16" punched holes provide added fastening options.
  • Perpendicular Framing Design: Supports 90-degree channel intersections.
  • Electro-Galvanized Steel: Intended for interior applications with minimal moisture exposure.

Common Applications

  • Vertical strut channel frameworks
  • Two-directional framing systems
  • Electrical and conduit support assemblies
  • HVAC and mechanical installations
  • Commercial interior construction

Installation Tips

  • Use like-metal channel nuts, bolts, and washers for best results.
  • Align both channel arms before fully tightening hardware.
  • Confirm all fasteners are evenly seated to maintain joint stability.

Related Items:

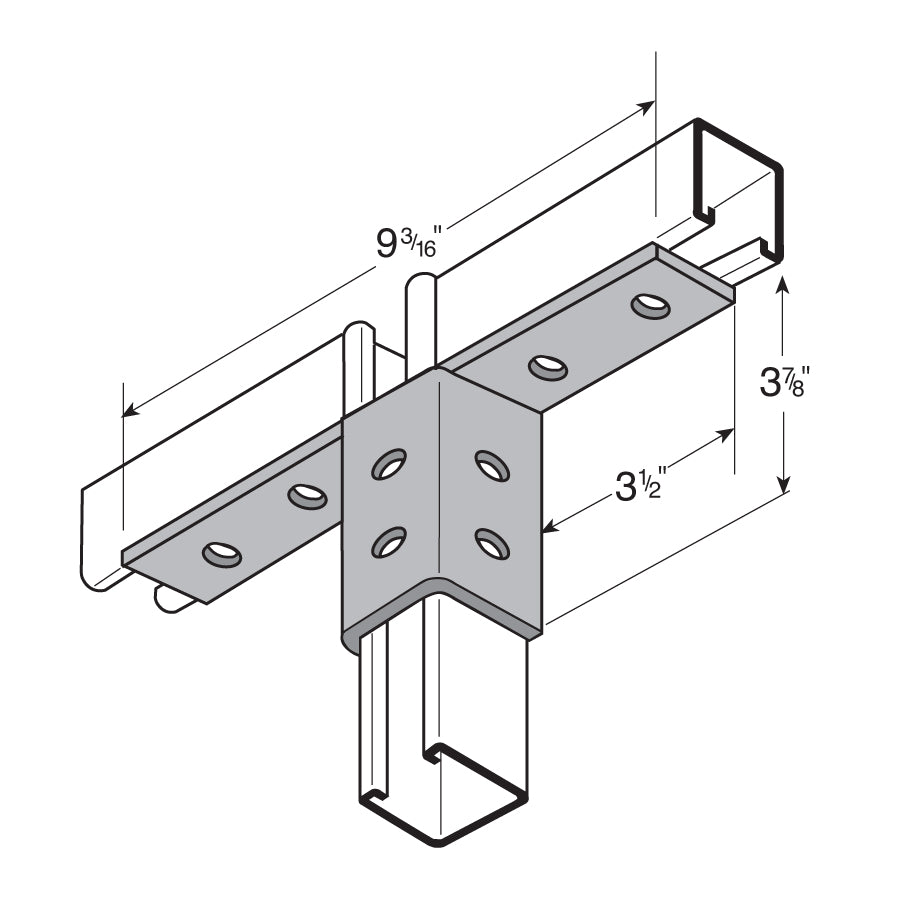

Specifications

Width: 1-5/8"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: Carbon Steel
Finish: Electro-Galvanized
Standards: Finish = ASTM B633 (Type III SC1 (0.2 mil thickness)) & Material = ASTM A575 or ASTM A1011 GR33
Manufacturer Name: Flex-Strut
