SKU: FS-5519-E/G

8-Hole 2-Way Channel Wing Connector - Electro-Galvanized

8-Hole 2-Way Channel Wing Connector - Electro-Galvanized!

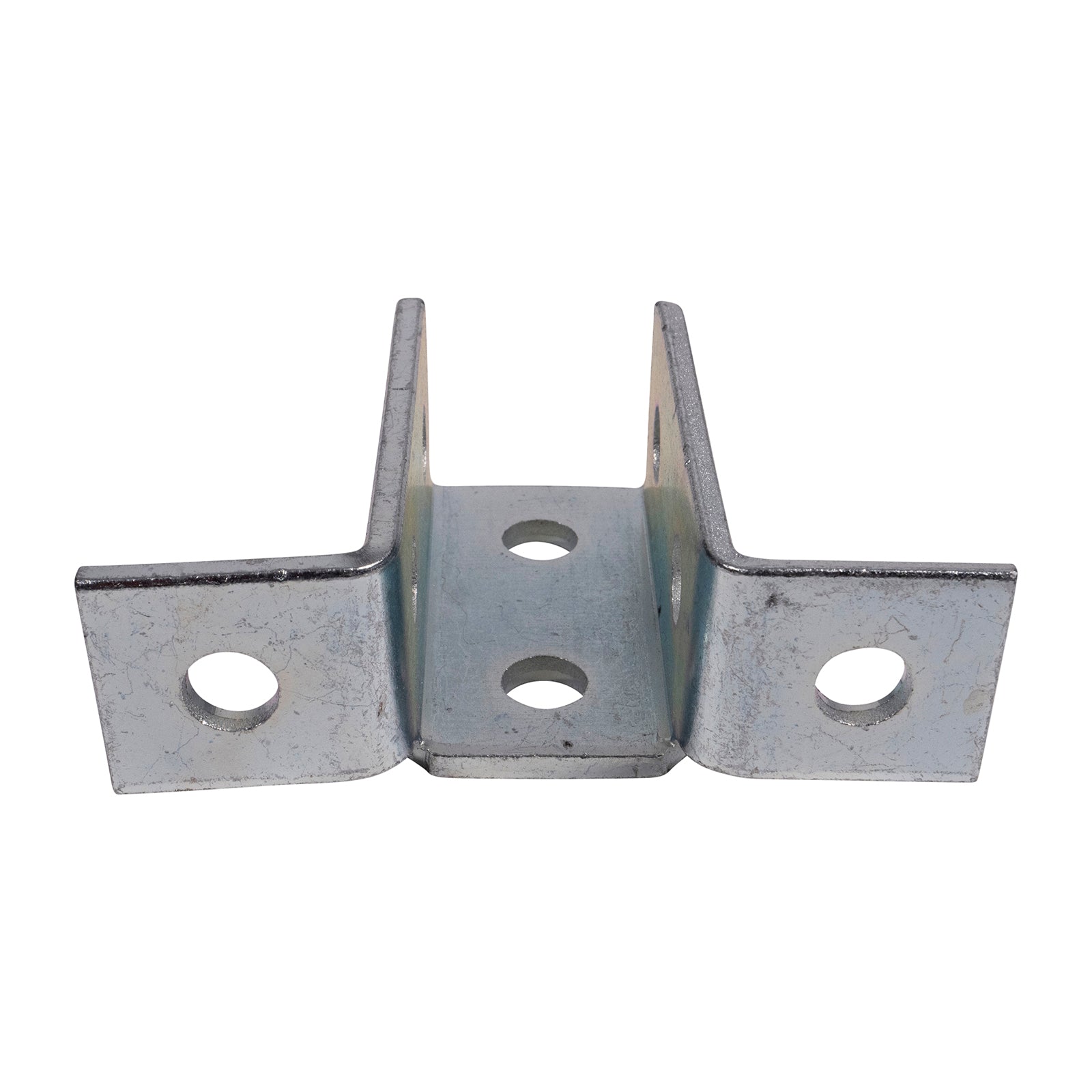

  • 8-Hole 2-Way Channel Wing Connector

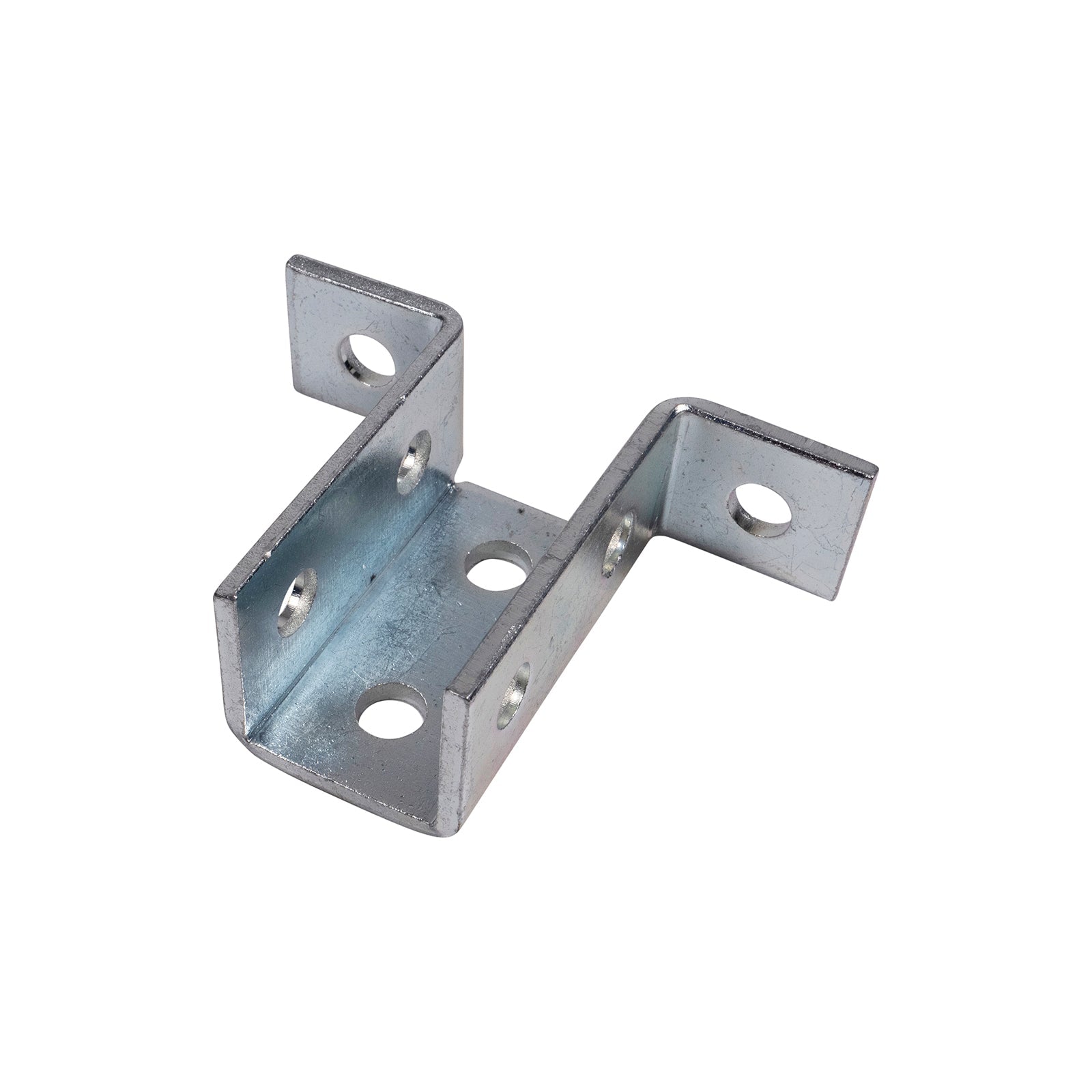

  • 8-Hole 2-Way Channel Wing Connector

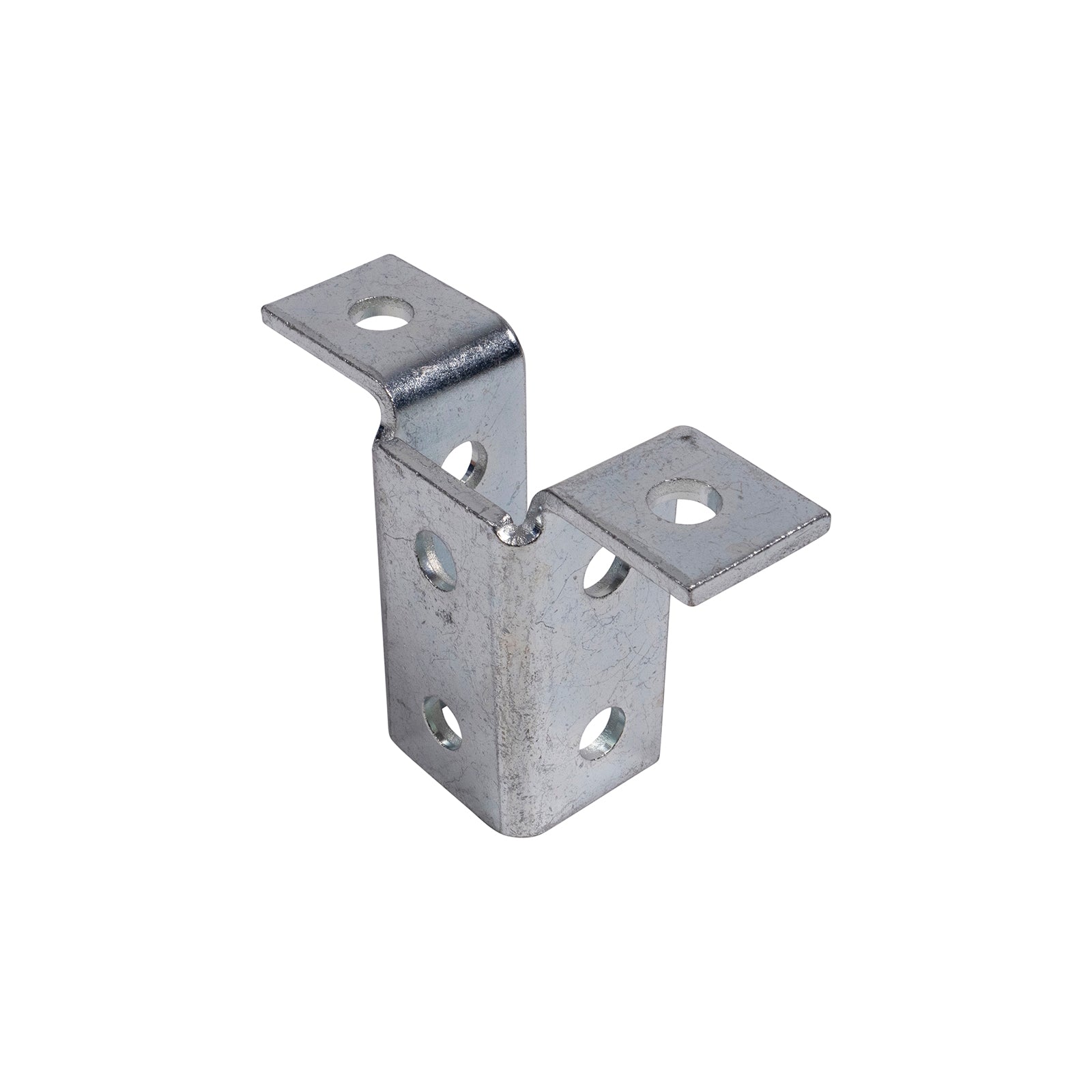

  • 8-Hole 2-Way Channel Wing Connector

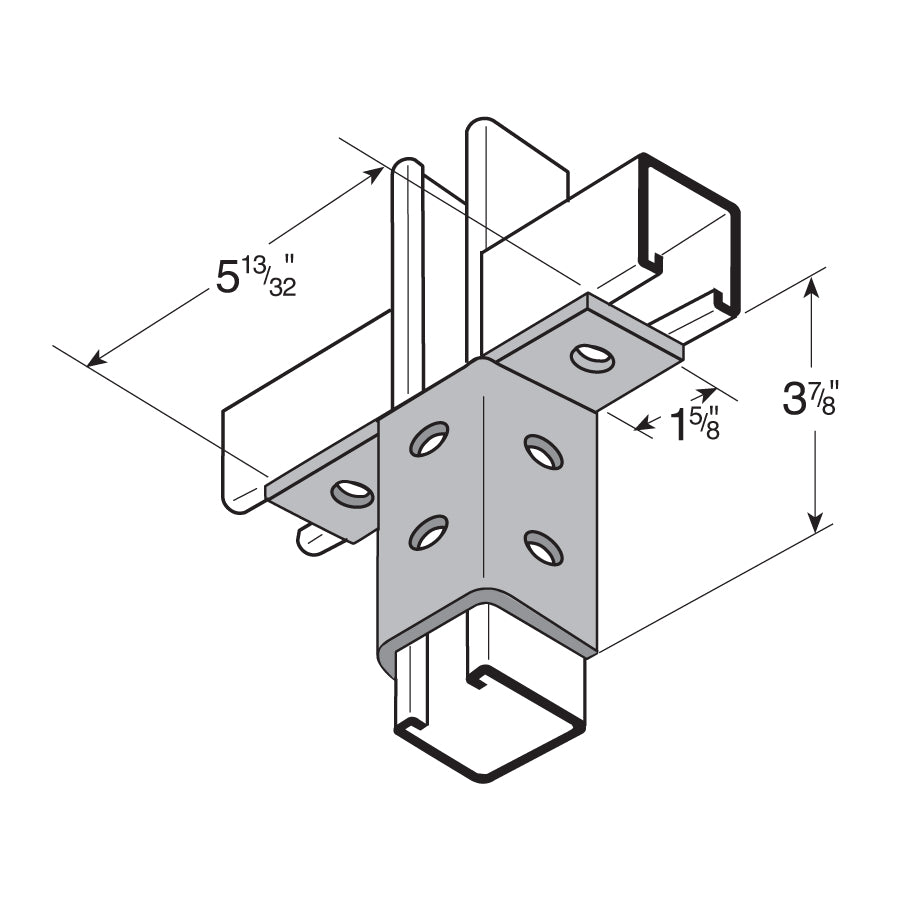

  • Flexstrut FS-5519 2-Way Channel Wing Connector Drawing With Dimensions
  • Flex-Strut Made in the USA
  • Strut channel applications for storage shelving and solar panel roof rack
  • Strut Channel applications barn door track and conduit fixtures
1 7

Continue Browsing

Wing Fittings

Strut Channel Fittings

Strut Channel Framing
SKU: FS-5519-E/G

8-Hole 2-Way Channel Wing Connector - Electro-Galvanized

$13.99
Request Bulk Pricing
Request Bulk Pricing
Ships today when you order in the next 14 hours 55 minutes

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Questions?

We can help!

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Width: 1-5/8"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: Carbon Steel
Finish: Electro-Galvanized
Standards: Finish = ASTM B633 (Type III SC1 (0.2 mil thickness)) & Material = ASTM A575 or ASTM A1011 GR33
Manufacturer Name: Flex-Strut
Description

8-Hole 2-Way Channel Wing Connector - Electro-Galvanized

The 8-Hole 2-Way Channel Wing Connector - Electro-Galvanized is built to create strong, perpendicular connections within strut channel framing systems. It allows two channel runs to extend from a single connection point, making it well suited for vertical framing with horizontal branching. A reliable fitting for interior projects that require clean, multi-directional support.

Electro-Galvanized 8-Hole 2-Way Wing Connector for Strut Channel

This two-way wing fitting connects strut channel sections at right angles and can be mounted along a vertical channel to form two extending arms. With 9/16" punched holes, it installs easily using standard channel hardware in dry, low-humidity indoor environments.

Key Features

  • Two-Way Channel Connection: Allows two strut channel arms from a single junction point.
  • Perpendicular Framing Layout: Designed for 90-degree channel intersections.
  • Eight Punched Holes: Includes 9/16" holes for secure, evenly distributed fastening.
  • Electro-Galvanized Steel: Intended for interior applications with minimal moisture exposure.

Common Applications

  • Vertical strut channel frameworks
  • Two-directional framing systems
  • Electrical and conduit support assemblies
  • HVAC and mechanical installations
  • Commercial interior construction

Installation Tips

  • Use like-metal channel nuts, bolts, and washers for best results.
  • Align both channel arms before fully tightening hardware.
  • Confirm all fasteners are evenly seated to maintain joint stability.
