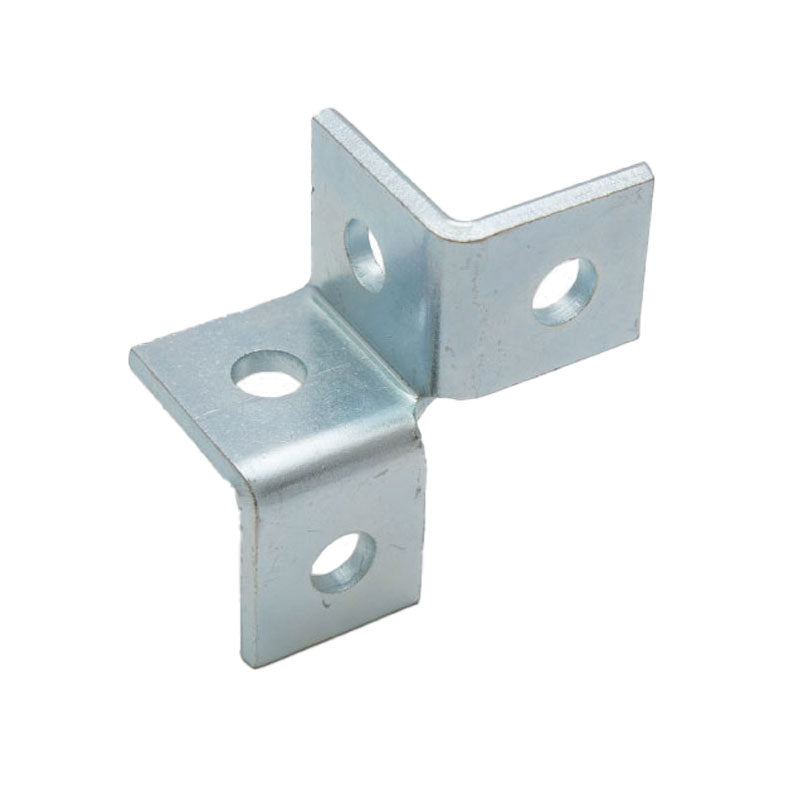

4-Hole 2-Way Corner Channel Connection - Electro-Galvanized
The 4-Hole 2-Way Corner Channel Connection - Electro-Galvanized is designed to join strut channel sections at perpendicular angles while allowing multiple framing directions from a single connection point. It provides a clean, rigid corner joint that supports vertical and horizontal channel layouts. A versatile fitting for interior framing systems that require structured, multi-directional support.
Electro-Galvanized 4-Hole 2-Way Corner Wing Fitting for Strut Channel

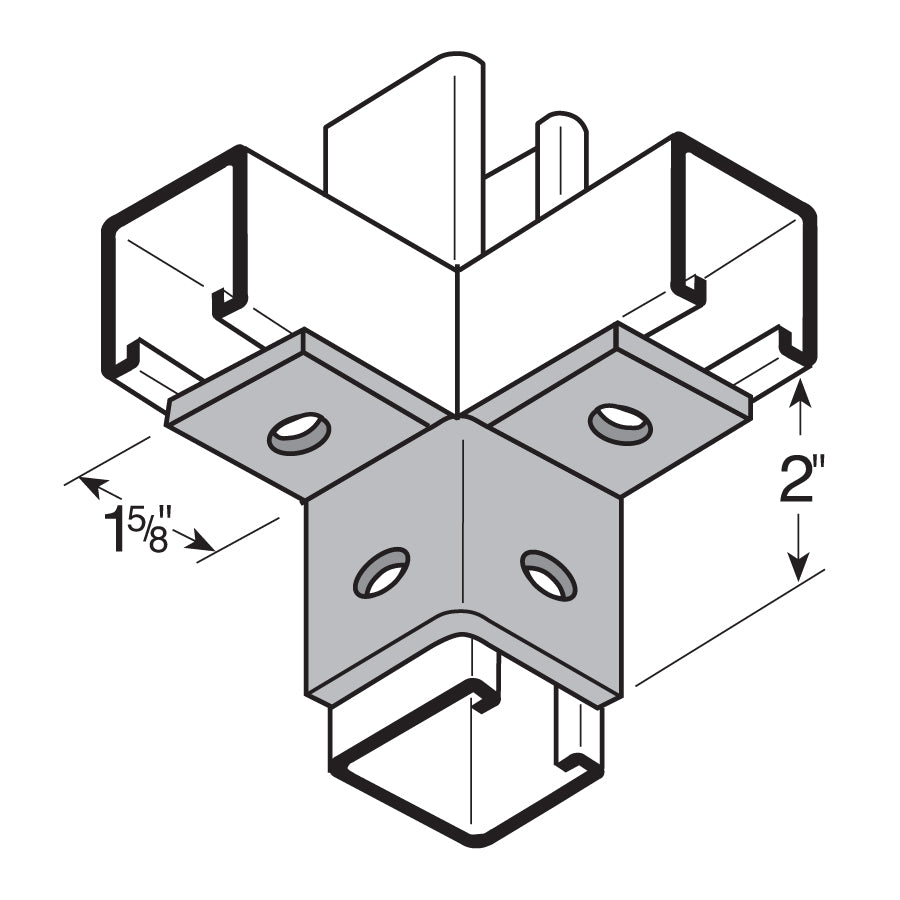

This two-way corner wing fitting allows channels to connect at right angles and can be mounted along a vertical strut channel to create two extending arms. Featuring 9/16" punched holes, it installs easily with standard channel hardware in dry, low-humidity indoor environments.
Key Features
- Perpendicular Channel Connection: Joins strut channel sections at 90-degree intersections.
- Two-Arm Corner Design: Allows two channel runs to extend from a single corner fitting.
- Four Punched Holes: Includes 9/16" holes for secure, balanced fastening.
- Electro-Galvanized Steel: Intended for interior applications with minimal moisture exposure.
Common Applications
- Vertical strut channel frameworks
- Multi-directional framing systems
- Electrical and conduit support assemblies
- HVAC and mechanical installations
- Commercial interior construction
Installation Tips
- Use like-metal channel nuts, bolts, and washers for best results.
- Align channel sections squarely before tightening hardware.
- Confirm all fasteners are evenly seated to maintain joint stability.
