SKU: SWS-CSCS-1-5

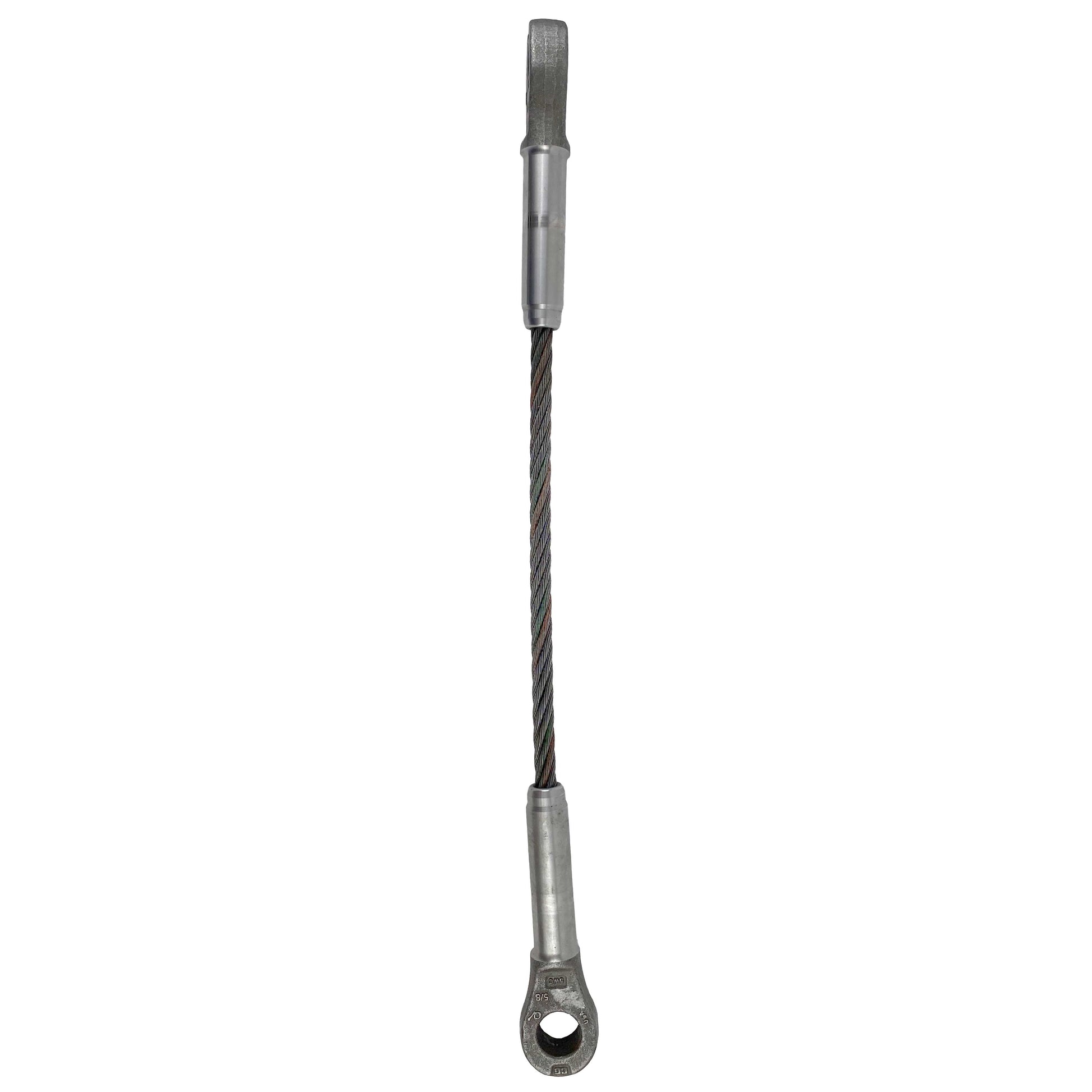

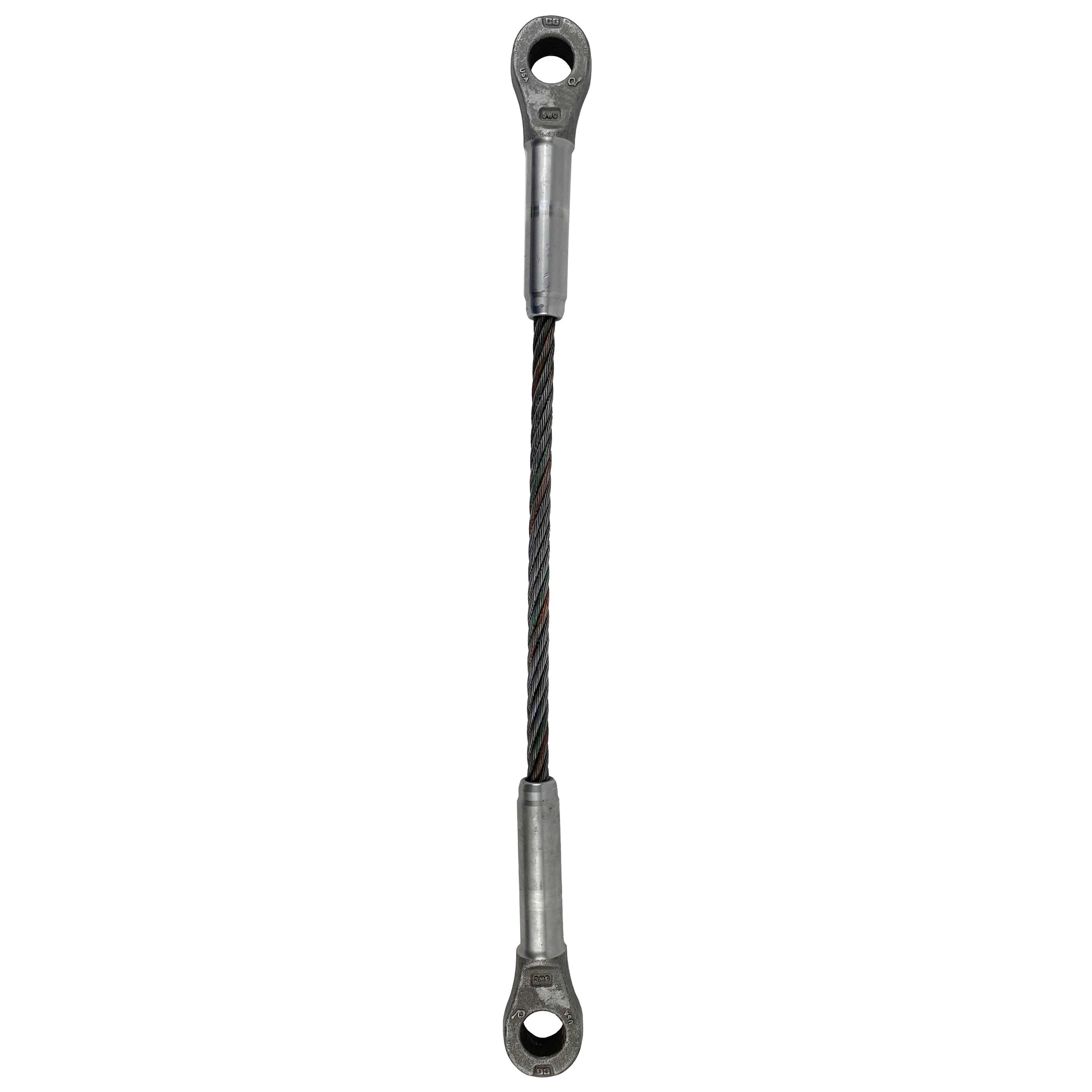

1" x 5' Closed and Closed Swage Socket Wire Rope Sling
1" x 5' Closed and Closed Swage Socket Wire Rope Sling!
SKU: SWS-CSCS-1-5
$1,063.54
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 51.7 ton
Diameter: 1"
Length: 5'
Working load limit: 10.34 ton
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements.
Wire rope class: 6x36WS
Description

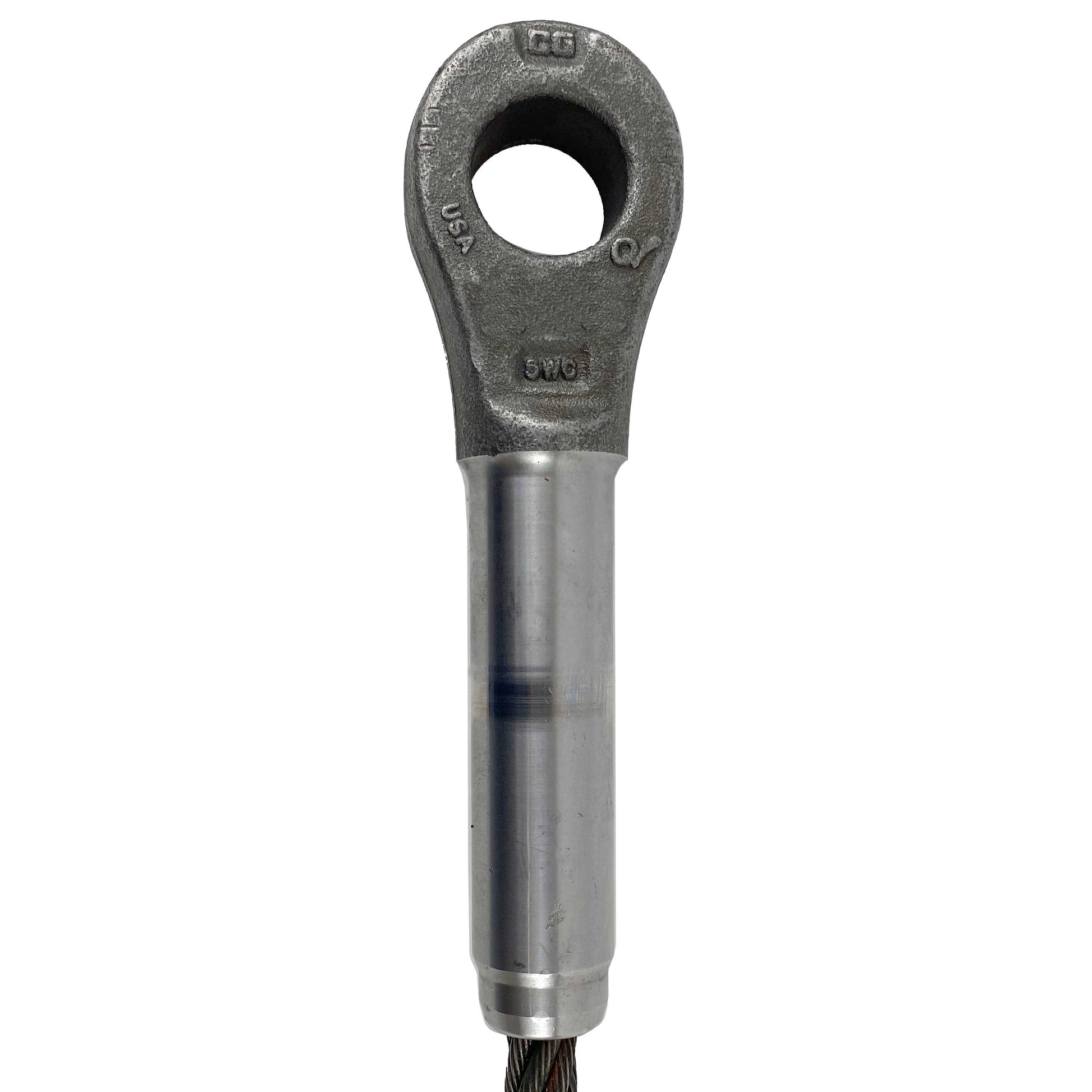

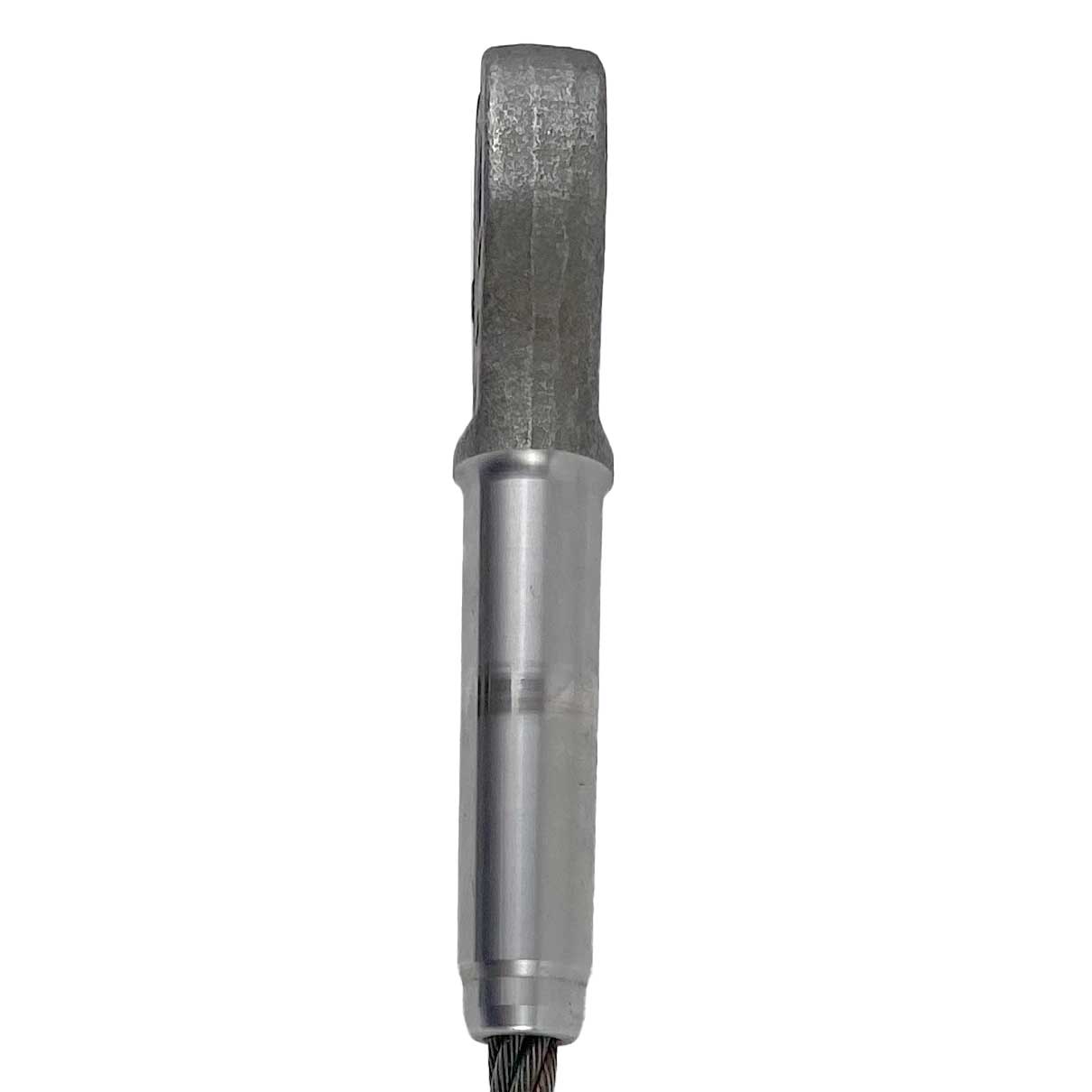

This 1" by 5' wire rope is fitted with a closed swage socket at each end. The closed swage socket is a terminal fitting with a hole in it, which allows for a pin or bolt to go through for different rigging and lifting applications. With this Type 115 Swage Socket sling, you have a 10.34 ton working load limit. Swage sockets are more resistant to fatigue where the cable and socket come together than other types of sockets. However, spelter sockets can have more efficiency of the rope breaking strength than swage sockets. You may prefer a poured socket or spelter socket for your lifting or rigging applications. Contact our sales specialists with any questions you may have.
