SKU: ABTWMTS1-12-VB
1-1/2" Van Beest Green Pin® Bolt Type Wide Mouth Towing Shackle | G-4263 - 16 Ton
1-1/2" Van Beest Green Pin® Bolt Type Wide Mouth Towing Shackle | G-4263 - 16 Ton!
SKU: ABTWMTS1-12-VB
$386.14
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 16 tons (Metric) / 35,273 lbs.
Brand part number: ASGHMB38
Finish: Galvanized
Inside height: 8.5"
Inside width: 6.22"
Manufacturer name: Van Beest
Material: Alloy Steel
Mouth width: 4.19"
Pin size: 1-5/8"
Product weight: 27.56 lbs.
Safety factor: 6:1
Shackle size: 1-1/2"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM A148M.
Type: Bolt Type Wide Mouth Towing
Description

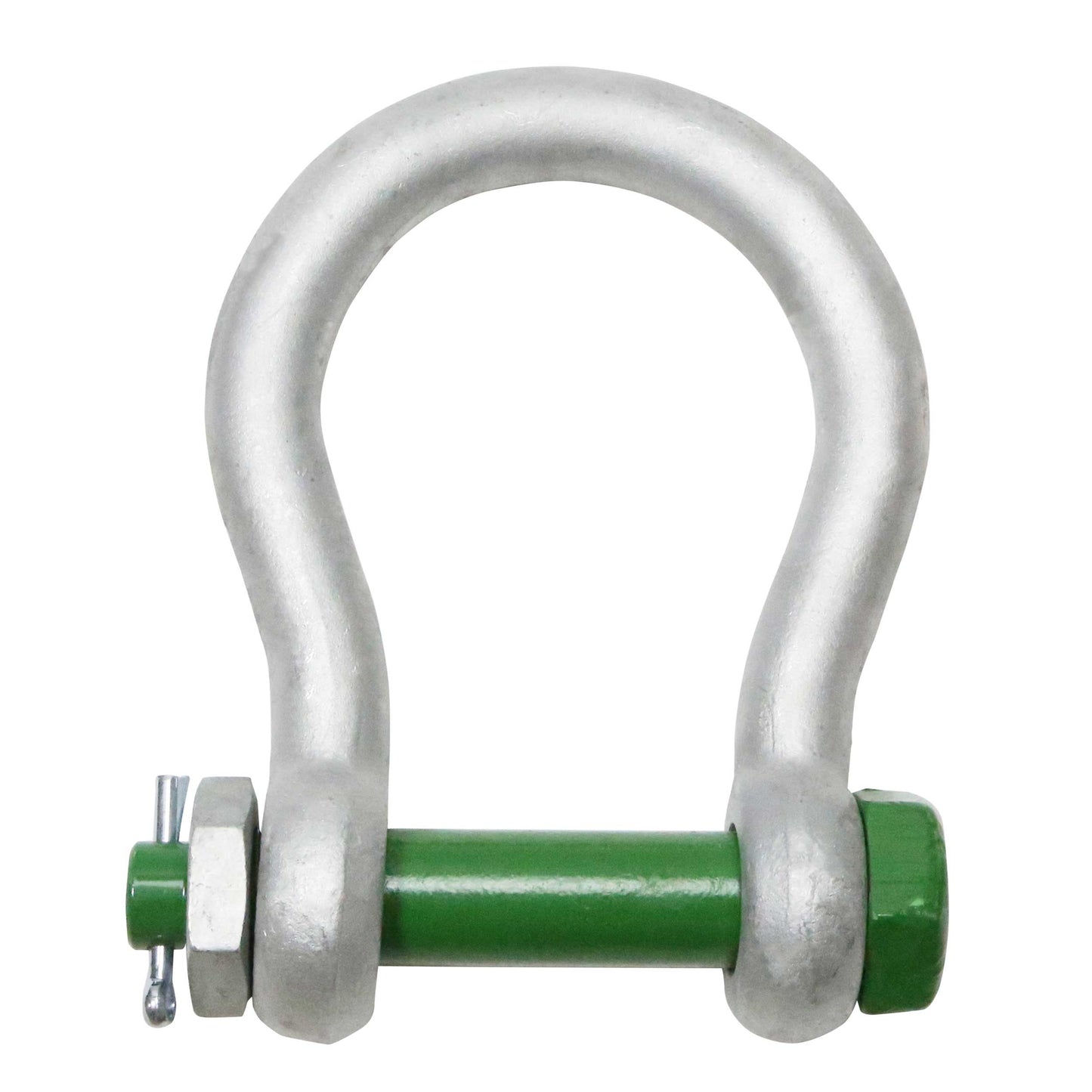

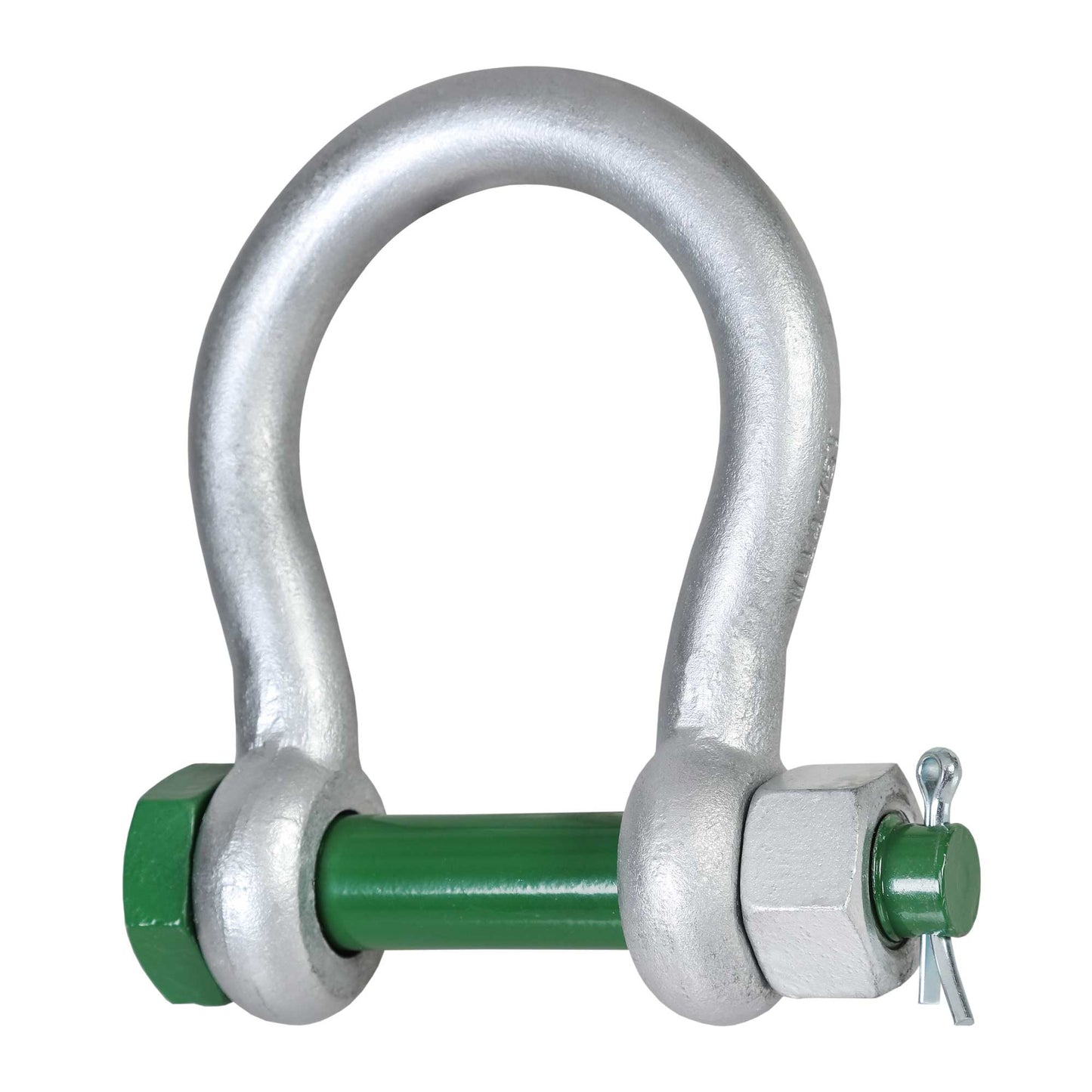

Van Beest 16 Ton Bolt Type Wide Mouth Towing Shackles

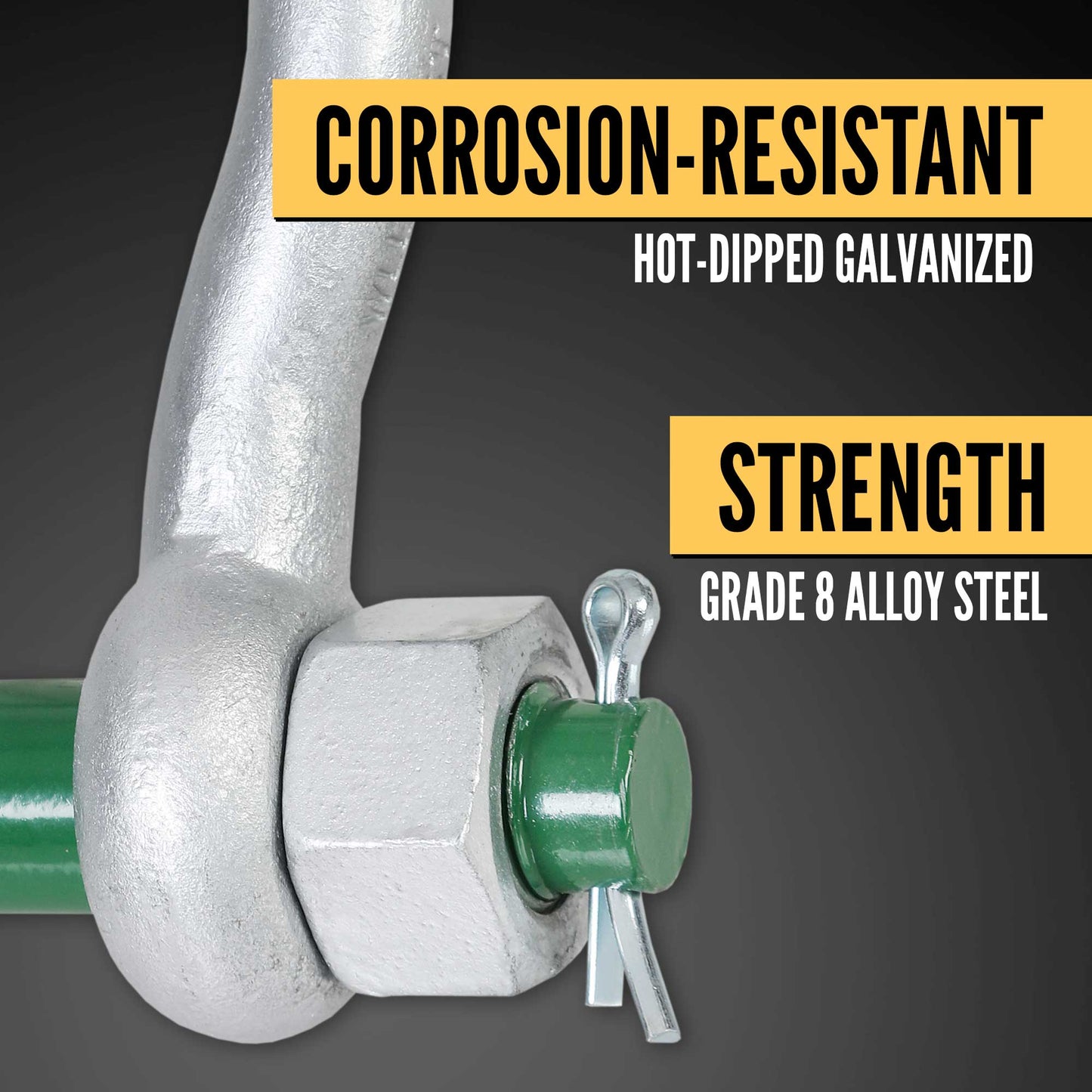

Van Beest Green Pin® Wide Mouth Towing Bow Shackles are extremely high quality, European-made shackles. These shackles are easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the alloy quenched and tempered Grade 8 steel from corrosion.

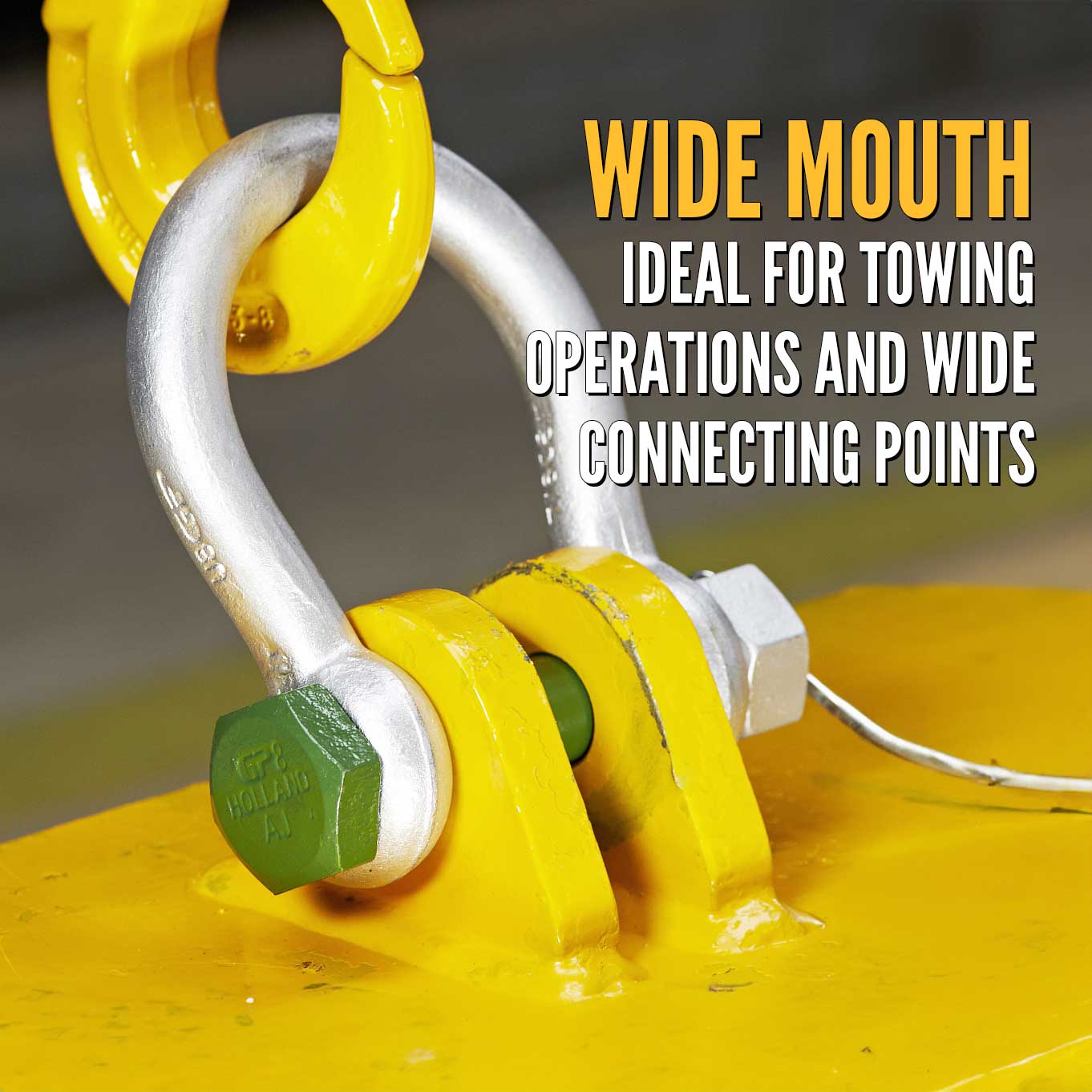

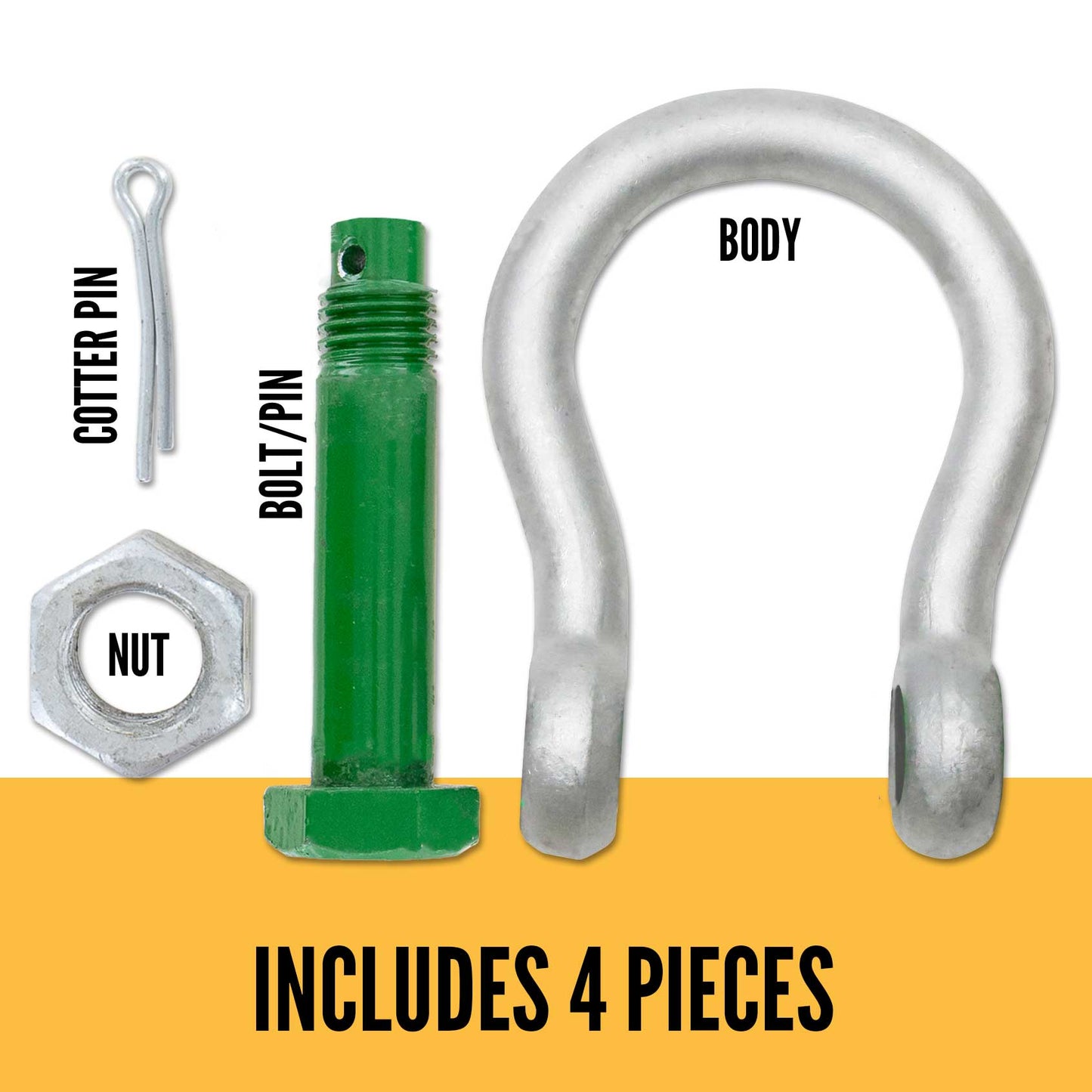

The wide shackle mouth is ideal for use with wide connecting points and includes a double safety - it has both a split pin and a safety bolt to prevent accidental unscrewing.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
