Twin Hoist Lifting Beam - 20,000 lb Capacity - 16' Max Spread
Twin Hoist Lifting Beam - 20,000 lb Capacity - 16' Max Spread!
Continue Browsing
Fixed Lifting Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
Spread:
Load Limit:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options

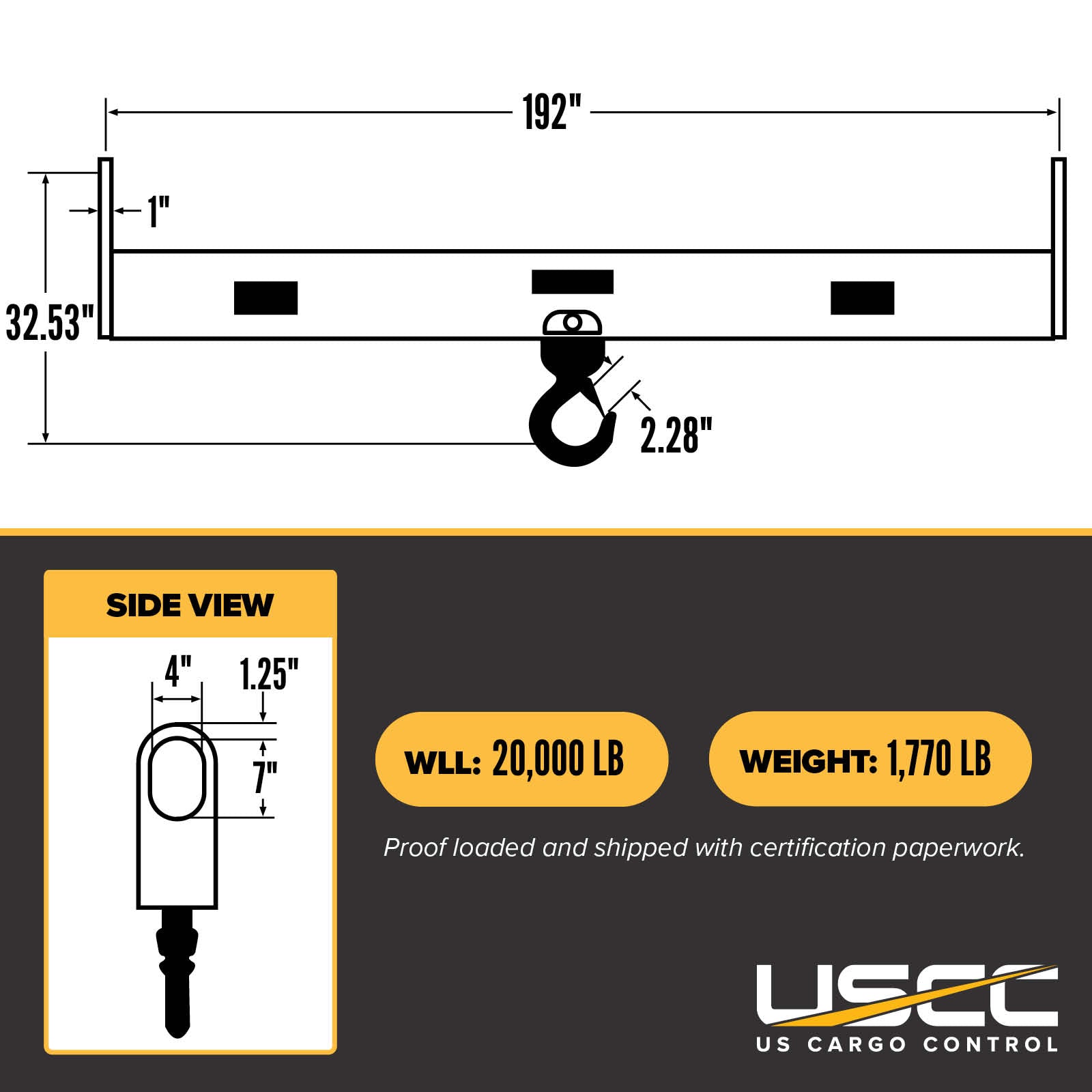

Specifications
Working load limit: 10 tons
Bail Dimensions: Inside Width: 4.0"
Inside Length: 7.0"
Top Thickness: 1.25"
Thickness: 1.00"
Inside Length: 7.0"
Top Thickness: 1.25"
Thickness: 1.00"
Brand part number: 16464
End fitting: Bottom Swivel Latch Hook Included
Finish: High visibility yellow powder coated paint
Manufacturer name: M&W
Material: Steel
Spread: 16'
Product weight: 1770 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Throat opening: 2.28"
Additional Info: WLL (lbs.): 20,000
Headroom: 32.53"
Headroom: 32.53"
Description

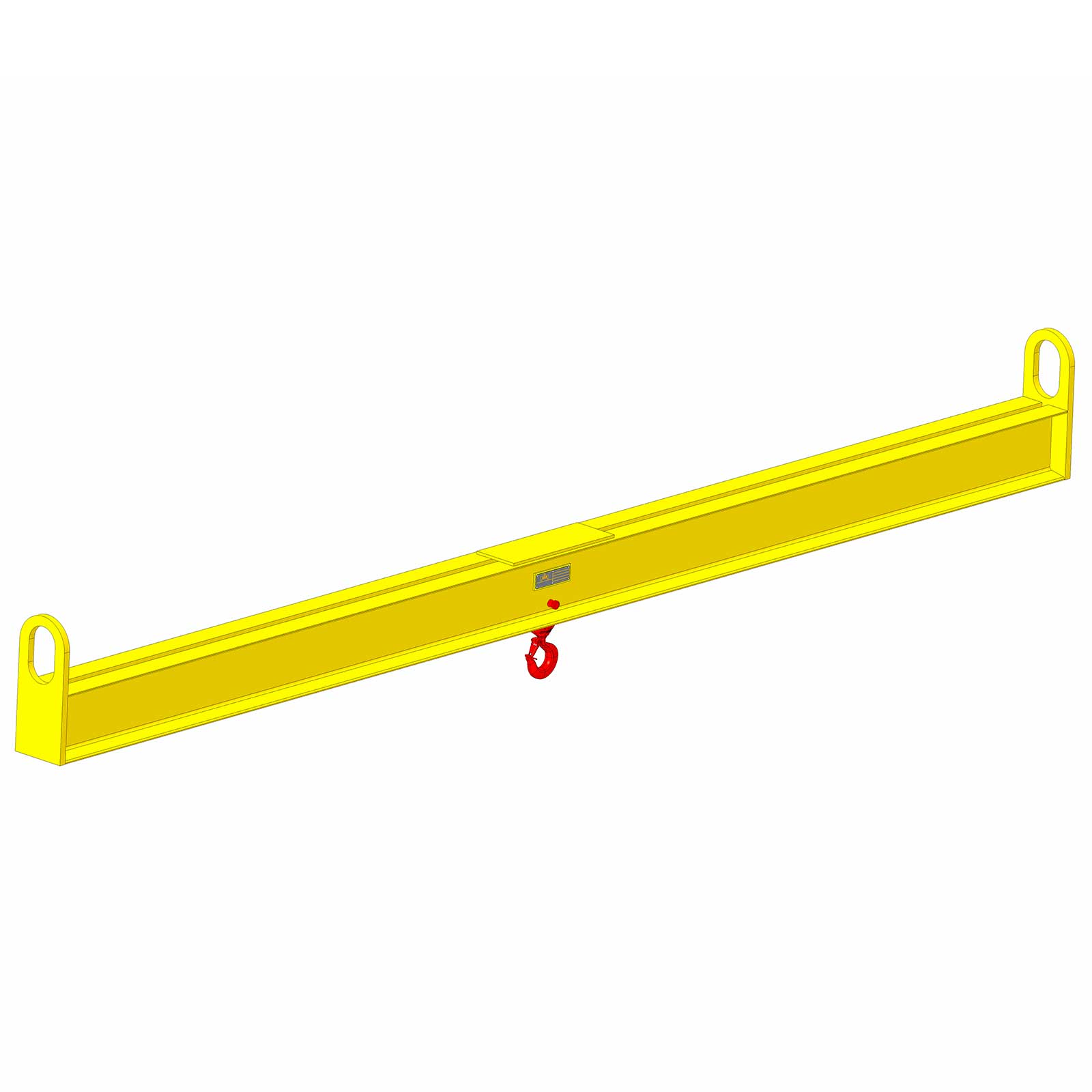

M&W 16464 Twin Hoist Lifting Beam
Twin Hoist lifting beams are engineered for precise load control. This beam utilizes two hoists for lifting and must be done within 5° of vertical. This ensures stable handling to prevent side loading. This lifting beam is designed with an alloy swivel hook that provides secure bottom connections allowing for efficient rigging adjustments. The safety yellow finish enhances job site visibility. Ideal for balancing asymmetrical loads, this beam is a reliable solution for shops, warehouses, and in-field applications that require dual-point lifting precision.
Looking for other options for lifting beams? Check out our full lifting beam catalog.
Lifting Beams vs. Spreader Bars
When compared with spreader bars, lifting beams often use a singular center top lifting point that bears most of the load through bending forces and utilizes multiple attachment points underneath. Lifting beams often require less headroom to operate making them better suited for confined spaces.
16' Twin Hoist Lifting Beam Features:
- Made in the USA: Providing premium machined and welded quality that you can trust.
- Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.
- Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.
- High Visibility Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
- 30-day limited manufacturer's warranty.
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
Complete Your Rigging Setup
Check out the rest of our rigging and lifting equipment, including lifting beams, shackles, and outrigger pads.
