Maximum Capacity, Maximum Reach

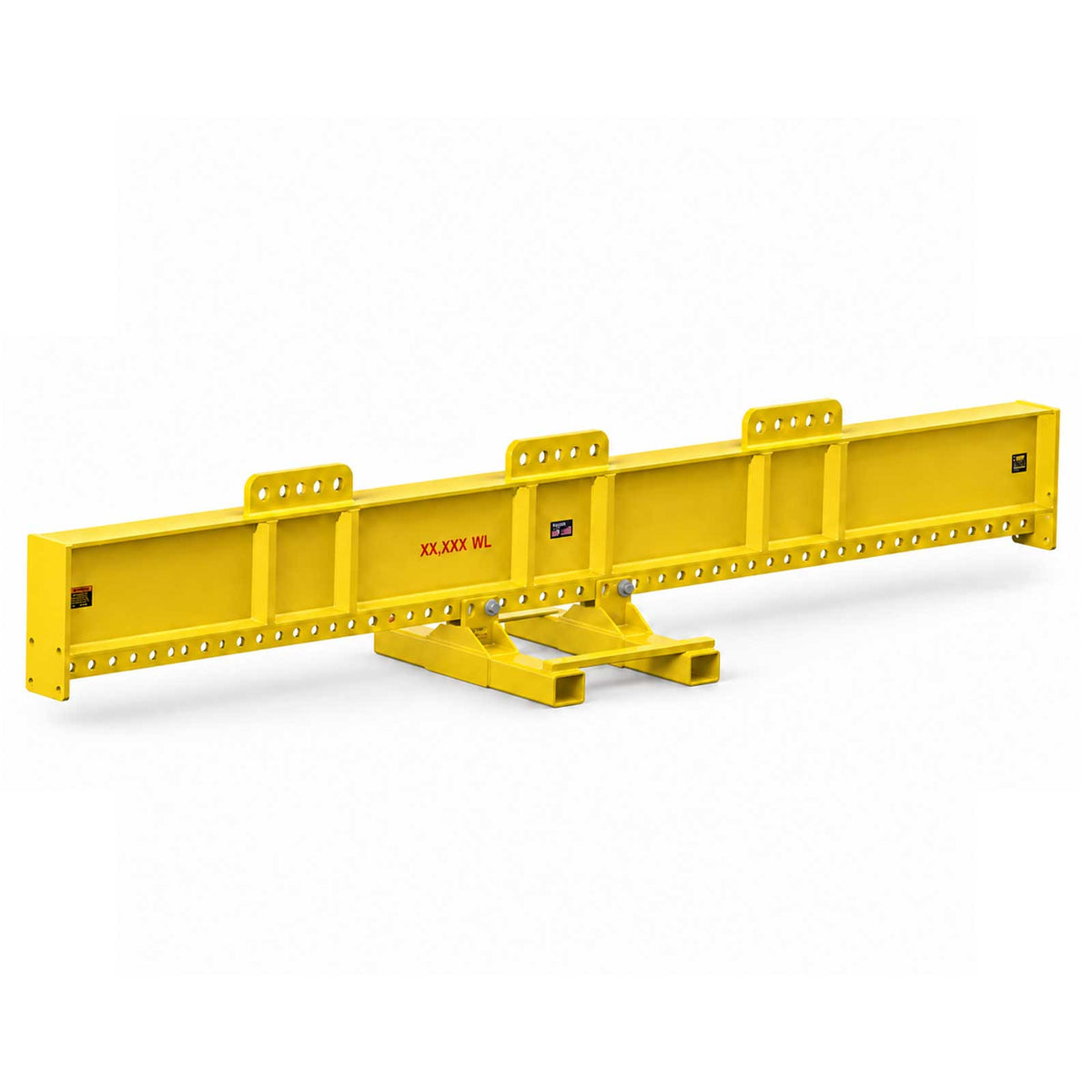

The M&W 360" HD Universal Rigging Beam - 80,000 lbs. WLL is the largest and heaviest-duty rigging beam in the HD Universal line, combining crane lift beam and spreader beam functions in one unit at a 360" max pick length (367" overall). For the biggest jobs requiring both extended span and top-tier capacity, this is the beam built to do it without splitting the job across two separate pieces of equipment.

Universal Rigging Beam Key Features

• 80,000 lbs. WLL, 360" max pick length (367" overall length)
• Combines crane lift beam and spreader beam functions in one unit
• 45° minimum rigging angle spec with upper shackle, lower shackle, and optional master link at 24" centers
• Proof-load certification included
• Painted safety yellow lift lug for visibility
• ASME B30.20/OSHA compliant
• Made in the USA
• Custom sizes and designs available outside the four standard configurations

Precision Rigging at the Line's Highest Capacity

Even at 80,000 lbs. WLL and 30 feet of reach, this rigging beam maintains the same 45° minimum rigging angle spec with multiple shackle drop points - upper shackle, lower shackle, and an optional master link at 24" centers - so riggers can configure load spread across a long, heavy load without custom engineering.

Certified and Compliant

This rigging beam ships proof-load certified, with documentation included for heavy-lift compliance requirements. Manufactured to ASME B30.20 and OSHA compliance standards, with a painted safety yellow lift lug for visibility during the largest, longest lifts in the HD Universal line.

At 80,000 lbs. WLL and 360" of reach, this is the heaviest-duty, longest-span rigging beam in the M&W HD Universal line - built for jobs that need maximum capacity and maximum span in one true universal beam. Looking for rigging equipment to complete your setup? Shop our assortment of shackles, master links, and chain slings today.
