BlackLine 4" x 37' Winch Strap with 34" Chain Extension | 160-Pack (Pallet)

wstda logo - this product meets WSTDA standards
Sale price $6,97500 Regular price $7,83840
11% off
Ships via LTL Freight Carrier
Ships FREE Nov 23 when you order now

Description

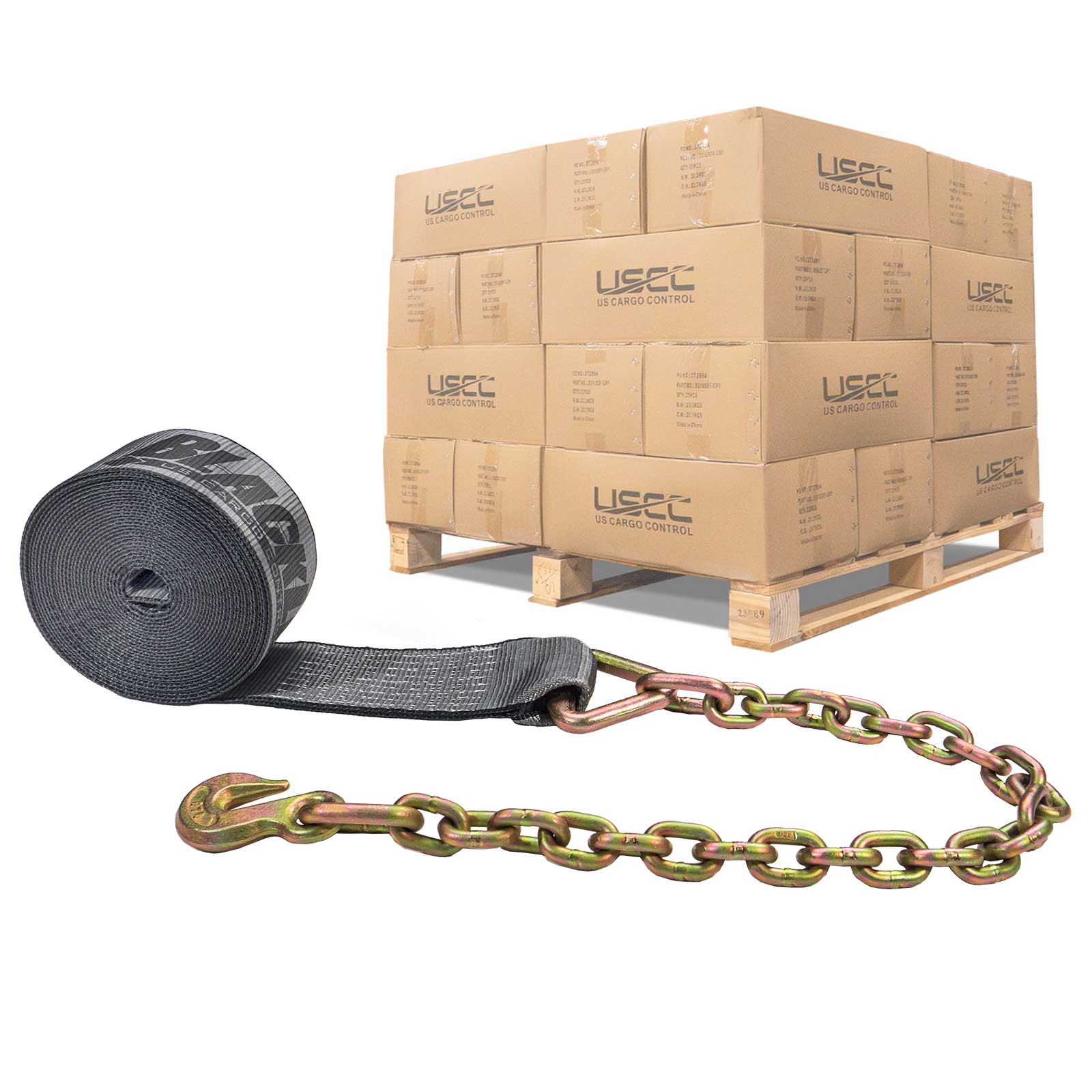

Pallet of 4" x 37' Blackline Heavy Duty Cargo Straps with Chain Extension

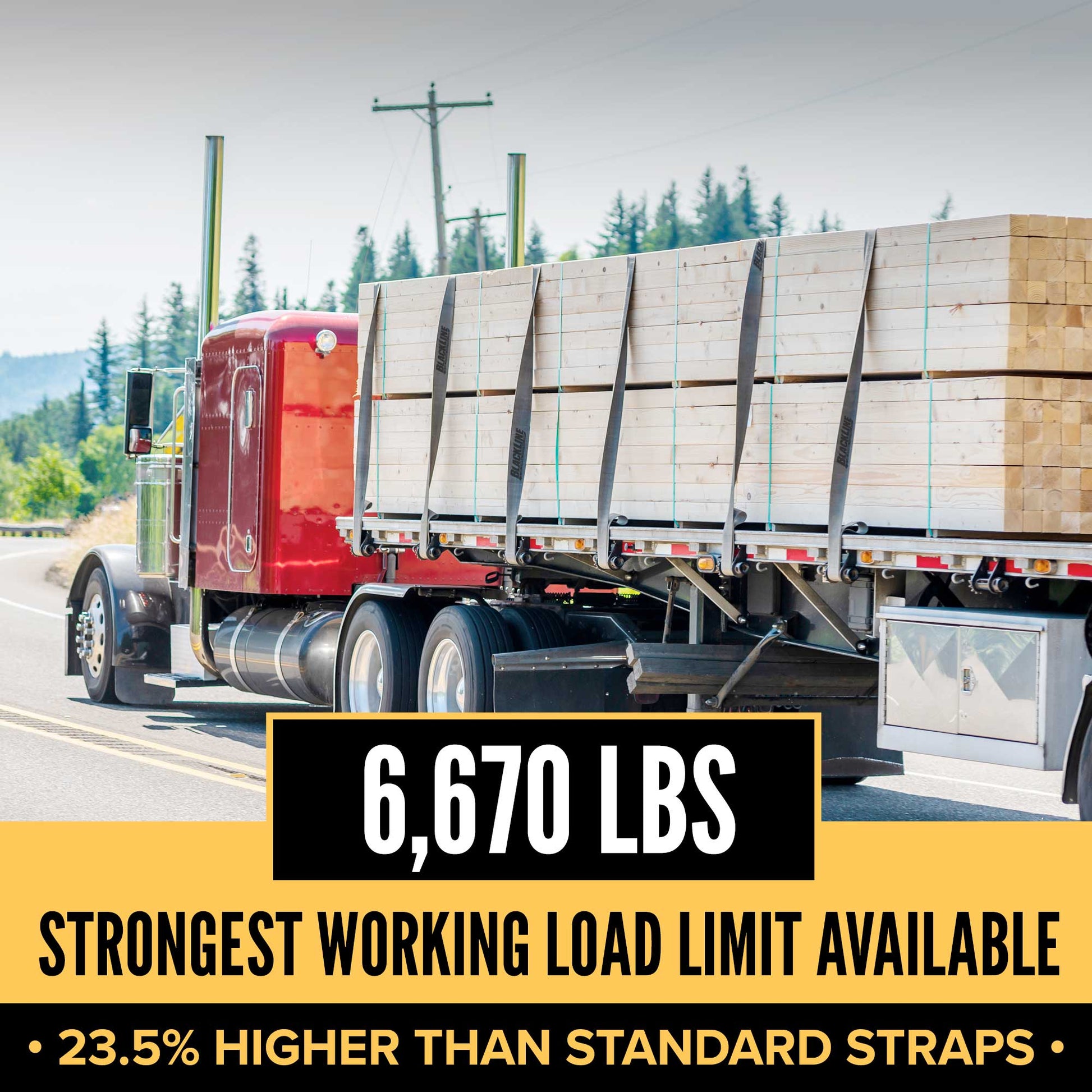

Our 4" wide heavy-duty winch straps are made to last. Constructed from industrial-strength webbing with a break strength of 24,000 lbs., they have a working load limit of 6,670 lbs., 23.5% higher than our standard 4" straps. The webbing offers exceptional abrasion resistance, including a reinforced edge made from concentrated fibers to slow down wear. For even greater protection, we recommend pairing with edge guards.

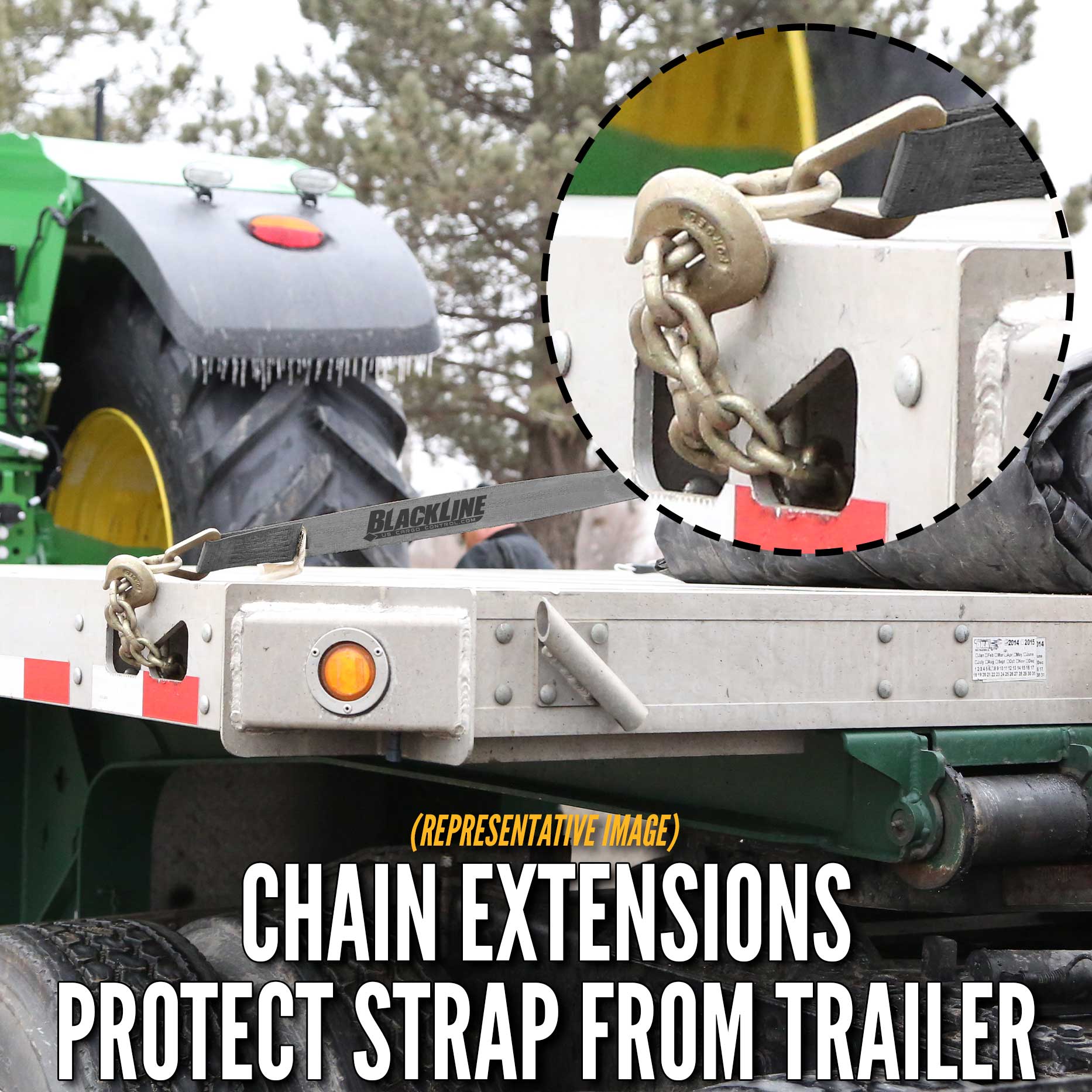

This extra-long 37' strap is built to handle oversized loads and fits all standard 4" winches. The extended 34" chain extension, almost double the 18" industry standard, makes it easier to reach and wrap around two chain anchors instead of just one. This creates a stronger, more secure anchor point, improving load stability and maximizing the strength of your securement setup.

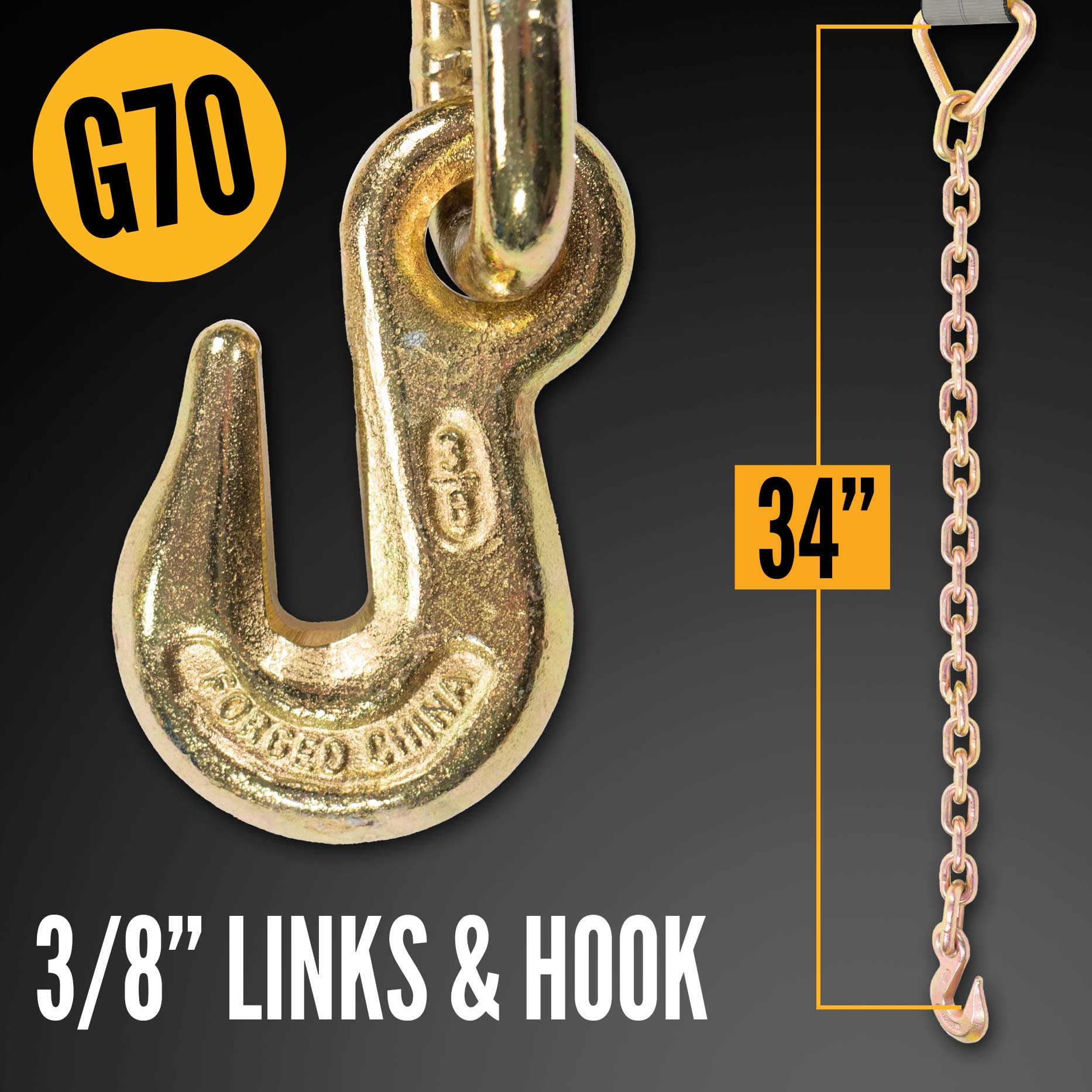

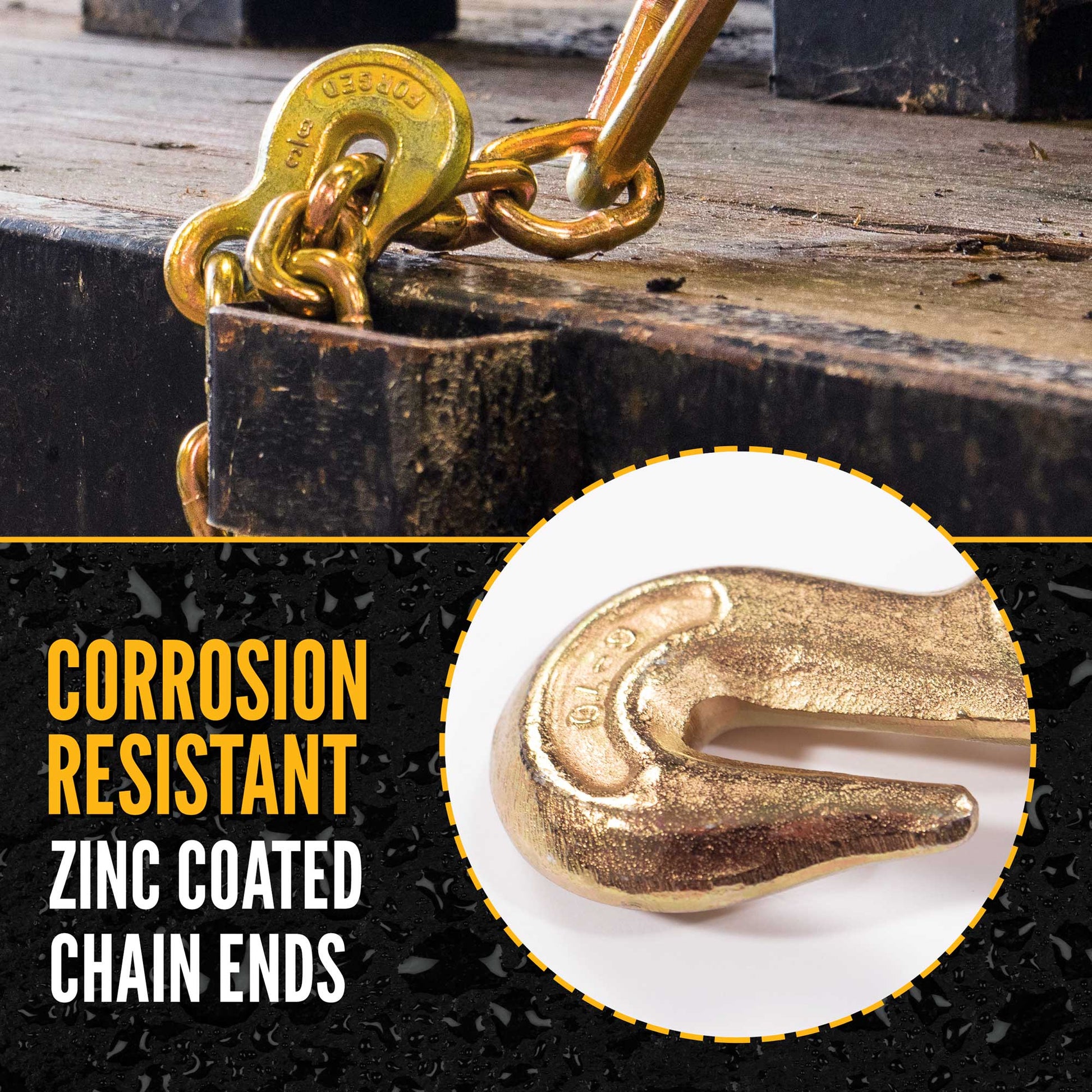

The chain extension includes a 3" D-ring, 30" of Grade 70 transport chain, and a clevis grab hook, all zinc-plated to guard against corrosion and weathering.

Compliant with Industry Standards

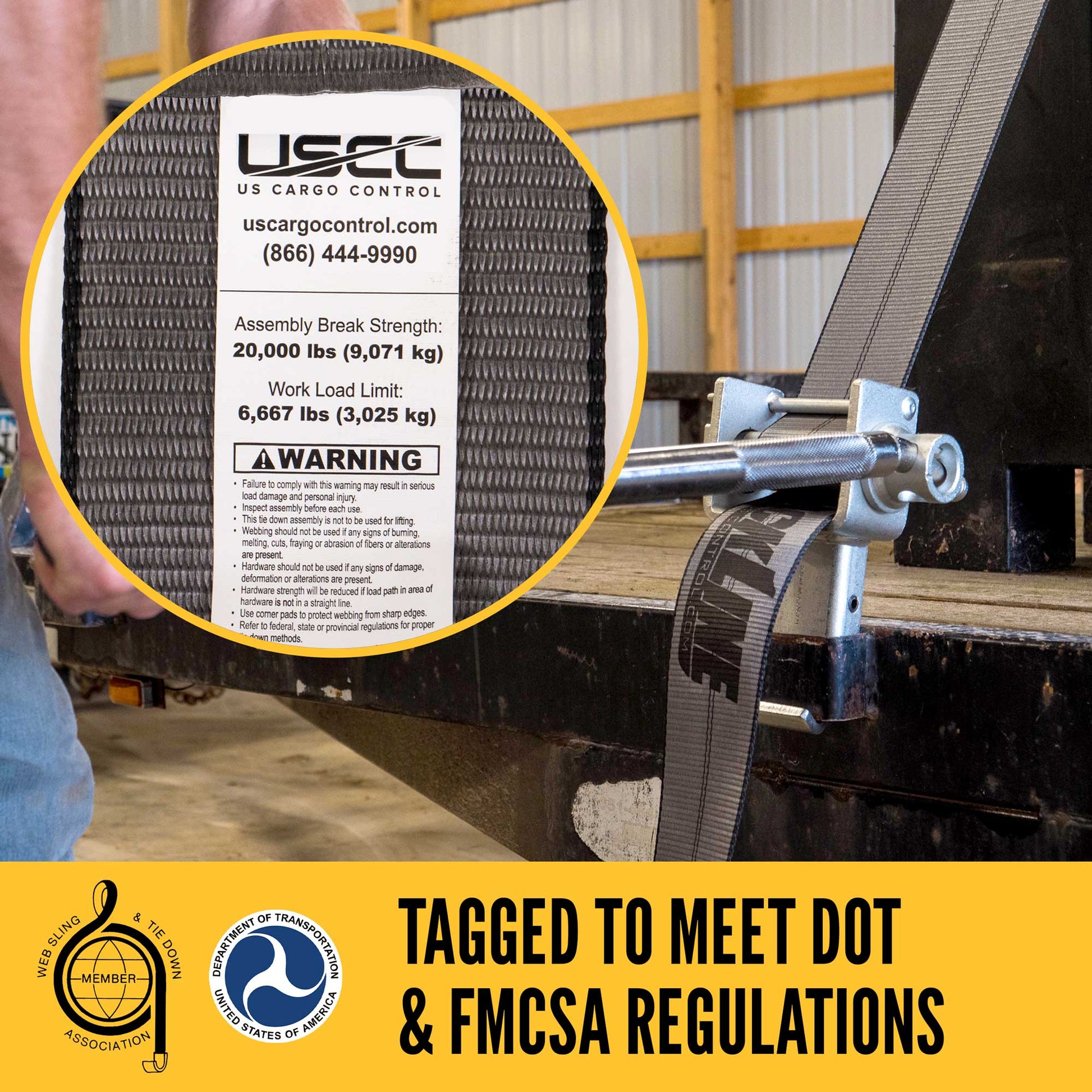

This 4 inch winch strap is tagged with the working load limit to meet CVSA guidelines, FMCSA and DOT regulations, and WSTDA, CHP and North American Cargo Securement standards.

Learn more about proper load handling and securement in the WSTDA safety bulletins.

Custom Winch Straps Available

Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!

Winch Use Guidelines

According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."

What is Design Factor?

Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.

Comprehensive Cargo Securement Supplies

Complete your tie down system with winch bars and truck winches, as well as corner protectors and CORDURA cargo strap protectors.

California Residents: WARNING

Specifications

Working Load Limit (lbs.): 6,670
Assembly Break Strength: 20,000 lbs.
Webbing Break Strength: 24,000 lbs.
Width: 4"
Length: 37'
Overall Length: 39.83' (approx. with chain ends)
End Fitting: Chain Extension
Material: Polyester webbing
Color: Blackline
Product Weight: 1,664 lbs.
Quantity: 160-Pack (Pallet)
Shipping and Returns: This item ships LTL; lift-gate fees may apply. learn more.
Additional Info: Design Factor: 3:1

Reviews
(4)

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
j
john evans

BlackLine 4" x 30' Winch Strap with 34" Chain Extension | 5-Pack

s
scott skellenger
More than enough

I bought these straps to tie my boat to the trailer. After seeing how strong they are and the length and gauge of the chains. I am mounting them on my hay trailer to secure over 4 tons of hay per load. Great quality. Thank you

j
john evans

BlackLine 4" x 30' Winch Strap with 34" Chain Extension

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Unmatched Durability

    Manufactured with the strongest webbing in the industry, our BlackLine straps outlast standard straps on the road. In tests, they outperform standard straps by up to 58% in abrasion resistance, ensuring a longer strap life.

  • Reinforced Edges

    Our BlackLine webbing features a thicker black edge that is custom designed with more concentrated webbing than standard straps, slowing down the abrasion process.

  • Tested For The Highest Quality

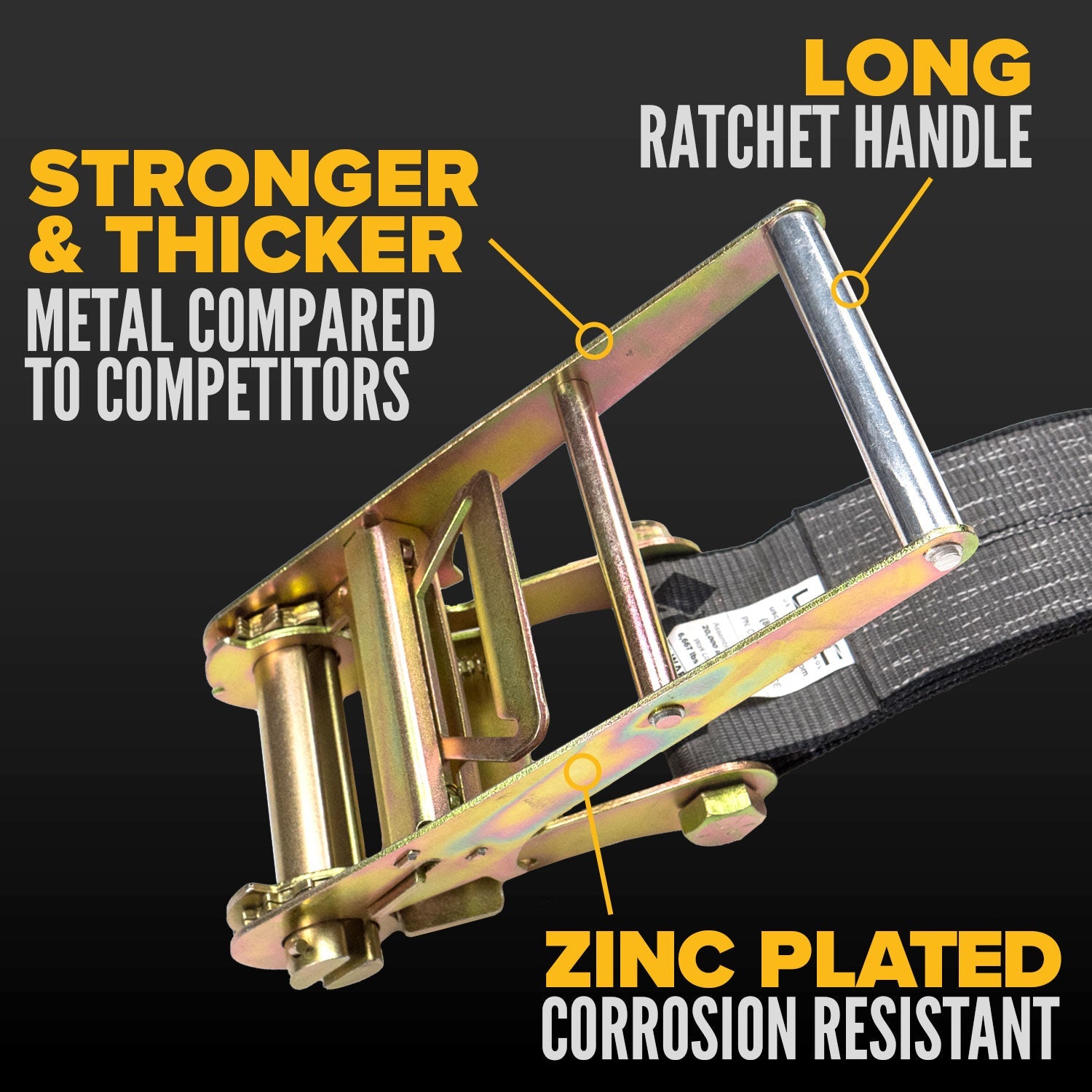

    All our tie-down straps are rigorously tested to meet or exceed industry standards, ensuring the highest quality and long-lasting performance. Our industrial-grade webbing features heat-sealed ends and is manufactured with thicker yarn and more picks per inch than competitors. Additionally, our hardware is made from thicker metal, guaranteeing a more durable, heavy-duty strap that lasts.
