SKU: CGH58100
5/8" Clevis Grab Hook | Grade 100
5/8" Clevis Grab Hook | Grade 100!
Continue Browsing
5/8" Transport Chain, Binders and Fittings
Specialty Tie Down Chain Hooks
Transport Chain
Related Articles
SKU: CGH58100
$83.30
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 90,400 lbs.
Grade: 100
Working load limit: 22,600 lbs.
Chain size: 5/8"
End fitting: Clevis Grab Hook
Material: Alloy Steel
Product weight: 4.8 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Description

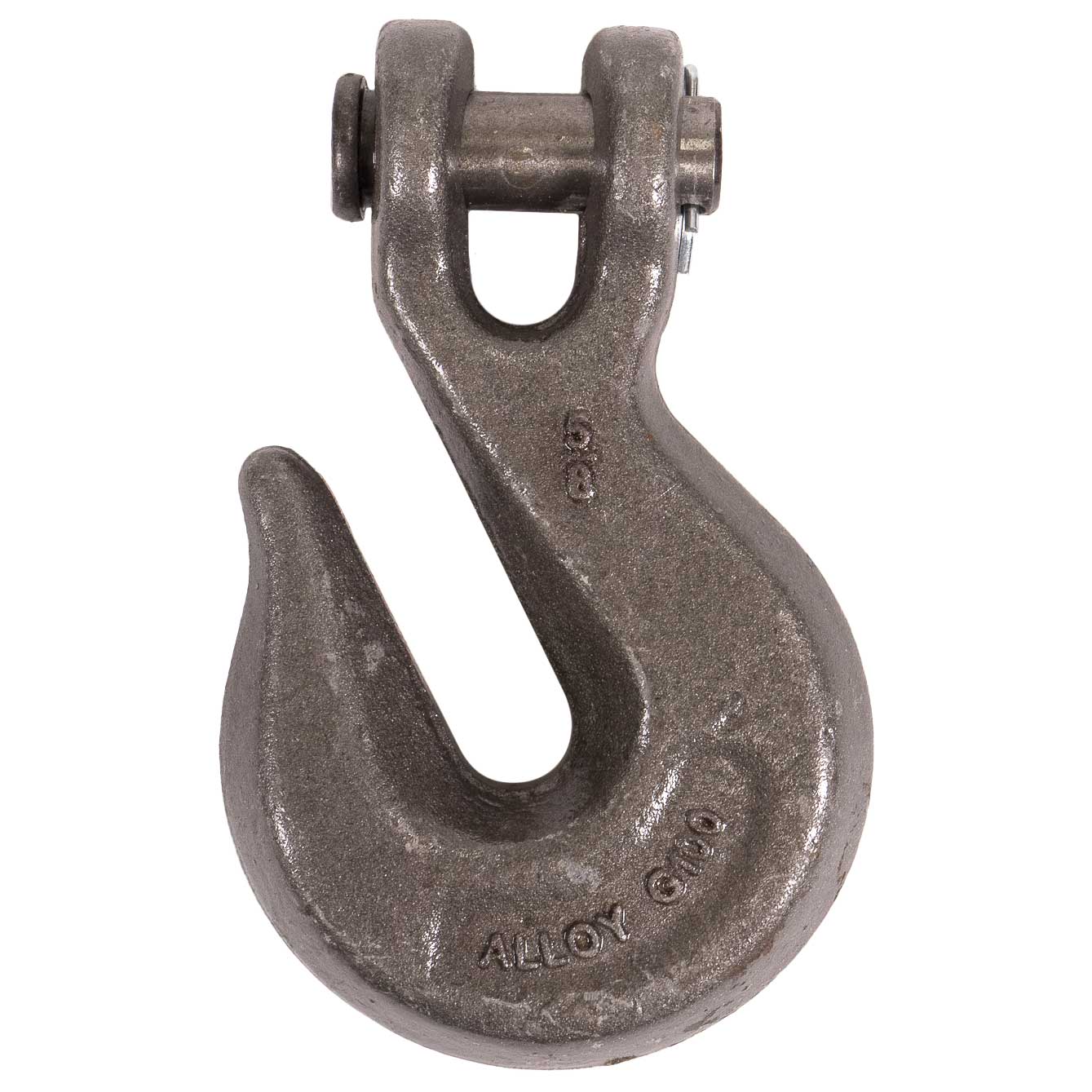

Grade 100 5/8" Clevis Grab Hook

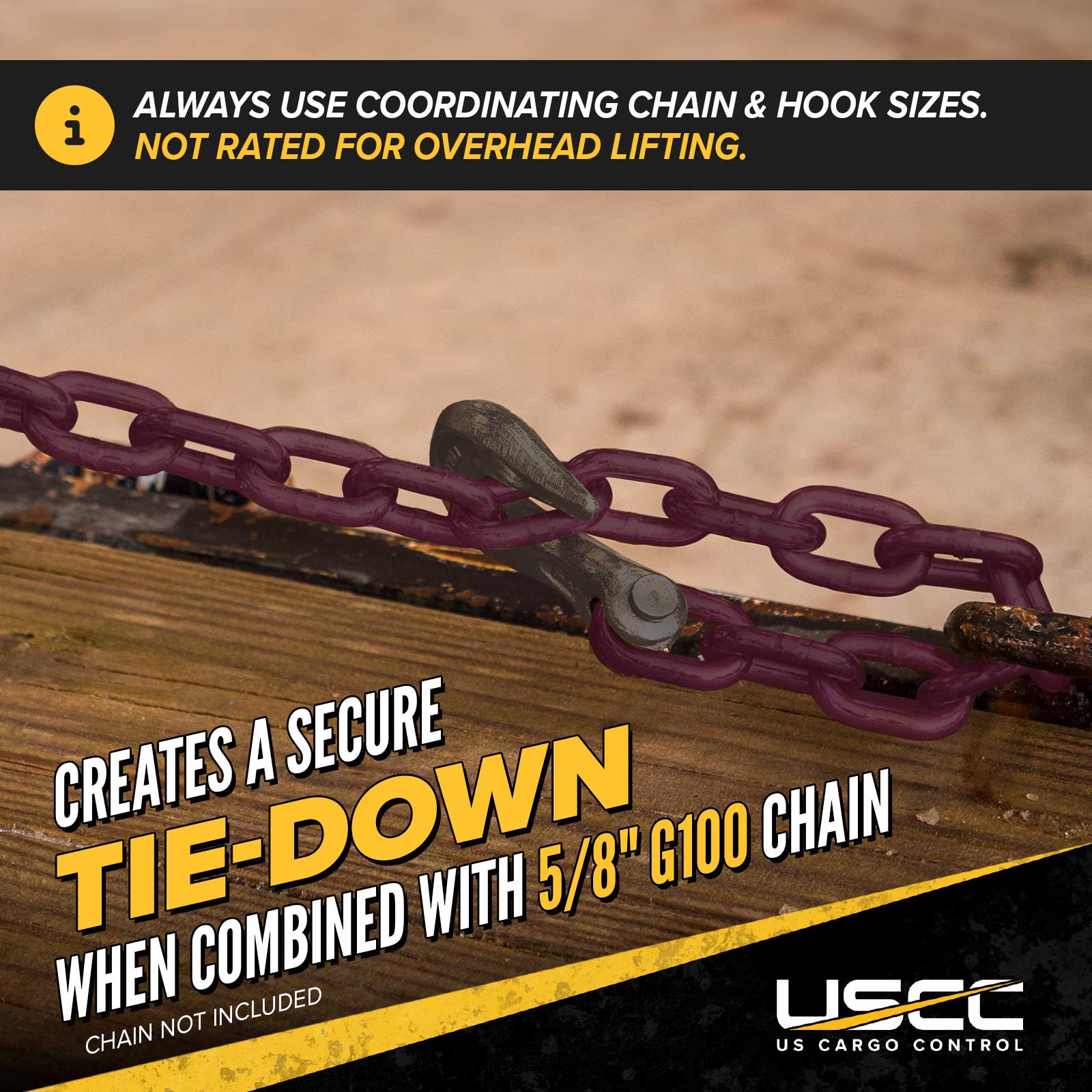

Our grade 100 clevis grab hooks are intended for use in heavy-duty tie down applications. When combined with with G100 chain, they create a tie down chain that's 25% stronger than grade 80 chains, perfect for your larger loads. Grade 100 tie downs also offer superior abrasion- and fatigue-resistance compared to lower grades.
5/8" Chain Grab Hook Construction

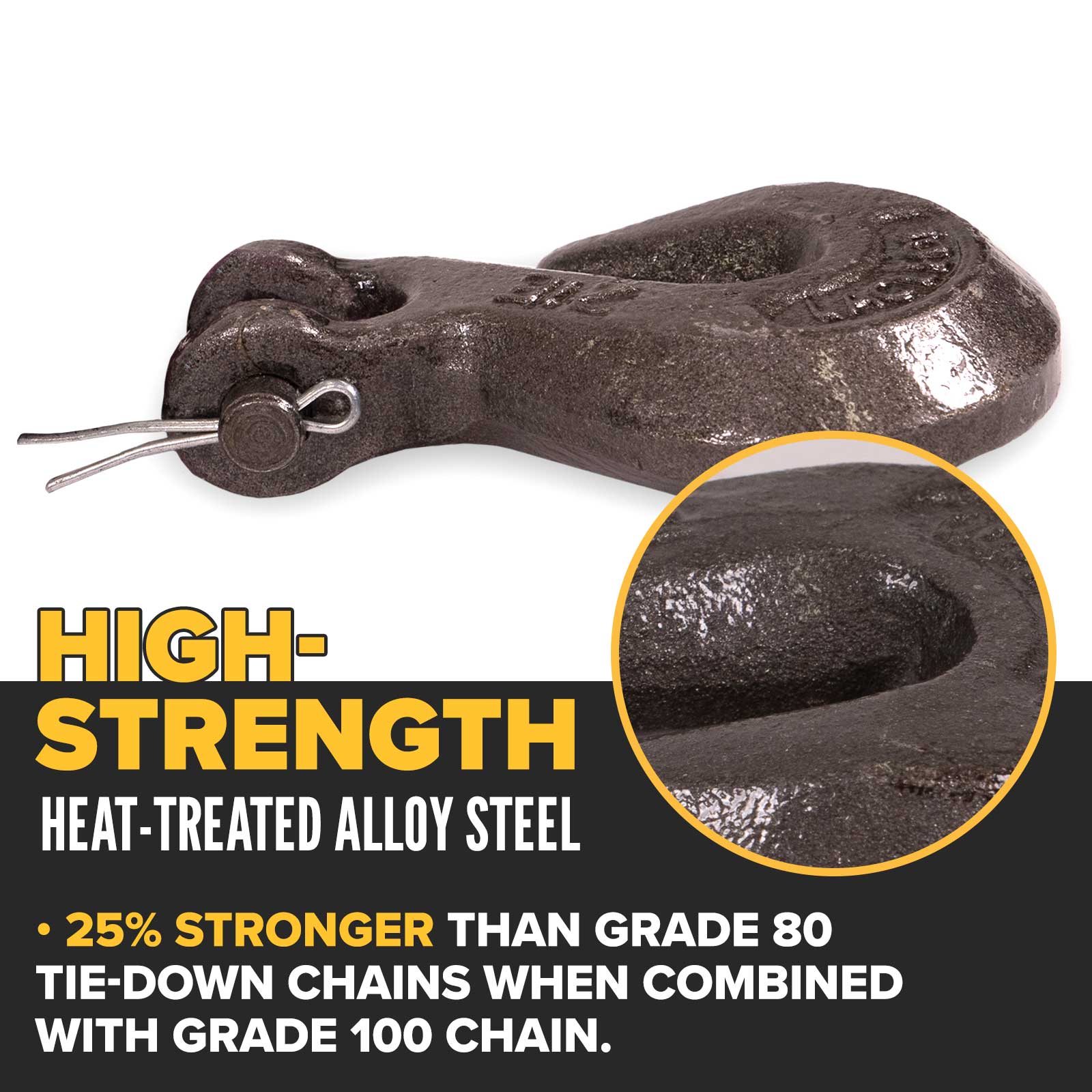

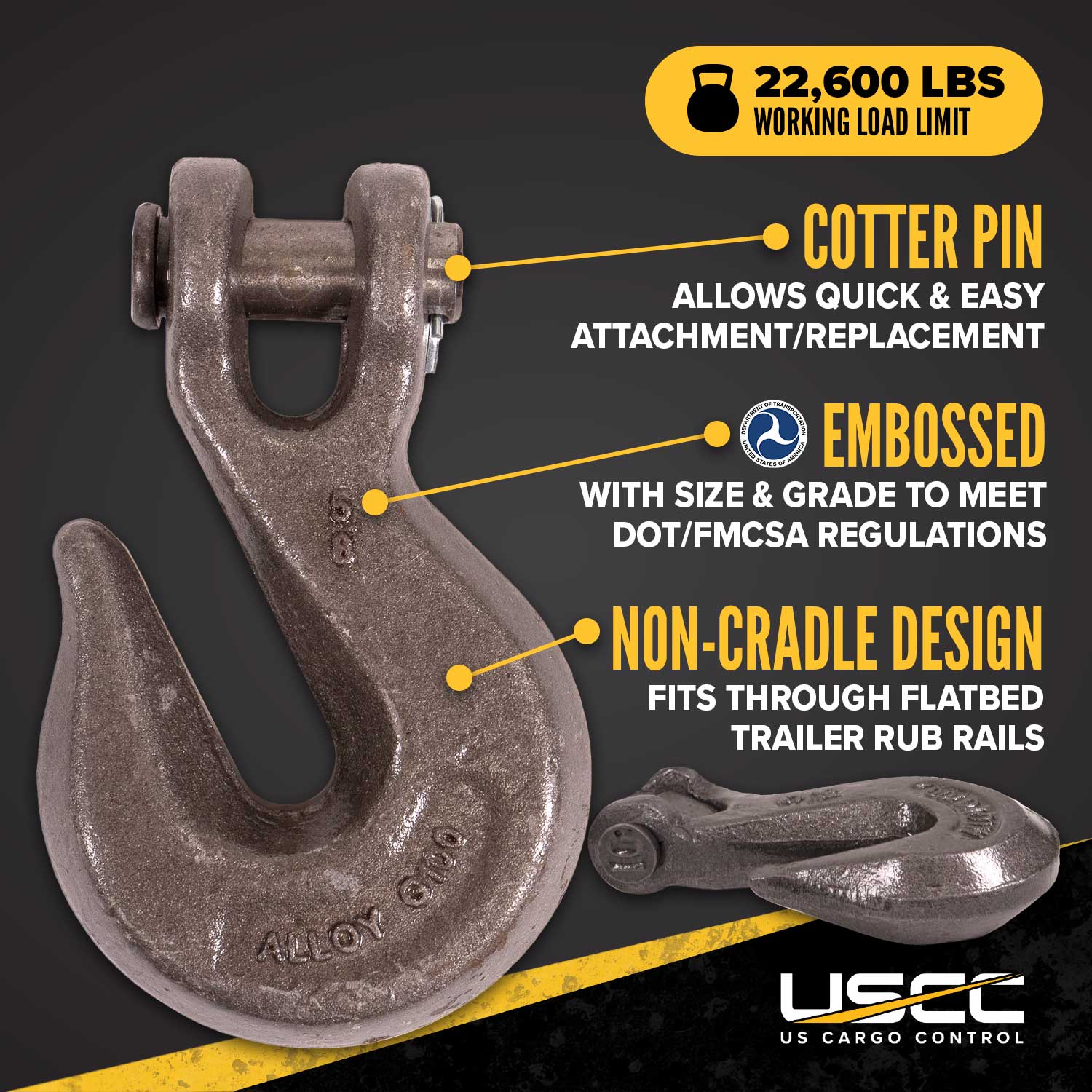

Created from heat-treated, high-strength alloy steel, this hook has a non-cradle design that allows it to fit through a flatbed trailer rub rail for quick yet secure connections. The shallow throat opening lets you easily connect to chain.
The cotter pin provides reliable attachments to chain and other accessories, along with fast replacement if the hook becomes damaged.
Note: This item is not approved for overhead lifting due to the exposed cotter pin.
22,600 lbs. Clevis Hook Industry Compliance
This hook is embossed with the size and the grade to meet DOT requirements and for stress-free inspections.
Complete Your Tie Down Setup
Make sure you have everything you need to get your cargo safely from point A to point B - browse our selection of transport chain, load binders, corner protectors, and more! We even offer custom tie down chain configurations, so you can create the perfect product for your application. We have both manufacturing and testing capabilities in-house, letting us build exactly what you need and confirm that it exceeds industry standards.
Looking for a 5/8" grab hook in another grade? This hook is also available in grade 80.
Tie Down Chain Grade Breakdown
Not sure which chain grade you need? Call to speak to one of our product experts or refer to our helpful chart!
| Grade | Material | WLL (lbs) | ||||
| 9/32" (1/4") | 5/16" | 3/8" | 1/2" | 5/8" | ||
| 70 | Carbon Steel | 3,150 | 4,700 | 6,600 | 11,300 | 15,800 |
| 80 | Alloy Steel | 3,500 | 4,500 | 7,100 | 12,000 | 18,100 |
| 100 | Alloy Steel | 4,300 | 5,700 | 8,800 | 15,000 | 22,600 |
| 120 | High Strength Alloy Steel |
5,200 | 6,600 | 10,600 | 17,900 | 27,500 |
