SKU: TC5820100

5/8" x 20' Tie Down Chain with Clevis Grab Hooks | Grade 100

5/8" x 20' Tie Down Chain with Clevis Grab Hooks | Grade 100!

Skip to product information
1 of 8

SKU: TC5820100

5/8" x 20' Tie Down Chain with Clevis Grab Hooks | Grade 100

5/8" x 20' Tie Down Chain with Clevis Grab Hooks | Grade 100!

Regular price $517.20
Sale price $517.20 Regular price
0% off
Made to Order
Ships FREE in 1-3 business days.
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • End fitting: Clevis Grab Hook
  • Length: 20'
  • Working load limit: 22,600 lbs.
  • Assembly break strength: 90,400 lbs.
  • Finish: Powder Coated Chain
  • Safety factor: 4:1
  • Manufacturer name: KWB Chain / Import End Fittings
  • Chain size: 5/8"
  • Grade: 100
  • Material: Alloy Steel
  • Product weight: 84 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
  • Rated for overhead lifting: No

Description

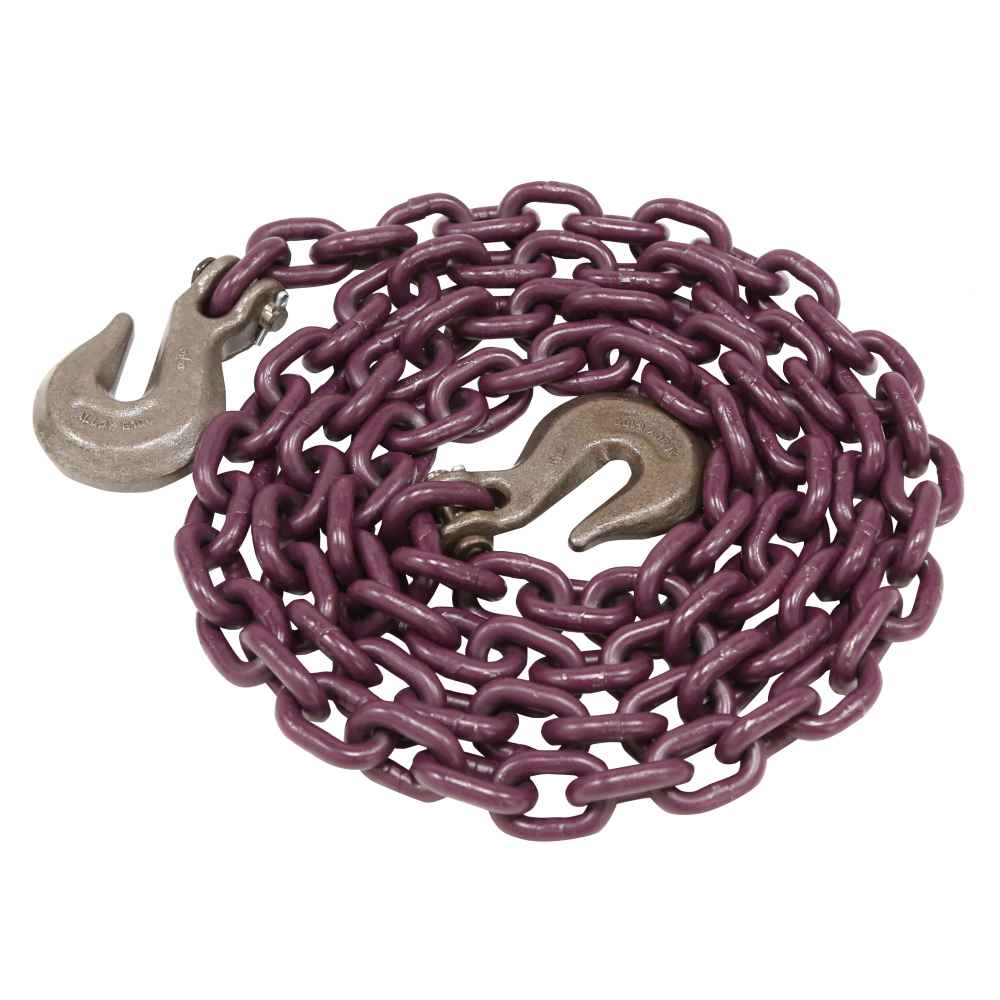

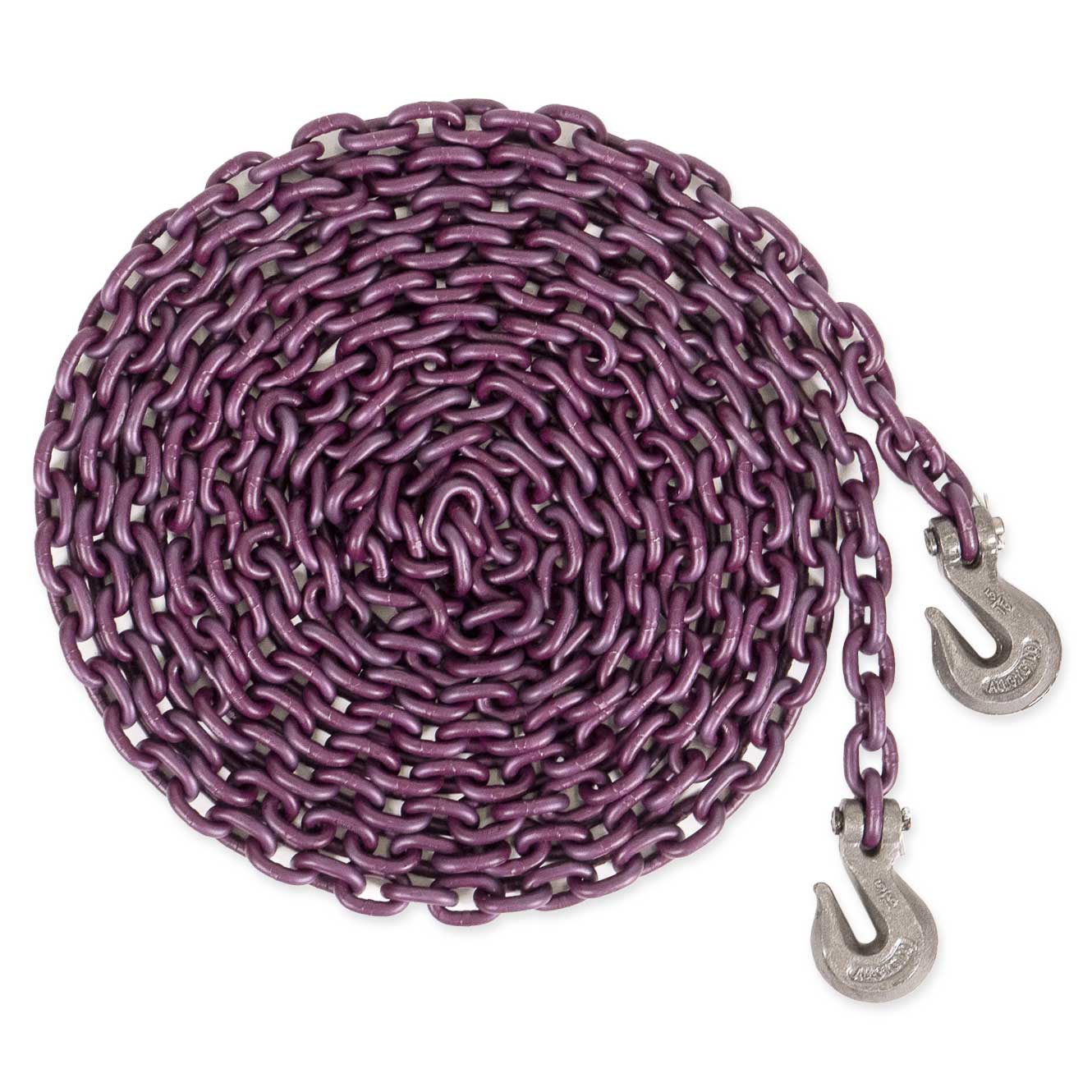

5/8" x 20' Grade 100 Chain Tie Down

When it comes to your heavy-duty loads, choose grade 100 tie down chain. Assembled in the USA with premium 5/16" KWB European-made chain and imported clevis grab hooks, they are built to last. They offer better resistance to abrasion and fatigue, along with higher working load limits.

22,600 lbs. Heavy-Duty Tie Down Chain Construction

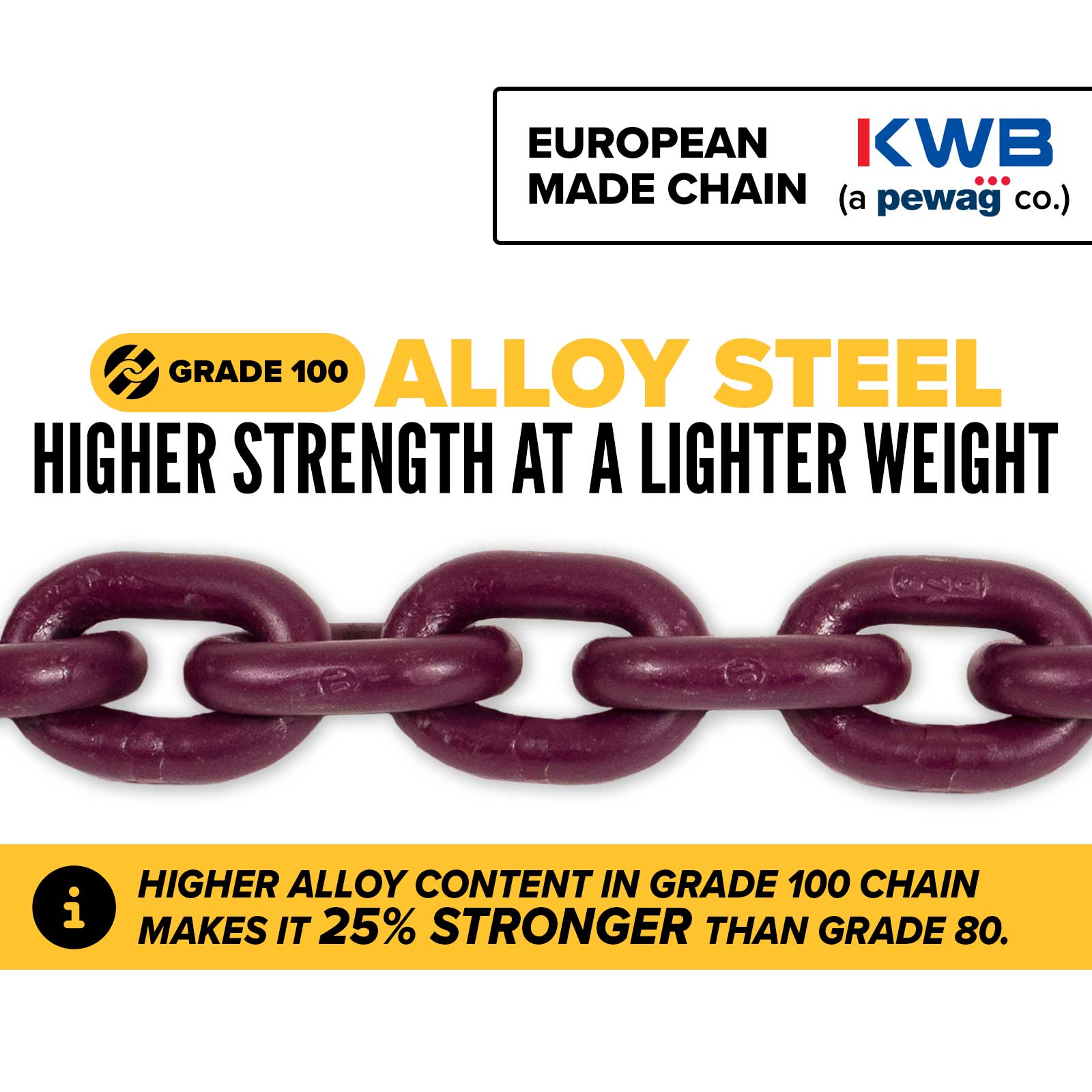

Due to the higher alloy content in grade 100 chain tie downs, they are 25% stronger than grade 80 chain options. This means it offers higher strength at a lighter weight so it's easier to handle!

The clevis grab hooks on each end have a non-cradle design that allow them to fit through a flatbed trailer rub rail for quick yet secure connections, and the shallow throat opening lets you easily connect to chain. The cotter pin means you can replace damaged hooks with little hassle.

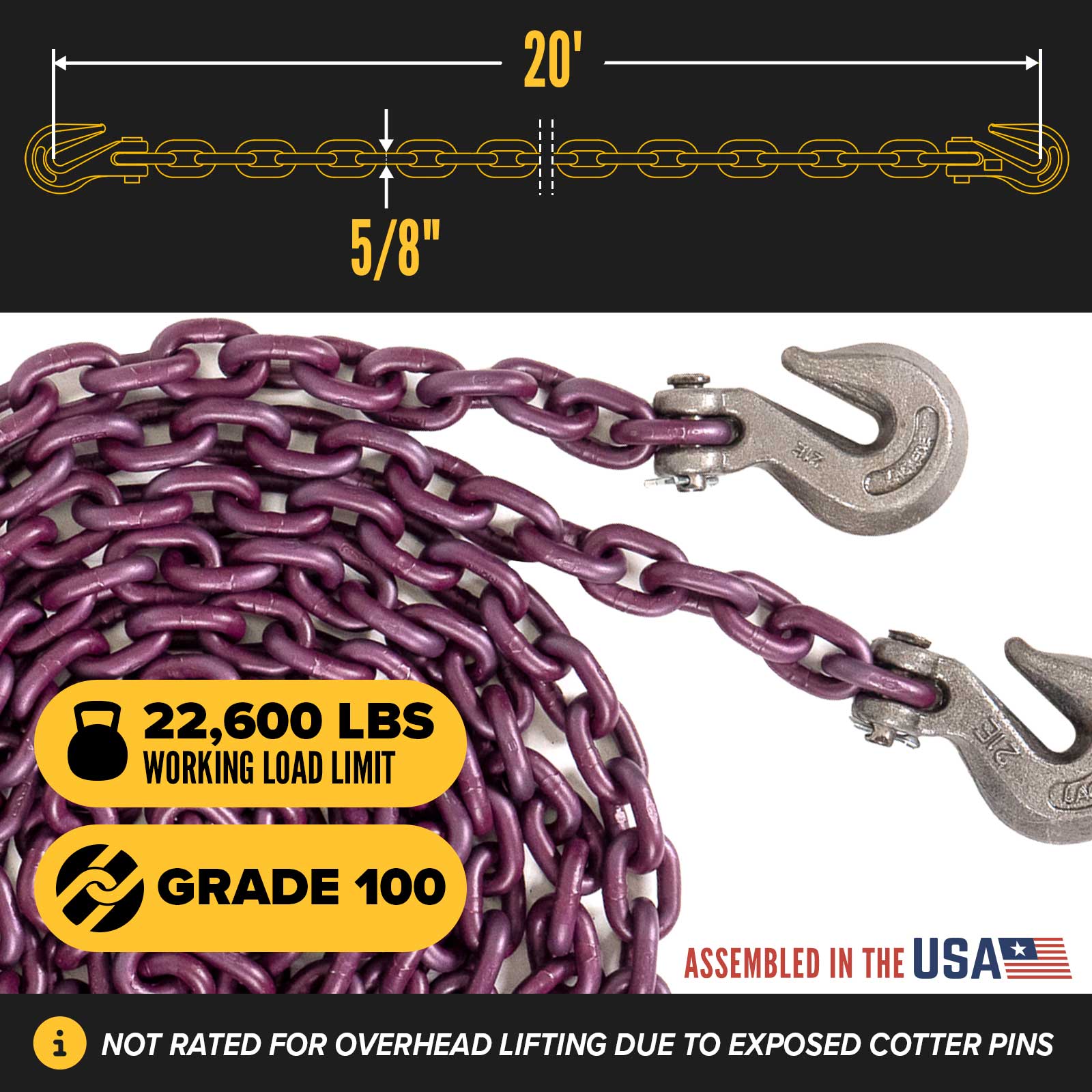

Note: G100 tie down chain is not approved for overhead lifting because the hooks have an exposed cotter pin.

G100 Truck Tie Down Chain Industry Compliance

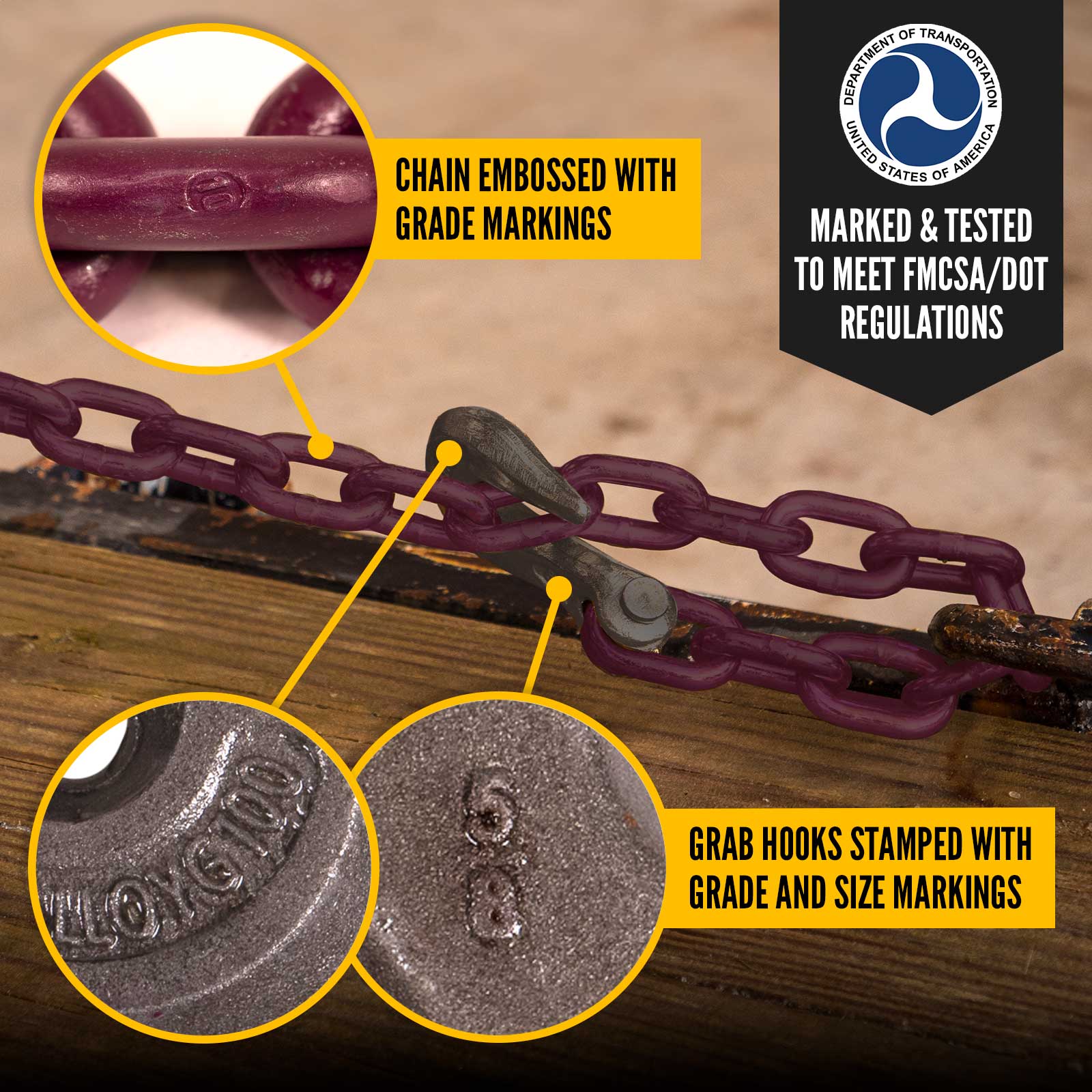

All of our tie down chain is DOT compliant and meets or exceeds FMCSA CFR49 Section 393.104 and NACM Welded Steel Chain Specifications. The hooks are embossed with the size and the grade, and the chain has grade embossing on the back of each link. They are also stamped with the manufacturer and grade every 36". This ensures you can quickly identify the chain you need, and that inspections are stress-free.

Custom Tie Down Chain & More

If you are looking for a grade 100 chain tie down configuration you don't see on our site, request a custom tie down chain. We have both manufacturing and testing capabilities in-house, letting us build exactly what you need and confirm that it exceeds industry standards.

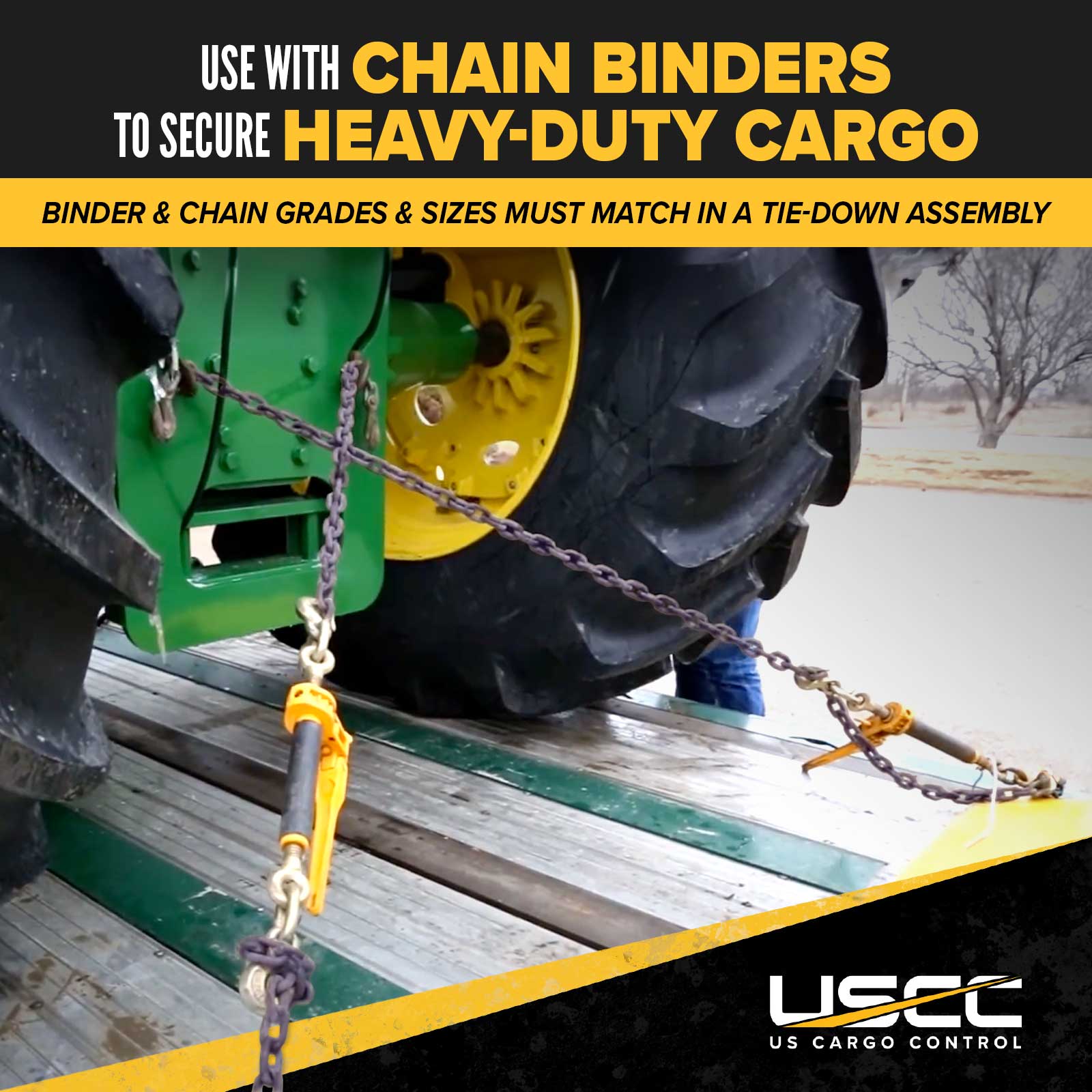

We also offer a full selection of load binders, corner protectors, coil mats, and other cargo equipment so you can create the perfect load securement system.

Chain Grade Breakdown

Not sure which chain grade you need? Call to speak to one of our product experts or refer to our helpful chart!

Grade Material WLL (lbs)
9/32" (1/4") 5/16" 3/8" 1/2" 5/8"
70 Carbon Steel 3,150 4,700 6,600 11,300 15,800
80 Alloy Steel 3,500 4,500 7,100 12,000 18,100
100 Alloy Steel 4,300 5,700 8,800 15,000 22,600
120 High Strength
Alloy Steel
5,200 6,600 10,600 17,900 27,500

View Product Safety Warnings

Source: Import

California Residents: WARNING
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
