SKU: 240CE
2" x 40' Winch Strap with Chain Extension | Yellow
2" x 40' Winch Strap with Chain Extension | Yellow!
$22.49
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 10,000 lbs.
Color: Yellow
Length: 40'
Working load limit: 3,333 lbs.
End fitting: Chain Extension
Material: Polyester webbing
Product weight: 7.5 lbs.
Shipping and returns: This item cannot be returned due to being made to order.
Webbing break strength: 12,000 lbs.
Width: 2"
Additional Info: Design Factor: 3:1
Description

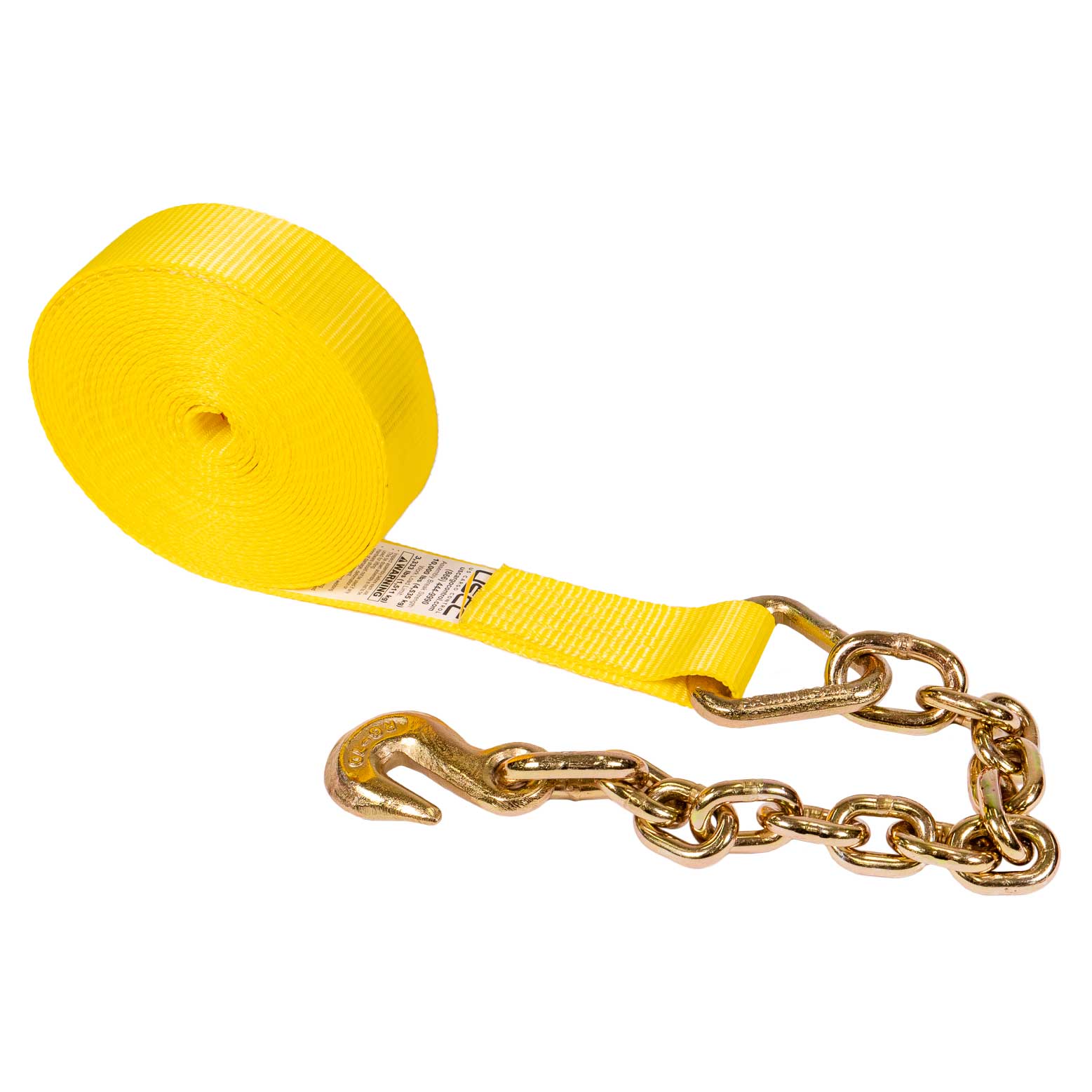

2" x 40' Trailer Winch Strap

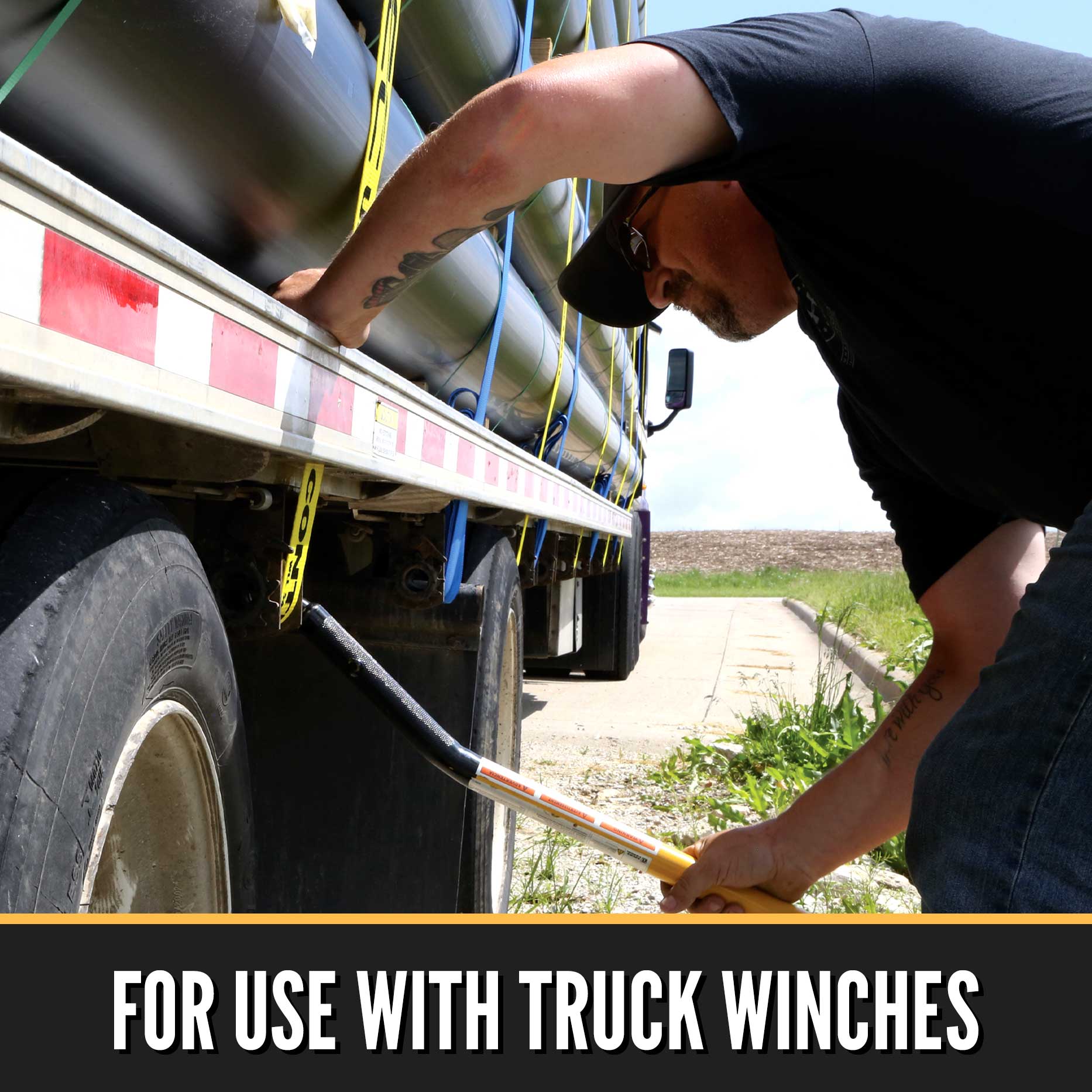

Trailer winch straps are one of the most common pieces of tie down equipment for flatbeds and other trailers. Used in combination with winches and other related hardware, their versatility makes them the ideal choice for a wide range of cargo.
The rugged polyester webbing offers very little stretch and is abrasion-, UV-, and water-resistant.

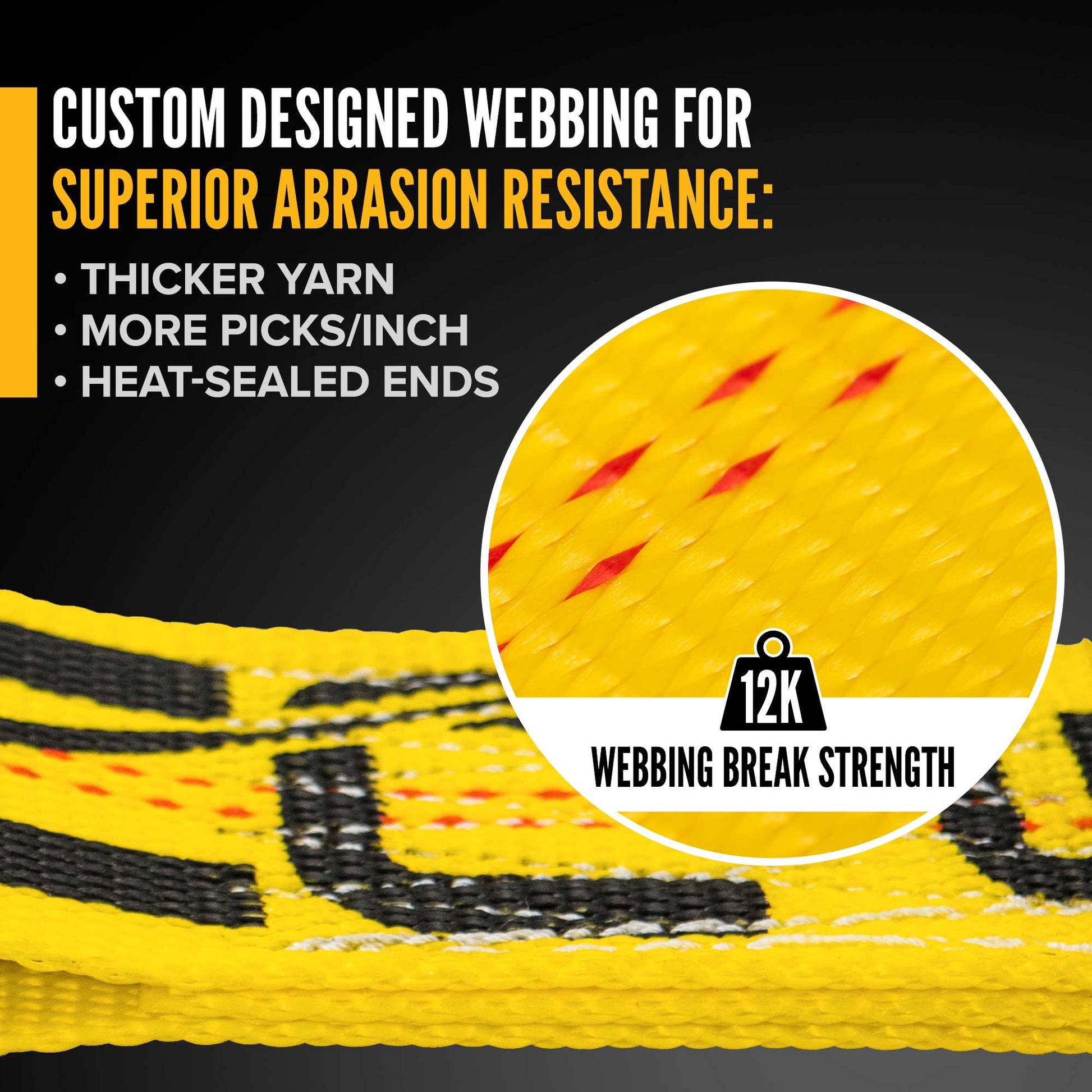

The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your winch straps will last longer.
The 40-foot length strap fits standard 2" winches.

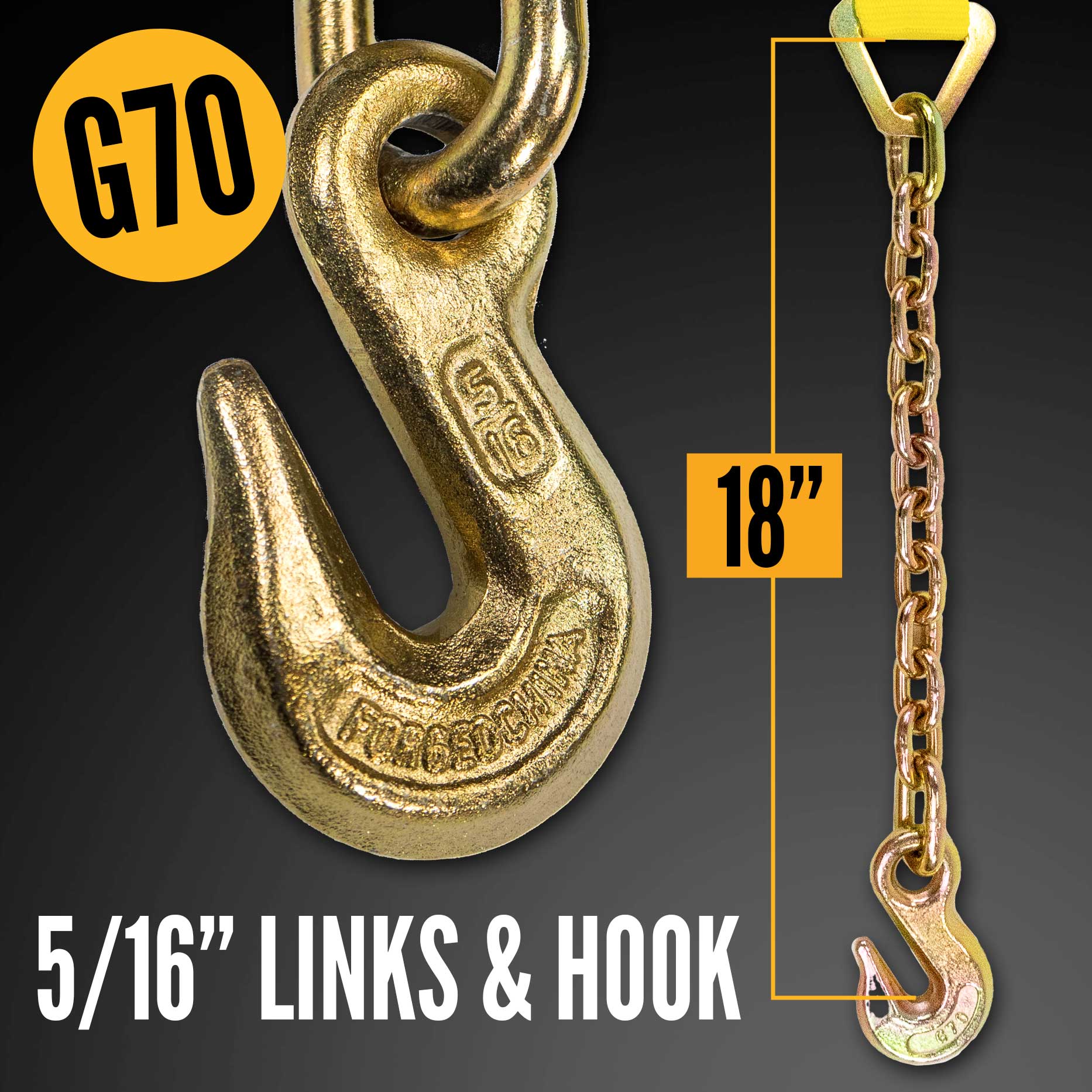

Benefits of 5/16" Chain Extension End Hardware

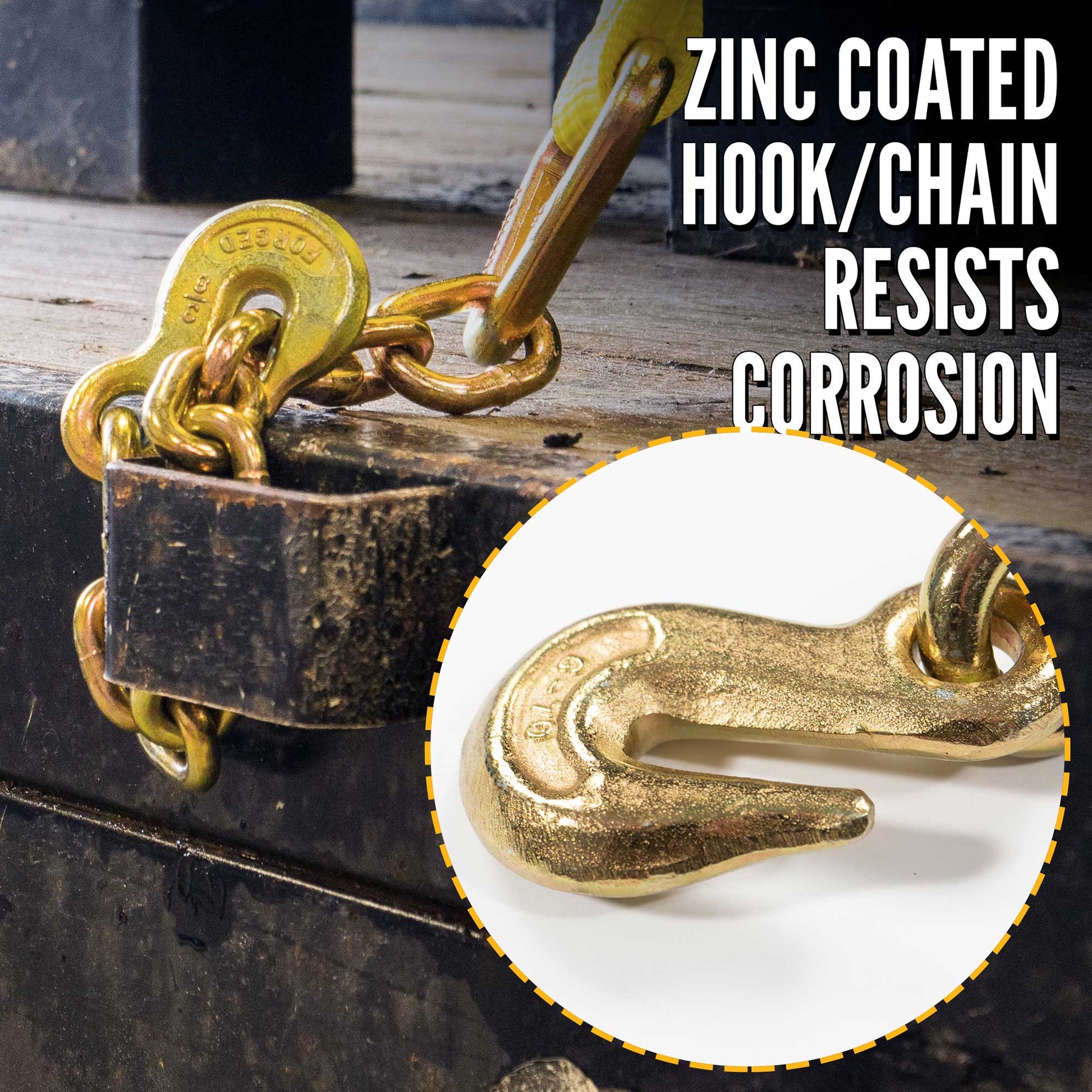

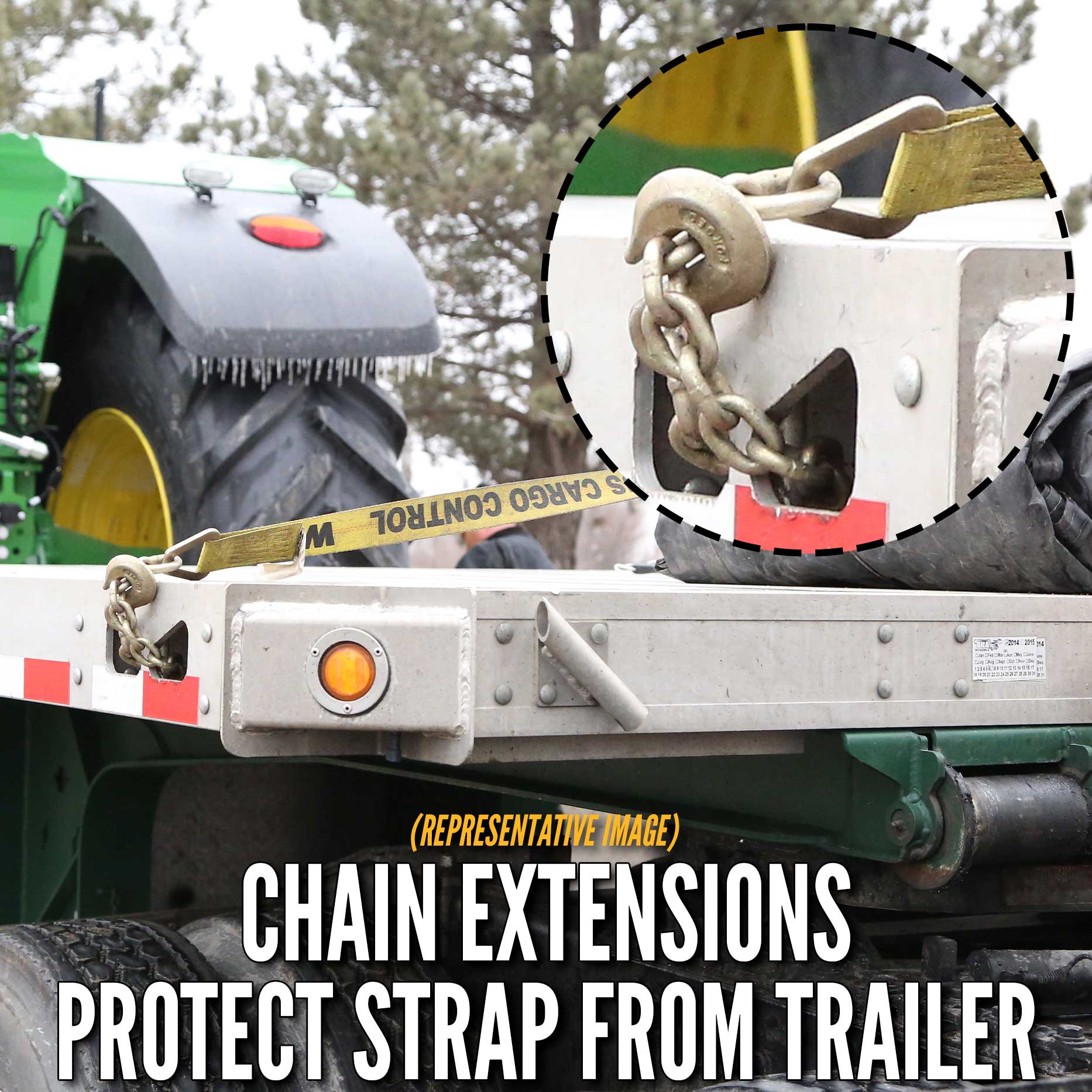

Chain extensions allow you to combine the strength of grade 70 transport chain with the softness of polyester webbing. You can use the rub rails or stake pockets on your truck or trailer to tie down your cargo without risking damage to the webbing part of the strap. The extra-length 18" chain extension is also easier to wrap around your stake pocket. This is best practice and not only provides a better, more secure hold, but also gives you the full working load limit of the stake pocket. It has a 2" D-ring, a 14-1/2" chain, and a clevis grab hook for quick and secure connections.
10,000 lb. Tie Down Strap Industry Compliance

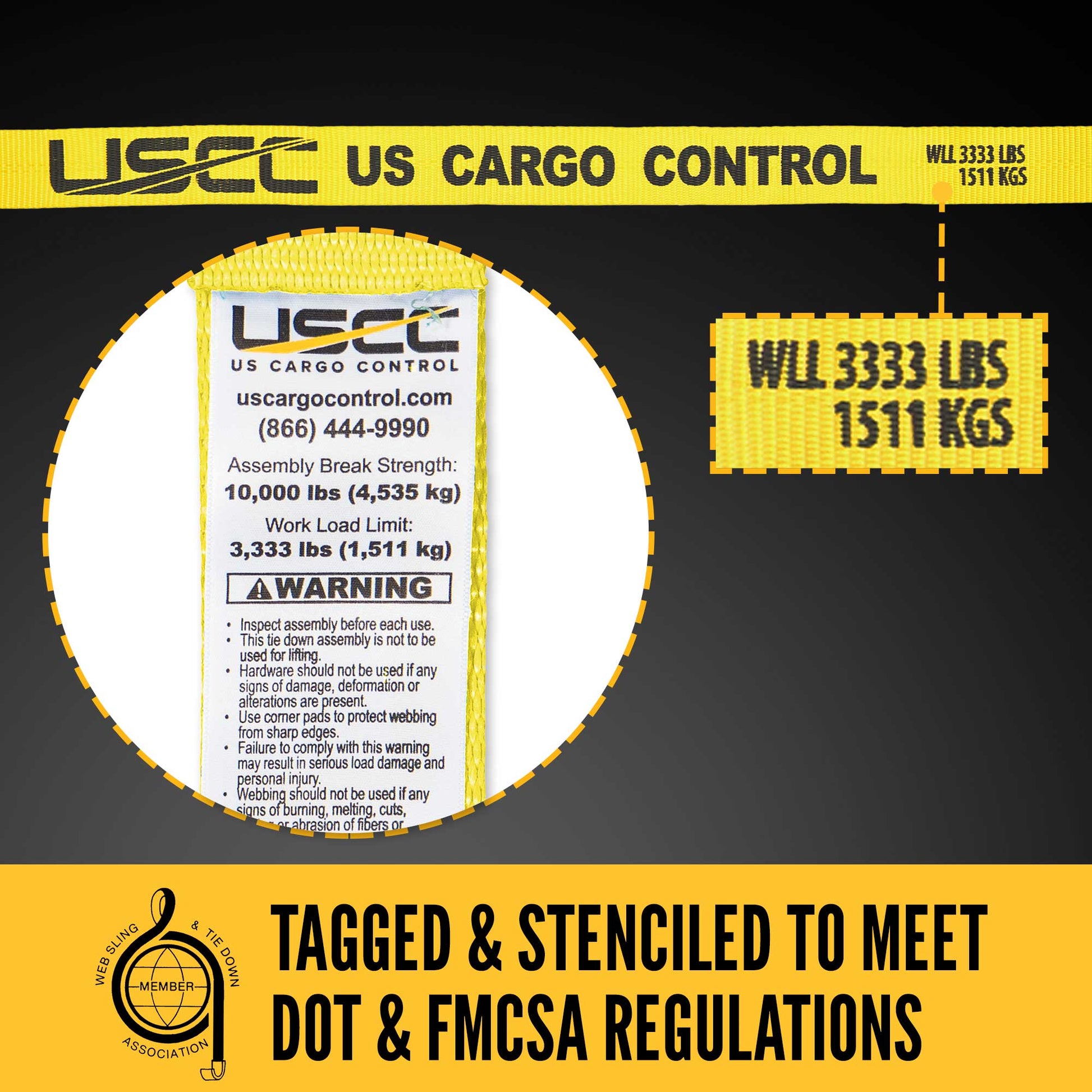

All of our trailer winch straps are tested in the USA to ensure they meet all standards - they are tagged and stenciled with the working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.
Learn more about proper load handling and securement in the WSTDA safety bulletins.
Custom Winch Straps Available
Looking for a combination of length, color, hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps. We can create the ideal strap for your application at our Iowa manufacturing facility - this not only allows us to hold all of our straps to the same high quality standards, but it also means fast shipping to you!
What is Design Factor?
According to the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.
Complete your tie down system with winch bars and truck winches, as well as corner protectors and CORDURA cargo strap protectors.
